Introduction
Thanks for purchasing an Ultra HD distribution amplier from Audio Authority.
The 1398D, 1394D, and 1392D are designed to split an Ultra HD or 4K HDMI®
signal from one source to a wide spectrum of HDMI displays in retail demo
environments. This family of products is the ideal solution for merchandising
Ultra HD displays using the latest content at the highest resolutions and refresh
rates, including 2160p@60Hz.
Display-source compatibility is ensured by the distribution amplier’s multiple
EDID options. Daisy-chain multiple distribution ampliers or create a hub-and-
spoke layout for large distribution systems.
Features
● Supports UHDTV resolutions up to 3840x2160@24/25/30/50/60Hz
and 4096x2160@24/25/30/50/60Hz
● HDCP 2.2 compliant
● Wide frequency range: 25MHz~600MHz
● Video bandwidth: 18Gbps
● Supports default EDID and has the ability to learn the EDID of displays
● Mini-USB rmware update for expanding compatibility
● Supports all bitstream audio formats such as Dolby Digital and DTS
● Compact footprint and easy installation
Checking Package Contents
Before attempting to use this device, please check the packaging and make
certain the following items are contained in the shipping carton:
● Distribution Amplier
● 5VDC Power Adapter
● User Manual
4
Getting the Best Results
Many factors inuence the quality and reliability of HDMI signal distribution
installations. The following are the main factors to consider, and basic precautions
that will ensure the best possible performance.
● SYS-RST for Source Switching - If the source device will be switched often
during operation, as in the case of an HDMI switch connected at the head end
of the distribution system, set the SYS-RST switch to ON (SYS). This setting
prevents the 1398D from interrupting video and audio transmission to re-learn
EDID settings each time the source is switched, or a TV is hot-plugged to the
distribution system.
● Resolution tracking - Set the source to output the best resolution that all
TVs are capable of displaying. Utilize the following instructions to ensure that
all TVs connected to the DA receive video signal. If the TVs have a wide
range of resolution capabilities, the highest resolution sets may be shown at
a lower resolution.
● Source resolution and video/sound quality - Sources, such as satellite
receivers or cable boxes can output at low resolutions or deliver compressed
video material that may yield poor results. Consider the source when planning
and troubleshooting your system.
● Output display devices - The quality of the video image depends upon the
type and quality of the HDMI display devices used. The device with the lowest
resolution will be the reference standard for the rest of the HDMI displays
connected to the DA.
● Distance between the DA source and the displays -Use the shortest
cables possible, but premium certied high speed cables and advanced
HDMI extenders may be necessary for the longest runs.
● Connection cables - HDMI cable design and quality are extremely important
in long cable runs where capacitance can severely degrade performance. Use
premium certied high speed cables designed to handle 4K resolutions and 3D;
low quality cables are susceptible to interference. Always use good strain relief
methods to prevent cables from becoming loose over time.
● Interference from nearby electrical devices - RF emission can have an
adverse effect on signal quality. For example, older computer monitors often
emit very high electromagnetic elds that can interfere with the performance of
nearby video equipment.

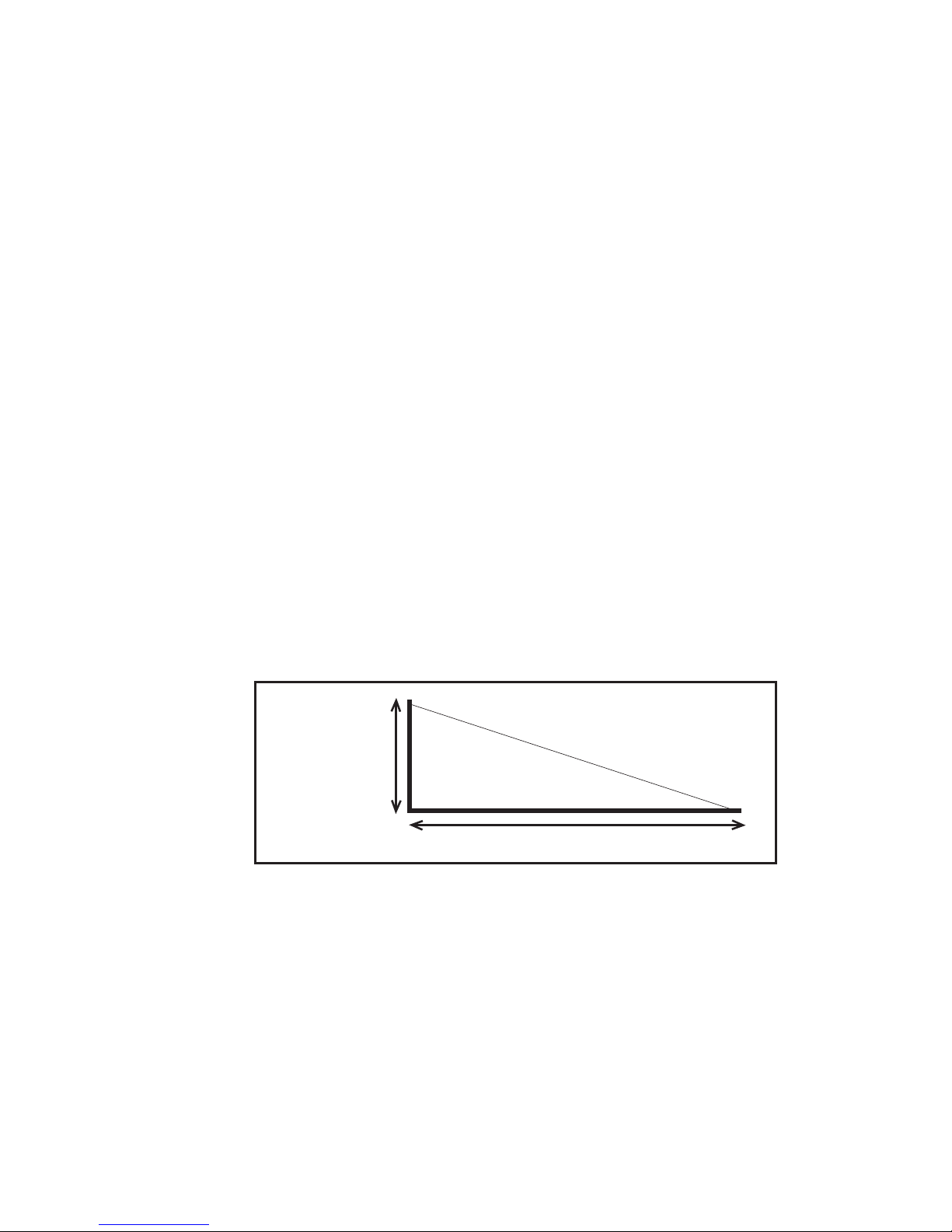

Higher
Lower
Shorter Distance Longer Distance
Resolution
Refresh Rate
Bit Depth
5
Planning a Distribution System
● Each display should be tested with the source(s) being used to ensure basic
compatibility before connecting them to a distribution amp and/or switcher.
Not all HDMI components and displays are compatible.
● Since all of the displays will be receiving the same video signal resolution
and format from the source, make sure the source is set to output the highest
resolution that all of the displays can accept.For instance, if one of the
displays connected to the distribution system can only accept a maximum
input resolution of 1080p, all of the displays will receive only 1080p video
signals. You may consider creating two or three separate distribution systems
with different sources and different output resolutions so that you can
adequately demonstrate the highest resolution HDTV sets.
● Since HDMI connectors can sometimes become loose, mount the switcher
or distribution amplier to a at surface and add strain relief tie-downs a few
inches away from every HDMI cable connector.
1398D
UHD PLAYER
1398D
Eight UHD TVs on display
PREMIUM CERTIFIED
HIGH SPEED HDMI
CABLES
6
Installation
Study the drawing below and become familiar with the controls, signal input,
outputs and power input. The 1398D is shown below, the differences between it
and the 1394D and 1392D are the number of HDMI outputs available.
OUTPUT 4
OUTPUT 3
OUTPUT 2
OUTPUT 1
OUTPUT 8
OUTPUT 7
OUTPUT 6
OUTPUT 5
EDID MODE
INPUT
SYS-RST
SYNC
FIRMWARE
UPDATE
PORT
POWER
SER V IC E O U T P U T O U T P U T SYN C IN P U T O U T P U T P O W E R
D C 5 V
6
7
1 8
O U T P U T O U T P U T O U T P U T O U T P U T O U T P U T
E D ID SYS -R S T
S T D T V
O N O F F
1
2
3
4
5
FRONT PANEL REAR PANEL
7
Wiring the System
● Switch off all devices, including monitors.
● Connect a premium certied high speed cable from the HDMI source to the
input of the DA. Cable lengths should be kept as short as possible.
● Connect the outputs of the DA to displays or other devices.
● Make certain that the HDMI cables are securely plugged into the source and
display devices as well as the DA. Always use premium certied high speed
cables, and the shortest length possible, for best results.
● Connect the power adapter to the AC source and then to the DA.
● The unit begins to function as soon as the AC adapter is connected to the unit
and AC power. There is no power switch.
● Turn on the HDMI source and HDMI destination devices and observe the
source signal on the inputs of all of the destination devices.
Note: Proper operation of HDMI distribution ampliers depends on the use
of premium certied high speed HDMI cables with low loss, high bandwidth
signal handling capabilities.
Operation
Supported Resolutions:
DVI and HDMI Resolutions Input Output
640x480@60/72/75/85
800x600@56/60/72/75/85
1024x768@60/70/75/85
1280x1024@60
1366x768@60
1600x1200@60
1920x1080@60
1920x1200@60
1440x576i@50
720x576p@50
1280x720p@50/59.94/60
1920x1080i@50/59.94/60
[email protected]/24/25/29.97/30/50/59.94/60
3840x2160@24/25/30/50/60
4096x2160@24/25/30/50/60
8
Switch Settings
● EDID: Choose Standard (STD) or TV mode. In TV mode, the DA
automatically detects and stores the output 1 sink EDID data (e.g. a TV).
Switch to STD mode for 1080p output.
● SYS-RST: The DA checks the EDID of connected displays every eight to ten
minutes. Set the SYS-RST switch to ON to prevent the DA from interrupting
video and audio transmission to re-learn EDID settings each time the source
is switched, or a TV is hot-plugged to the distribution system.
Firmware Updates
Contact Audio Authority Technical Support at 800-322-8346 for information
regarding rmware updates.
Troubleshooting
● For 4K resolution, use premium certied high speed HDMI cables and a
high speed HDMI Extender (if needed) that supports Ultra-HD. Make certain
that the input cable is as short as possible. HDMI cable design and quality
are extremely important in long cable runs where capacitance can severely
impact performance.
● Make certain that the distribution amplier’s power LED is illuminated and
not ickering on and off. Intermittent operation generally means a problem
with the DC power adapter or low AC voltage being supplied to the DC
adapter’s input.
● If some lower resolution TVs do not display a picture, you may need to divide
your distribution system into separate 1080p, and 2160p systems with a
source for each system.
● If some displays are not receiving video signal, or lose signal, check to see if
they are on the wrong input.
● If you still experience problems using the distribution amplier, troubleshoot
by rst attaching the source device directly to each of the destination devices
in turn using the same cables you are using with the expanded system. This
is a way of determining if the problem is due to bad cables or a problem with
the other devices. If you are unable to obtain a signal using this simplied
path, suspect the cables, the source device or the destination device.
If a problem still persists after trying the above suggestions, contact the
Audio Authority Technical Service department via email:
support@audioauthority.com, or call 800-322-8346 or 859-233-4599.
9
Specications
Model 1392D 1x2 Distribution Amplier (Splitter)
Model 1394D 1x4 Distribution Amplier (Splitter)
Model 1398D 1x8 Distribution Amplier (Splitter)
HDMI Features HDMI, 3D & 4K/2K
DVI Compliance DVI 1.0
HDCP Compliance HDCP 2.2
Video Bandwidth Single-link 600MHz (18Gbps)
Maximum Video Resolution
and Formats
480i~1080p@24/50/60
4K2K@24/25/30/50/60
Audio Support DTS-HD Master Audio, Dolby TrueHD,
Dolby Atmos, Dolby Digital, DTS, DVD-
Audio, LPCM, SACD, MPCM
ESD Protection Human body model — ±8kV (air-gap dis-
charge) & ±4kV (contact discharge)
Firmware Update via Mini-USB port
Input/Output 1392D 1x HDMI/2x HDMI
Input/Output 1394D 1x HDMI/4x HDMI
Input/Output 1398D 1x HDMI/8x HDMI
HDMI Connector Type A (19-pin female)
Control Switch EDID mode selection
Dimensions (L x W x H) 1392D 108 x 128 x 25mm
Dimensions (L x W x H) 1394D 108 x 231 x 25mm
Dimensions (L x W x H) 1398D 240 x 103 x 25mm
Weight 1392D 358 g
Weight 1394D 616 g
Weight 1398D 690 g
Power Supply 5V DC 3A
Power Consumption 9.5 watts (max)
Regulatory Approvals US/EU standards, CE, FCC/UL certied
Operation Temperature 0~40°C (32~104°F)
Storage Temperature -20~60°C (-4~140°F)
Relative Humidity 20~90% RH (no condensation)
10
Limited Warranty
If this Audio Authority®product fails due to defects in materials or workmanship
within one year from the date of the original sale to the end-user, Audio Authority
will replace or repair the defective product at no cost. Freight charges for the
replacement unit will be paid by Audio Authority (Ground service only). A copy of
the invoice showing the item number and date of purchase (proof-of-purchase)
must be submitted with the defective unit to constitute a valid in-warranty claim.
Units that fail after the warranty period has expired may be returned to the factory
for repair at a nominal charge, if not damaged beyond the point of repair. All freight
charges for out-of-warranty returns for repair are the responsibility of the customer.
Units returned for repair must have a Return Authorization Number assigned by
the factory.
This is a limited warranty and is not applicable for products which, in our opinion,
have been damaged, altered, abused, misused, or improperly installed. Audio
Authority makes no other warranties either expressed or implied, including
limitation warranties as to merchantability or tness for a particular purpose.
Additionally, there are no allowances or credits available for service work or
installation performed in the eld by the end user.
Warranty Service Procedures
If you suspect a product defect, contact Audio Authority’s Technical Service
Department at 800-322-8346 or 859-233-4599 for assistance in verifying the
problem. If a defect or potential defect is suspected, a replacement unit will be
shipped immediately on a defect-exchange basis and a Return Authorization
Number will be issued for the return of the defective product. Replacement units
are sent out at the Manufacturer’s Suggested Retail Price which is charged to the
Customer’s Credit Card at the time of shipment. Once we receive the defective
unit back at the factory, it will be evaluated under the conditions of this warranty
and if found to be in-warranty, a full credit will be issued to the Customer’s Credit
Card. Return freight charges for the defective unit are the customer’s responsibility.
Please contact our Technical Service Department for complete details concerning
all in and out of warranty service matters.
We appreciate your condence in our products and services and will always strive
to meet or exceed your needs.
Otros manuales para 1398D
1
Este manual sirve para los siguientes modelos
2
Tabla de contenidos
Otros manuales de Amplificador de Audio Authority
Audio Authority
Audio Authority SonaFlex SF-16M Manual de usuario
Audio Authority
Audio Authority 1710 Manual de usuario
Audio Authority
Audio Authority 1710A Manual de usuario
Audio Authority
Audio Authority Access EZ 955 Guía del usuario
Audio Authority
Audio Authority 9850 Instrucciones de funcionamiento
Audio Authority
Audio Authority 1714 Manual de usuario
Audio Authority
Audio Authority 1374A Manual de usuario
Audio Authority
Audio Authority 1715 Manual de usuario
Audio Authority
Audio Authority 1185ci Manual de usuario
Audio Authority
Audio Authority 916X DC Manual de usuario
Audio Authority
Audio Authority 985U Instrucciones de funcionamiento
Audio Authority
Audio Authority SF-16M Instrucciones de funcionamiento
Audio Authority
Audio Authority SF-16M Instrucciones de funcionamiento
Audio Authority
Audio Authority SF-16M Manual de usuario
Audio Authority
Audio Authority 985DTV Instrucciones de funcionamiento
Audio Authority
Audio Authority 1805 Manual de usuario
Audio Authority
Audio Authority 1398 Manual de usuario
Audio Authority
Audio Authority Sona Flex SF-16B Instrucciones de funcionamiento
Audio Authority
Audio Authority Distribution Amplifiers 985DTO Instrucciones de funcionamiento
Audio Authority
Audio Authority ADX-1616 Manual
