Note:

Use a stud finder to accurately locate the centre of

the stud. Ensure that all screws fix securely into the stud.

Installation Instructions

TH-3060-UT

Component Checklist

Wall Plate

Right Mounting

Bracket

IMPORTANT INFORMATION

! IMPORTANT - Install Telehook 3060 Wall Mount as per Installation Instructions.

! This product supports a maximum load of 50kg (110lbs).

! This product only supports displays with mounting hole configurations from 100mm wide x 100mm

high up to 600mm wide x 400mm high.

! The manufacturer does not accept responsibility for incorrect installation.

! Before installing this Telehook product, please check the display ventilation requirements with your

LED/LCD manufacturer.

Step 1. Check Components

Step 2. Mounting the Wall Plate

Tools Required:

Power Drill

•

5mm ( ”) drill bit

•Phillips Head screwdriver•

10mm

(”)

masonry drill bit

•10mm

(”)

Socket Wrench or Shifter•

Tip: Use the built-in spirit level to ensure wall plate is horizontal

Masonry Wall

Timber Stud

Check you have received all parts against the Component Checklist and Hardware above.

Left Mounting

Bracket

Timber Stud

Wall Plate

Coach Screw

Nylon Anchor

Coach Screw

Wall Plate

M6 Washer

Flat screen wall mount | tilt

10mm

(”)

hole

depth: 55mm (2.2”)

5mm

(”)

hole

depth: 55mm (2.2”)

M6 Washer

End Cap (x2)

End Cap

0.2

0.39

Display Mounting

Screws

Hardware

Nylon Anchor (x4)

M6 Washer (x4)

M5/M6 Spacer (x4)

M8 Spacer (x4)

Coach Screw (x4)

Multi-washer (x4)

M4x16/25/30mm (x4 each)

M5x14mm (x4 each)

M6x14/30mm (x4 each)

M8x 20/30mm (x4 each)

WALL

HOOK

Locking Plate

Wall Plate

ROTATE 90°

TO LOCK

No portion of this document or any artwork contained herein should be reproduced in anyway without the express written consent Atdec Pty Ltd.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 18

/09/2015

Step 5. Cable Management

Installation Complete

Detaching Display from Wall Plate:

Open the padlock. Rotate the Locking Plate

90° to unhook. Lift the Display away from

the Wall Plate.

Tilt the Display to the desired viewing

angle.

Adjustment range is from -5°

backward tilt to +15° forward tilt.

Spacer

(optional, use only for

recessed mounting holes)

Mounting Screw

Multi-washer

Left Mounting

Bracket

Right Mounting

Bracket

WALL

e pa

is not inc

(pa

kle

iameter 4mm max.)

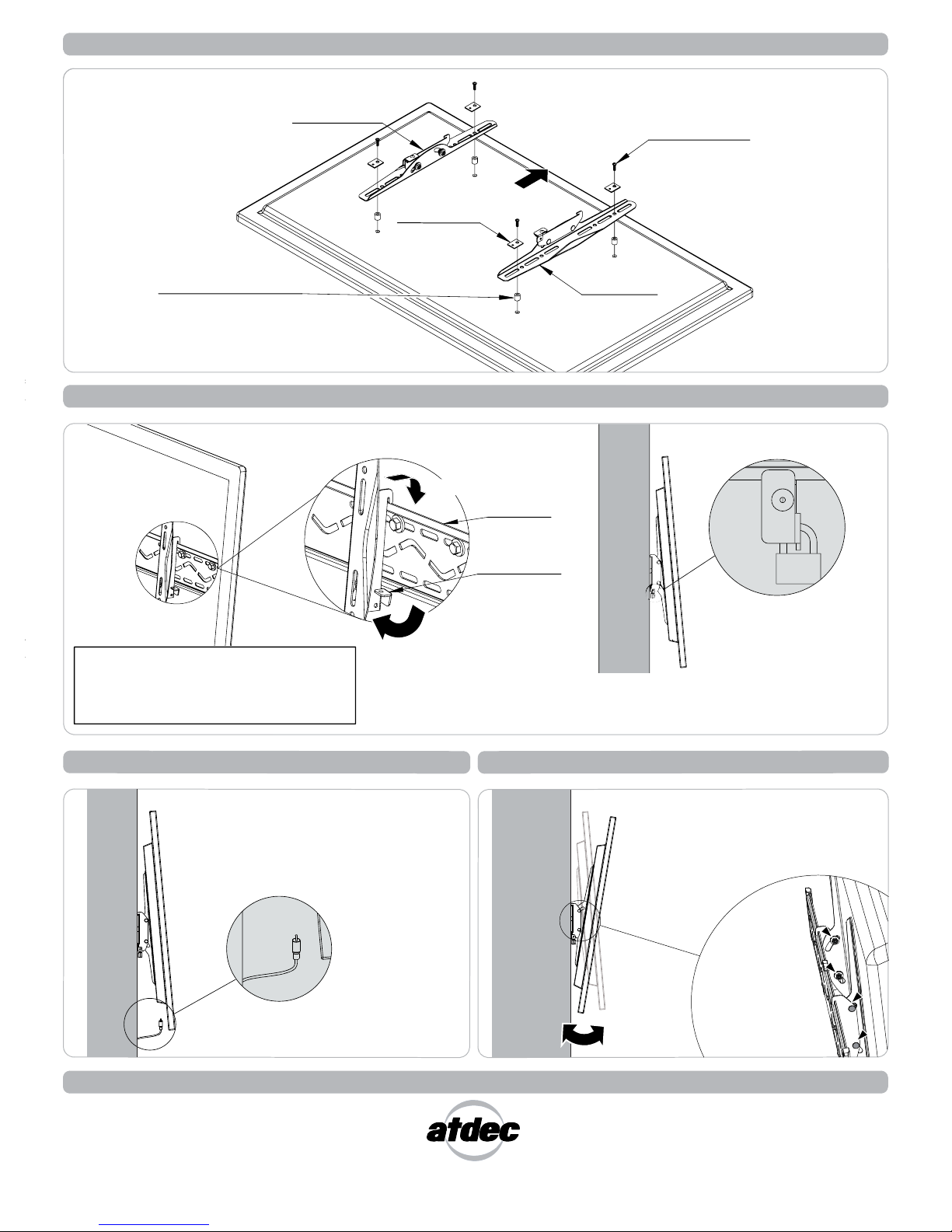

A. Hook the TV mounted display brackets over the top of the wall plate.

B. Turn the locking plate downward to 90° and lock it with padlock.

Note: Make sure the TV is correctly hooked before releasing the Display.

Step 4. Attaching/Detaching Display to Wall Plate (2 people required)

Step 3. Attaching Brackets to Display

Step 6. Pitching Angle Adjustment

WALL

-5°

BACKWARD

+15°

FORWARD

Slowly pull bottom of display away

from wall and then attach or adjust

cables on back of display. Slowly

allow display to return to the wall

after finishing cable management.

TOP

If necessary,

adjust the

tension of the

tilt mechanism

by tightening or

loosening 4x nuts.
