ASUS Wireless Router
(RT-N56U) Setup User’s Guide
1
HKBN_SETUP_ROUTER_ASUS_ENG_230315
1 Get to know the ASUS router..............................................................................................2
A. Tech Specs - Connections and Expansion .................................................................2
B. Minimum System Requirements (bb500/ FibreHome500/ bb1000/ FibreHome1000).2
2 Connecting to ASUS router.................................................................................................3
3 Switching your broadband Internet service to HKBN..........................................................6
4 Tips on Internet Connection................................................................................................7
2
HKBN_SETUP_ROUTER_ASUS_ENG_230315
Get to know the ASUS Router
1 Get to know the ASUS router
A. Tech Specs - Connections and Expansion
B. Minimum System Requirements (bb500/ FibreHome500/ bb1000/ FibreHome1000)
To ensure that you have a fast and stable network, please refer to the following as a
recommended minimum system requirement.
Central Processing Unit (CPU)
Intel Core2 Duo P8700/2.5 (3 GHz or above)
System Memory
4GB or above
Hard disk
64GB SATA II SSD (Min. I/O speed of 200MB/s)
Network Adaptor
100/1000M Network Adaptor
USB LED
LAN LED
WAN LED
5GHz LED
2.4GHz LED
Power LED
USB Port
LAN Port
WAN Port
AC Socket
3
HKBN_SETUP_ROUTER_ASUS_ENG_230315
Connecting to ASUS Router
2 Connecting to ASUS router
Make sure you have a LAN cable connected from the HKBN wall plate/ONT to the WAN port
of your ASUS Router (RT-N56U). Using a second LAN cable, connect it from the Router LAN
port to the computer LAN port. Once finished, switch on the power supply for the router and
turn on the computer.
Open your Internet browser, and input [http://192.168.1.1] into the address-bar then press
[Enter]. Enter [admin] as the default user name and password, click [OK].
After login, press [Go] to start the setup.
4
HKBN_SETUP_ROUTER_ASUS_ENG_230315
Connecting to ASUS Router
2Connecting to ASUS router
Create a [Router Login Name] and [Password] then press [Next] to continue to the connection
setup.
ASUS Wireless Router (RT-N56U) supports both 2.4GHz and 5GHz wireless connections.
After creating the network name (SSID) and security key, it is recommended that you choose
[Copy 2.4GHz to 5GHz settings], then click [Apply] to finish.
5
HKBN_SETUP_ROUTER_ASUS_ENG_230315
Connecting to ASUS Router
2Connecting to ASUS router
Confirm all settings displayed are correct in the Network Configuration Summary then click
[Next].
Before the new settings can be applied, the router will again ask for an authentication done
by entering your new Login name and Password.
6
HKBN_SETUP_ROUTER_ASUS_ENG_230315
Switching your broadband
Internet service to HKBN
3 Switching your broadband Internet service to HKBN
After logging in to the router through your browser, select [WAN] under [Advanced Settings]
of router settings page. Choose [Automatic IP] under [WAN Connection Type], then click
[Apply] to update the setting.
7
HKBN_SETUP_ROUTER_ASUS_ENG_230315
Tips on Internet Connection
Tips on Internet Connection
Factory default reset of
ASUS router
4 Factory default reset of ASUS Router
If the device is not accessible from the router setting page, you can reset to the factory default
setting by pressing the reset button.
1. 1. Confirm your TP-LINK router is switched on.
2. Press and hold the [Reset] button with a sharp object for 5 seconds, then release the
[Reset] button and wait the router to reboot to its factory default settings.
3. Default Setting：
Login Name/ Password
IP Address
SSID
admin / admin
192.168.1.1
ASUS
ASUS Wireless Router (RT-N56U) - The Reset Button is located to the next to USB port
Reset Button
Otros manuales para RT-N56U
10
Tabla de contenidos
Otros manuales de Enrutador inalámbrico de Asus
Asus

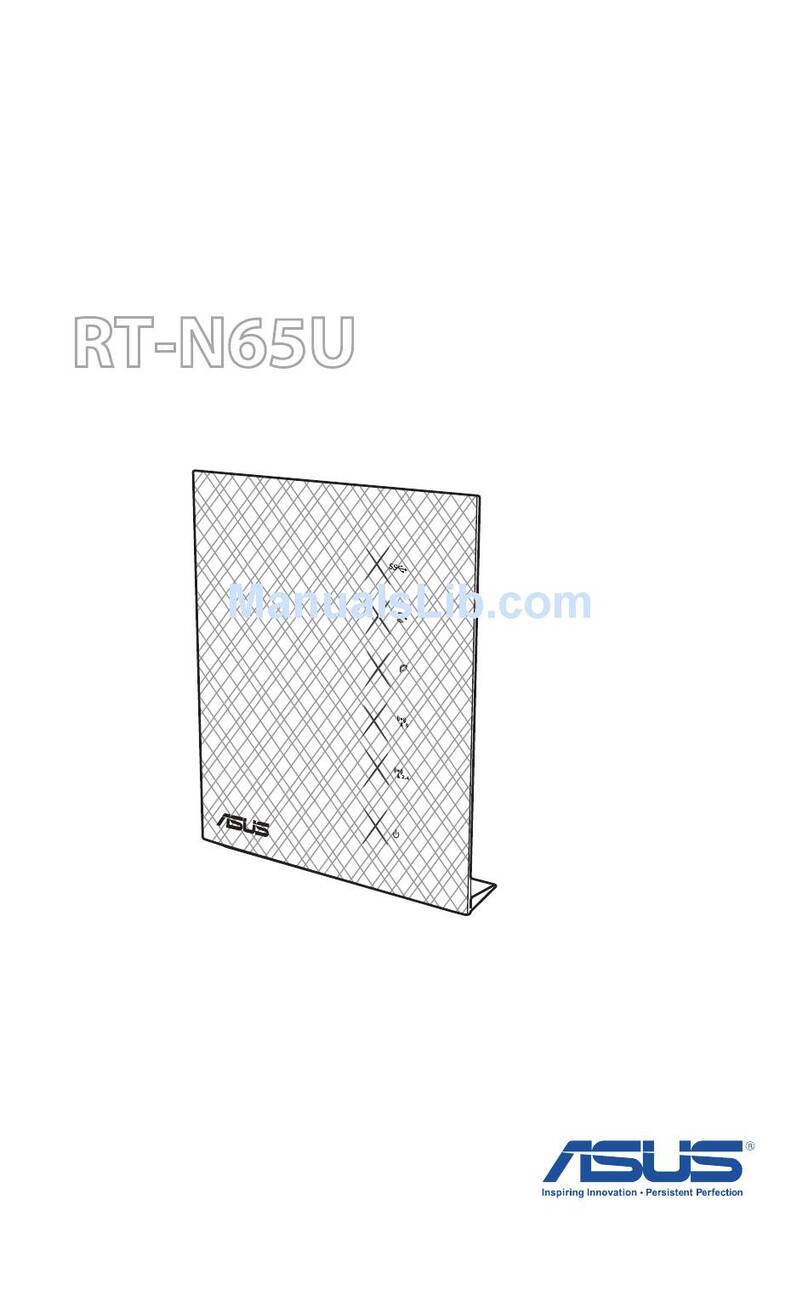

Asus RT-N65U Manual de usuario
