English

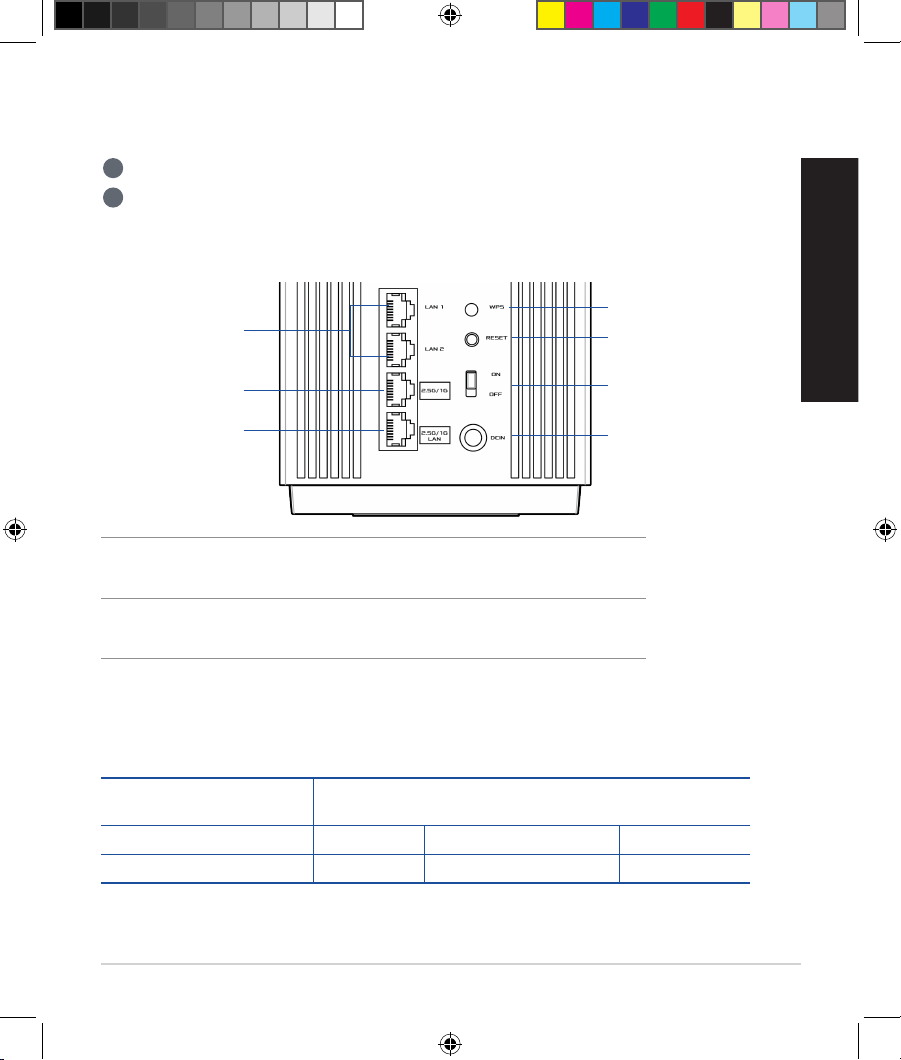

Hardware Explanations
1
Plug the adapter into the DCIN port, and press the power switch.
2
The power LED will light up when your hardware is ready.
Button and Port Explanations
2.5G / 1G WAN port
Connect your optical modem to this port with a network cable.
LAN ports 1-2
Connect your PC to a LAN port with a network cable.
DC Power adapter DC Output: +19V with max 2.37A current
DC Output: +19.5V with max 2.31A current
Operating Temperature 0~40oCStorage Temperature 0~70oC
Operating Humidity 50~90% Storage Humidity 20~90%
Specications:
LAN ports 1-2
WPS button
Reset button
Power switch
DCIN port
2.5G / 1G LAN port
Connect your PC to a 2.5G / 1G LAN port with a network cable.
2.5G / 1G WAN port
2.5G / 1G LAN port
APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 3APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 3 2021/10/26 11:56:412021/10/26 11:56:41
4
English
Before Setup
Setting up a standalone router
1
Go to ONE ROUTER SETUP STEPS.
One Router Setup
Setting up an AiMesh WiFi system
02
1
Prepare two or more ASUS routers supporting AiMesh.
2
Assign one as AiMesh router, and another one as AiMesh node.
** If you have multiple AiMesh routers, we recommend using the router with the highest specifications
as your AiMesh router and the others as AiMesh nodes.
3
Go to AiMesh SETUP STEPS.
AiMesh Setup Steps
AiMesh routerAiMesh node
01
APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 4APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 4 2021/10/26 11:56:412021/10/26 11:56:41
5
English
01
One Router Setup Steps
Prepare your Modem
1
Unplug the power of cable / DSL modem. If it has a battery backup, remove the
battery.
2
Connect your modem to the router with
the network cable provided.
Modem back
If you are using DSL for
internet, you will need your
username / password from
your Internet service provider
(ISP) to properly configure your
router.
3
Power on the modem. Plug modem
to the power outlet and power on.
APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 5APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 5 2021/10/26 11:56:422021/10/26 11:56:42
6
English
4
Check the modem LED lights to ensure the connection is active.
Modem front
Connect your Device
02
1
Power on the router.
Plug in and press the Power On/Off switch at
the back of your router.
2
Check that the LED turns solid blue to
indicate that the hardware connection is
ready for setup.
3
[Web] Connect your PC to the router using an
additional network cable.
[App] Or you can use a phone or pad to
complete the setup via ASUS Router App.
APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 6APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 6 2021/10/26 11:56:422021/10/26 11:56:42
7
English
Login and Connect
03
1
[Web] Open a web browser.
You will be redirected to the ASUS Setup Wizard. If not, navigate to
http://router.asus.com.
[App] Launch ASUS Router App and follow the instructions to complete the setup.
AiMesh Setup Steps
Prepare
01
Place your AiMesh router and node within 3 meters of each other during
the setup process.
AiMesh node
02
Keep your AiMesh node powered on and standby for AiMesh system
settings.
AiMesh routerAiMesh node
within
3 meters
APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 7APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 7 2021/10/26 11:56:422021/10/26 11:56:42
8
English
[Web]
1
Refer to ONE ROUTER SETUP
STEPS to connect your AiMesh router
to your PC and modem, and then log in
into the web GUI.
AiMesh router
03
2
Go to Network Map page, click
AiMesh icon and then Search for
your extending AiMesh node.
3
Click Search, it will automatically
search for your AiMesh node
nearby. When the AiMesh node
shows on this page, click it to
add it into the AiMesh system.
** If you cannot find any AiMesh
node, please go to TROUBLE
SHOOTING.
Modem
AiMesh router
AiMesh node
Logout/Reboot
AiMesh Router
APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 8APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 8 2021/10/26 11:56:432021/10/26 11:56:43
9
English
4
A message is displayed when
synchronization is completed.
5
Congratulations! You will find the
pages below show up when an
AiMesh node has been successfully
added to the AiMesh network.
Successfully added RT-ABCDE to your AiMesh
system, it will take awhile to show up as connected
in the AiMesh router list.
OK
[App] Log in to your existing router via ASUS Router App and choose “Add AiMesh
Node” to complete the setup.
ASUS Router App
Download free ASUS Router APP to set up and manage your router(s).
APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 9APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 9 2021/10/26 11:56:432021/10/26 11:56:43
10
English
Troubleshooting
If your AiMesh router cannot find any AiMesh node nearby or synchronization fails,
please check the following and try again.
a
Move your AiMesh node closer to the AiMesh router ideally. Ensure that it is within 3
meters.
b
Your AiMesh node is powered on.
Relocation
Locate the AiMesh router and node at the best place.
Solid white: Good signal
Solid yellow: Weak signal
Solid red: No signal
THE BEST PERFORMANCE
NOTES: To minimize interference, keep the routers away from devices like cordless phones,
Bluetooth devices and microwave ovens.
We recommend that you place the routers in an open or spacious location.
ZenWiFi Pro XT12 LED indications
