Asus RT-N56U Manual de usuario

RT-N56U

Extreme Wireless N Router

Ultra Slim, True Dual Band,

and Gigabit Internet

The ultra-thin and stylish RT-N56U

features a 2.4GHz and 5GHz dual

bands for an unmatched concurrent

wireless HD streaming; built-in ASUS

AiDisk and Download Master that

support HTTP, FTP, SMB, and BT

protocols for uninterrupted download

tasks; a capability to handle 300,000

sessions; and the ASUS Green Network

Technology, which provides up to 70%

power-saving solution.

User Guide

First Edition

June 2010 / E5815

Table of contents

1 A quick look

Package contents ...............................................................4

Your wireless router ..........................................................4

Mounting placement .........................................................5

2 Creating your network

What you need...................................................................6

Before you proceed ...........................................................7

Setting up your wireless router........................................8

Wired connection (A).......................................................8

Wireless connection (B)....................................................9

3 ConguringviathewebGUI

Logging into the web GUI...............................................10

Setting up the Internet connection ................................11

Quick Internet Setup (QIS) with auto-detection..............11

Quick Internet Setup (QIS) without auto-detection.........14

Your ASUS Wireless Router as a 3.5G mobile router.......15

Setting up the wireless security settings .......................17

Managing your network clients .....................................19

Monitoring your USB device...........................................20

Using your router as a UPnP Media Server....................22

Using AiDisk for an FTP Server and

Network Neighborhood setup ..................................23

Managing EZQoS Bandwidth..........................................25

Conﬁguring the Advanced settings................................27

Setting up the DHCP Server...........................................27

Upgrading the ﬁrmware ................................................29

Restoring/Saving/Uploading settings ..............................30

Sharing ﬁles from a USB storage device .........................31

Table of contents

Setting up your network printer ....................................36

4 Usingtheutilities

Device Discovery..............................................................40

Firmware Restoration ......................................................41

Download Master ............................................................42

5 Troubleshooting

Troubleshooting...............................................................46

ASUS DDNS Service..........................................................50

Frequently Asked Questions (FAQs)................................50

Appendices

Notices ..............................................................................52

GNU General Public License ............................................54

REACH...............................................................................63

ASUS Contact information ..............................................64

1 A quick look

Your wireless router

1USB LED 5Internet

connection LED 9LAN 1 ~ 4 ports

25GHz LED 6Power LED 10 WAN port

32.4GHz LED 7Reset button 11 Power (DC-In) port

4WAN LED 8USB ports 12 WPS button (on

the right)

Package contents

NOTE: If any of the items is damaged or missing, contact

your retailer.

RT-N56U Wireless Router

Power adapter

Support CD (manual, utilities)

RJ45 cable

Quick Start Guide

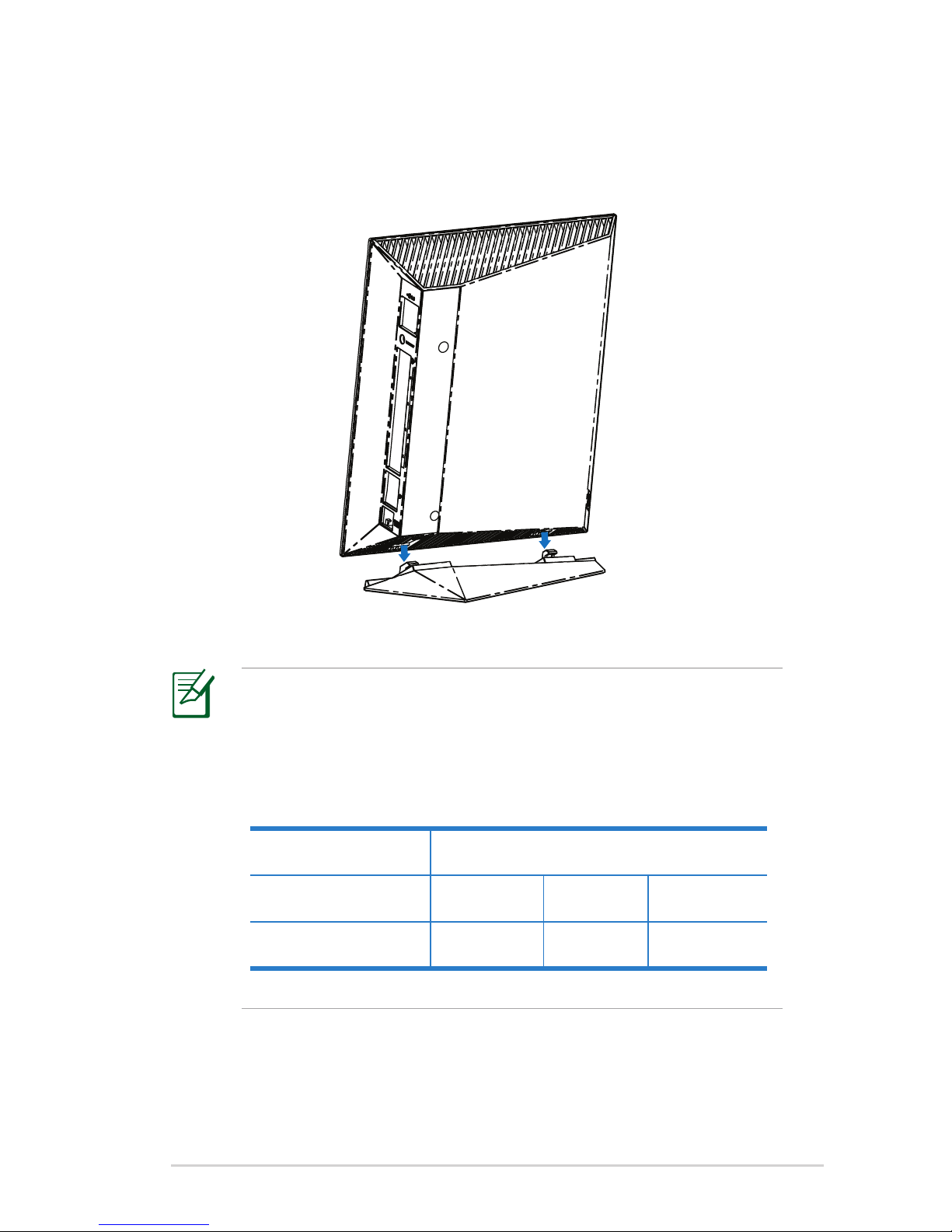

Mounting placement

NOTES:

• Use only the adapter that came with your package. Using

other adapters may damage the device.

• Speciﬁcations:

DC Power adapter DC Input: +19V with max 1.58A current;

+12V with max 2A current

Operating

Temperature 0~40oCStorage 0~70oC

Operating

Humidity 50~90% Storage 20~90%

2 Creating your network

What you need

To set up your network, you need one or two computers that

meet the following system requirements:

• Ethernet RJ-45 (LAN) port (10Base-T/100Base-TX/

1000BaseTX)

• IEEE 802.11a/b/g/n wireless capability

• An installed TCP/IP service

• Web browser such as Internet Explorer, Firefox, Safari, or

Google Chrome

NOTES:

• If your computer does not have built-in wireless capabilities,

you may install an IEEE 802.11a/b/g/n WLAN adapter to

your computer to connect to the network.

• With its dual band technology, your wireless router supports

2.4GHz and 5GHz wireless signals simultaneously. This

allows you to do Internet-related activities such as Internet

surﬁng or reading/writing e-mail messages using the 2.4GHz

band while simultaneously streaming high-deﬁnition audio/

video ﬁles such as movies or music using the 5GHz band.

• If you are using only one computer with single band

IEEE 802.11b/g/n WLAN adapter, you will only be able to

use the 2.4GHz band.

• If you are using only one computer with dual band

IEEE 802.11a/b/g/n WLAN adapter, you will be able to use

the 2.4GHz or 5GHz band.

• If you are using two computers with both

IEEE 802.11a/b/g/n WLAN adapters, you will be able to use

both 2.4GHz and 5GHz bands simultaneously.

Before you proceed

IMPORTANT!

• The Ethernet RJ-45 cables that will be used to connect the

network devices should not exceed 100 meters.

• For the best wireless signal transmission between the

wireless router and the network devices connected to it,

ensure that you:

• Place the wireless router in a centralized area for a

maximum wireless coverage for the network devices.

• Keep the device away from metal obstructions and away

from direct sunlight.

• Keep the device away from transformers, heavy-duty

motors, ﬂuorescent lights, microwave ovens, refrigerators,

and other industrial equipment to prevent signal

interference or loss.

Setting up your wireless router

Wired connection (A)

IMPORTANT! Use wired connection in setting up your

wireless router to avoid possible setup problems due to

wireless uncertainty.

NOTE: Your wireless router has an integrated auto-crossover

function, so use either straight-through or crossover cable for

wired connection.

To set up your wireless router via wired connection:

1. Turn on your wireless router and modem.

2. Using an RJ-45 cable, connect the router’s WAN port to the

modem.

3. Using another RJ-45 cable, connect the router’s LAN port to

your computer’s LAN port.

Wireless connection (B)

To set up your wireless router via wireless connection:

1. Turn on your wireless router and modem.

2. Using an RJ-45 cable, connect the router’s WAN port to the

modem.

3. Install an IEEE 802.11a/b/g/n WLAN adapter on your

computer.

NOTES:

• For details on connecting to a wireless network, refer to the

WLAN adapter’s user manual.

• To set up the security settings for your network, refer to the

section Setting up the wireless security settings in this

user manual.

IMPORTANT! If your wireless router supports the 3G

function, you may use a 3.5G USB adapter to turn your

wireless router into a mobile router. For more details, refer to

the section Your ASUS Wireless Router as a 3G mobile

router in this user manual.

3 Conﬁguring via the web GUI

Logging into the web GUI

Your ASUS Wireless Router comes with an intuitive web graphics

user interface (GUI) that allows you to easily conﬁgure its various

features through a web browser such as Internet Explorer,

Firefox, Safari, or Google Chrome.

To log into the web GUI:

1. On your web browser such as Internet Explorer, Firefox,

Safari, or Google Chrome, manually key in the wireless

router’s default IP address: 192.168.1.1

2. On the login page, key in the default user name (admin) and

password (admin).
