Asus RT-N11 Manual de usuario

User Manual

RT-N11

EZ Wireless N Router

E3813 First Edition May 2008

e3188_WL520GU_GC_Manual.indd 1 5/22/08 2:50:12 PM

EZ Wireless N Router / EZ Wireless N 無線路由器

Manufacturer Contact Information

ASUSTeK COMPUTER INC.

Address 15 Li-Te Road, Peitou, Taipei, Taiwan 11259

Telephone +886-2-2894-3447

Fax +886-2-2890-7798

E-mail [email protected]

Web site www.asus.com.tw

Technical Support

Telephone +86-21-38429911

Online support support.asus.com

ASUS COMPUTER INTERNATIONAL (America)

Address 44370 Nobel Drive, Fremont, CA 94538, USA

Fax +1-510-608-4555

Web site usa.asus.com

Technical Support

Telephone +1-812-282-2787

Support fax +1-812-284-0883

Online support support.asus.com

ASUS COMPUTER GmbH (Germany and Austria)

Address Harkort Str. 25, D-40880 Ratingen, Germany

Telephone +49-2102-95990

Fax +49-2102-959911

Web site www.asus.de

Online contact www.asus.de/sales

Technical Support

Telephone +49-1805-010923

Support Fax +49-2102-9599-11

Online support support.asus.com

e3188_WL520GU_GC_Manual.indd 2 5/22/08 2:50:13 PM

RT-N11 EZ Wireless N Router User Manual

Table of Contents

6SHFLÀFDWLRQ6XPPDU\............................................................................2

1. Package Contents ................................................................................3

2. Connecting ADSL Modem and Wireless Router................................3

1) Cable connection ...............................................................................3

2) Status Indicators ................................................................................4

3) Wall Mounting Option.........................................................................4

3. Getting Started......................................................................................5

1) Wired Connection...............................................................................5

2) Wireless Connection..........................................................................5

3) Setting IP Address for Wired or Wireless Connection .......................5

&RQÀJXULQJWKH:LUHOHVV5RXWHU........................................................6

5) Quick Setup ......................................................................................7

4. Wireless Router Features ..................................................................12

1) Choosing an Appropriate Operation Mode .....................................12

1) Setting up Wireless Encryption .......................................................12

3) Setting up Virtual Server in Your LAN..............................................14

4) Setting up Virtual DMZ in Your LAN.................................................15

5) Setting up DDNS .............................................................................15

5. Setting up Using ASUS utility ................................................................ 19

1) Utility Installation for RT-N11............................................................19

2) EZSetup...........................................................................................20

6. Troubleshooting .................................................................................21

7. Appendix .............................................................................................24

&RQÀJXUH571XQGHU9LVWD26.........................................................30

e3188_WL520GU_GC_Manual.indd 3 5/22/08 2:50:14 PM

RT-N11 EZ Wireless N Router User Manual

$OOVSHFLÀFDWLRQVDUHVXEMHFWWRFKDQJHZLWKRXWQRWLFH

6SHFLÀFDWLRQ6XPPDU\

Network Standard Compatible with 802.11b/g/n, 802.3, 802.3u, 802.1x,

802.11i, IPv4, CSMA/CA, CSMA/CD, ICMP

Operating Frequency 2.4G ~ 2.483GHz

Operation Channel 11 for N. America, 14 Japan, 13 Europe (ETSI)

Ethernet Port WAN x 1, LAN x 4 RJ45 for 10/100 BaseT

Antenna 2 External Detachable Antenna

WPS Button Support WPS (Wi-Fi Protection Setup) Push Button

and PIN Code Setup

LED Power x 1, AIR x 1, WAN x 1, LAN x 4

Security 64/128 -bit WEP, WPA-Personal, WPA2-Personal,

WPA-Enterprise, WPA2-Enterprise, WPA-Auto (TKIP/

AES), WPA2-Auto (TKIP/AES), Radius with 802.1x

Firewall & Access Control NAT Firewall, SPI (Stateful Package Inspection)

Firewall, WAN Ping Control, Domain Access Control,

URL Filter, MAC Filter, Inbound/Outbound Packet

Filter, DoS Detection

9316XSSRUW IPSec / PPTP / L2TP Pass-Through

Quality of Service WMM (Wi-Fi multimedia)

Customizable QoS rules

Advanced Network Support up to 4 Multiple BSSIDs/ESSIDs, VLANs

Network Management Support SNMP, IGMP, UPnP, DHCP, DNS Proxy, NTP

Client, DDNS, Port Trigger, Virtual Server, Virtual

DMZ, VPN Pass-Through, WDS

Power Supply +5V with max. 1.2A current

Note: Use only the adapter included in the package.

Using other adapters may damage the device.

Temperature Operating: 0~40oC Storage: -10~70oC

Humidity Operating: 10-90% Storage: 0~90%

Dimension 179 x 119 x 37 (L x W x H) mm

Weight 310g

e3188_WL520GU_GC_Manual.indd 4 5/22/08 2:50:15 PM

RT-N11 EZ Wireless N Router User Manual

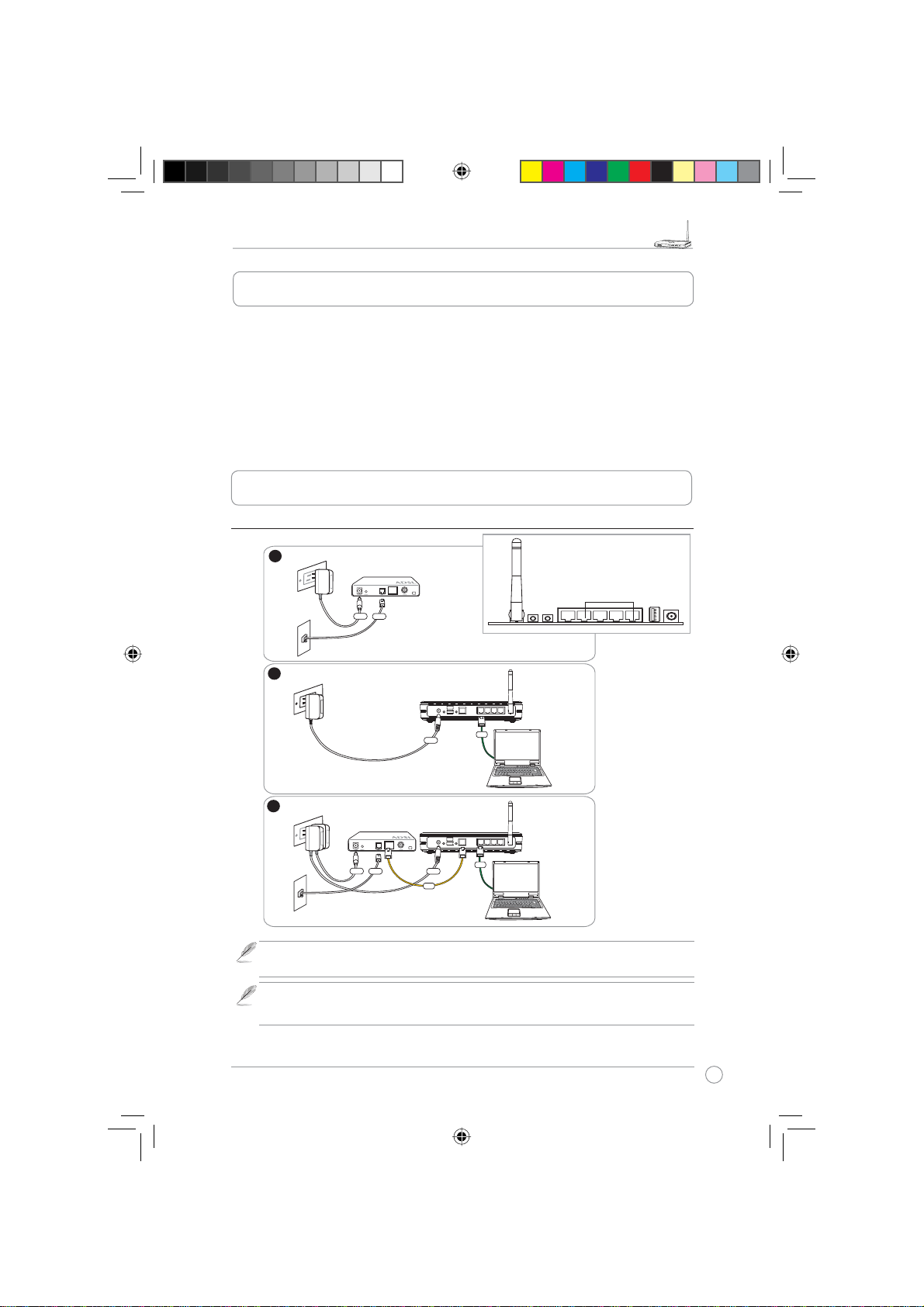

2. Connecting ADSL Modem and Wireless Router

1. Package Contents

• RT-N11 Wireless Router x 1

• Power Adapter x 1

• Docking Stand x 1

• Utility CD x 1

• RJ-45 cable x 1

1) Cable connection

Modem

Wall Telephone Outlet

Wall Power Outlet

Phone

Power

Wall Power Outlet

ASUS Wireless Router

LAN

Modem

Wall Telephone Outlet

Wall Power Outlet

LAN

Power

Phone

Power

ASUS Wireless Router

WAN

Power

Note: Use only the adapter included in the package. Using other adapters may

damage the device.

Note: The device in the above illustration is for your reference only. Please refer to

your package for the real product.

Rear Panel

e3188_WL520GU_GC_Manual.indd 5 5/22/08 2:50:19 PM

RT-N11 EZ Wireless N Router User Manual

2) Status Indicators

PWR (Power)

Off No power

On System ready

Flashing-slow Firmware upgrade failed/Rescure Mode

Flashing-quick EZsetup processing/Rescure Mode

AIR (Wireless Network)

Off No power

On Wireless system ready/Radio-off

Flashing Transmitting or receiving data (Through Wireless)

WAN (Wide Area Network)

Off No power or no physical connection

On Has physical connection to an Ethernet network

Flashing Transmitting or receiving data (Through Ethernet Cable)

LAN 1-4 (Local Area Network)

Off No power or no physical connection

On Has physical connection to an Ethernet network

Flashing Transmitting or receiving data (Through Ethernet Cable)

3) Wall Mounting Option

2XWRIWKHER[$686571:LUHOHVV5RXWHULVGHVLJQHGWRVLWRQDUDLVHGÁDWVXUIDFHOLNHD

ÀOHFDELQHWRUERRNVKHOI7KHXQLWPD\DOVREHFRQYHUWHGIRUPRXQWLQJWRDZDOORUFHLOLQJ

Follow these steps to mount the ASUS Wireless Router to a wall:

1. Look on the underside for the two mounting hooks.

 0DUNWZRXSSHUKROHVLQDÁDWVXUIDFH

3. Tighten two screws until only 1/4'' is showing.

4. Latch the hooks of the ASUS Wireless Router onto the screws.

Note:5HDGMXVWWKHVFUHZVLI\RXFDQQRWODWFKWKH$686:LUHOHVV5RXWHURQWRWKH

screws or if it is too loose.

PWR

AIR LAN

WAN

e3188_WL520GU_GC_Manual.indd 6 5/22/08 2:50:21 PM

RT-N11 EZ Wireless N Router User Manual

7KH$686571:LUHOHVV5RXWHUFDQPHHWYDULRXVZRUNLQJVFHQDULRVZLWKSURSHUFRQÀJXUDWLRQ

The default settings of the wireless router may need change so as to meet your individual needs.

Therefore, before using the ASUS Wireless Router, check the basic settings to make sure they all

work in your environment.

$686SURYLGHVDXWLOLW\QDPHG(=6HWXSIRUIDVWZLUHOHVVFRQÀJXUDWLRQ,I\RXZRXOGOLNHWRXVH

(=6HWXSIRU\RXUZLUHOHVVQHWZRUNFRQÀJXUDWLRQUHIHUWRFKDSWHUIRUGHWDLOV

Note: :LUHG FRQQHFWLRQ IRU LQLWLDO FRQÀJXUDWLRQ LV UHFRPPHQGHG WR DYRLG SRVVLEOH

setup problems due to wireless uncertainty.

1) Wired Connectionired Connection

The ASUS RT-N11 Wireless Router is supplied with an Ethernet cable in the package. Since

the ASUS Wireless Router has integrated auto-crossover function, therefore, you can use either

straight-through or crossover cable for wired connection. Plug one end of the cable to the LAN

port on the rear panel of the router and the other end to the Ethernet port on your PC.

2) Wireless Connection

For establishing wireless connection, you need an IEEE 802.11b/g compatible WLAN card. ReferRefer

to your wireless adapter user manual for wireless connection procedures. By default, the

SSID of ASUS Wireless Router is “default” (in lower case), encryption is disabled and open

system authentication is used.

3) Setting IP Address for Wired or Wireless Connection

To access RT-N11 Wireless Router, you must have correct TCP/IP settings on your wired or

wireless clients. Set the IP addresses of the clients within the same subnet of RT-N11.

Getting IP address Automatically

The ASUS Wireless Router integrates DHCP server functions, therefore, you can make your

PC get IP address automatically from the ASUS Wirelesss Router.

Note: Before rebooting your PC, switch ON the

wireless router and make sure the router is in ready

state.

Setting up IP address Manually

To set IP address manually, you need to know the default

settings of the ASUS Wireless Router:

• IP address 192.168.1.1

• Subnet Mask 255.255.255.0

3. Getting Started

e3188_WL520GU_GC_Manual.indd 7 5/22/08 2:50:21 PM

RT-N11 EZ Wireless N Router User Manual

To set up the connection with a manually assigned

IP address, the address of your PC and the wireless

router must be within the same subnet:

• IP address: 192.168.1.xxx (xxx can be any

number between 2 and 254. Make sure the IP

address is not used by other device)

• Subnet Mask: 255.255.255.0 (same as RT-N11)

• Gateway: 192.168.1.1(IP address of RT-N11)

• DNS: 192.168.1.1 (RT-N11), or assign a known

DNS server in your network.

&RQÀJXULQJWKH:LUHOHVV5RXWHU

Defaults

User name: admin Password: admin

Enter the following address in your

web browser: http://192.168.1.1

After logging in, you can see the ASUS Wireless Router home page.

7KHKRPHSDJHGLVSOD\VTXLFNOLQNVWRFRQÀJXUHWKHPDLQIHDWXUHVRIWKHZLUHOHVVURXWHU

e3188_WL520GU_GC_Manual.indd 8 5/22/08 2:50:24 PM

RT-N11 EZ Wireless N Router User Manual

1. Select your time zone and click

Next.

5) Quick Setup

To start quick setup, click Next to enter the “Quick Setup”

page. Follow the instructions to setup the ASUS Wireless

Router.

2. ASUS Wireless Router supports

five types of ISP services: cable,

PPPoE, PPTP, static WAN IP,

and Telstra BigPond. Select your

connection type and click Next to

continue.

Cable or dynamic IP user

If you are using services provided by

cable ISP, select Cable Modem or other

connection that gets IP automatically.

If your ISP provides you hostname, MAC

address, and heartbeat server address,

fill these information into the boxes on

the setting page; if not, click Next to skip

this step.

PPPoE user

If you use PPPoE service, select ADSL

connection that requires username

and password. It is known as PPPoE.

You need to input the username and

password provided by your ISP. Click

Next to continue.

e3188_WL520GU_GC_Manual.indd 9 5/22/08 2:50:26 PM

RT-N11 EZ Wireless N Router User Manual

PPTP user

If you are using PPTP services, select ADSL

connection that requires username,

password and IP address. Fill in the

username, password and IP address

provided by your ISP into the fields. Click

Next to continue.

Static IP user

If you are using ADSL or other connection

type that uses static IP address, select ADSL

or other connection type that uses static

IP address. Input the IP address, subnet

mask, and default gateway provided by your

ISP. You can specify DNS servers, or get

DNS information automatically.

herk036@adsl-comfort

3. After the connection type setting is

complete, you are to set up your

wireless interface. Specify to your

wireless router an SSID (Service Set

Identifier), which is a unique identifier

attached to packets sent over WLAN.

This identifier emulates a password

when a device attempts to communicate

with your wireless router via WLAN.

If you want to protect transmitted data, select a Security Level to enable encryption methods.

Medium: Only users with the same WEP key settings can connect to your wireless router and

WUDQVPLW GDWD XVLQJ ELWV RU ELWV :(3 NH\ HQFU\SWLRQ &RQÀJXUH WKH VHWWLQJV DV 2SHQ

System/WEP instead of Shared Key/WEP.

High: Only users with the same WPA pre-shared key settings can connect to your wireless

router and transmit data using TKIP encryption.

e3188_WL520GU_GC_Manual.indd 10 5/22/08 2:50:30 PM

Otros manuales para RT-N11

Tabla de contenidos

Otros manuales de Enrutador de red de Asus

Asus

Asus RT-N600P Manual de usuario

Asus

Asus RT-AC57U Manual de usuario

Asus

Asus RT-N300 B1 Manual de usuario

Asus

Asus RT-ACRH18 Manual de usuario

Asus

Asus DSL-AC3100 Manual de usuario

Asus

Asus ZenWiFi Pro ET12 Manual de usuario

Asus

Asus RT-AC1300G PLUS Manual de usuario

Asus

Asus RT-ACRH13 Manual de usuario

Asus

Asus 4G-N12 B1 Manual de usuario

Asus

Asus ZenWiFi Pro ET12 Manual de usuario

Asus

Asus RT-AC57U V3 Manual de usuario

Asus

Asus WL-AM604 Manual de usuario

Asus

Asus RT-AC53 Manual de usuario

Asus

Asus RT-AX5400 Manual de usuario

Asus

Asus RT-N66R Dark Knight Manual de usuario

Asus

Asus RT-AC54U Manual de usuario

Asus

Asus DSL-N55U Manual de instrucciones

Asus

Asus RT-N11 Manual de usuario

Asus

Asus RT-AC86U Manual de usuario

Asus

Asus DSL-N11 Manual de usuario

Asus

Asus SL6000 Manual de usuario

Asus

Asus DSL-AC56U Manual de usuario

Asus

Asus RT-AX86U Manual de usuario

Asus

Asus FX-D1161 Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
