Asus RT-AC68R Manual de usuario

User Guide

RT-AC68R

Wireless-AC1900 Dual Band Gigabit Router

No part of this manual, including the products and software described

in it, may be reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language in any form or by any means, except

documentation kept by the purchaser for backup purposes, without the

express written permission of ASUSTeK Computer Inc. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired,

modied or altered, unless such repair, modication of alteration is authorized

in writing by ASUS; or (2) the serial number of the product is defaced or

missing.

ASUS PROVIDES THIS MANUAL “AS IS”WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED

WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,

EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,

OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,

LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS

AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR

PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE

FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE

AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A

COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY

FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL,

INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be

registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent

to infringe.

E8617

First Edition

August 2013

Table of contents

1 Getting to know your wireless router 6

1.1 Welcome! ........................................................................................6

1.2 Package contents.........................................................................6

1.3 Your wireless router.....................................................................7

1.4 Positioning your router..............................................................9

1.5 Setup Requirements ................................................................ 10

1.6 Router Setup............................................................................... 11

1.6.1 Wired connection..................................................................11

1.6.2 Wireless connection.............................................................12

2 Getting started 14

2.1 Logging into the Web GUI ..................................................... 14

2.2 Quick Internet Setup (QIS) with Auto-detection ........... 15

2.3 Connecting to your wireless network................................ 19

3 Conguring the General settings 20

3.1 Using the Network Map ......................................................... 20

3.1.1 Setting up the wireless security settings......................21

3.1.2 Managing your network clients.......................................22

3.1.3 Monitoring your USB device.............................................23

3.2 Creating a Guest Network...................................................... 26

3.3 Using the Trac Manager ...................................................... 28

3.3.1 Managing QoS (Quality of Service) Bandwidth..........28

3.3.2 Monitoring Trac .................................................................31

3.4 Setting up Parental Control................................................... 32

3.5 Using the USB Application..................................................... 33

3.5.1 Using AiDisk...............................................................................33

3.5.2 Using Servers Center............................................................35

3.5.3 3G/4G ........................................................................................41

Table of contents

3.6 Using AiCloud............................................................................. 43

3.6.1 Cloud Disk................................................................................44

3.6.2 Smart Access...........................................................................46

3.6.3 Smart Sync...............................................................................47

4 Conguring the Advanced Settings 48

4.1 Wireless......................................................................................... 48

4.1.1 General......................................................................................48

4.1.2 WPS ............................................................................................51

4.1.3 Bridge ........................................................................................53

4.1.4 Wireless MAC Filter...............................................................55

4.1.5 RADIUS Setting ......................................................................56

4.1.6 Professional.............................................................................57

4.2 LAN................................................................................................. 59

4.2.1 LAN IP ........................................................................................59

4.2.2 DHCP Server............................................................................60

4.2.3 Route .........................................................................................62

4.2.4 IPTV...............................................................................................63

4.3 WAN ............................................................................................... 64

4.3.1 Internet Connection.............................................................64

4.3.2 Port Trigger..............................................................................67

4.3.3 Virtual Server/Port Forwarding........................................69

4.3.4 DMZ............................................................................................72

4.3.5 DDNS .........................................................................................73

4.3.6 NAT Passthrough...................................................................74

4.4 IPv6................................................................................................. 75

4.5 VPN Server................................................................................... 76

4.6 Firewall.......................................................................................... 77

4.6.1 General......................................................................................77

4.6.2 URL Filter ..................................................................................77

4.6.3 Keyword lter .........................................................................78

Table of contents

4.6.4 Network Services Filter .......................................................79

4.7 Administration ........................................................................... 81

4.7.1 Operation Mode ....................................................................81

4.7.2 System.......................................................................................82

4.7.3 Firmware Upgrade................................................................83

4.7.4 Restore/Save/Upload Setting ...........................................83

4.8 System Log .................................................................................. 84

5 Utilities 85

5.1 Device Discovery....................................................................... 85

5.2 Firmware Restoration .............................................................. 86

5.3 Setting up your printer server .............................................. 87

5.3.1 ASUS EZ Printer Sharing .....................................................87

5.3.2 Using LPR to Share Printer .................................................91

5.4 Download Master...................................................................... 96

5.4.1 Conguring Bit Torrent download settings.................97

5.4.2 NZB settings............................................................................98

6 Troubleshooting 99

6.1 Basic Troubleshooting............................................................. 99

6.2 Frequently Asked Questions (FAQs) ................................102

Appendices 112

Notices .....................................................................................................112

ASUS Contact information..................................................................126

Networks Global Hotline Information.............................................127

1 Getting to know your wireless

router

NOTES:

• If any of the items are damaged or missing, contact ASUS for

technical inquiries and support, Refer to the ASUS Support Hotline

list at the back of this user manual.

• Keep the original packaging material in case you would need future

warranty services such as repair or replacement.

RT-AC68R Wireless Router Network cable (RJ-45)

Power adapter Quick Start Guide

Support CD (Manual)

1.1 Welcome!

Thank you for purchasing an ASUS RT-AC68R Wireless Router!

The ultra-thin and stylish RT-AC68R features a 2.4GHz and 5GHz

dual bands for an unmatched concurrent wireless HD streaming;

SMB server, UPnP AV server, and FTP server for 24/7 le sharing;

a capability to handle 300,000 sessions; and the ASUS Green

Network Technology, which provides up to 70% power-saving

solution.

1.2 Package contents

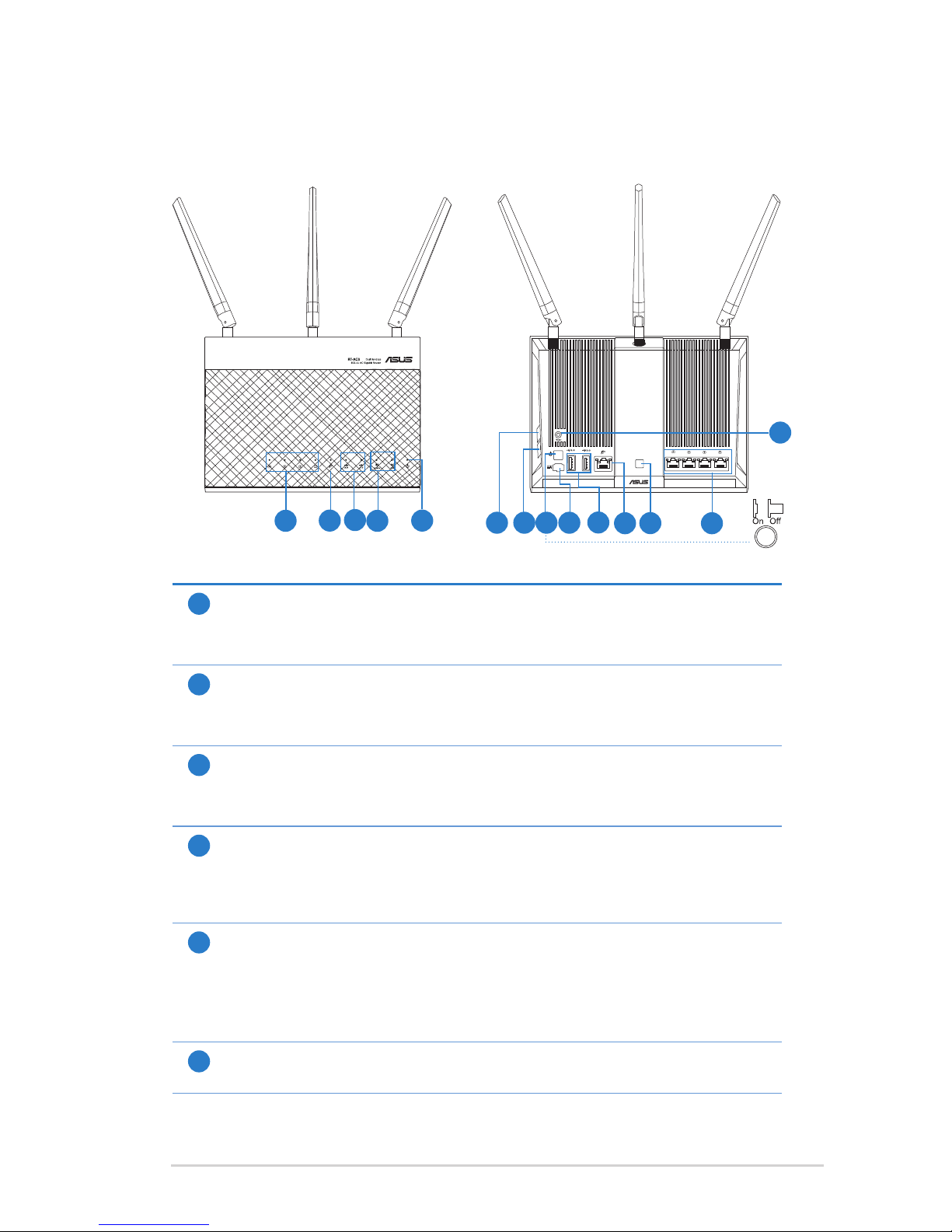

1.3 Your wireless router

8 9 12

1235

41311

1LAN 1~4 LED

Off: No power or no physical connection.

On: Has physical connection to a local area network (LAN).

2WAN (Internet) LED

Off: No power or no physical connection.

On: Has physical connection to a wide area network (WAN).

3USB 3.0 / 2.0 LED

Off: No power or no physical connection.

On: Has physical connection to USB 3.0 / 2.0 devices.

42.4GHz LED / 5GHz LED

Off: No 2.4GHz or 5GHz signal.

On:Wireless system is ready.

Flashing: Transmitting or receiving data via wireless connection.

5Power LED

Off: No power.

On: Device is ready.

Flashing slow: Rescue mode

Flashing quick:WPS is processing.

6WPS button

This button launches the WPS Wizard.

NOTES:

• Use only the adapter that came with your package. Using other

adapters may damage the device.

• Specications:

DC Power adapter DC Output: +19V with max 1.75A current;

Operating

Temperature 0~40oCStorage 0~70oC

Operating Humidity 50~90% Storage 20~90%

7WI-FI On/Off button

Press this button to turn on /off the Wi-Fi connection.

8Power button

Press this button to power on or off the stystem.

9Power (DC-IN) port

Insert the bundled AC adapter into this port and connect your router to a power source.

10 USB 3.0 / 2.0 ports

Insert USB 3.0 / 2.0 devices such as USB hard disks or USB ﬂash drives into these ports.

Insert your iPad’s USB cable into one of these ports to charge your iPad.

11 WAN (Internet) port

Connect a network cable into this port to establish WAN connection.

12 LED On/Off button

Press this button to turn on/off the backlight LED on the panel.

13 LAN 1 ~ 4 ports

Connect network cables into these ports to establish LAN connection.

14 Reset button

This button resets or restores the system to its factory default settings.

On Off

1.4 Positioning your router

For the best wireless signal transmission between the wireless

router and the network devices connected to it, ensure that you:

• Place the wireless router in a centralized area for a maximum

wireless coverage for the network devices.

• Keep the device away from metal obstructions and away from

direct sunlight.

• Keep the device away from 802.11g or 20MHz only Wi-Fi

devices, 2.4GHz computer peripherals, Bluetooth devices,

cordless phones, transformers, heavy-duty motors, ﬂuorescent

lights, microwave ovens, refrigerators, and other industrial

equipment to prevent signal interference or loss.

• Always update to the latest ﬁrmware.Visit the ASUS website at

http://www.asus.com to get the latest ﬁrmware updates.

• To ensure the best wireless signal, orient the three detachable

antennas as shown in the drawing below.

45°

90°

45°

1.5 Setup Requirements

To set up your wireless network, you need a computer that meets

the following system requirements:

• Ethernet RJ-45 (LAN) port (10Base-T/100Base-TX/

1000BaseTX)

• IEEE 802.11a/b/g/n/ac wireless capability

• An installed TCP/IP service

• Web browser such as Internet Explorer, Firefox, Safari, or

Google Chrome

NOTES:

• If your computer does not have built-in wireless capabilities, you may

install an IEEE 802.11a/b/g/n/ac WLAN adapter to your computer to

connect to the network.

• With its dual band technology, your wireless router supports 2.4GHz

and 5GHz wireless signals simultaneously. This allows you to do

Internet-related activities such as Internet surng or reading/writing

e-mail messages using the 2.4GHz band while simultaneously

streaming high-denition audio/video les such as movies or music

using the 5GHz band.

• Some IEEE 802.11n devices that you want to connect to your network

may or may not support 5GHz band. Refer to the device's manual for

specications.

• The Ethernet RJ-45 cables that will be used to connect the network

devices should not exceed 100 meters.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Enrutador de red de Asus

Asus

Asus RT-AC55U Manual de usuario

Asus

Asus INET-810 Manual de usuario

Asus

Asus RT-N66R Dark Knight Manual de usuario

Asus

Asus DSL-N12HP Manual de usuario

Asus

Asus RT-AC66U Manual de usuario

Asus

Asus RT-AC2400 Manual de usuario

Asus

Asus RT-AC55U Manual de usuario

Asus

Asus ZenWiFi XD5 Manual de usuario

Asus

Asus RT-AC1300UHP Manual de usuario

Asus

Asus RT-AC87U Dual Band Instrucciones de funcionamiento y mantenimiento

Asus

Asus RT-AC86U Manual de usuario

Asus

Asus ROG Rapture GT-AC5300 Manual de usuario

Asus

Asus RT-N12+ Manual de usuario

Asus

Asus ROG Strix GS-AX5400 Manual de usuario

Asus

Asus RT-AC85MR Manual de usuario

Asus

Asus RT-AX86U Manual de usuario

Asus

Asus DSL-AC52U Manual de usuario

Asus

Asus ZenWiFi Pro ET12 Manual de usuario

Asus

Asus ZenWiFi Pro AX11000 Manual de usuario

Asus

Asus RT-AC87R Manual de usuario

Asus

Asus ROG Rapture GT-AC2900 Guía de instalación

Asus

Asus RT-AC85U Manual de usuario

Asus

Asus 4G-AC68U Manual de usuario

Asus

Asus RT-N66U Dark Knight Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
