ASROCK DN2800MT Manual de servicio

12 : Digital Input / Output

Pin Header

13 :

4-Pin CPU FAN Connector (+12V)

14 : ATX/AT mode Selection

1-2: AT mode

2-3: ATX mode

15 :

System Panel Header

USB2.0 Headers

16 : USB4_5

17 : USB6_7

18 : DMIC1

8 : BLT_CTL1

9 : PNL_PWR1

10 : BKT_PWR1

11 : Digital Input / Output Power select

1-2: +12V

2-3: +5V

1 : 2-pin ATX Power Input/Output

Connector

2 : 2-pin UPS Module Power Input

Connector

3 : DC_CTL1

Power Input Voltage > +12V: Short

Power Input Voltage ≤ +12V: Open

4 : SATA Power Output Connector

5 : AMP_CTL1

6 : BLT_PWM1 (CON_LBKLT_CTL)

1-2: +3V

2-3: +5V

7 : LVDS Panel Connector

Jumpers and headers setting guide

PIN Signal Name

1 GPIO_VOL_DW

2 GND

3 GPIO_VOL_UP

PIN Signal Name PIN Signal Name

2 LCD_VCC 1 LCD_VCC

4 LDDC_CLK 3 +3V

6 LVDS_A_DATA0# 5 LDDC_DATA

8 GND 7 LVDS_A_DATA0

10 LVDS_A_DATA1 9 LVDS_A_DATA1#

12 LVDS_A_DATA2# 11 GND

14 GND 13 LVDS_A_DATA2

16 LVDS_A_DATA3 15 LVDS_A_DATA3#

18 LVDS_A_CLK# 17 GND

20 GND 19 LVDS_A_CLK

22 LVDS_B_DATA0 21 LVDS_B_DATA0#

24 LVDS_B_DATA1# 23 GND

26 GND 25 LVDS_B_DATA1

28 LVDS_B_DATA2 27 LVDS_B_DATA2#

30 LVDS_B_DATA3# 29 DPLVDD_EN

32 GND 31 LVDS_B_DATA3

34 LVDS_B_CLK 33 LVDS_B_CLK#

36 CON_LBKLT_EN 35 GND

38 LCD_BLT_VCC 37 CON_LBKLT_CTL

40 LCD_BLT_VCC 39 LCD_BLT_VCC

PIN Signal Name

1 CON_LBKLT_EN

2 CON_LBKLT_CTL

3 LCD_BLT_VCC

4 LCD_BLT_VCC

5 GND

6 GND

7 GPIO_BLT_UP

8 GPIO_BLT_DW

PIN Signal Name

1 +3.3V

2 NC

3 LCD_VCC

4 +12V

5 +5V

6 NC

PIN Signal Name

1 +5V

2 NC

3 LCD_BLT_VCC

4 +Vin

5 +12V

6 NC

321

PIN Signal Name PIN Signal Name

10 GND 9 JGPIO_PWR1

8 SIO_GP03 7 SIO_GP07

6 SIO_GP02 5 SIO_GP06

4 SIO_GP01 3 SIO_GP05

2 SIO_GP00 1 SIO_GP04

GND

+12V

CPU_FAN_SPEED

FAN_SPEED_CONTROL

321

GN D

PWRBTN#

PLED-

PLED+

RESET#

HDLED-

HDLED+

+5 V

HDLED-

PIN Signal Name

1 +3V

2 DMIC_DATA

3 GND

4 DMIC_CLK

5 NC

DN2800MT

P/ N: 15G06X648001AK V1.0b

*15G06X648001AK*

Mic In

AUDIO

CODEC

BUZZ1

BIOS

Chip

USB6_7

HD_AUDIO1

mini-PCIe / mini-SATA

DN2800MT

CI1

123456

INT_DC1

LVDS 1

COM1

HDLED RESET

PLED PWRBTN

PANEL1

AMP_CTL1

MSATA_SEL1

SATAI I_ 2

SATAI I_ 1

CPU_FAN1

CI2

PCIE1

JGPIO1

DC_JACK1

mini-PCIe

SATA_PWR1

BLT_PWM1

SPDIF1

CS1

TPM1

LPT1

COM2

USB4_5

PS2_KB_MS1

PWR_JP1

VGA2

BAT1

CLRCMOS1

CHA_FAN1

SPEAKER1

USB 2.0

T: USB0

B: USB1

LAN1

VGA1

USB 2.0

T: USB2

B: USB3

HDMI1

Line Out

DMIC1

UPS_IN1

DC_CTL1

The terms HDMI™ and HDMI High-Denition

Multimedia Interface, and the HDMI logo are

trademarks or registered trademarks of HDMI

Licensing LLC in the United States and other

countries.

All manuals and user guides at all-guides.com

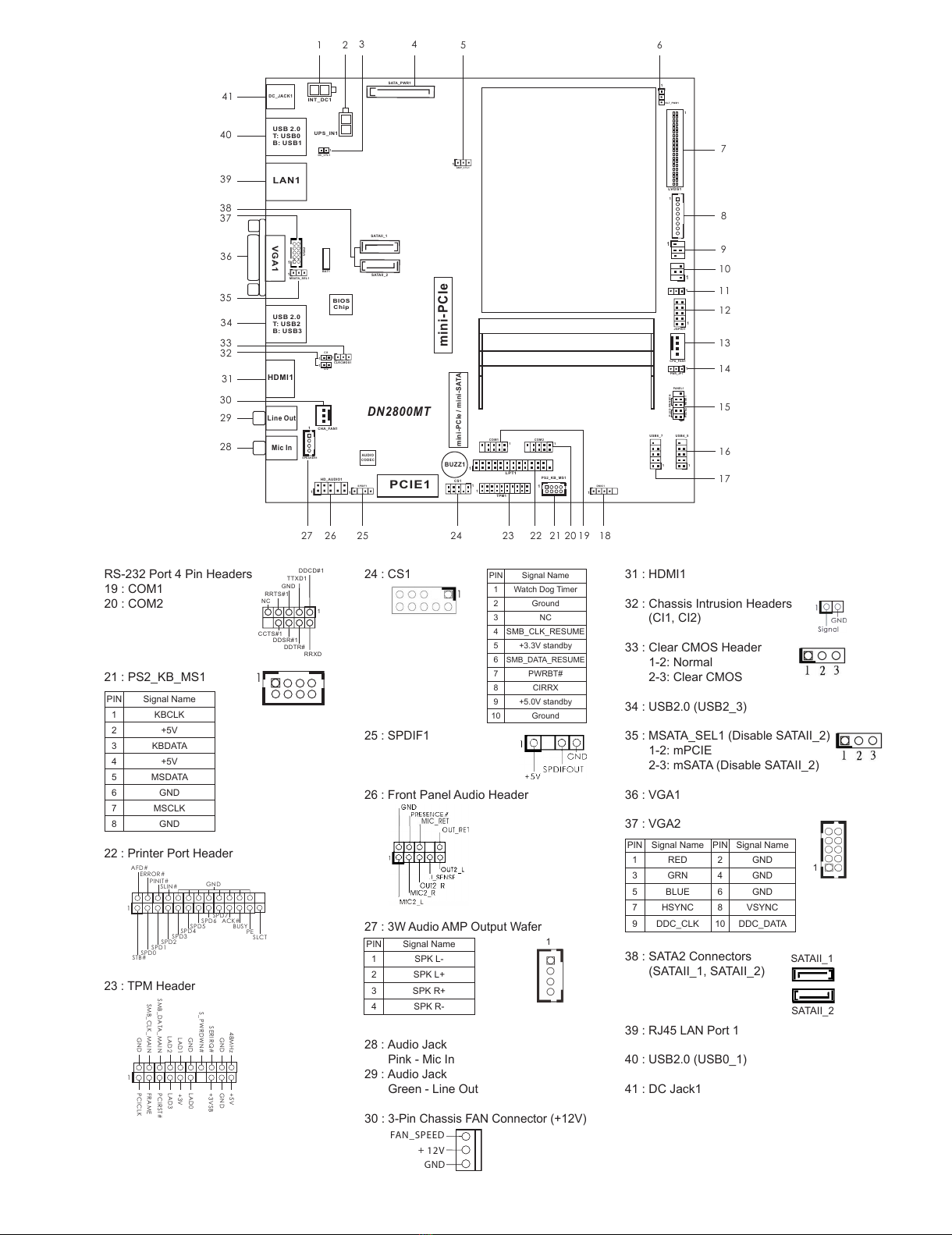

24 : CS1

25 : SPDIF1

26 :

Front Panel Audio Header

27 : 3W Audio AMP Output Wafer

28 :

Audio Jack

Pink - Mic In

29 :

Audio Jack

Green - Line Out

30 :

3-Pin Chassis FAN Connector (+12V)

31 : HDMI1

32 : Chassis Intrusion Headers

(CI1, CI2)

33 : Clear CMOS Header

1-2: Normal

2-3: Clear CMOS

34 : USB2.0 (USB2_3)

35 : MSATA_SEL1 (Disable SATAII_2)

1-2: mPCIE

2-3: mSATA (Disable SATAII_2)

36 : VGA1

37 : VGA2

38 : SATA2 Connectors

(SATAII_1, SATAII_2)

39 : RJ45 LAN Port 1

40 : USB2.0 (USB0_1)

41 : DC Jack1

RS-232 Port 4 Pin Headers

19 : COM1

20 : COM2

21 :

PS2_KB_MS1

22 :

Printer Port Header

23 : TPM Header

PIN Signal Name

1 SPK L-

2 SPK L+

3 SPK R+

4 SPK R-

PIN Signal Name

1 KBCLK

2 +5V

3 KBDATA

4 +5V

5 MSDATA

6 GND

7 MSCLK

8 GND

AFD#

ERROR#

PINIT# GND

SLIN#

STB#

SPD0

SPD1

SPD2

SPD3

SPD4

SPD5

SPD6

SPD7

ACK#

BUSY

SLCT

GND

+12V

FAN_SPEED

PIN Signal Name PIN Signal Name

1 RED 2 GND

3 GRN 4 GND

5 BLUE 6 GND

7 HSYNC 8 VSYNC

9 DDC_CLK 10 DDC_DATA

SATAII_1

SATAII_2

PIN Signal Name

1 Watch Dog Timer

2 Ground

3 NC

4 SMB_CLK_RESUME

5 +3.3V standby

6SMB_DATA_RESUME

7 PWRBT#

8 CIRRX

9 +5.0V standby

10 Ground

GND

S_PWRDWN#

LAD2

SMB_CLK_MAIN

PCICLK

PCIRST#

LAD3

+3 V

LAD0

GND

FRAME

SMB_DATA_MAIN

LAD1

SERIRQ#

GND

+3 VSB

48MHz +5 V

GN D

DDCD#1

TTXD1

RRTS#1

DDTR#

DDSR#1

CCTS#1

RR X D

Mic In

AUDIO

CODEC

BUZZ1

BIOS

Chip

USB6_7

HD_AUDIO1

mini-PCIe / mini-SATA

DN2800MT

CI1

123456

INT_DC1

LVDS 1

COM1

HDLED RESET

PLED PWRBTN

PANEL1

AMP_CTL1

MSATA_SEL1

SATAI I_ 2

SATAI I_ 1

CPU_FAN1

CI2

PCIE1

JGPIO1

DC_JACK1

mini-PCIe

SATA_PWR1

BLT_PWM1

SPDIF1

CS1

TPM1

LPT1

COM2

USB4_5

PS2_KB_MS1

PWR_JP1

VGA2

BAT1

CLRCMOS1

CHA_FAN1

SPEAKER1

USB 2.0

T: USB0

B: USB1

LAN1

VGA1

USB 2.0

T: USB2

B: USB3

HDMI1

Line Out

DMIC1

UPS_IN1

DC_CTL1
