ASROCK SBC-372 Manual de usuario

SBC-372

User Manual

Version 1.0

Published September 6, 2023

Version 1.0

Published September, 2023

No part of this documentation may be reproduced, transcribed, transmitted, or translated

in any language, in any form or by any means, except duplication of documentation by the

purchaser for backup purpose, without written consent of ASRockInd Inc.

Products and corporate names appearing in this documentation may or may not be

registered trademarks or copyrights of their respective companies, and are used only for

identication or explanation and to the owners’ benet, without intent to infringe.

Disclaimer:

Specifications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and shou ld not be

constructed as a commitment by ASRockInd. ASRockInd assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRockInd does not provide

warranty of any kind, either expressed or implied, including but not limited to the implied

warranties or conditions of merchantability or tness for a particular purpose.

In no event shall ASRockInd, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for loss

of profits, loss of business, loss of data, interruption of business and the like), even if

ASRockInd has been advised of the possibility of such damages arising from any defect or

error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1. this device may not cause harmful interference, and

2. this device must accept any interference received, including interference that may cause

undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRockInd Website: http://www.asrockind.com

e terms HDMI®and HDMI High-Denition Multimedia Interface, and the HDMI logo

are trademarks or registered trademarks of HDMI Licensing LLC in the United States and

other countries.

CAUTION:

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Contents

Chapter 1 Introduction 1

1.1 Package Contents 1

1.2 Specications 2

1.3 Motherboard Layout 4

1.4 I/O Panel 7

1.5 Block Diagram 8

Chapter 2 Installation 9

2.1 Screw Holes 9

2.2 Pre-installation Precautions 9

2.3 Installation of Memory Modules (SO-DIMM) 10

2.4 Expansion Slots 11

2.5 Jumpers Setup 12

2.6 Onboard Headers and Connectors 15

Chapter 3 UEFI SETUP UTILITY 20

3.1 Introduction 20

3.1.1 Entering BIOS Setup 20

3.1.2 UEFI Menu Bar 21

3.1.3 Navigation Keys 22

3.2 Main Screen 23

3.3 Advanced Screen 24

3.3.1 CPU Conguration 25

3.3.2 Chipset Conguration 28

3.3.3 Storage Conguration 30

3.3.4 Super IO Conguration 32

3.3.5 AMT Conguration 33

3.3.6 ACPI Conguration 35

3.3.7 USB Conguration 36

3.3.8 Trusted Computing 37

3.4 Hardware Health Event Monitoring Screen 39

3.5 Security Screen 40

3.6 Boot Screen 41

3.7 Exit Screen 42

SBC-372

Chapter 1 Introduction

ank you for purchasing ASRockInd SBC-372 motherboard, a reliable motherboard pro-

duced under ASRockInd’s consistently stringent quality control. It delivers excellent perfor-

mance with robust design conforming to ASRockInd’s commitment to quality and endur-

ance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-step

guide to the hardware installation. Chapter 3 contains the conguration guide to BIOS setup.

Because the motherboard specications and the BIOS soware might be updated, the

content of this manual will be subject to change without notice. In case any modica-

tions of this manual occur, the updated version will be available on ASRockInd website

without further notice. You may nd the latest CPU support lists on ASRockInd web-

site as well.

ASRockInd website https://www.asrockind.com/

If you require technical support related to this motherboard, please visit our website for

specic information about the model you are using.

https://www.asrockind.com/support/index.asp

1.1 Package Contents

ASRockInd SBC-372 Motherboard (3.5”SBC (5.8-in x 4-in x 1.2-in, 14.7 cm x 10.2 cm x 2.95

cm)

ASRockInd SBC-372 Jumper Setting Instruction

Gi Package:

1 x SINK FOR SBC-372

2 x SCREW M2*2, D=5

2 x COM Cable

1 x SATA Data Cable

1 x SATA Power Cable

1 x DC-in Cable

Bulk Package:

2 x SCREW M2*2, D=5

1.2 Specications

Form

Factor Dimensions 3.5”SBC (5.8-in x 4-in x 1.2-in, 14.7 cm x 10.2 cm x

2.95 cm

Processor

System

CPU Intel® Alder Lake-PS Core™ Processors, up to 45W

Socket LGA 1700

BIOS AMI SPI 256 Mbit

Secure Flash AMI SPI 32Mbit (optional)

Memory

Technology Dual Channel DDR5 4800 MHz

Capacity 32GB

Socket 1 x 262-pin SO-DIMM

Graphics

Controller Intel® Iris® Xe Graphics

HDMI HDMI 2.0b

Max resolution up to 4096x2160@60Hz

DisplayPort DisplayPort 1.4a, DP++

Max resolution up to 4096x2160@60Hz

LVDS Dual channel 24 bit up to 1920x1200@60Hz

(connector shared with eDP)

eDP Max resolution up to 1920x1080@60Hz

(connector shared with LVDS)

Multi Display Quad display (included 1 output from Type-C)

Expansion

Slot M.2 1 x M.2 (Key E, 2230) with PCIe Gen3 x1 and USB 2.0

for Wireless

Audio Interface Realtek ALC256 HD, High Denition Audio

Ethernet

Controller/

Speed

LAN1: Intel® I226LM with 10/100/1000/2500 Mbps,

supports vPro

LAN2: Intel® I210AT with 10/100/1000 Mbps

Controller 2 x RJ-45

Rear I/O

HDMI 1 x HDMI 2.0b

DisplayPort 1 x DP 1.4a++

Ethernet 1 x 1 Gigabit LAN

1 x 2.5 Gigabit LAN

USB

4 x USB 3.2 Gen2

1 x USB4/underbolt™4 (5V/3A, support DP 1.4a

display output)

* For underbolt support, please refer to support

list.

SBC-372

Internal

Connector

USB 4 x USB 2.0 (2 x 2.00 pitch header)

COM COM1, COM2 (RS-232/422/485)

GPIO 4 x GPI, 4 x GPO

LVDS 1 (connector with LVDS/eDP signal, switch by

BIOS)

SATA PWR

Output 1

Speaker

Header 1

Storage M.2 1 x M.2 (Key M, 2242/2260/2280) with PCIe

Gen4 x4 for SSD

SATA 1 x SATA3 (6Gb/s)

Security TPM TPM 2.0 onboard IC

Watchdog

Timer

Output From Super I/O to drag RESETCON#

Interval 256 Segments, 0, 1, 2, ...255 Sec

Power

Requirements

Input PWR 12~28V DC-In with 4-pin wafer PWR

Power On

AT/ATX Supported

-AT: Directly PWR on as power input ready

-ATX: Press button to PWR on aer power input

ready

Environment

Operating

Temp 0ºC ~ 70ºC

Storage Temp -40° C ~ 85° C

Operating

Humidity 5% ~ 90%

Storage

Humidity 5% ~ 90%

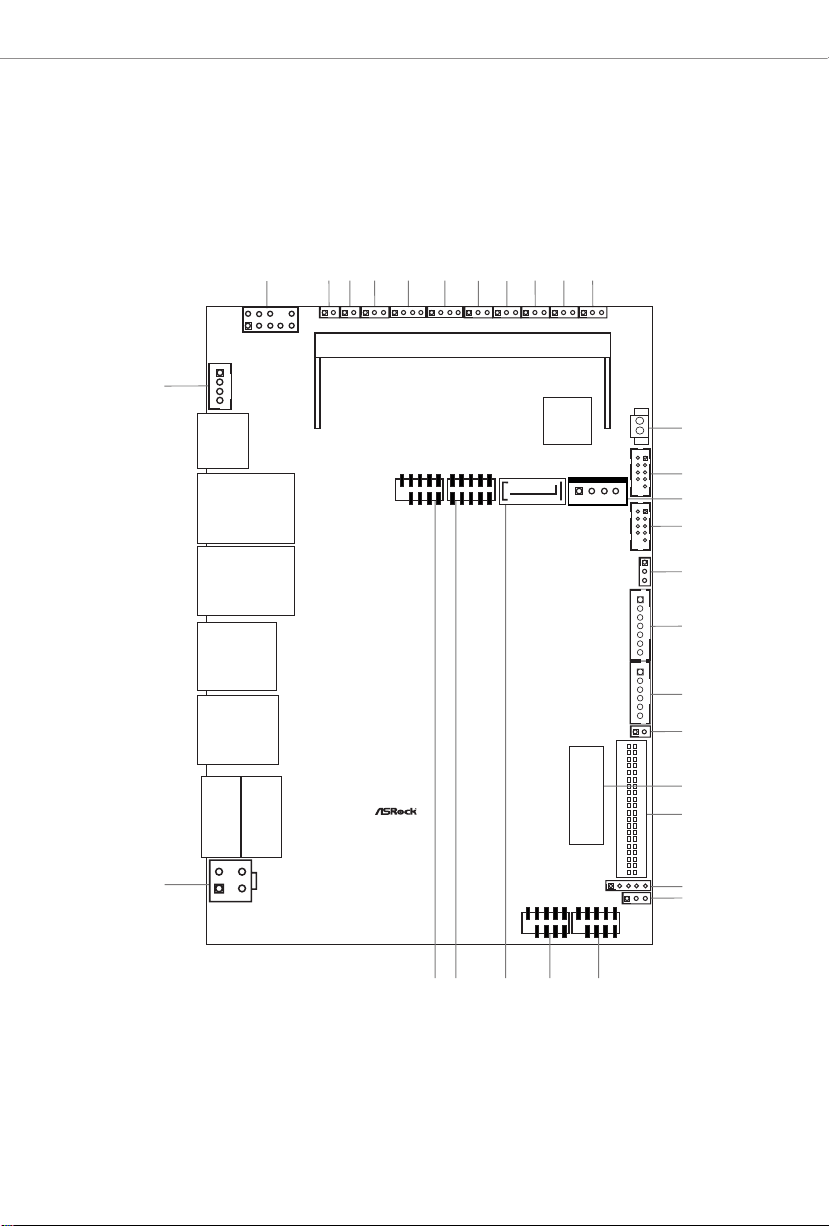

1.3 Motherboard Layout

Top:

JGPIO1

BLT_VOL1

PANEL1

BLT_PWR1

DDR5_A1 (Support DDR5 Only)

SBC-372

Industrial

M2_E1

HDMI1

DP1

LAN2

COM1

COM2

USB3_1_2

USB3_3_4

SATA_PWR1

PWR_COM2

PWR_COM1

JGPIO_PWR1

JGPIO_SET1

BLT_PWM2

BLT_PWM1

CLRMOS1

CLRMOS2DACC1 CI1_2 SIOAT_PSON1

BUZZ2

PNL_PWR1

BKT_PWR1

SATA3_0

BAT1

SPEAKER1

HD_AUDIO1

456

25 24

28 27

3910

11 11 111111

DC_4PIN1

USB278__USB2 5_6_

LVDS1

LAN1

BIOS

ROM

TC_T1

(Type C):

USB4/

Thunderbolt 4

SBC-372

Bottom:

M2_KEYM1

RoHS

CPUFAN1_

(secure flash)

(BOM Option)

ESPI1
