IntraCore™3524 Series
Gigabit Ethernet Switches
Getting Started Guide
2 Getting Started Guide
Quick Start Guide
Follow these steps to install your IntraCore switch:
1. Open the box and check the contents. See Chapter 1.1 Package
Contents for a complete list of the items included with your IntraCore
switch.
2. Install the switch in an equipment or wall rack, or prepare it for
desktop placement.
3. Connect the power supply.
4. Connect network devices to the switch.
5. Refer to the User’s Manual on the accompanying CD-ROM for
configuration and management capabilities.
For more information on installing the IntraCore 3524, please refer
to Chapter 2 Installation and Setup.
3
Asanté IntraCore 3524
Table of Contents
Quick Start Guide 2
1. Introduction 5
1.1 Package Contents 6
1.2 LEDs 6
1.3 Front Panel Description 8
2. Installation and Setup 9
2.1 Safety Overview 9
2.2 Recommended Installation Tools 10
2.3 Power Requirements 10
2.4 Environmental Requirements 10
2.5 Cooling and Airflow 11
2.6 Installation Overview 11
2.7 Chassis Installation and Placement 11
2.8 Installing GBIC Interfaces 13
2.9 Installing Optional Hardware Modules 14
2.10 Connecting Power 15
2.11 Connecting to the Network 15
2.12 Using the Stacking Feature 17
Appendix A Troubleshooting 21
Appendix B Safety and Regulatory Compliance 23
Appendix C Features and Specifications 25
Appendix D Serial Port Pin Outs 27
Appendix E Warranty and Support 29
4 Getting Started Guide
5
Asanté IntraCore 3524
1 Introduction
The IntraCore 3524 Series
Thank you for purchasing the Asanté IntraCore 3524 Series Gigabit
switch. The IntraCore 3524 is a 24-port 10/100 managed switch
with a variety of hardware and software options. Hardware expan-
sion slots (two Type IC35) can accept a wide range of Gigabit and
10/100 Mbps media modules:
•10/100/1000BaseT
•1000BaseX GBIC
•1000BaseSX
•100BaseMMFX
•100BaseSMFX
See the table below for a description of the 3524 series models that
are available.
Model 10/100
Ports
Optional Media
Modules
Description
IC 3524 Base 24 Two IC35 slots
available
Managed 24-port 10/100
switch; base
IC 3524-2T 24 Two 10/100/1000
BaseT ports
Integrated copper Giga-
bit ports
IC 3524-2G 24 Two GBIC ports Integrated Gigabit
Ethernet Interface Con-
verter (GBIC) ports
Table 1-1—3524 Models
6 Getting Started Guide
The system can operate as a stand-alone network or be used in
combination with other IntraCore series switches in the backbone.
1.1 Package Contents
The following items are included in your package:
•Switch
•AC power cord
•Rack mount brackets with screws
•Rubber feet
•Reference Guide
•User’s Manual (on CD-ROM)
•Getting Started Guide (this document)
•IntraCore 3524 CD-ROM
Contact your dealer immediately if any of these items are missing.

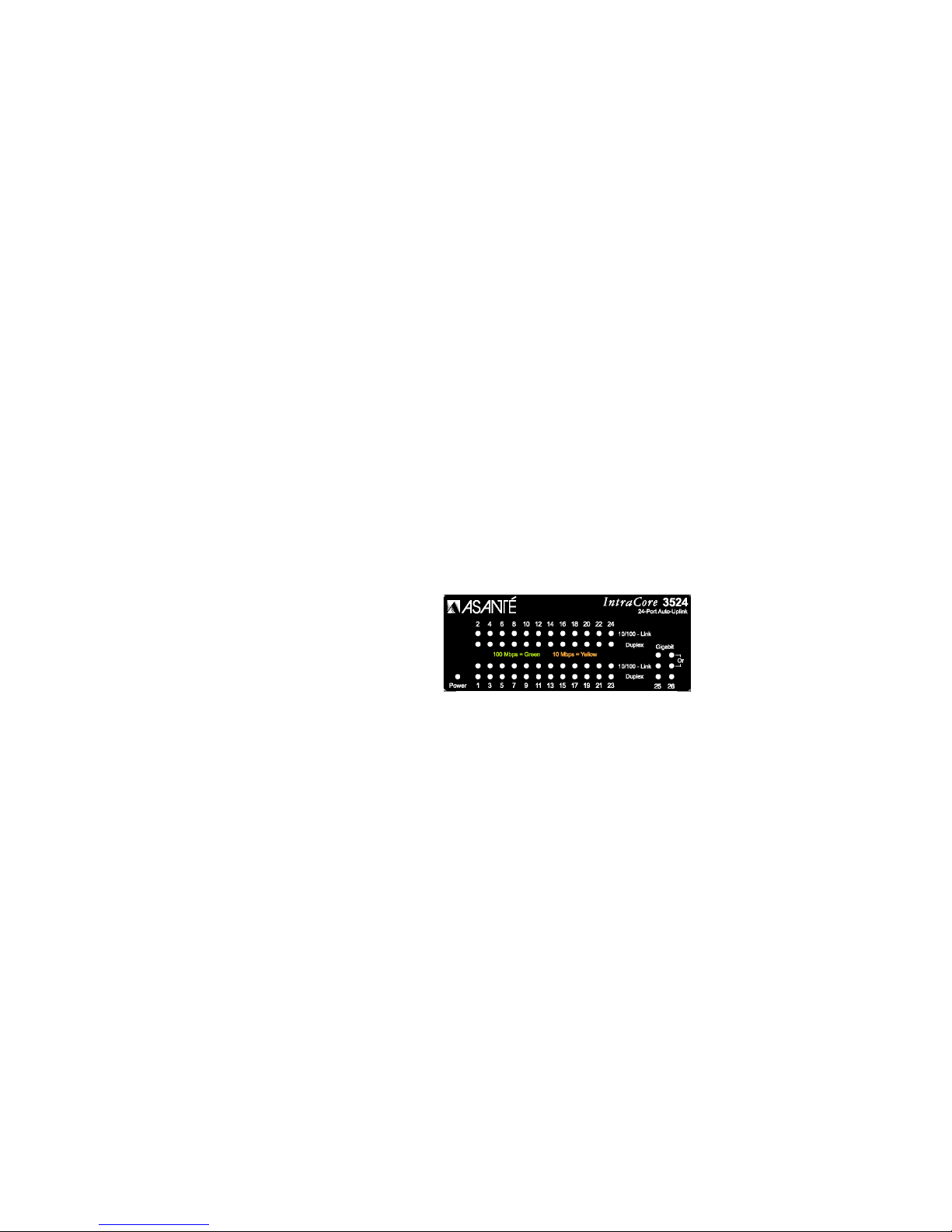

1.2 LEDs
The system’s LED display
allows you to monitor the
status of your switch. See
Tables 1-2 and 1-3 below
for a complete LED description.
7
Asanté IntraCore 3524
Port # LED Color Description
25,26 Gigabit
(speed)
Solid Green
Off
A valid 1000Mbps link has
been established
No link has been estab-
lished, or link is at
10/100Mbps rate
25,26 10/100 Link Solid Green
Solid Amber
Off
A valid 100Mbps link has
been established
A valid 10Mbps link has
been established
No 10/100 link has been
established
25,26 Duplex Solid Green
Solid Amber
Full Duplex
Half Duplex
Table 1-3—Ports 25 & 26 have 3 LEDs each
Port # LED Color Description
N/A Power/
System
Green
Off
Power is on
Power is off
1-24
(10/100)
10/100 Link Solid Green
Solid Amber
Off
A valid 100 Mbps link has
been established
A valid 10Mbps has been
established
No link has been estab-
lished
1-24
(10/100)
Duplex Solid Green
Solid Amber
Full Duplex
Half Duplex
Table 1-2—Ports 1-24 have two LEDs each
8 Getting Started Guide
1.3 Front Panel Description
From left to right, the front panel contains the following: Power and
port LEDs; 24 10/100 ports; 2 optional module slots; and a console
port.
The switch is field upgradeable for use with 1000BaseSX,
1000BaseX GBIC or 10/100/1000BaseT modules.
Optional modules for the IC 3524
Front Panel IC 3524 Base
9
Asanté IntraCore 3524
2 Installation and Setup
This chapter explains how to install and connect the switch to
your network. To configure the switch for management, refer to
the User’s Manual on the CD-ROM.
The following guidelines will help you prepare to install the
switch in such a way that it has the proper power supply and
environment.
2.1 Safety Overview
The following information provides safety guidelines to ensure your
safety and to protect the switch from damage.
Note: Be aware, however, that this information is intended as a
guideline, and may not include every possible hazard to which you
may be exposed. Use caution when installing this switch.
•Only trained and qualified personnel should be allowed to in-
stall or replace this equipment.
•Always use caution when lifting heavy equipment
•Keep the chassis clean
•Keep tools and chassis components off the floor and away from
foot traffic
•Avoid wearing rings or chains (or other jewelry) that could get
caught in the chassis. Metal objects can heat up and cause
serious injury to persons and damage to the equipment. Avoid
wearing loose clothing, i.e. ties or sleeves
When working with electricity, follow these guidelines:
•Before accessing the interior of the chassis, locate
the emergency power-off switch for the room you are in
•Disconnect all external cables before installing or removing a
chassis
•Do not work alone when working with electricity
•Always check that the power has been disconnected from the
circuit
10 Getting Started Guide
•Do not tamper with the internal components of your switch.
This could void your warranty
•Examine your work area for potential hazards (I.e. wet floors,
ungrounded cables, etc.) and eliminate them before installing
your switch
For more safety information, please refer to the User’s Manual.
2.2 Recommended Installation Tools
You will need the following tools and equip-
ment (not included) to install the switch:
•Number 1 Phillips screwdriver
•Number 2 Phillips screwdriver
•3/16-inch flat-blade screwdriver
•Antistatic mat or foam
•An ESD grounding strap
2.3 Power Requirements
The electrical outlet should be located near the switch and be easily
accessible. It must also be properly grounded.
Make sure the power source adheres to the following guidelines:
•Power: Auto Switching 110/240 VAC
•Frequency range: 50/60 Hz
•Maximum input AC Current: 1.0A at 115 VAC full load
2.4 Environmental Requirements
The switch must be installed in a clean, dry, dust-free area
with adequate air circulation to maintain the following environ-
mental limits:
•Operating Temperature: 0° to 40° C (32° to 104° F)
•Storage Temperature: -20° to 70° C (-4° to 158° F)
•Relative Humidity: 10% to 90% relative humidity
•Storage Relative Humidity: 10% to 95% relative humidity
