Asante FM2008/2009 Manual de usuario

FriendlyNET®FM2008/2009

SNMP/Web Managed Switches

User’s Manual

FriendlyNET FM2008/2009 2 User’s Manual

Quick Start Guide

Follow these steps to install the switch:

1. Open the box and check the contents. See Chapter 1 for a complete list

of the items included with the switch.

2. Install the switch in an equipment or wall rack, or prepare it for desktop

placement.

3. Connect the power supply.

4. Connect network devices to the switch.

5. Refer to Chapters 4 and 5 for configuration and management

capabilities.

FriendlyNET FM2008/2009 3 User’s Manual

FriendlyNET FM2008/2009 SNMP/Web Managed Switches

User’s Manual

Asanté Technologies, Inc.

821 Fox Lane

San Jose, CA 95131

USA

SALES

800-662-9686 Home/Office Solutions

800-303-9121 Enterprise Solutions

408-435-8388

sales@asante.com

TECHNICAL SUPPORT

801-566-8991 Worldwide

801-566-3787 FAX

www.asante.com

support@asante.com

logo is a trademark of Asanté Technologies, Inc. All other names or marks are trademarks or registered trademarks of their respective

owners. All features and specifications are subject to change without prior notice.

Rev. A

FriendlyNET FM2008/2009 4 User’s Manual

Table of Contents

Quick Start Guide ................................................................................................... 2

1. Introduction......................................................................................................... 5

2. Hardware Description......................................................................................... 9

3. Console Management ...................................................................................... 15

4. Web-Based Management................................................................................. 55

5. Technical Specifications ................................................................................... 82

6. Troubleshooting................................................................................................ 83

FriendlyNET FM2008/2009 5 User’s Manual

1. Introduction

Thank you for purchasing the FM2008/2009 SNMP/Web Managed Switch.

The FM2008/2009 switches are compact desktop-sized switches that are

an ideal solution for the SOHO (Small Office or Home Office) network user.

They provide full wire-speed, Fast Ethernet switching that allows a

high-performance, low-cost connection. Each switch features

store-and-forward switching and can auto-learn and store source

addresses on an 8K-entry MAC address table.

Figure 1-1. The FriendlyNET FM2009 Switch

The FM2008/2009 both provide 8 switched, auto-sensing 10/100

Mbps RJ-45 Ethernet ports. Each switch will automatically detect the

speed of the device(s) connected to it, allowing the user to use both

10 and 100Mbps legacy devices. The 10Mbps bandwidth will

accommodate 10Mbps workgroup hubs while simultaneously

providing the 100Mbps bandwidth needed to accommodate

multimedia applications. In addition, each RJ-45 port supports Auto

MDI/MDI-X function.

The FM2009 switch also provides one 100Base-FX fiber port. Four

types of fiber connectors are available: SC, MT-RJ, VF-45

(multi-mode), and SC (single-mode). The fiber port can be used to

connect to a remote site up to 2 kilometers (multi-mode) or 15–60

kilometers (SC single-mode) away.

FriendlyNET FM2008/2009 6 User’s Manual

With its built-in Web-based Management, managing and configuring

the switch is easy: From cabinet management to port-level control

and monitoring, the user can visually configure and manage the

network via a web browser. Just click your mouse instead of typing

command strings. However, the switch can also be managed via

telnet, console, or SNMP management.

Features

• Conforms to IEEE 802.3, 802.3u, and 802.3x Ethernet

Standards

• 8x auto-sensing 10/100Mbps Ethernet RJ-45 ports

• Automatic MDI/MDI-X crossover for each 10BaseT/

100BaseTX port

• FM2009 only: 1 fixed 100Mbps fiber port (SC/SC single

mode/MT-RJ/VF-45 connector)

• Half-duplex mode for backpressure, and full-duplex for

flow control

• Store-and-forward switching architecture for abnormal

packet filtering

• Automatic address learning, address migration

• 8K-entry MAC address table

• 2Mbit memory buffer sharing

• Performs non-blocking full wire speed switching

• LED indicators for Power, 100Mbps, Link/Activity, Full

duplex

• 10 inch desktop-sized design

Intelligent Management Features

• Web-based management

• SNMP network management

• Console and Telnet management

• IEEE 802.1q Port Base VLAN and Tag VLAN up to 256

static VLANs, or up to 4094 dynamic VLANs

FriendlyNET FM2008/2009 7 User’s Manual

• IEEE 802.1ad Port Trunking LACP supported

• IEEE 802.1D Spanning Tree

• MIB II (RFC1213) supported

• IP Multicast, IGMP Snooping

• Quality of Service (QoS)

• Port Mirror, Broadcast Filter, Static MAC Address, Port

Security, MAC Filtering and GVRP supported

Package Contents

Unpack the contents of the switch and verify them against the

following checklist:

• Switch

• Power Cord

• Rack Mount Kit

• Four Rubber Feet

• RS-232 Cable

• Set-up Guide

• User’s Manual (this document) on CD-ROM

If any item is missing or damaged, please contact your local dealer

immediately for service.

Management Methods

The switch series supports the following management methods:

• Console and Telnet Management

• Web-based Management

• SNMP Network Management

Console and Telnet Management

Console Management is done through the RS-232 Console Port.

Managing the switch in this method requires a direct connection

FriendlyNET FM2008/2009 8 User’s Manual

between the computer and the switch, while Telnet management is

done over the network. Once the switch is on the network, use Telnet

to log in and change the configuration.

Note: The default IP address of the switch is 192.168.0.1. Both the

default user name and the default password are root.

Web Based Management

The switch provides an embedded HTML web site residing in flash

memory. It offers advanced management features and allows users to

manage the switch from anywhere on the network through a standard

browser such as Microsoft Internet Explorer.

SNMP Network Management

SNMP (Simple Network Management Protocol) provides a means to

remotely manage network devices, and to monitor statistics, performance,

and security.

FriendlyNET FM2008/2009 9 User’s Manual

2. Hardware Description

This section describes the hardware of the FM2008 and 2009. (The

model shown is the FM2009. The FM2008 is identical, except that

there is no fiber uplink port.)

Front Panel

The front panel of the switch consists of 8 auto-sensing 10/100Mbps

Ethernet RJ-45 ports (automatic MDI/MDI-X), one 100Base-FX fiber

port, and the LED indicators.

FM2009 Managed Switch

Figure 2-1. The front panel of the switch

Four types of fiber connectors are available (FM2009 only): SC, SC

single-mode, MT-RJ, and VF-45.

FriendlyNET FM2008/2009 10 User’s Manual

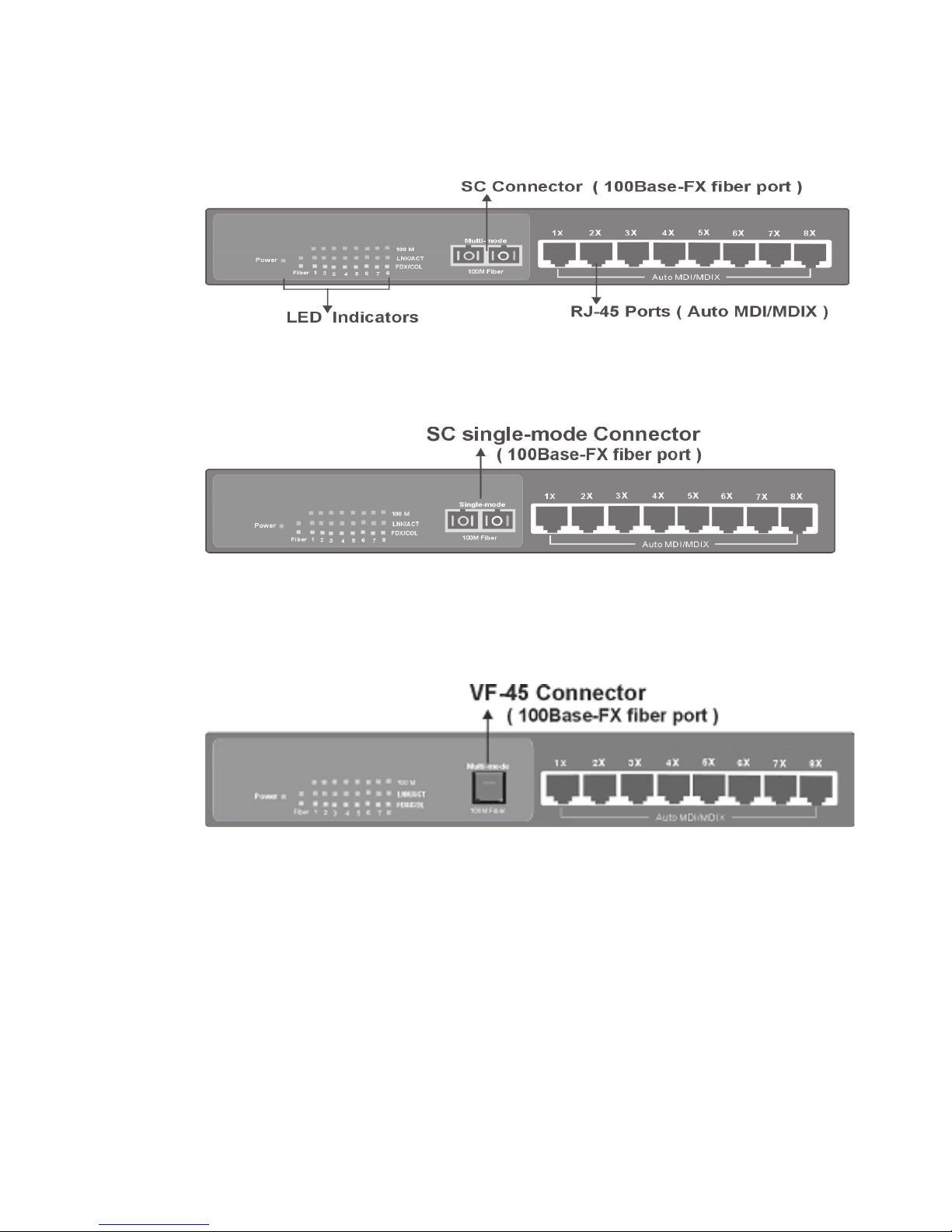

FM2009 managed switch with SC Connector (multi-mode)

Figure 2-2. The front panel of the FM2009 with a SC connector

FM2009 managed switch with SC Connector (single-mode)

Figure 2-3. The front panel of the FM2009 with a SC (single mode) connector

FM2009 managed switch with VF-45 Connector

Figure 2-4. The front panel of the FM2009 with a VF45 connector
