Asanté FriendlyNET Switch 4024P

Unmanaged 24-port 10/100 Switch

User’s Guide

Introduction

Thank you for purchasing the Asanté FriendlyNET Switch 4024P. This

FriendlyNET unmanaged 24-port 10/100 switch can provide dedicated

100Mbps throughput per port to the desktop. With features like auto-negotia-

tion and full duplex transmission, these systems offer smooth network migra-

tions and easy upgrades to increase network capacity.

Figure 1 The FriendlyNET Switch 4024P

Features

The FriendlyNET Switch 4024P has the following features:

❑

24 10/100Mbps auto-negotiated switch ports

❑

Compliance with IEEE802.3, IEEE802.3u, and IEEE802.3x stan-

dards

❑

Back pressure (collision based) ﬂow control in half duplex operation

❑

IEEE802.3x ﬂow control in full duplex operation

❑

One up-link push button for cascading

❑

Dip switches on all ports for auto-negotiation or forced full duplex

❑

Visual diagnostic LEDs for each port

❑

13-inch rack mount width

❑

Standard 1U chassis height

❑

Internal switching power supply

99-00542-01 FN 4024P Page 1 Wednesday, June 23, 1999 3:27 PM

User’s Guide

Page 2

Package Contents

The package contains the following items:

❑

(1)

FriendlyNET Switch 4024P 24-port 10/100 switch

❑

(1) AC power cord

❑

(4) Self-adhesive rubber feet

❑

(1) Rack-mount kit, which includes two rack-mounting brackets and

mounting screws

❑

User’s Guide (this book)

Front Panel Information

The following sections describe the key features of the FriendlyNET Switch

4024P front panel and how to use them.

Figure 2 FS4024P front panel

LEDs

The LEDs on the front panel provide visual evidence of the status of the

following items:

❑

Switch power supply

❑

Full/Half duplex operation mode and collision indicator

❑

Connection (link) speed of 10Mbps or 100Mbps

❑

Data activity on each segment

99-00542-01 FN 4024P Page 2 Wednesday, June 23, 1999 3:27 PM

Front Panel Information

Page 3

Table 1 Power LED

LED Indicator Color Description

Power Green The unit is powered on and ready for use

Off The unit is powered off

Table 2 Full/Collision LEDs

LED Indicator Color Description

Full/Collision Off There is no link, or a half-duplex operation mode

has been established, and no collisions have

occurred

Yellow The operation mode is full duplex

Blinking Yellow The operation mode is half-duplex, and collisions

are occurring

Table 3 Link/Activity LEDs

LED Indicator Color Description

Link/Activity Off No link is established on the port

Green A 10Mbps link has been successfully established on

the port

Blinking Green A 10Mbps link has been established, and data trans-

mission or receiving activity is occurring on the port

Yellow A 100Mbps link has been established on the port

Blinking Yellow A 100Mbps link has been established, and data

transmissionorreceivingactivityisoccurringonthe

port

99-00542-01 FN 4024P Page 3 Wednesday, June 23, 1999 3:27 PM

User’s Guide

Page 4

Switch Ports

There are twenty-four RJ-45 connectors on the front panel.The 10/100Mbps

speed and Full/Half duplex mode of each port are automatically determined

when you connect the switch to 10Base-T or 100Base-Tx devices.

Normal/Uplink Push Button

One Normal/Uplink push button is located at the right end of the front panel.

You can use it to change the connection mode of the 24th port on the switch,

for connecting to either a PC or a hub/switch.The default setting is in the

Normal (MDI-X) position, which is the “out” position.The port is conﬁgured

to connect with a PC when the button is in this position. When the push

button is pressed in (MDI), it allows you to connect with a hub or a switch

using straight-through twisted pair cable.

Figure 3 Uplink connection to a second switch

Rear Panel Information

Full/Auto Dip Switches

All of the ports are capable of auto-negotiation. In addition, each port has a dip-

switch on the back panel, which can be set to either auto-negotiation, or

enforced full duplex operation mode.

If you set a dip-switch to the

Auto

position, the operation mode is

automatically determined by the capability of the link partner. If the link

Push button in

the IN position

Push button in

the OUT position

24th port

99-00542-01 FN 4024P Page 4 Wednesday, June 23, 1999 3:27 PM

Connecting To Network Devices

Page 5

partner is not able to advertise its capability, the default operation mode is half

duplex.

If you set a dip switch to the

Full

position, the port can transmit and receive

data simultaneously. Full mode is used for point-to-point connections only.

The speed of the port is auto-sensing no matter which position you set the dip-

switch in.

ConnectingTo Network Devices

If you are connecting several workstations and a server, you can build the

network using the FriendlyNET Switch 4024P as shown in Figure 4.

Figure 4 A simple network topology

To improve the efﬁciency of the network, it is best to have 200Mbps full duplex

operation between the server and the FriendlyNET Switch 4024P, if the LAN

adapter on the server can operate in full duplex mode.

Connecting to a Switch or a Hub

Make switch-to-switch or switch-to-hub connections by connecting the 24th

port of the FriendlyNET Switch 4024P with straight-through cable (Category

3 for 10Mbps only, Category 5 for all others) to any port of the other hub/

switch; make sure the Normal/Uplink button is pressed in when you make this

connection. Make sure also that the dip-switch for the port on the

FriendlyNET Switch 4024P is set to

Auto

mode.

200Bps 10Bps

100Bps

Server

99-00542-01 FN 4024P Page 5 Wednesday, June 23, 1999 3:27 PM

User’s Guide

Page 6

Figure 5 Multiple hub/switch network

For 100Base-T networks, the maximum network diameter is approximately

205 meters, assuming you are using UTP cable (Category 3 for 10Mbps only,

Category 5 for all others). The maximum length between hubs or hubs and

switches is 100 meters.

Placing or Rack Mounting the Switch

The FriendlyNET Switch 4024P is supplied with two mounting brackets, six

screws, and four rubber feet for mounting the rack or placing it on a ﬂat surface.

Placing the FS4024P on a ﬂat surface

Apply the four rubber feet to the bottom of the unit.

Put the unit on the ﬂat surface.

Mounting the FS4024P in a Rack

Place a mounting bracket over the mounting holes on

each end of the unit.

Insert each screw through the bracket and into a mounting

hole in the switch, as shown in Figure 6.

Insert the unit into your 13-inch rack.

99-00542-01 FN 4024P Page 6 Wednesday, June 23, 1999 3:27 PM

Product Specifications

Page 7

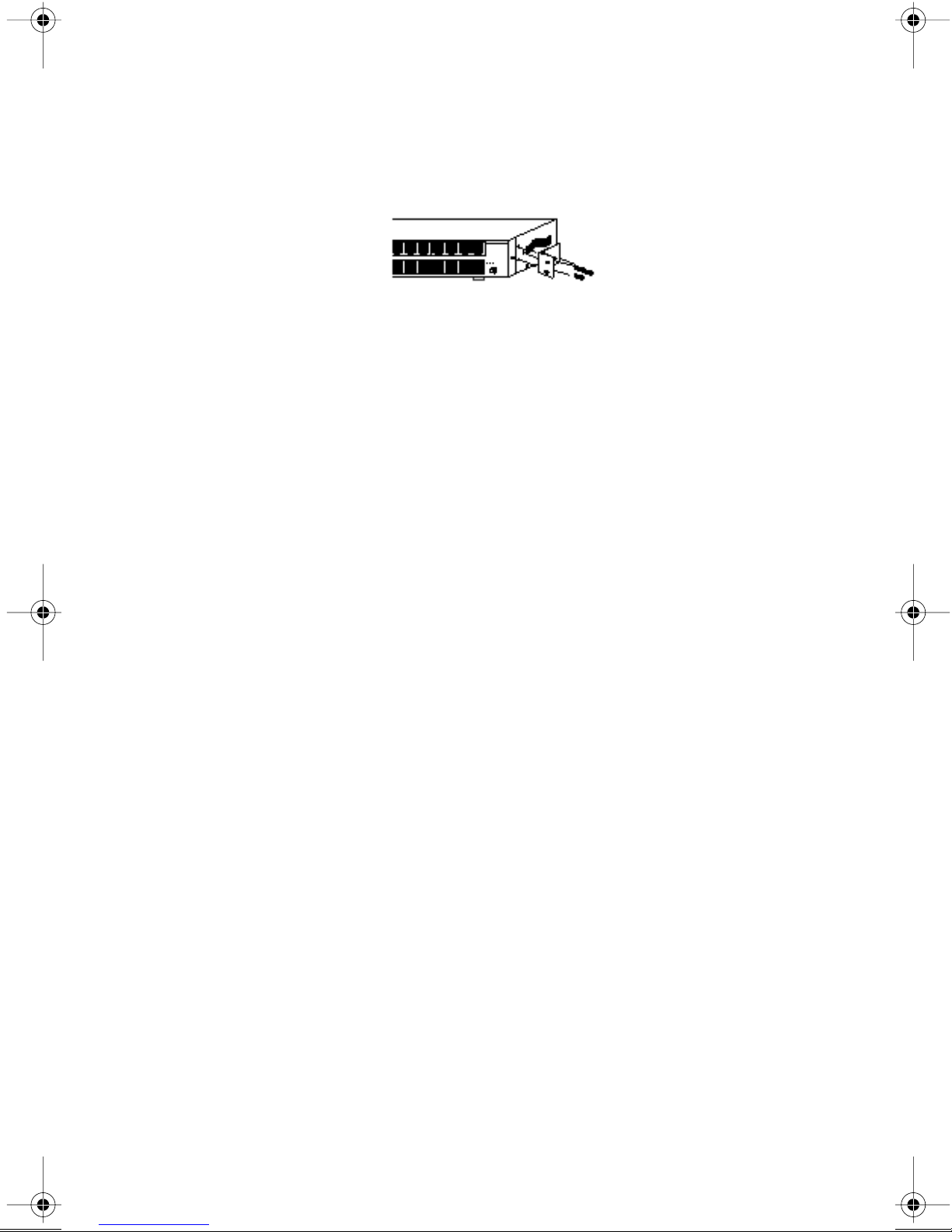

Figure 6 Rack mounting bracket

Product Speciﬁcations

Standards supported

ISO/IEC 802.2-3, IEEE 802.3,

IEEE 802.3u, IEEE802.3x

Interfaces

RJ-45 Connectors for 10Base-T

and 100Base-Tx Fast Ethernet

Cabling

Category 3 for 10Mbps only, Category 5 for all

others

Input voltage

100 to 240 VAC at 50 to 60 Hz

Power consumption

30 W

Operating temperature

0 to 40° C

Storage Temperature

-20 to 70° C

Operating Humidity

10 to 90% RH

Storage Humidity

10 to 95% RH

Dimensions

330mm (13”)X 43mm (1.69”)X207mm (8.15”)

Weight

2.6Kg (5.69lb)

Certiﬁcation

FCC Class A, CE Class A

99-00542-01 FN 4024P Page 7 Wednesday, June 23, 1999 3:27 PM

User’s Guide

Page 8

ASANTÉTECHNOLOGIES, INC., 821 FOX LANE, SAN JOSE, CA 95131

PHONE: 800.622.7464 • FAX: 801.566.3787 • e-mail address: [email protected] •

World Wide Web site: http://www.asante.com

All brand names and products are trademarks or registered trademarks of their respective holders.

June 1999

Part Number 06-00520-00

99-00542-01 FN 4024P Page 8 Wednesday, June 23, 1999 3:27 PM
