Arecont Vision AV1215PM-S Manual de usuario

MegaVideo®!G5

Installation Manual!

Models:

1.2 Megapixel

•AV1215PM-S

1080p

•AV2215PM-S!

•AV2216PM-S!

3 Megapixel

•AV3215PM-S

•AV3216PM-S

5 Megapixel

•AV5215PM-S

10 Megapixel

•AV10215PM-S

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

!! ! Installation!Manual!

Page | 2support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

MegaVideo®!G5

Contents

Package Contents!..................................................................................................................................................!3!

System Requirements!...........................................................................................................................................!5!

Installing the Lens!..................................................................................................................................................!5!

Optional: Connecting Digital I/O!...........................................................................................................................!7!

Camera Power Up!..................................................................................................................................................!8!

Auxiliary Power!.....................................................................................................................................................!10!

Locally Storing Data!.............................................................................................................................................!11!

SD Card Set-up!....................................................................................................................................................!11!

Camera Discovery, Setup, and Configuration!..................................................................................................!12!

Network Protocols!................................................................................................................................................!12!

SD Card Tab!.........................................................................................................................................................!15!

SD Card Setup via AV200!...................................................................................................................................!16!

Remote Zoom / Remote Focus via Web Interface!..........................................................................................!18!

Focus Tab!..............................................................................................................................................................!19!

Support!..................................................................................................................................................................!20!

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

!! ! Installation!Manual!

Page | 3support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

MegaVideo®!G5

CAUTION!

1. Do not attempt to service a damaged unit yourself. Refer all servicing to qualified service

personnel.

2. Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and

with all local codes and authorities having jurisdiction. Wiring should be UL Listed and/or

Recognized wire suitable for the application.

3. Always use hardware e.g. screws, anchors, bolts, locking nuts etc. which are compatible with

mounting surface and of sufficient length and construction to insure a secure mount.

Package Contents

This equipment should be unpacked and handled with care. The original packaging is the safest

container in which to transport the unit and can be used if returning the unit for service. The packaging

contains:

•One (1) Arecont Vision MegaVideo® G5 Camera

•One (1) Rubber gasket (preinstalled on the camera)

•One (1) CD containing software and user manual (license key required for recording)

•One (1) C to CS lens adapter (lens sold separately)

•One (1) 0.5mm lens spacer ring

•One (1) 6-position external power & IO plug

•One (1) 0.05” hex L-Key

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

!! ! Installation!Manual!

Page | 4support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

MegaVideo®!G5

Warranty Information

3 Year Limited Warranty

ARECONT VISION warrants to Purchaser (and only Purchaser) (the “Limited Warranty”), that: (a) each

Product shall be free from material defects in material and workmanship for a period of thirty-six (36)

months from the date of shipment (the “Warranty Period”); (b) during the Warranty Period, the

Products will materially conform with the specification in the applicable documentation; (c) all licensed

programs accompanying the Product (the “Licensed Programs”) will materially conform with applicable

specifications. Notwithstanding the preceding provisions, ARECONT VISION shall have no obligation or

responsibility with respect to any Product that (i) has been modified or altered without ARECONT

VISION’s written authorization; (ii) has not been used in accordance with applicable documentation; (iii)

has been subjected to unusual stress, neglect, misuse, abuse, improper storage, testing or connection;

or unauthorized repair; or (iv) is no longer covered under the Warranty Period. ARECONT VISION

MAKE NO WARRANTIES OR CONDITIONS, EXPRESS, IMPLIED, STATUTORY OR OTHERWISE,

OTHER THAN THE EXPRESS LIMITED WARRANTIES MADE BY ARECONT VISION ABOVE, AND

ARECONT VISION HEREBY SPECIFICALLY DISCLAIMS ALL OTHER EXPRESS, STATUTORY AND

IMPLIED WARRANTIES AND CONDITIONS, INCLUDING THE IMPLIED WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NON-INFRINGEMENT AND THE

IMPLIED CONDITION OF SATISFACTORY QUALITY. ALL LICENSED PROGRAMS ARE LICENSED

ON AN “AS IS” BASIS WITHOUT WARRANTY. ARECONT VISION DOES NOT WARRANT THAT (I)

THE OPERATION OF THE PRODUCTS OR PARTS WILL BE UNINTERRUPTED OR ERROR FREE;

(II) THE PRODUCTS OR PARTS AND DOCUMENTATION WILL MEET THE END USERS’

REQUIREMENTS; (III) THE PRODUCTS OR PARTS WILL OPERATE IN COMBINATIONS AND

CONFIGURATIONS SELECTED BY THE END USER; OTHER THAN COMBINATIONS AND

CONFIGURATIONS WITH PARTS OR OTHER PRODUCTS AUTHORIZED BY ARECONT VISION

OR (IV) THAT ALL LICENSED PROGRAM ERRORS WILL BE CORRECTED.

For RMA and Advance Replacement information visit ArecontVision.com

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

!! ! Installation!Manual!

Page | 5support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

MegaVideo®!G5

Camera Overview

The MegaVideo® G5 multi-megapixel, indoor camera series delivers 1.2-, 1080p, 3-, 5-, or 10-

megapixel resolutions (lens sold separately). Regardless of time-of-day, this camera is ideal for

applications with challenging lighting conditions. The series combines a day/night mechanical cut filter

with an optional P-iris lens for precise, optimal image quality.

For applications with poor lighting conditions due to strong backlighting, reflections from wet

flooring/puddles, or contrast due to fog, mist, or glare, optional wide dynamic range is available on

some 1080p and 3MP models. 1080p models provide 30 images-per-second for optimum performance

in fast action scenes such as casino and banking applications. For challenging low-light applications,

the 1.2MP STELLAR model offers best-in-class light sensitivity capturing details in extreme low-light

(0.002 lux in monochrome) at an incredibly high frame rate of 37 frames per second.

The SD card slot supports up to 32GB of storage capacity for convenient onboard storage. Motorized

remote focus/zoom lens makes set-up and maintenance easy. The camera’s power can be supplied via

a Power-over-Ethernet compliant network cable connection or with power from 12-48V DC/24V AC

power supplies. The camera's interface allows for an intuitive, fast and easy configuration. The

MegaVideo® G5 is ONVIF Profile S (Open Network Video Interface Forum) and PSIA (Physical

Security Interoperability Alliance) compliant, providing interoperability between network video products

regardless of manufacturer.

System Requirements

Computer with Windows XP/Vista/7 operating system, network access, and Microsoft Internet Explorer

web browser version 9.0 or later (32-bit).

Installing the Lens

1. Remove the sensor protection cap from the camera (if present).

2. Screw the lens onto the camera in a clockwise rotation. For CS mount lenses, use the adapter

ring to attach the C-mount lens if required. NOTE: No C/CS adapter is required for remote focus

/ remote zoom lenses.

3. To remove the lens, manually turn the lens in a counter clockwise rotation.

Image 1

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

!! ! Installation!Manual!

Page | 6support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

MegaVideo®!G5

4. Connect the Remote Focus/Remote Zoom connecter and P-Iris connecter from the lens into the

corresponding ports on the back of the camera.

Image 2

Compatible Remote Focus / Remote Zoom Lenses

Lens

Description

MPL2.8-8.5MPI

2.8-8.5mm, 1/3", f1.2 CS-mount, IR corrected, P-Iris, Motorized Zoom and

Focus (for use with 1.2MP-3MP Arecont Vision cameras)

MPL3.3-8.5MPI

3.3-8.5mm, 1/2.5", f1.3 CS-mount, IR corrected, P-Iris, Motorized Zoom and

Focus (for use with 5MP Arecont Vision cameras)

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

!! ! Installation!Manual!

Page | 7support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

MegaVideo®!G5

Optional: Connecting Digital I/O

1. To use digital I/O, connect digital I/O with pigtail cable connector as shown in Image 3.

Image 3

NOTE: MegaVideo®G5 supports digital input but no digital output. See Table 1 for electrical

characteristics.

Electrical Characteristics

MIN

MAX

Input Voltage (V)

(Measured between +

and – terminals)

2.9

6.3

OFF!

1.3!

Table%1%

NOTE: The digital input is electrically isolated from the rest of the camera’s electrical circuitry via

general-purpose photo couplers. The input is additionally protected with a serial 250 Ohm resistor, and

a de-bouncing circuit. Duration of any input signal should be at least 5 ms to comply with the

requirements of the de-bouncing circuit.

NOTE: Table 2 shows the cable color for digital input.

Green

Digital IN +

Black

Digital IN -

Table 2

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

!! ! Installation!Manual!

Page | 8support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

MegaVideo®!G5

Mounting the Camera

The standalone MegaVideo G5 Series camera is suited for indoor applications and can be mounted

either from the top or from the bottom via the 1/4" 20 UNC thread. See Image 4.

Image 4

Camera Power Up

This product should be installed by a qualified service technician in accordance with the

National Electrical Code (NEC 800 CEC Section 60) or applicable local code.

1. Connect the camera to a PoE port on 100Mbps network PoE switch using an Ethernet cable as

shown in Image 5.

Image 5

2. Connect the PoE switch to your computer’s network port using an Ethernet cable.

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

!! ! Installation!Manual!

Page | 9support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

MegaVideo®!G5

NOTE: A yellow LED on the rear of the camera illuminates after a few seconds.

•The flashing yellow LED indicates that a link to your computer has been established.

•A green LED will blink when the camera has been accessed.

LED

Status

Description

Yellow

Flashing

Link has been established.

Solid

Normal Operation.

None

No connection.

Green

Flashing

Camera has been accessed. Normal operation.

Solid

N/A

None

No Connection.

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

!! ! Installation!Manual!

Page | 10 support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

MegaVideo®!G5

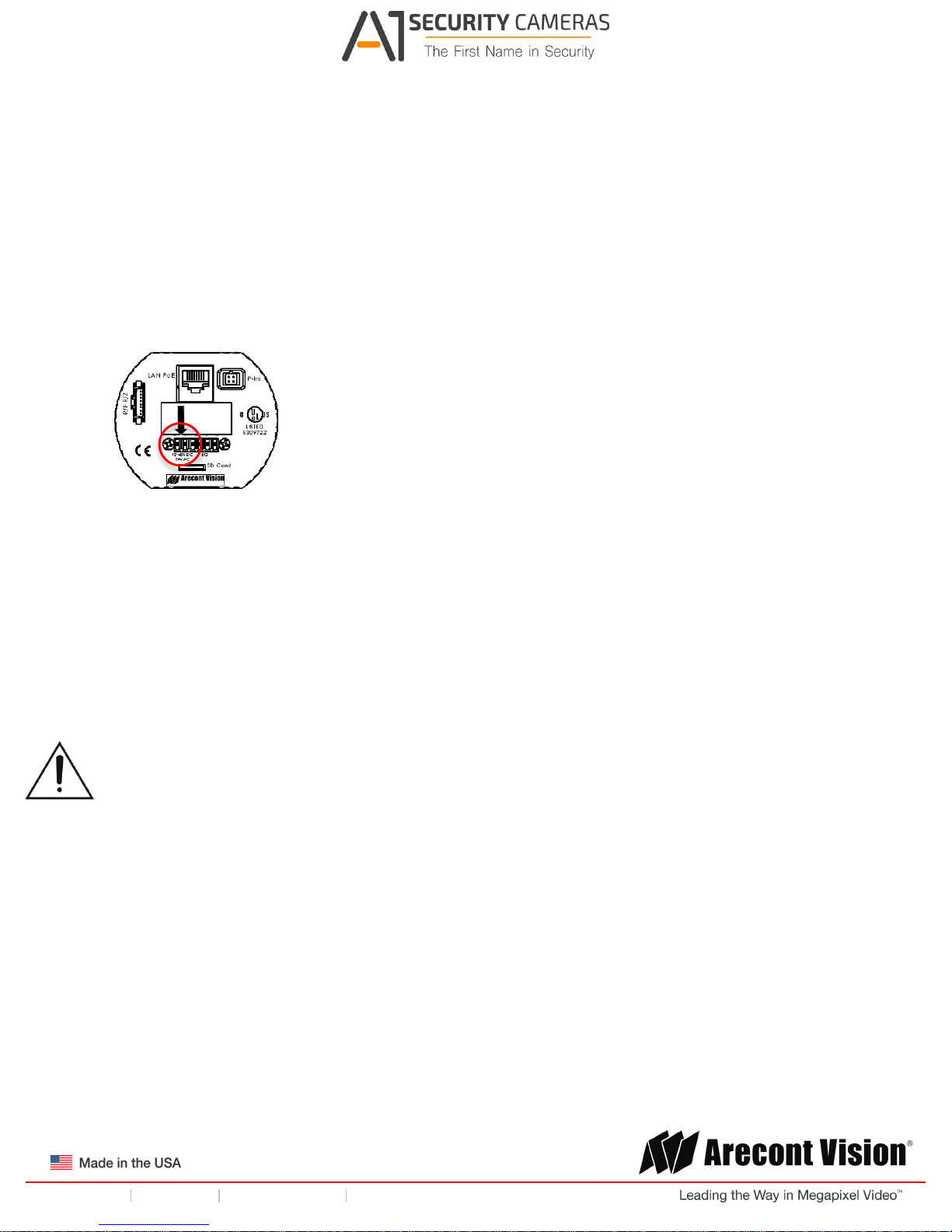

3. If the camera is powered by an outside power supply, connect the power wires to the

appropriate contacts of the 6-postion connector using a small flathead screwdriver and connect

the 6-position plug to the camera as shown in Image 6.

NOTE 1: Ensure that the polarity of the DC input on the camera matches the way that wires are

installed in the connector.

NOTE 2: AC power does not have polarity.

Image 6

Auxiliary Power

If the camera is powered by a separate outside AC or DC power source, run the supplied power cable

through the access hole on the camera housing and connect the power cable to the 2-position

connector on the main camera board. The approximate location of the 2-position connector is circled in

red below.

NOTE: Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and

with all local codes and authorities having jurisdiction. Wiring should be UL Listed and/or Recognized

wire suitable for the application.

For use in ducts, plenums and other air-handling areas, replace Auxiliary Cable provided with CMP,

CL2P or CL3P type wires.

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara de seguridad de Arecont Vision

Arecont Vision

Arecont Vision MegaView 2 AV1225PMIR-S Manual de usuario

Arecont Vision

Arecont Vision MegaBall 2 Manual de usuario

Arecont Vision

Arecont Vision ConteraIP Fisheye AV12CPD-236 Manual de usuario

Arecont Vision

Arecont Vision AV2225PMIR Manual de usuario

Arecont Vision

Arecont Vision MegaDomeT Manual de usuario

Arecont Vision

Arecont Vision D4S Series Manual de usuario

Arecont Vision

Arecont Vision AV1255AM Manual de usuario

Arecont Vision

Arecont Vision MicroDome AV1455DN-S Manual de usuario

Arecont Vision

Arecont Vision AV12975DN-NL Manual de usuario

Arecont Vision

Arecont Vision H.264 Day/Night SurroundVideo Series Manual de usuario

Arecont Vision

Arecont Vision SurroundVideo G5 Mini Manual de usuario

Arecont Vision

Arecont Vision SurroundVideo Series Manual de usuario

Arecont Vision

Arecont Vision Contera AV02CLB-100 Manual de usuario

Arecont Vision

Arecont Vision SurroundVideo Omni AV12176DN-08 Manual de usuario

Arecont Vision

Arecont Vision MicroDome AV1455DN-F Manual de usuario

Arecont Vision

Arecont Vision MegaBall AV2245PM-W Manual de usuario

Arecont Vision

Arecont Vision SurroundVideo Omni AV12176DN-NL Manual de usuario

Arecont Vision

Arecont Vision MegaBall AV2245PM-W Manual de usuario

Arecont Vision

Arecont Vision MicroDome AV2455DN-S Manual de usuario

Arecont Vision

Arecont Vision MicroDome Manual de usuario

Arecont Vision

Arecont Vision MegaDome 2 Manual de usuario

Arecont Vision

Arecont Vision D4S Series Manual de usuario

Arecont Vision

Arecont Vision Contera Micro Bullet Manual de usuario

Arecont Vision

Arecont Vision AV08ZMV-300 Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
