ARC TMT-918 Manual de usuario
Version 2.
pecification:
Function: On / Off / Dimmer / Timer
Frequency: 433.92MHz
Battery: LCD Power 1 x 3V CR2032 Lithium Cell Battery
RF Power 1 x 12VA23 Alkaline Battery
verview:
Portable wireless timer control with 16 programmable channels to control individual receivers on
daily basis at a pre-programmed time up to maximum 12 times a day.
S
O
Wireless Timer Remote Control
TMT-918
Version 2.
Comes with additional wall support holder!
1. Memory slots. (Max. 12)
2. 24 hour time display
3. Displays ‘ON’ timer for indicated unit.
4. Displays ‘OFF’ timer for indicated unit.
5. Timer setting: Random ‘ON/OFF’ mode for security prevention.
6. Timer setting: Single ‘ON/OFF’ mode.
7. Timer setting: ‘ON/OFF’ daily cycle mode.
8. Battery Status.
9. Unit.
10. Signal indication.
11. ‘ON / OFF’ button.
12. ‘UP ▲/ DOWN▼’ selection.
13. ‘Pause / Delete’ button.
14. ‘Enter’ button.
15. Clock.
16. Timer.
17. Unit code selection.
lock set up:
The clock has a 24 hour display.
Before programming the control, enter the correct time.
⚫Press the CLOCK button for 3 seconds and the hours of the clock start flashing (Fig.1)
C
Version 2.
⚫Use the ▲ and ▼ buttons to set the hour and press ENTER (Fig.2)
⚫Repeat the above for the “minutes” and again press ENTER (Fig.3)
The clock is now programmed
Version 2.
airing:
Pairing using LEARNING MODE:
1. First choose the desired receiver(s) that you wish to control.
2. On the remote control select the desired unit by pressing the ‘Unit’ button. (Fig. 4)
3. Press the ‘Learn’ button once (LED will flash), this will now enter learning mode.
4. On the remote control press the ‘ON’ button intended to be paired; the load will flash twice to
confirm that the remote control is now paired.
NOTE: Learning mode lasts for 12 seconds; if no signal is given to the receiver then it will
automatically exit learning mode without pairing the device.
To exit learning mode manually, simply press the ‘Learn’ button again.
！If, during learning mode the load does not flash to confirm, this means that the receiver’s memory
is FULL and no further remote control may be paired unless one of the existing remote control is
first unpaired (see below).
n-pairing:
Removing single device:
1. On the remote control select the desired unit by pressing the ‘Unit’ button.
2. With the receiver that you intent to un-pair press the ‘Learn’ button once (LED will flash), this
will now enter learning mode.
3. On the remote control press the ‘OFF’ button; the load will flash twice to confirm that the remote
control is now unpaired.
etup:
⚫Timer programming.

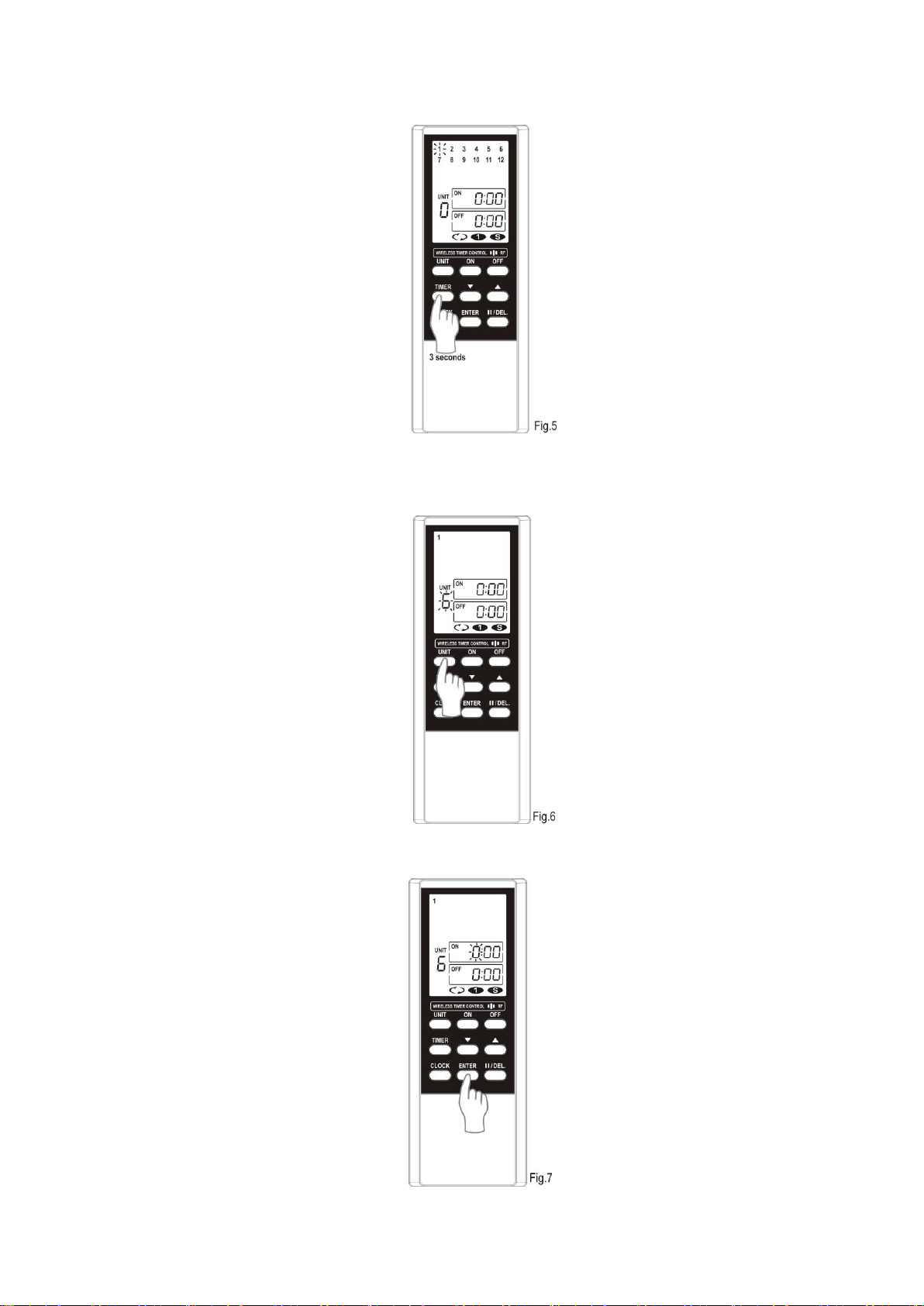

1. Press the ‘TIMER’button for 3 seconds and the number 1 on the LCD screen will start flashing.
This number represents 1 of the 12 memory slots of the timer. (Fig. 5)
P
U
S
Version 2.
2. Press ‘ENTER’to confirm the selected memory slot.
3. Press the ‘UNIT’button and select one of the 16 units that you wish to program. (Fig.6)
4. Press ‘ENTER’and the ON digits will start flashing. (Fig.7)
Version 2.
5. With ▲ and ▼ select the hour and press ‘ENTER’(Fig.8)
6. With ▲ and ▼ select the minutes and press ‘ENTER’(Fig.9)
7. The OFF digits will now start flashing (Fig.10)
Version 2.
8. With ▲ and ▼ select the hour and press ‘ENTER’(Fig.11)
9. With ▲ and ▼ select the minutes and press ‘ENTER’(Fig.12)
Version 2.
10. will start to flash. (Fig.13)
11. With ▲ and ▼ select one of the three symbols you wish to program as.
12. Press ‘TIMER’to return to Main Display.
！You can reprogram a timer simply by over lapping the memory slots.
Daily timer.
Once only timer.
Random timer.
Version 2.
※Hint※
During any settings, press the ‘TIMER’button to exit out and restart your settings again.
⚫Pausing a timer
The ‘II / DEL’button allows you to block the current pre-programmed setting manually.
1. Press ‘TIMER’button for 3 seconds, use ▲ and ▼ to select one of the 12 memory slots to be
temporarily blocked. Press the ‘II / DEL’button followed by ‘ENTER’, this will then temporary
block the selected program setting. (Fig.14)
2. Press ‘TIMER’to return to Main Display.
3. A square box around that number will show it is temporary blocked. (Fig.15)
Version 2.
⚫Deactivate ‘Pause’
To unblock the programmed setting.
1. Press ‘TIMER’button for 3 seconds, use ▲ and ▼ to select one of the 12 memory slots to be
temporarily blocked. Press the ‘II / DEL’button followed by ‘ENTER’, this will then temporary
unblock the selected program setting.
2. Press ‘TIMER’to return to Main Display.
3. The number will return to normal indicating program is now unblocked. (Fig.16)
⚫Deleting programmed timer
1. Press ‘TIMER’button for 3 seconds, use ▲ and ▼ to select the unit you wish to remove from the
program.
2. Press the ‘II / DEL’button for 3 seconds. The display will start to flash.
3. Press ‘ENTER’, the program will then be deleted.
4. Press ‘TIMER’to return to Main Display.
