ARC MEBT-1706 Manual de usuario
1
Issue date: 21/01/2020
MINI EASY ONE BUTTON
REMOTE CONTROL
MEBT-1706
CONTENTS
1. Overview and features Page 2.
2. Diagrams Page 3.
3. Battery Page 4.
4. Mounting on surface Page 4.
5. Pairing / Un-pairing device Page 8.
6. Scene setup / Scene control Page 9.
7. Operation Page 17.
8. Specifications Page 19.
2
Issue date: 21/01/2020
1.Overview and features
Easy one button remote control with 3 LED colour indication. (Red / Green /
Amber).
Equipped with 3 scene control and 1 ALL OFF control.
New dimming method by holding down the button to take control of the load
level.
3V CR2450 battery operation capable of 3 year battery life and built in battery
low indicator.
Main features of remote control;
•Compatible to L and M series.
•Easy freestanding on the table, mounting with screws or use adhesive
tape on flat surface.
•Simple single and double click action.
•Scene status memory, create your desired atmosphere.
•Actions are confirmed by the built-in LED indication.
OVERVIEW AND FEATURES
3
Issue date: 21/01/2020
2.Diagrams.
Notes for the diagrams:
DIAGRAMS
Function Switch
1. Load Control
2. Scene Control
3. Scene Setup
4
Issue date: 21/01/2020
3.Battery
Red LED will flash once every 4 seconds to indicate the battery is low.
1. With the one button remote control bottom facing up gently slide down the
back cabinet.
2. Remove battery insulation strip. (First time use only)
BATTERY
5
Issue date: 21/01/2020
3. Or replacing a new battery use a slot screwdriver and push down the small
metal spring then push out the battery.
4. Replace with a new 3V CR2450 battery making the positive symbol is facing
upwards.
BATTERY
6
Issue date: 21/01/2020
5. Slide battery compartment upwards to complete the battery replacement.
LITHIUM BATTERY CAUTION:
Risk of Explosion if battery is replaced by an incorrect type. Dispose of used
batteries according to the environment protection rules.
BATTERY
7
Issue date: 21/01/2020
4.Mounting On Surface
Easy one button remote control has 2 ways of mounting on flat surface.
1. With 3M double sided adhesive tape enclosed in the accessory pack.
2. Mounting with 2 screws enclosed in the accessory pack:
•Place the back battery cabinet onto wall surface making sure ‘UP’ symbol is
facing upward and arrow facing downwards.
•With cross head screw driver, tighten the back cabinet onto surface.
•With the push button facing towards you make sure the ‘UP’ symbol is facing
upwards, then align the triangle to the bottom rim onto the red line and gently
slide down the push button.
MOUNTING ON SURFACE
8
Issue date: 21/01/2020
5.Pairing / Un-pairing Device
PAIRING /UN-PAIRING
Refer to the relevant receiver operation manual that you wish to control for
detailed pairing / un-pairing procedure.
With the receiver that you intent to use, enter into “Learning Mode”
Function switch at position 1.
To Pair:
Press button once. Green LED flash once.
To Un-Pair:
Press button twice. Red LED flash twice.
PAIRING / UN-PARING DEVICE
LED Flash once
LED Flash twice
9
Issue date: 21/01/2020
6.Scene Setup / Scene Control
SCENE SETUP
Mini one button remote control has built in 3 scene control which sends the
unique special command to the M series receiver to call already stored scene
memory from the receiver.
In another word, scene setup memory is stored in the M series receiver side so
each time a command is received from either mini key fob, mini one button
remote or handy scene remote the M series receiver will know to activate
whichever scene (1 / 2 / 3) to be called.
Because the memory is stored in the M series receiver so as long the M series
remote control has been paired with the M series receiver the scene command
will also work.
No need to reprogram each individual scene if you have 1 or more M series
remote control.
Single device setup with easy button remote control:
Scene 1
1. Function switch at position 1.
2. Set the desired load level status.
SCENE SETUP / SCENE CONTROL
10
Issue date: 21/01/2020

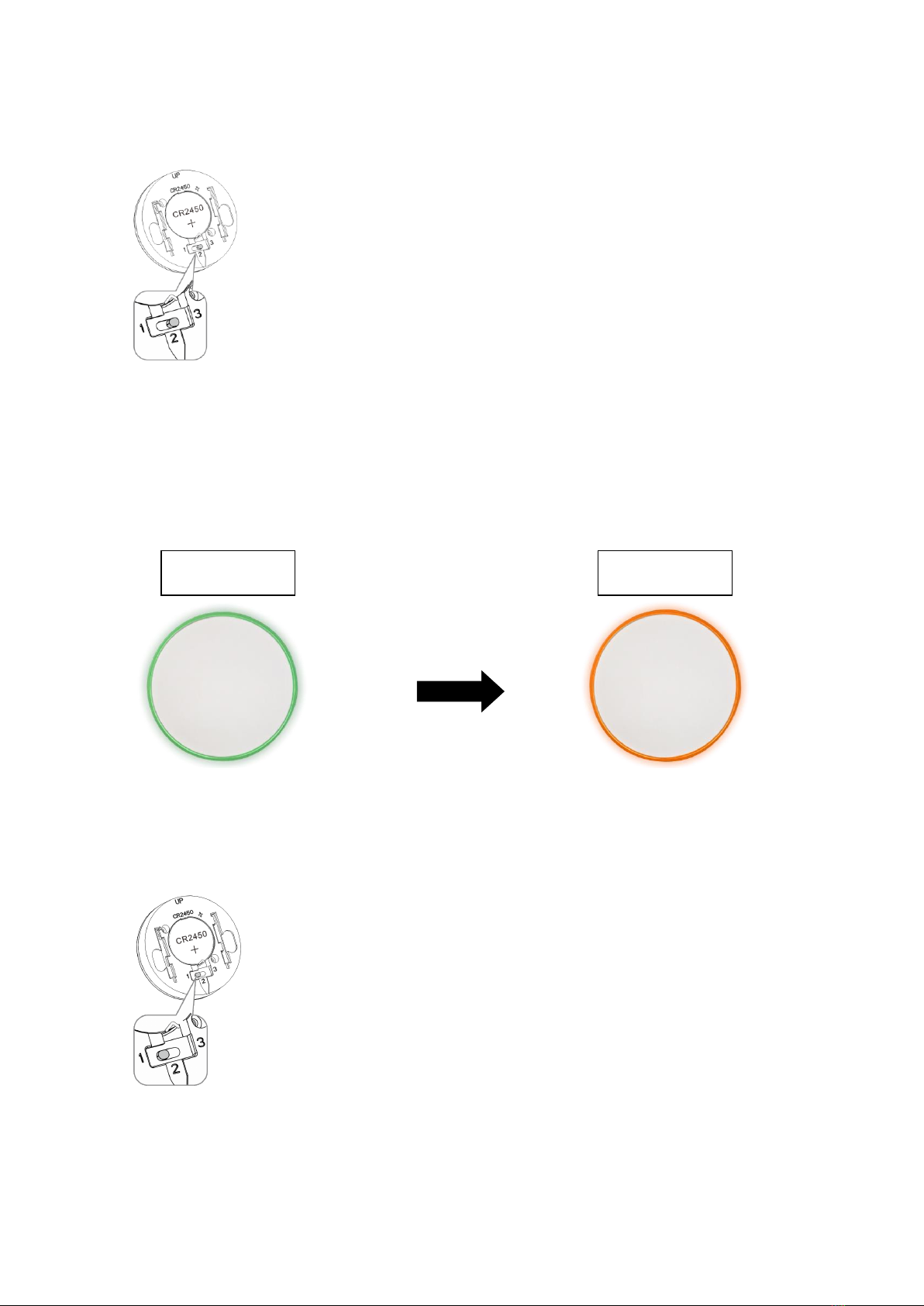

3. Slide function switch to position 3.
4. Press button once to store Scene Status 1.
5. Green LED flash 3 times →Amber LED flash 1 time to confirm Scene 1 is
stored.
Scene 2
1. Function switch at position 1.
2. Set the desired load level status.
LED 3 Times
LED 1 Time
SCENE SETUP / SCENE CONTROL
