ARC MYCT-1702 Manual de usuario
1
Issue Date: 7/4/2020
MINI REMOTE CONTROL
MYCT-1702
CONTENTS
1. Overview and features Page.2.
2. Diagrams Page 3.
3. Battery Page 4.
4. Pairing / Un-pairing device Page 7.
5. Operation Page 8.
6. Specifications Page 10.
2
Issue Date: 7/4/2020
1.Overview and features
Wireless remote control with 3 channel and ‘All On-Off’ function.
New dimming method by holding down the button to take control of the load
level.
3V CR2032 battery operated capable for up to 3 years battery life.
Main features of remote control;
•Compatible to L and M series.
•Easy freestanding on the table with slip proof pad.
•Pocket size.
•Simple single and double click action.
•Actions are confirmed by the built-in red LED indication.
•Equipped with 4 easily recognizable buttons.
OVERVIEW AND FEATURES
3
Issue Date: 7/4/2020

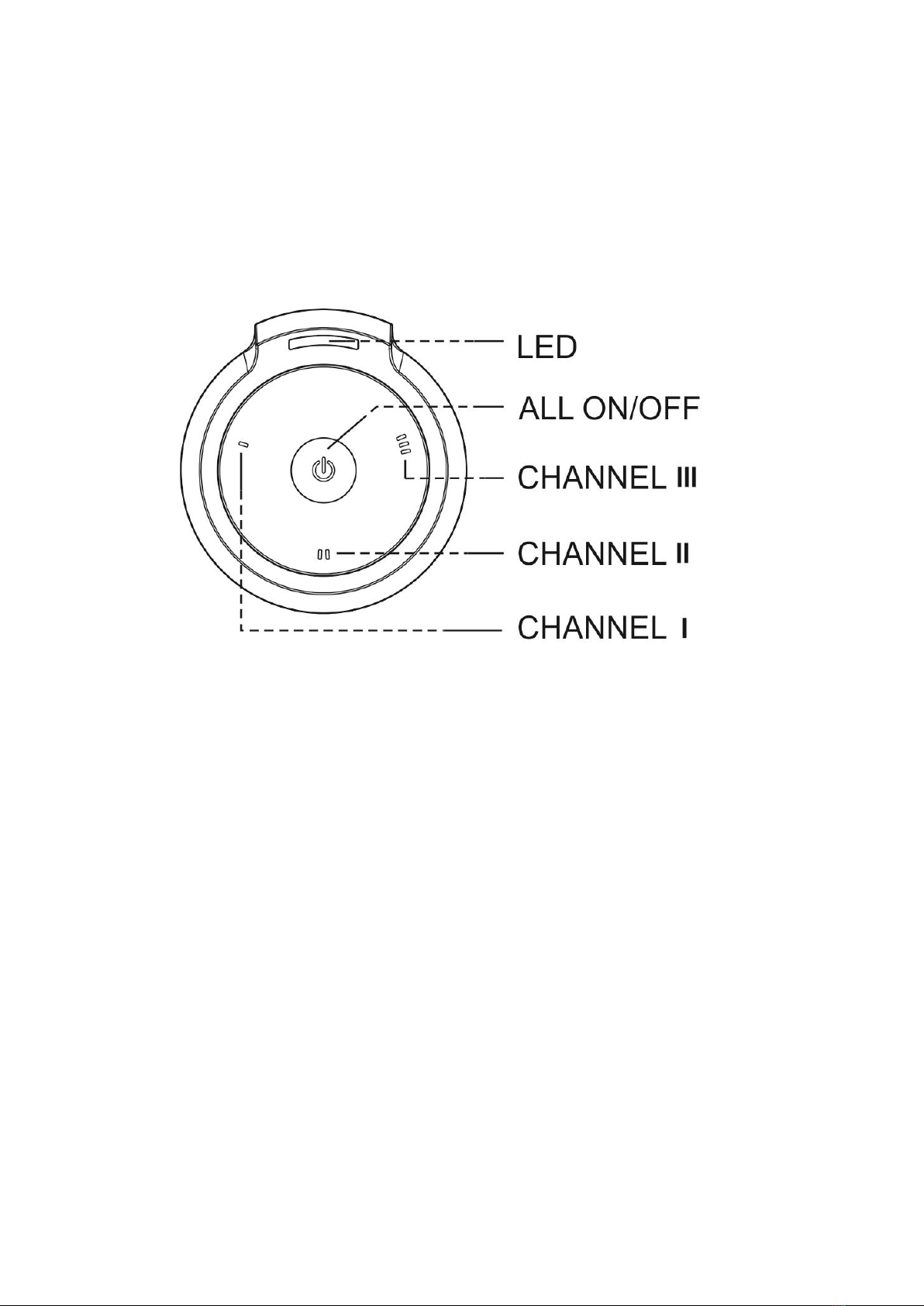

2.Diagrams.
Notes for the diagrams:
DIAGRAMS
4
Issue Date: 7/4/2020
3.Battery
1. With a slot screwdriver carefully slide down the battery compartment.
2. Remove battery compartment.
BATTERY
5
Issue Date: 7/4/2020
3. Pull out battery insulation strip. (First time use only)
4. Remove 3V CR2032 battery and replace a new one making the positive
symbol is facing upwards.
BATTERY
6
Issue Date: 7/4/2020
5. Slide back battery compartment to complete the battery installation
LITHIUM BATTERY CAUTION:
Risk of Explosion if battery is replaced by an incorrect type. Dispose of used
batteries according to the environment protection rules.
BATTERY
7
Issue Date: 7/4/2020
4.Pairing / Un-pairing Device
PAIRING /UN-PAIRING
Enter “Learning Mode”
To Pair:
Press button once (Red LED quick flash once)
To Un-Pair:
Press button twice (Red LED quick flash twice)
“M series” system
If you are controlling the “M series” system receiver, the ‘All On-Off’ function will
be automatically stored upon pairing each individual receiver.
“L series” system
If you are controlling the “S series” system receiver, make sure to pair each
receiver intent to be memorize under the ‘All On-Off” button.
And or un-pair each receiver intent to be deleted under the ‘All On-Off’ button.
PAIRING / UN-PARING DEVICE
8
Issue Date: 7/4/2020
5.Operation
Mini remote control is compatible to S and M series receivers. Please refer to
the relevant user guide for detailed operation.
Channel I operation example.
Turn the load ON:
Press channel I button once. Red LED quick flash once.
Turn the load OFF:
Press channel I button twice. Red LED quick flash twice.
Dim the load:
1. Press button once to turn ON load
2. Press and hold down button again to start dimming, load will start to adjust.
3. At the desired level release button to stop.
During dimming process when the load level reaches to the lowest or
brightest, to continue dimming release button then press button again to start
dimming.
Next time switching ON the load will return to the previous stipulated brightness.
OPERATION
9
Issue Date: 7/4/2020
All On / All Off:
All ON:
Press button once. Red LED quick flash once.
All OFF:
Press button twice. Red LED quick flash twice.
OPERATION
10
Issue Date: 7/4/2020
6.Specifications
Battery : 3V CR2032 Lithium Cell Battery
Radio Frequency: 433.92MHz
Power consumption: 1W
Environment Temperature: 0-40 ºC
Range: up to 50 m indoors (Depends on building
materials)
In accordance with: Low Voltage Directive 2014/35/EU
RED Directive 2014/53/EU
CE Certification: The CE marked affixed to this product confirms
Its complaisance with the European Directives
Which apply to the product and in particular its
compliance with the harmonizes standards and
specifications.
Dimension 62.5 x 21.7 mm
Weight: 20 g
Note: Battery life is calculated at an average of 20 activations per day.
SPECIFICATION
