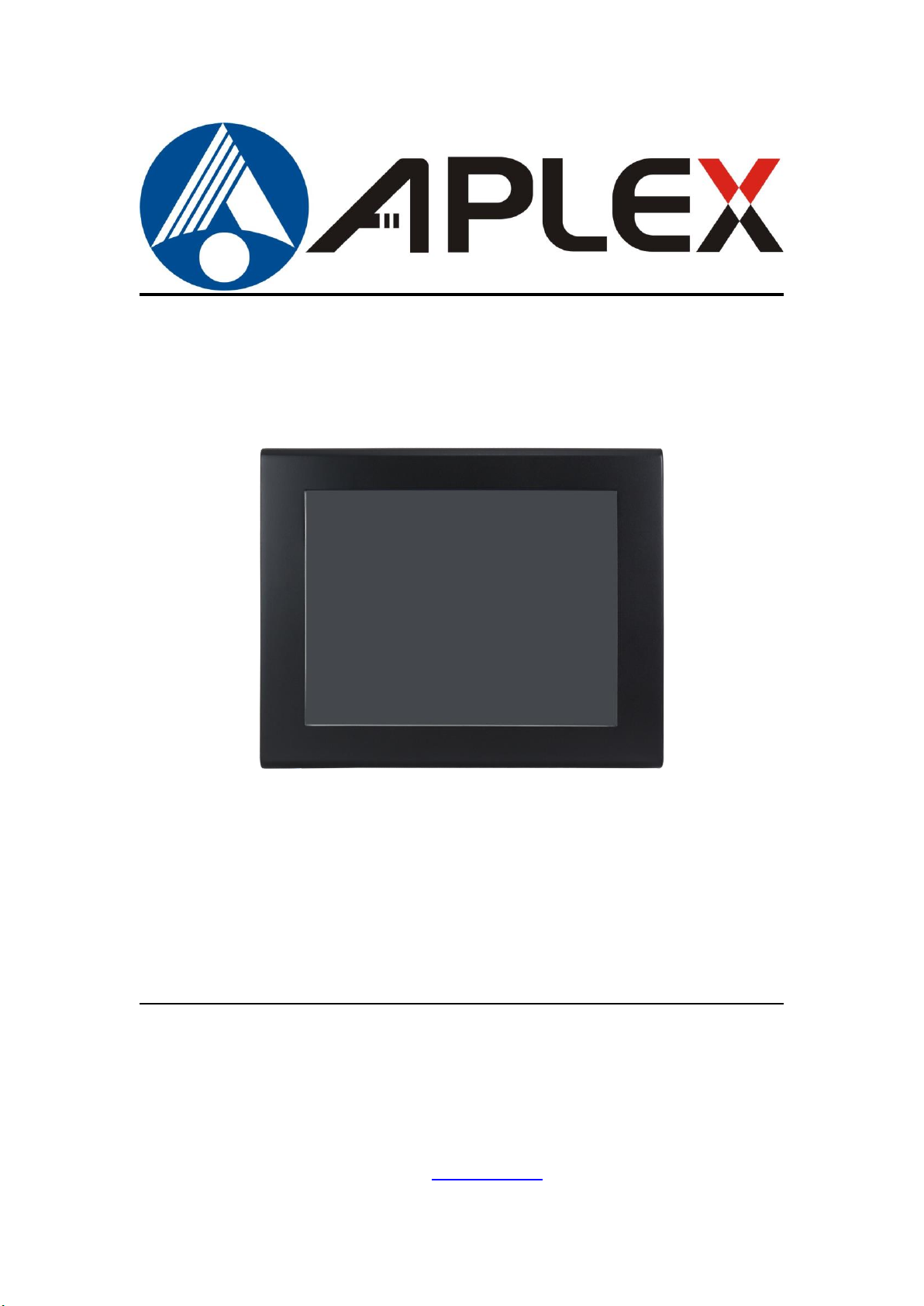

Aplex APC-3584B Manual de usuario

APC-3x84B/APC-3x85B

15”, 17”, and 19”Fanless 5 sides IP65 Intel Celeron Stainless Steel Panel PC

User Manual

Release Date Revision

Mar. 2016 V1.1

Aplex Technology, Inc.

15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan

Tel: 886-2-82262881 Fax: 886-2-82262883 URL: www.aplextec.com

APC-3x84B/APC-3x85B User Manual

Revision History

Reversion

Date

Description

1.0

2015/10/08

Official Version

1.1

2016/03/31

Update APC-3X84B Spec., Remove the two

screws on the IO side

APC-3x84B/APC-3x85B User Manual

Warning!________________________

Caution

Risk of explosion if the battery is replaced with an incorrect type.

Batteries should be recycled where possible. Disposal of used batteries must be in

accordance with local environmental regulations.

Disclaimer

This information in this document is subject to change without notice. In no event

shall Aplex Technology Inc. be liable for damages of any kind, whether incidental or

consequential, arising from either the use or misuse of information in this

document or in any related materials.

Electric Shock Hazard –Do not operate the machine with its back cover removed.

There are dangerous high voltages inside.

This equipment generates, uses and can radiate radio frequency energy and

if not installed and used in accordance with the instructions manual, it may cause

interference to radio communications. It has been tested and found to comply

with the limits for a Class A computing device pursuant to FCC Rules, which are

designed to provide reasonable protection against such interference when

operated in a commercial environment. Operation of this equipment in a

residential area is likely to cause interference in which case the user at his own

expense will be required to take whatever measures may be required to correct

the interference.

APC-3x84B/APC-3x85B User Manual

Packing List

Accessories (as ticked) included in this package are:

□Adaptor

□Driver & manual CD disc

□Other.___________________(please specify)

APC-3x84B/APC-3x85B User Manual

Safety Precautions

Follow the messages below to prevent your systems from damage:

◆Avoid your system from static electricity on all occasions.

◆Prevent electric shock. Don‘t touch any components of this card when

the card is power-on. Always disconnect power when the system is not

in use.

◆Disconnect power when you change any hardware devices. For instance,

when you connect a jumper or install any cards, a surge of power may

damage the electronic components or the whole system.

APC-3x84B/APC-3x85B User Manual

Table of Contents

Revision History…………………………………………………………………………………………………….1

Warning................................................................................…………………………….…2

Caution/Disclaimer……..……………………………………………………………………………………..…2

Packing List…………………………………….……………………………………………………………………..3

Safety Precautions…………………………………………………………………….…..……………………..4

Chapter 1 Getting Started

1.1 Features………………………..………………………...…………………………..7

1.2 Specifications…………………...………………………………………………….7

1.3 Dimensions………………………....……………………………………………...9

1.4 Brief Description of APC-3x84B/3x85B.………………………….……12

1.5 Installation of HDD/SSD and SD Card –APC-3X84B/3X85B….14

1.6 Installation of I/O Cover –APC-3X84B…………………………….….16

1.7 Installation of I/O Cover –APC-3X85B.…………………………….…17

Chapter 2 Hardware

2.1 Motherboard Introduction……………………...……………..………....18

2.2 Specifications…………………………..…………………………………………18

2.3 Jumpers and Connectors Location……………………………………...21

2.4 Jumpers Setting and Connectors…………………………………..……22

Chapter 3 BIOS Setup

3.1 Operations after POST Screen…...…….……...…………………………49

3.2 BIOS Setup Utility……………………………………………………………….49

3.3 Main Settings……………………………………..………………………………50

3.4 Advanced Settings……………………………………………………………...51

3.5 Chipset Settings……………………………………….………………………...59

3.6 Security Settings…………………………………………….…………………..61

3.7 Boot Settings…..………………………………………….……………………..61

3.8 Save & Exit Settings……………………………………..…………………....63

Chapter 4 Installation of Drivers

4.1 Intel (R) AtomTM SoC Chipset.………..……...………….………………66

4.2 Intel (R) VGA Chipset……………………………………………….……......69

4.3 Intel (R) LAN Driver………..………………………………………..………...73

APC-3x84B/APC-3x85B User Manual

4.4 Realtek ALC662 HD Audio Driver Installation………………………76

4.5 USB 3.0 Driver…………………………………………………………………….77

4.6 Com Driver…………………………………………………………………………80

Chapter 5 Touch Screen Installation

5.1 Windows XP/2003/Vista/7 Universal Driver Installation for

PenMount 6000 Series...……………….…………………………………...83

5.2 Software Functions…………………………………………..………………..87

Figures

Figure 1.1: Dimensions of APC-3584B…………..………………....……………......9

Figure 1.2: Dimensions of APC-3585B……………………………………….………...9

Figure 1.3: Dimensions of APC-3784B……………………………..…………………10

Figure 1.4: Dimensions of APC-3785B…………………………………………………10

Figure 1.5: Dimensions of APC-3984B……………………………..…………………11

Figure 1.6: Dimensions of APC-3985B………………………………………………..11

Figure 1.7: Front View of APC-3x84B…………………..…………………………….12

Figure 1.8: Rear View of APC-3x84B………………………………………………..…12

Figure 1.9: Rear view with I/O Cover………………………………………………….12

Figure 1.10: Front View of APC-3x85B…………….…….……………………….….13

Figure 1.11: Rear View of APC-3x85B…………………….……………………….….13

Figure 1.12: Rear View with I/O Cover……………………………………………….13

Figure 2.1: Motherboard Dimensions………………………………………….…….19

Figure 2.2: Jumpers and Connectors Location-Board Top……………….….20

Figure 2.3: Jumpers and Connectors Location-Board Bottom…………..…20

APC-3x84B/APC-3x85B User Manual

Chapter 1 Getting Started

1.1 Features

Fanless Design

Intel Celeron N2930 1.83GHz Processor (E3845 for option)

Onboard 2GB DDR3L

9~36V DC Wide-ranging Power Input

5 Sides IP65

5-wire Resistive Touch Screen

1.2 Specifications

APC-3584B/85B

APC-3784B/85B

APC-3984B/85B

System

CPU

Onboard Intel Celeron N2930(1.83GHz )

Onboard Intel Atom E3845(1.91GHz) for option

Chipset

SoC

Memory

Onboard 2GB DDR3L SDRAM

Onboard 4GB DDR3L SDRAM (option)

IO Port

USB

3 x USB 2.0 type A

1 x USB 3.0 type A

Serial/Parallel

1 x RS-232/422/485 DB-9, Default RS-485, COM1

2 x RS-232 DB-9, COM2 and COM3

Audio

2 x Line-out, phone jack

LAN

2 x GbE LAN RJ-45

Power

1 x 3-pin DC Power input terminal

1 x power switch on/off

Storage Space

Storage

1 x 2.5" HDD Space

1 x Internal SD slot onboard

Expansion

Expansion Slot

1 x Mini-PCIe slot full size

Optional WiFi/BT with Antenna

APC-3x84B/APC-3x85B User Manual

Display

Display Type

15”TFT LCD

17”TFT LCD

19”TFT LCD

Max. Resolution

1024 x 768

1280 x 1024

Max. Color

16.7M

Luminance(cd/m²)

400

350

Contrast Ratio

800: 1

1000: 1

Viewing angle

160(H)/140(V)

170(H)/160(V)

Backlight Lifetime

50,000 hrs

30,000 hrs

50,000 hrs

Touch Screen –Resistive Touch Window Type

TS Control IC

PenMount 6000 on Board

Interface

USB

Light Transmission

Over 80%

Power

Power Input

9~36V DC

Power Consumption

MAX:18.6W(3584B)

MAX:21.4W(3585B)

MAX:21.9W(3784B)

MAX:19.8W(3785B)

MAX:17.6W(3984B)

MAX:26.7W(3985B)

Mechanical

Construction

Stainless Steel Chassis for APC-3x84B

Black Steel Chassis for APC-3x85B

IP Rating

5 sides IP65 with I/O cover

Mounting

VESA Mount 75 x 75

VESA Mount

100 x 100

Dimensions

398 x 316 x 50.5 mm

432 x 358 x 55 mm

470 x 388.6 x 55 mm

Net Weight

6.3Kg (3584B)

6.3Kg (3585B)

7.3Kg (3784B)

7.3Kg (3785B)

9.4Kg (3984B)

9Kg (3985B)

Environmental

Operating temperature

0~50°C

Storage temperature

-30~70°C

Storage humidity

10 to 90% @ 40°C, non- condensing

Certification

CE / FCC Class A

Operating System Support

OS Support

Windows 7 Professional for Embedded Systems,

Windows 7 Ultimate for Embedded System,

Windows Embedded 8.1 Pro,

Windows Embedded 8.1 Industry pro
