Aplex VIPAC-9 Series Manual de usuario

VIPAC-9XX Series User Manual 0

VIPAC-9XX

Intel 6th/7th Core i Socket Type Expandable with

Fan PANEL PC

User Manual

Release Date Revision

Oct.2019V1.5

Aplex Technology, Inc.

15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan

Tel: 886-2-82262881 Fax: 886-2-82262883 URL: http://www.aplextec.com/zh/home.php

VIPAC-9XX Series User Manual 1

Revision History

Reversion

Date

Description

1.0

2017/10/25

Official Version

1.1

2018/01/25

Modify PCIe information.

Renew product images.

1.2

2018/06/01

Modify Core I 7 motherboard/BIOS

chapter

1.3

2018/06/08

SW1-6

1.4

2019/01/02

Modify front bezel information

1.5

2019/10/25

Revise product images, dimensions and

mechanical information

VIPAC-9XX Series User Manual 2

Warning!___________________________

Disclaimer

This information in this document is subject to change without notice. In no event

shall Aplex Technology Inc. be liable for damages of any kind, whether incidental or

consequential, arising from either the use or misuse of information in this document

or in any related materials.

Caution

There is risk of explosion if the battery is replaced with an incorrect way.

Batteries should be recycled where possible. Disposal of used batteries must be in

accordance with local environmental regulations.

Electric Shock Hazard –Do not operate the machine with its back cover removed.

There are dangerous high voltages inside.

This equipment will generate, use and radiate radio frequency energy and if

not installed and used in accordance with the instructions manual, it may cause

interference to radio communications. It has been tested and found to comply with

the limits for a Class A computing device pursuant to FCC Rules, which are designed

to provide reasonable protection against such interference when operated in a

commercial environment. Operation of this equipment in a residential area is likely

to cause interference in which case the user at its own expense will be required to

take whatever measures may be required to correct the interference.

VIPAC-9XX Series User Manual 3

Packing List

Accessories (as ticked) included in this package are:

□Adaptor

□Driver & manual CD disc

□Other.___________________(please specify)

Safety Precautions

Follow the messages below to prevent your systems from damage:

◆Avoid your system from static electricity on all occasions.

◆Prevent electric shock. Don‘t touch any components of this card when

the card is power-on. Always disconnect power when the system is not in

use.

◆Disconnect power when you change any hardware devices. For instance,

when you connect a jumper or install any cards, a surge of power may

damage the electronic components or the whole system.

VIPAC-9XX Series User Manual 4

Table of Contents

Revision History…….……………..………………………………………………..……………………………….1

Warning!/Disclaimer………............................……………………………….……………….……..….2

Packing List/Safety Precautions…......……………..……………………………..………………………..3

Chapter 1 Getting Started

1.1 Features………………………………….………..……………………………………6

1.2 Specifications……………………………….………….………………………………6

1.3 Dimensions……………………………………………..……………………………….9

1.4 Brief Description of VIPAC-9XX Series………………………..…………11

1.5 Intallation of HDD……………………………….……………………..…………12

1.6 Intallation of PCIe card…………………………….………………..…………13

1.7 Intallation of mSATA SSD……………………………………………..…………14

Chapter 2 Motherboard

2.1 Motherboard Specifications…...……………..……………………….…..…15

2.2 Motherboard Layout…………….…………….………………………..……....18

2.3 Jumpers and Connectors Location………………….………………………19

2.4 Jumpers Setting and Connectors…………………………………………..21

Chapter 3 BIOS Setup

3.1 Operations after POST Screen………………...................................37

3.2 BIOS setup utility…………………………….........................................37

3.3 Main Setting…………….................................................................38

3.4 Advanced Settings………………….…………………...............................39

3.5 Chipset Settings..........................................................................45

3.6 Security Settings.........................................................................52

3.7 Boot Settings…………………………………………………………………..……53

3.8 Save & Exit Settings……..............................................................54

Chapter 4 Installation of Drivers

4.1 Intel H170 Chipset Driver……….……………….…………………………….57

4.2 Intel(R) HD Graphics 530 Chipset Driver……………………….…….…60

4.3 Realtek ALC269 HD Audio Driver…………………………..………………64

4.4 Intel Management Engine Driver………….……………………….………66

Chapter 5 Touch Screen Installation

5.1 Windows 8.1/10 Universal Driver Installation for PenMount 6000

Series………………………………………….……………………………………………….69

5.2 Software Function…………………………………….………………….…….…73

VIPAC-9XX Series User Manual 5

Figures

Figure 1.1: Dimensions of VIPAC-915…………...…………………………..…...9

Figure 1.2: Dimensions of VIPAC-916…………...…………………………..…...9

Figure 1.3: Dimensions of VIPAC-917…………...…………………………..….10

Figure 1.4: Dimensions of VIPAC-921…………...…………………………..….10

Figure 1.5: Front View of VIPAC-915/917………..……………...........…….11

Figure 1.6: Front View of VIPAC-916/921………..……………..............….12

Figure 1.7: Rear View of VIPAC-915/916……………………………..………..12

Figure 1.8: Rear View of VIPAC-917…………………………………..………..12

Figure 1.9: Rear View of VIPAC-921…………………………………..………..13

Figure 2.1: Motherboard ASB-M8171 Layout….……….….……...………18

Figure 2.2: Motherboard top draw of ASB-M8171…….….…...………19

Figure 2.3: Motherboard bottom draw of ASB-M8171…..………..…20

VIPAC-9XX Series User Manual 6

Chapter 1 Getting Started

1.1 Features

15”, 15.6”, 17”, 21.5”TFT LCD panel PC

Intel 6th/7th Core i7/i5/i3 Socket type Processor

Modular concept with fan design

Support Project capacitive/ Resistive/ AR glass touch

Front bezel IP66 design

2 x Expansion slot and 2 x 2.5 SATA HDD space

Support WIFI, Bluetooth and Speaker

Support panel mount

Support DC 9~36V power input; and AC input can be option

1.2 Specifications

VIPAC-915

P/R/G(H)

VIPAC-916

P/R/G(H)

VIPAC-917

P/R/G(H)

VIPAC-921

P/R/G(H)

System

Processor

Socket H4,6th/7th Gen. Intel Core Processor

6th i7-6700TE (Quad/3.4GHz)

6th i5-6500TE (Quad/3.3GHz)

6th i3-6100TE (Dual/2.4GHz)

6th Pentium G4400TE (Dual/2.4GHz)

6th Celeron G3900TE (Dual/2.3GHz)

7th i7-7700T (Quad/2.9GHz)

7th i7-7500T (Quad/2.7GHz)

7th i7-7101TE (Quad/3.4GHz)

7th Celeron G3930TE (Dual/2.7GHz)

System Chipset

Intel 100 Series Chipset (H170 Default)

System Memory

2 x 260-pin SO-DIMM up to 32GB DDR4 2133MHz SDRAM

Outside I/O

Front I/O Ports

4 x USB 3.0 type A

2 x RJ-45 GbE LAN

1 x RS-232/422/485 DB-9, COM1(default RS-232)

1 x RS-232 DB-9, COM2

1 x RS-422/485 DB-9, COM3(default RS-485)

1 x Line-out/1 x Mic-in

VIPAC-9XX Series User Manual 7

1 x VGA by DB-15

1 x HDMI with cover

1 x System LED indication at front

2 x LED indicators for HDD/system

1 x Power switch on/off

1 x 3-pin terminal block for DC power input

1 x 2-pin power switch

Option Function

4 x USB 2.0 type A

2 x DB-9 COM port

1 x 8-bit GPIO(3 in/out/VCC/GND)

2 x 2W Speaker

Storage

2 x 2.5”SATA HDD space (easy accessible design)

Support RAID 0, 1, 5

Watchdog timer

System reset, programmable via software from 1 to 255 seconds

Expansion

Expansion Slots

1 x Mini-PCIe slot full size (PCIe/USB/SATA, SATA by default)

1 x Mini-PCIe slot half size (PCIe/USB, PCIe by default)

1 x SIM slot for option

1 x PCIe x 1 and 1 x PCIe x 16 slot

1 x WIFI/Bluetooth/LTE and antenna at rear side for option

LCD

Display type

15”color TFT

LCD

15.6”color

TFT LCD

17”color TFT

LCD

21.5”color

TFT LCD

Max. Resolution

1024 x 768

1366 x 768

1920 x 1080

1280 x 1024

1920 x 1080

Max. Color

16.7M

Luminance (cd/m2)

420

300

350

250

Contrast Ratio

800:1

500:1

1000:1

3000:1

Viewing Angle

(H)/(V)

160/160

(160/140)

160/160

170/170

178/178

Backlight Lifetime

50,000 hrs

30,000 hrs

LCD (High brightness)

Display type

15”color TFT

LCD

15.6”color

TFT LCD

17”color TFT

LCD

21.5”color

TFT LCD

Max. Resolution

1024 x 768

1366 x 768

1280 x 1024

1920 x 1080

Max. Color

262K/16.2M

16.7M

Luminance (cd/m2)

1000

Contrast Ratio

800:1

500:1

1000:1

3000:1

VIPAC-9XX Series User Manual 8

Viewing Angle

(H)/(V)

160/150

160/160

170/160

178/178

Backlight Lifetime

30,000 hrs

50,000 hrs

Touch

Type

Project Capacitive

Resistive

Glass

Interface

USB

Light Transmission

Over 90% for PCT

Over 80% for RT

Power

Power Input

DC 9~36V

Power Consumption

MAX: 88.4W

MAX: 78.6W

MAX: 102.2W

MAX: 94.7W

Mechanical

Front bezel

Aluminum die-casting front bezel

Rear bezel

Steel metal chassis

Dimension

410 x 310 x 90

412 x 277x 90

439 x 348 x 90

557 x 362 x 90

Net Weight

6.5 Kg

6.5 kg

7 kg

8.5 kg

Mounting type

Panel mount

Environmental

Operating Temperature

0~50 °C

Storage Temperature

-30~70 °C

Storage Temperature

10%~95%@ 40°C, non-condensing

Certificate

CE / FCC Class A

Operating System Support

OS Support

Windows 7 Pro for Embedded,

Windows Embedded Standard 7,

Windows Embedded 8.1 Industry Pro,

Windows Embedded 8 Standard,

Window 10 IoT 2016

VIPAC-9XX Series User Manual 9

1.3 Dimensions

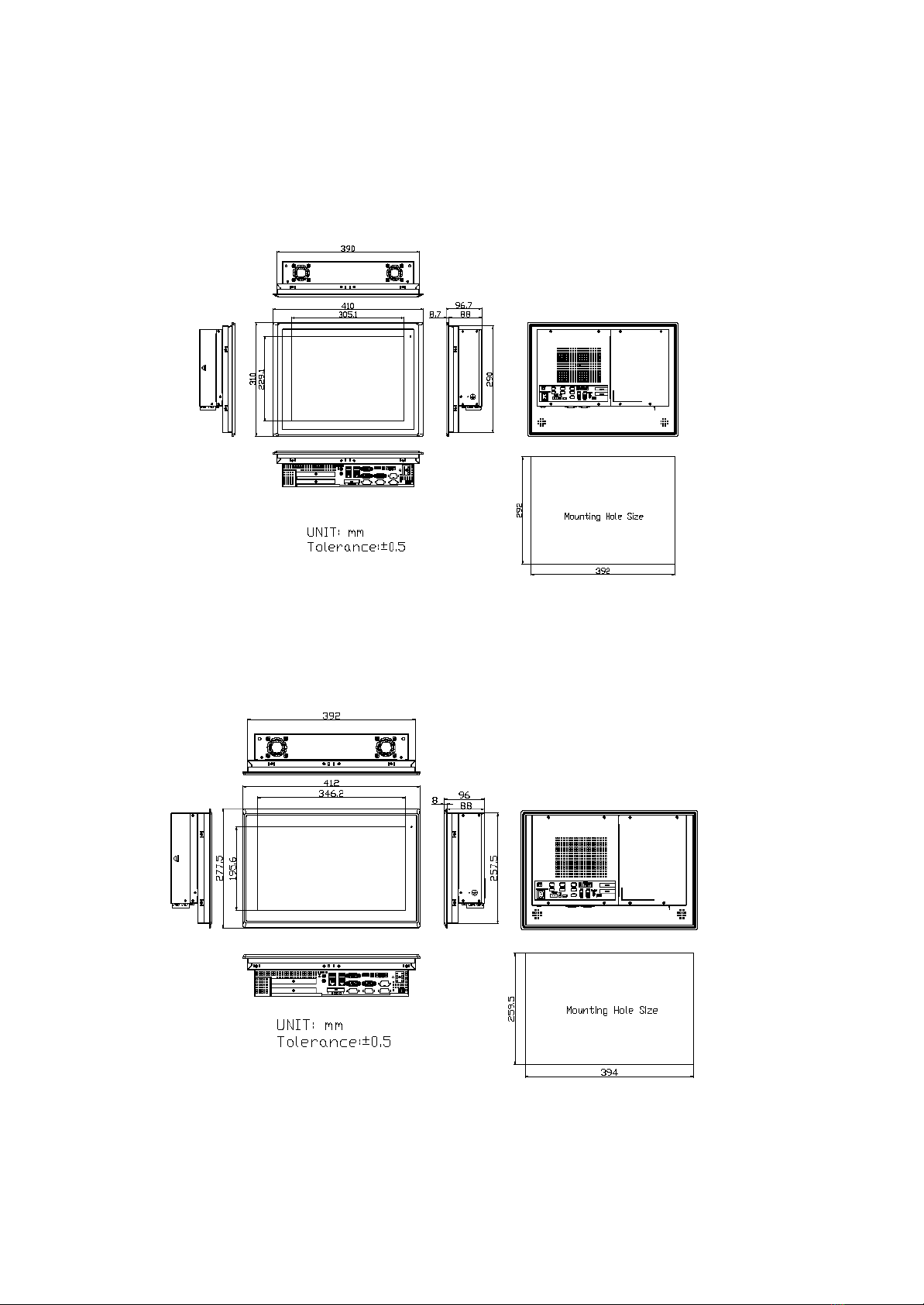

Figure 1.1: Dimensions of VIPAC-915

Figure 1.2: Dimensions of VIPAC-916

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Panel táctil de Aplex

Aplex

Aplex APC-3X17B Manual de usuario

Aplex

Aplex APC-3098 Manual de usuario

Aplex

Aplex ViTAM-8 Series Manual de usuario

Aplex

Aplex APC-3x82 Manual de usuario

Aplex

Aplex APC-3228A Manual de usuario

Aplex

Aplex VITAM-9 A Series Manual de usuario

Aplex

Aplex APC-3584B Manual de usuario

Aplex

Aplex APC-3*94P/R series Manual de usuario

Aplex

Aplex ARCHMI-9 Series Manual de usuario

Aplex

Aplex APC-3XX9A Manual de usuario

Aplex

Aplex APC-3X15B Manual de usuario

Aplex

Aplex OPC-5**8 Series Manual de usuario

Aplex

Aplex APC-3215 Manual de usuario

Aplex

Aplex APC-3x84A Manual de usuario

Aplex

Aplex APC-3284A Manual de usuario

Aplex

Aplex APC-3X97A Manual de usuario

Aplex

Aplex AEx-P526 Manual de usuario

Aplex

Aplex APC-3514B Manual de usuario

Aplex

Aplex VIKING-9 B Series Manual de usuario

Aplex

Aplex APC-3X92X Manual de usuario

Aplex

Aplex APC-3x93P_3X93R Manual de usuario

Aplex

Aplex ViTAM-6 Series Manual de usuario

Aplex

Aplex APC-3580 Manual de usuario

Aplex

Aplex ARCHMI-8 H Series Manual de usuario

Manuales populares de Panel táctil de otras marcas

FlowLine

FlowLine Data loop Manual de usuario

ALPEX

ALPEX AEx-8 P Series Manual de usuario

Ltech

Ltech E5S Manual de usuario

Harman

Harman AMX MODERO S MSD-701-L2 Manual de usuario

Acnodes

Acnodes PC 1150 Manual de usuario

AIS

AIS IP10IA99 series Manual de usuario

IBASE Technology

IBASE Technology ASTUT-152-RE1S Manual de usuario

YASKAWA

YASKAWA TP 610C Manual de usuario

B&R

B&R Power Panel C Series Manual de usuario

Beijer Electronics

Beijer Electronics X2 control Manual de usuario

AXIOMTEK

AXIOMTEK GOT321W-521 Manual de usuario

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Manual de usuario

Qomo

Qomo QIT1386 Manual de usuario

DFI

DFI KS104-CD Manual de usuario

AMX

AMX AXP-PPC Guía

Sartorius

Sartorius X3 PR 5410 Manual de usuario

AMX

AMX Modero X Series Manual de usuario

Advantech

Advantech TPC-30 Series Manual de usuario
