Aplex APC-3228A Manual de usuario

APC-3228A User Manual

APC-3228A

Panel PC User Manual

Release Date _ Revision

Aug. 2012 V1.0

Aplex Technology, Inc.

15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan

Tel: 886-2-82262881 Fax: 886-2-82262883 E-mail: ap[email protected]w URL: www.aplex.com.tw

APC-3228A User Manual

Warning!___________________________________

This equipment generates, uses and can radiate radio frequency energy and if not installed and

used in accordance with the instructions manual, it may cause interference to radio communications.

It has been tested and found to comply with the limits for a ClassA computing device pursuant to

FCC Rules, which are designed to provide reasonable protection against such interference when

operated in a commercial environment. Operation of this equipment in a residential area is likely

to cause interference in which case the user at his own expense will be required to take whatever

measures may be required to correct the interference.

Disclaimer

This information in this document is subject to change without notice. In no event shall Aplex

Technology Inc. be liable for damages of any kind, whether incidental or consequential, arising

from either the use or misuse of information in this document or in any related materials.

Electric Shock Hazard –Do not operate the machine with its back cover removed. There are

dangerous high voltages inside.

APC-3228A User Manual

Packing List

Accessories (as ticked) included in this package are:

□AC power cable

□Driver & manual CD disc

□Other.___________________(please specify)

Safety Precautions

Follow the messages below to prevent your systems from damage:

◆Avoid your system from static electricity on all occasions.

◆Prevent electric shock. Don‘t touch any components of this card when the card is

power-on. Always disconnect power when the system is not in use.

◆Disconnect power when you change any hardware devices. For instance, when you

connect a jumper or install any cards, a surge of power may damage the electronic

components or the whole system.

APC-3228A User Manual

Table of Contents______________________

Warning!…………………………………………………………………………….……..….2

Disclaimer………………………………………………………………….…………………2

Packing List…………………………………………………………………………………..3

Safety Precautions…………………………………………………………………………..3

Chapter 1 Getting Started

1.1 Specifications……………………………………..….……………………..6

1.2 Dimensions………………………………...………………………….......7

1.3 Installation of HDD………………….…………………………….……….8

1.4 Installation of PCI Add-on………..……………………………………..10

1.5 Brief Description…………………………………………………….……11

1.6 Panel Mounting…………………………………………………………..12

Chapter 2 Hardware

2.1 Mainboard………………..…….……………………………………..…..13

2.2 Installations…….…………………………………….…………………...14

2.2.1 Jumpers Setting and Connectors……...………..………………….....14

Chapter 3 BIOS Setup

3.1 Operations after POST Screen.............................................................39

3.2 BIOS SETUP UTILITY..........................................................................40

3.3 System Overview..................................................................................40

3.4 Advanced Settings............................................................................... 41

3.5 Advanced PCI/PnP Settings................................................................ 50

3.6 Boot Settings....................................................................................... 52

3.7 Security Settings.................................................................................. 54

3.8 Advanced Chipset Settings.................................................................. 56

3.9 Exit Options..........................................................................................63

Chapter 4 Installation of Drivers

4.1 Intel Chipset Driver.…………………………...…………………………66

4.2 Intel Graphics Media Accelerator Driver...……………………………..69

4.3 Intel 82574L LAN Device Driver………………………………………….73

4.4 Realtek ALC662 HD Audio Driver Installation…….………….…………76

4.5 Microsoft .NET Framework 3.5 Service Installation……………………78

APC-3228A User Manual

Chapter 5 Touch Screen Installation

5.1 Introduction to Controller Board..…………………………..……………81

5.2 Windows 2000/XP USB Driver Installation for 5000 Boards………..….81

Figures

Figure 1.1: APC-3228A Dimensions……………………………………..…....7

Figure 1.2: Front View………………………………………………………...11

Figure 1.3: Rear View………………………………………………………..11

Figure 1.4: Panel mounting…………………………………………………..12

Figure 1.5: VESA mounting…………………………………………………..12

Figure 2.1: Mainboard Dimensions…………………………………..…….....13

Figure 2.2: Jumpers and Connectors Location_ Board Top………………...14

Figure 2.3: Jumpers and Connectors Location_ Board Bottom…………....15

Figure 5.1 Birdeye’s View of Control Board…………………………………81

APC-3228A User Manual

Chapter 1 System

1.1 Specifications

Specs

APC-3228A

CPU

Intel socket P, support Intel T3100 1.9GHz and up to Intel P8600

2.4GHz Processor

Chipset

Intel GM45 + ICH9M

System Memory

2 x 204 Pin SO-DIMM, up to 8GB DDR 3 800/1066MHz FSB

Display Size

1920x1080

Maximum Colors

16.7M

Viewing Angle (Degree)

H:170 / V:160

Luminance (cd/m²)

400

Backlight Lifetime

40,000 Hours

Rating

Front Panel IP65

Touch Screen Type

Resistive Type (option)

Outside I/O port

4 x USB 2.0 connectors

2 x GbE LAN connectors

1 x Audio Line out/MIC in

1 x VGA

1 x HDMI port

2 x RS-232 (COM1/COM2)

1 x DB9 RS-422/485 Default RS-485 (COM3)

1 x Terminal block for additional power switch

2 x LED light for power and HDD indication

1 x Rocker Switch for Power ON/OFF

Extension

1 x PCI Expansion Slot

Storage

1 x CF slot internal for option

1 x 2.5”SATA HDD Space

Power Supply

9~32V DC

Construction

Steel chassis

Dimensions (WxHxD)

557 x 362 x 100.3 mm

Operating Temperature

-10~50℃

Storage Temperature

-20~60℃

Relative Humidity

10%~90%@ 40℃, non-condensing

Certificate

CE / FCC Class A

APC-3228A User Manual

1.2 Dimensions

Figure 1.1: Dimensions of the APC-3228A

APC-3228A User Manual

1.3 Installation of HDD

Step 1

There are 2 screws to deal with when Installing

of HDD.

Step 2

Loosen screw and draw the HDD bracket

out as shown in the picture.

Step 3

Tighten four screws as shown in the picture

APC-3228A User Manual

Step 4

Push into the HDD bracket as shown in the

picture.

Step 5

Tighten the 2 screws as shown in the picture.

That’s how it should look after it has been

installed.

APC-3228A User Manual

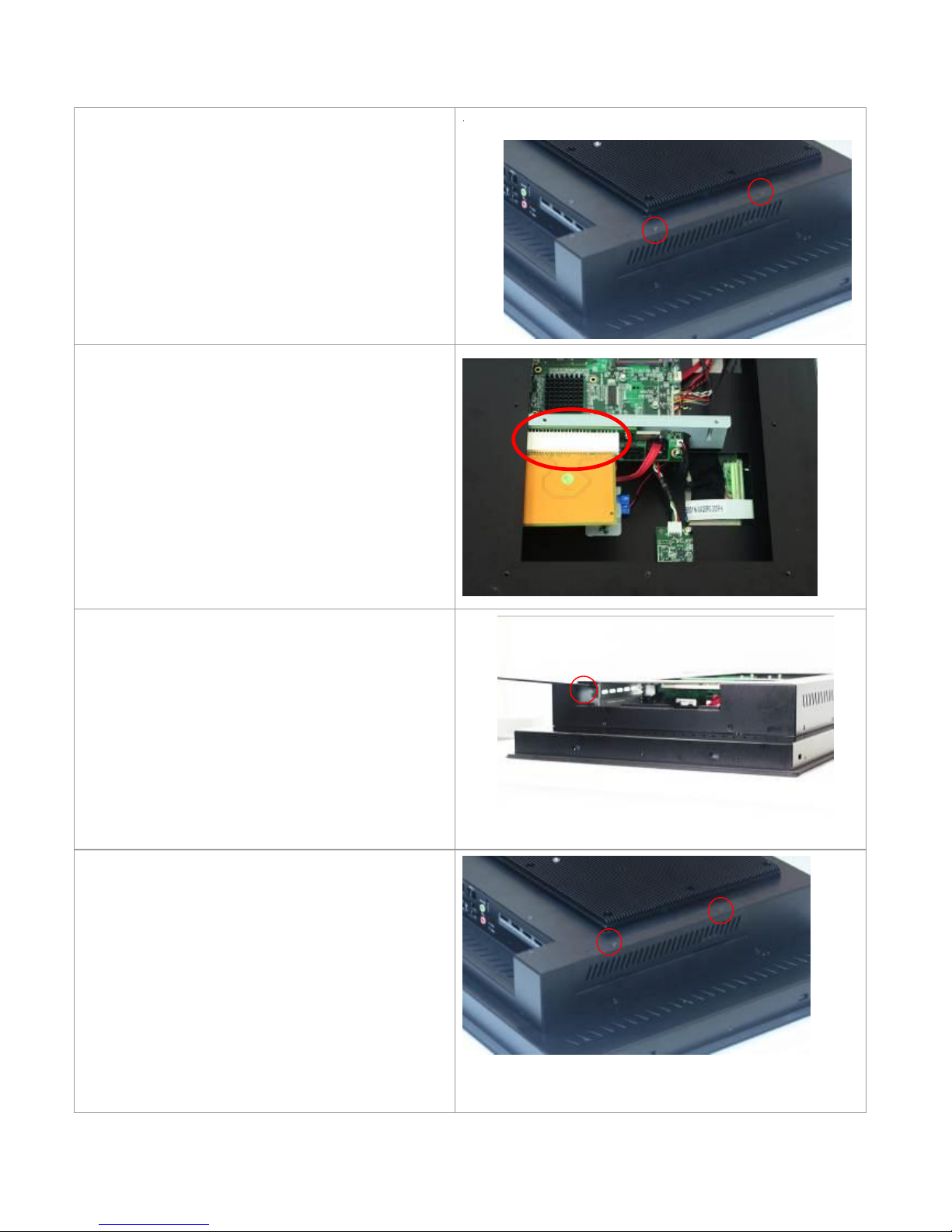

1.4 Installation of PCI Add-on

Step 4

To finish the job, just fasten the 2 screws as

shown in the picture.

Step 1

There are 2 screws to deal with when

enclosing or removing the chassis.

Step 2

Now slide the addon into the PCI slot, making

sure the golden part faces the slot. When the

part that is interfaced together come into the

right contact, slightly push the addon into the

rail of the slot.

Step 3

After sliding the addon into the PCI expansion

slot, get the one screw as circled tightened to

finish the connection.
