This set up guide contains installation instruction of the AMK DT61-A series of AMK’s

Dante System enabled network self amplified speaker. This speaker is designed to

use in plenum rated ceiling spaces and can be dropped into standard square (2’ x 2’ or

600mm by 600mm) or rectangular (2’ x 4” or 600mm by 1200mm) false ceiling tile

space with a tile bridge.

Important Safety Instructions.

WARNING: May result in serious injury. Installation and service must be performed by

authorized personnel only

1. Read these instructions

2. Keep these instructions

3. Heed all warnings

4. Follow all instructions.

5. Do not use this speakers near water

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with manufacturer’s

instructions.

8. Do not install these speakers near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Use only attachments/accessories specified by manufacturer

10. If the speakers have not been used for some time, unplug the speakers.

Or when there is a lightning storms, please unplug the speakers for safety.

Parts Check List.

2x2 lay in PoE+ self amplified network speaker (1)

Handy Box Cover (1)

12407 Mukilteo Speedway, Ste. 130

Lynnwood, WA 98087

p. 800.438-4026 f. 877.721.8107

tech@amkspeakers.com

www.amkspeakers.com

Installation Manual

DT61-A

Dante System Network Enabled Speaker

For Suspended Ceiling Installations

Remove the ceiling tile from the selected speaker location that is to be cut from the

ceiling, and an adjacent ceiling tile for access.

Installation

1. Make sure that all the power is removed.

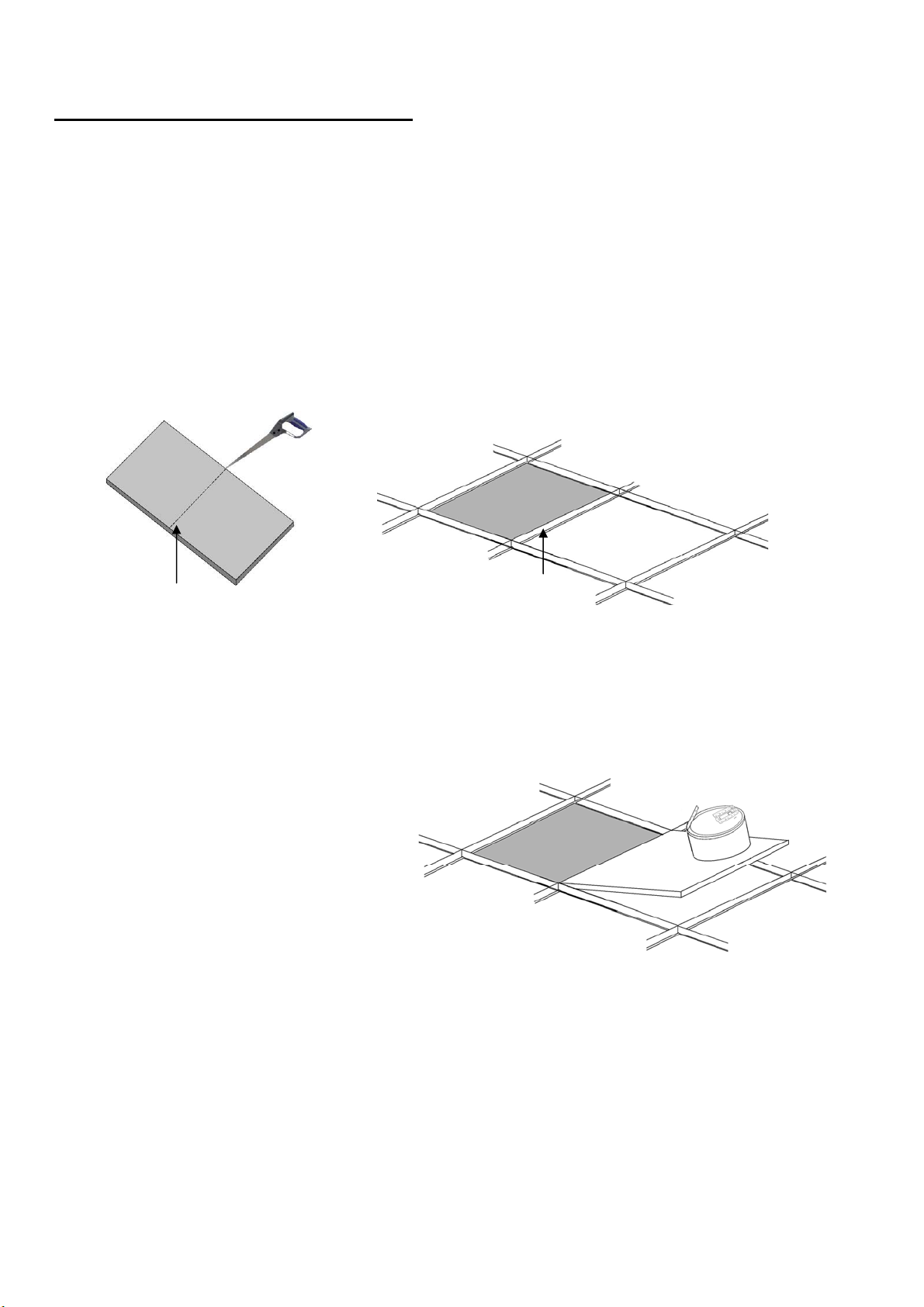

2. Remove and cut ceiling tile as sown below. If the tile is 2’ x 4’, then you will

need to cut the tile into half. Install the T-rail crosspiece into the ceiling

opening up against the cut tile, as shown below.

Carefully measure and

draw the line at the

halfway point.

Ceilin

g

Tile

T-rail

Crosspiece

needs to be

installed.

3. Install the T-rail in a rectangular

tile –When the ceiling uses

rectangular tiles, install the T-rail

crosspiece into the ceiling opening

up against he cut tile.

4. Connect appropriate cables and

plugs. Connect the right plugs for

the audio and power into the jacks

on the top of the enclosure.

Different types of connections are

shown on next page.

Lay in the speaker appropriately as it

is shown above.

Main Active Speaker Wire Connection:

Connect the audio wires connecting active speakers to three passive speakers through

conduit. Pre terminate the wire and connect the Phoenix plug to the wire. Punch the

knockout on the side of the handy box. After the connection is made, make sure to

close the handy box with the cover provided.

The audio wires should be a two conductor wire with recommended 18 AWG wire.

Connect the Ethernet signal wires through conduit, terminate with RJ45 connector,

punch the one of the knock out where RJ45 jack is located, than plug it into the

speaker. After the connection is made, make sure to close the handy box with the

cover provided.

The connection should be

made Cat5 or above cable

for the Ethernet connection.

Three Light Indicators:

When RJ45 connection is made, you should be seeing some lights

blinking on the right side of the RJ45 connection handy box as

shown.

From top to bottom, it will be Power, Dante, and Status.

○Power: This shows the power coming from PoE+ network switch. If there is no

power present, then the light will not turn green. The speaker must be running from

PoE+ network switchin order to get the green light.

○ Dante: This will blink red in the beginning as it is trying to connect with the computer

system. When connection is made and Dante signal is confirmed, the light

will turn green.

○ Status: As the audio signal gets transmitted into the speaker system, the light will

blink green as

the signals go through.

Warranty

The speakers should be not open, altered, tampered without the consulting with

AMK, otherwise you will lose the warranty on the speaker. If the speaker is a need

for additional support for seismic mounting, please consult with AMK.
