AMK DT61 Manual de usuario
This set up guide contains installation instruction of the AMK DT61, AMK’s Dante
System enabled network self amplified speaker. This speaker is designed to use in
plenum rated ceiling spaces and can be dropped into standard square (2’ x 2’ or
600mm by 600mm) or rectangular (2’ x 4” or 600mm by 1200mm) false ceiling tile
space with a tile bridge.
Important Safety Instructions.
WARNING: May result in serious injury. Installation and service must be performed by
authorized personnel only
1. Read these instructions
2. Keep these instructions
3. Heed all warnings
4. Follow all instructions.
5. Do not use this speakers near water
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with manufacturer’s
instructions.
8. Do not install these speakers near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Use only attachments/accessories specified by manufacturer
10. If the speakers have not been used for some time, unplug the speakers.
Or when there is a lightning storms, please unplug the speakers for safety.
Parts Check List.
2x2 lay in PoE+ self amplified network speaker (1)
Handy Box Cover (1)
12407 Mukilteo Speedway, Ste. 130
Lynnwood, WA 98087
p. 800.438-4026 f. 877.721.8107
tech@amkspeakers.com
www.amkspeakers.com
Installation Manual
DT61
Dante System Network Enabled Speaker
For Suspended Ceiling Installations
Remove the ceiling tile from the selected speaker location that is to be cut from the
ceiling, and an adjacent ceiling tile for access.
Installation
1. Make sure that all the power is removed.
2. Remove and cut ceiling tile as sown below. If the tile is 2’ x 4’, then you will
need to cut the tile into half. Install the T-rail crosspiece into the ceiling
opening up against the cut tile, as shown below.
Carefully measure and
draw the line at the
halfway point.
Ceilin
g
Tile
T-rail
Crosspiece
needs to be
installed.
3. Install the T-rail in a rectangular
tile –When the ceiling uses
rectangular tiles, install the T-rail
crosspiece into the ceiling opening
up against he cut tile.
4. Connect appropriate cables and
plugs. Connect the right plugs for
the audio and power into the jacks
on the top of the enclosure.
Different types of connections are
shown on next page.
Lay in the speaker appropriately as it
is shown above.
Main Active Speaker Wire Connection:
Connect the audio wires connecting active speakers to three passive speakers through
conduit. Pre terminate the wire and connect the Phoenix plug to the wire. Punch the
knockout on the side of the handy box. After the connection is made, make sure to
close the handy box with the cover provided.
The audio wires should be a two conductor wire with recommended 18 AWG wire.
Connect the Ethernet signal wires through conduit, terminate with RJ45 connector,
punch the one of the knock out where RJ45 jack is located, than plug it into the
speaker. After the connection is made, make sure to close the handy box with the
cover provided.
The connection should be
made Cat5 or above cable
for the Ethernet connection.

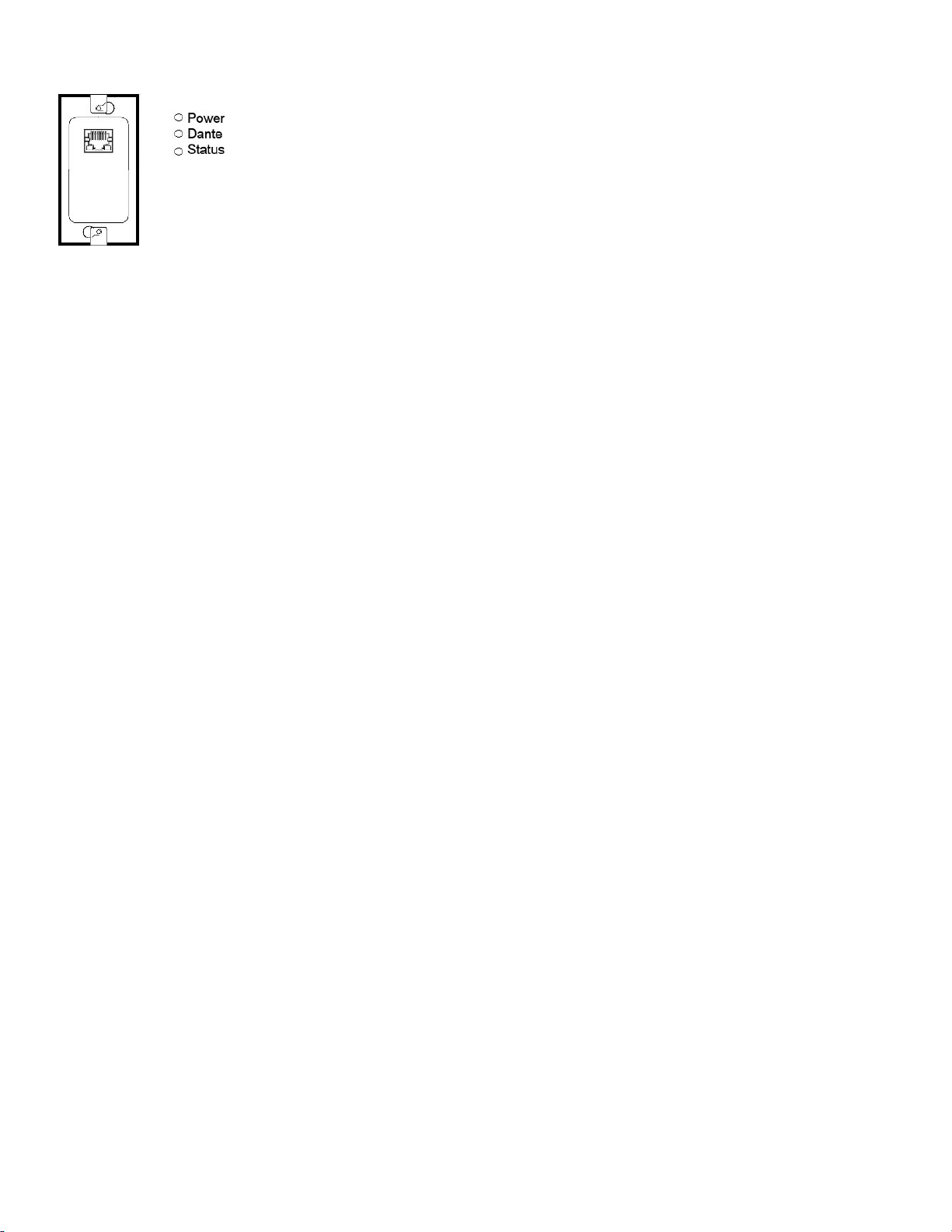

Three Light Indicators:
When RJ45 connection is made, you should be seeing some lights
blinking on the right side of the RJ45 connection handy box as
shown.
From top to bottom, it will be Power, Dante, and Status.
○Power: This shows the power coming from PoE+ network switch. If there is no
power present, then the light will not turn green. The speaker must be running from
PoE+ network switchin order to get the green light.
○ Dante: This will blink red in the beginning as it is trying to connect with the computer
system. When connection is made and Dante signal is confirmed, the light
will turn green.
○ Status: As the audio signal gets transmitted into the speaker system, the light will
blink green as
the signals go through.
Warranty
The speakers should be not open, altered, tampered without the consulting with
AMK, otherwise you will lose the warranty on the speaker. If the speaker is a need
for additional support for seismic mounting, please consult with AMK.
