Operation/Maintenance

www.comlaundry.com

Washer-Extractors

Pocket Hardmount

A-Series Microcomputer

UW35AV

UW60AV

UW80AV

UW100AV

UW125AV

PHM1379C

NOTA: El manual en

español aparece después

del manual en inglés.

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

Part No. F232227

January 2006

F232227

means without the expressed written consent of the publisher.

Table of

Contents

Safety Information.............................................................................. 3

Explanation of Safety Messages........................................................... 3

Important Safety Instructions ............................................................... 3

Introduction......................................................................................... 5

Introduction........................................................................................... 5

Electronic Control Unit......................................................................... 5

Control Output Fuse Board................................................................... 5

Harnessing........................................................................................ 5

Delivery Inspection............................................................................... 5

Nameplate Location.............................................................................. 6

Replacement Parts ................................................................................ 6

Customer Service.................................................................................. 6

Summary of Control Outputs and Inputs.............................................. 6

Outputs............................................................................................. 6

Inputs................................................................................................ 6

Control Voltage................................................................................ 6

Operation............................................................................................. 9

Control Panel ........................................................................................ 9

Summary of Major Features ................................................................. 10

Display Indicators................................................................................. 11

Operating Instructions .......................................................................... 13

Maintenance ........................................................................................ 15

Daily ..................................................................................................... 15

Beginning of Day............................................................................. 15

End of Day ....................................................................................... 16

Weekly.................................................................................................. 16

Monthly................................................................................................. 16

Quarterly ............................................................................................... 18

Care of Stainless Steel .......................................................................... 19

Daily Preventive Maintenance Checklist.............................................. 20

Weekly Preventive Maintenance Checklist .......................................... 21

Monthly Preventive Maintenance Checklist......................................... 22

Quarterly Preventive Maintenance Checklist ....................................... 23

Removal from Service ........................................................................ 25

Decommissioning ................................................................................. 25

2F232227

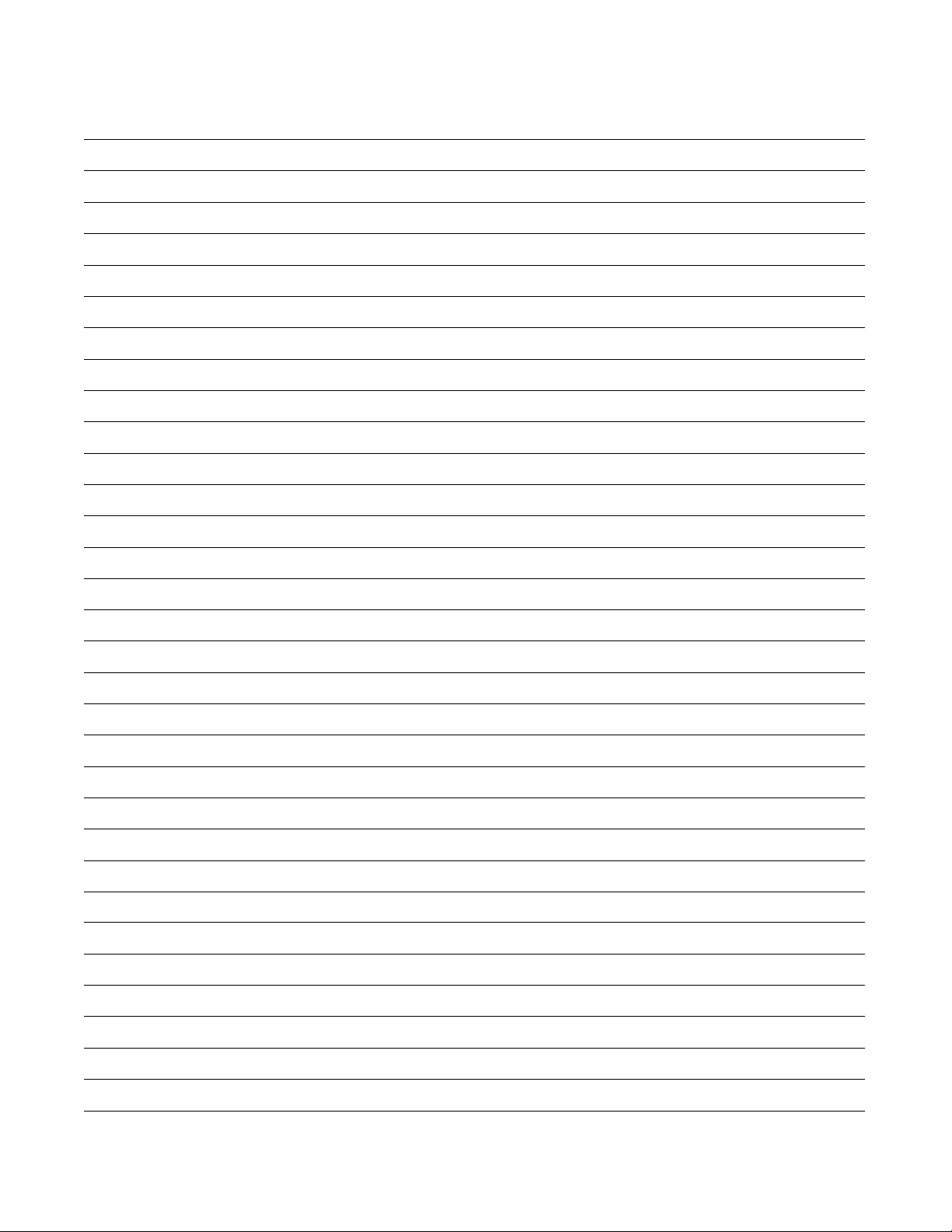

Notes

F232227

Safety Information

Explanation of Safety Messages

Precautionary statements (“DANGER,” “WARNING”

and “CAUTION”), followed by specific instructions,

are found in this manual and on machine decals. These

precautions are intended for the personal safety of the

operator, user, servicer and those maintaining the

machine.

Additional precautionary statements (“IMPORTANT”

and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT” is used

to inform the reader of specific procedures where

minor machine damage will occur if the procedure

is not followed.

NOTE: The word “NOTE” is used to communicate

installation, operation, maintenance or servicing

information that is important but not hazard

related.

Important Safety Instructions

1. Read all instructions before using the washer.

2. Refer to the GROUNDING INSTRUCTIONS in

the INSTALLATION manual for the proper

grounding of the washer.

3. Do not wash textiles that have been previously

cleaned in, washed in, soaked in, or spotted with

gasoline, kerosene, waxes, cooking oils, dry-

cleaning solvents, or other flammable or

explosive substances as they give off vapors that

could ignite or explode.

4. Do not add gasoline, dry-cleaning solvents, or

other flammable or explosive substances to the

wash water. These substances give off vapors that

could ignite or explode.

5. Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been

used for two weeks or more. HYDROGEN GAS

IS EXPLOSIVE. If the hot water system has not

been used for such a period, before using a

washing machine or combination washer-dryer,

turn on all hot water faucets and let the water

flow from each for several minutes. This will

release any accumulated hydrogen gas. The gas is

flammable; do not smoke or use an open flame

during this time.

6. Do not allow children to play on or in the washer.

Close supervision of children is necessary when

the washer is used near children. This is a safety

rule for all appliances.

7. Before the washer is removed from service or

discarded, remove the door to the washing

compartment.

8. Do not reach into the washer if the wash drum is

moving.

DANGER indicates the presence of a

hazard that will cause severe personal

injury, death, or substantial property

damage if the danger is ignored.

DANGER

WARNING indicates the presence of a

hazard that can cause severe personal

injury, death, or substantial property

damage if the warning is ignored.

WARNING

CAUTION indicates the presence of a

hazard that will or can cause minor

personal injury or property damage if the

caution is ignored.

CAUTION

To reduce the risk of fire, electric shock,

serious injury or death to persons when

using your washer, follow these basic

precautions:

W023

WARNING

Safety Information

F232227

4© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

9. Do not install or store the washer where it will be

exposed to water and/or weather.

10. Do not tamper with the controls.

11. Do not repair or replace any part of the washer, or

attempt any servicing unless specifically

recommended in the user-maintenance

instructions or in published user-repair

instructions that the user understands and has the

skills to carry out.

12. To reduce the risk of an electric shock or fire, DO

NOT use an extension cord or an adapter to

connect the washer to the electrical power source.

13. Use washer only for its intended purpose,

washing textiles.

14. ALWAYS disconnect the washer from electrical

supply before attempting any service. Disconnect

the power cord by grasping the plug, not the cord.

15. Install the washer according to the

INSTALLATION INSTRUCTIONS. All

connections for water, drain, electrical power and

grounding must comply with local codes and be

made by licensed personnel when required.

16. To reduce the risk of fire, textiles which have

traces of any flammable substances such as

vegetable oil, cooking oil, machine oil,

flammable chemicals, thinner, etc. or anything

containing wax or chemicals such as in mops and

cleaning cloths, must not be put into the washer.

These flammable substances may cause the

fabric to catch on fire by itself.

17. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

18. Keep washer in good condition. Bumping or

dropping the washer can damage safety features.

If this occurs, have washer checked by a qualified

service person.

19. Replace worn power cords and/or loose plugs.

20. Be sure water connections have a shut-off valve

and that fill hose connections are tight. CLOSE

the shut-off valves at the end of each wash day.

21. Loading door MUST BE CLOSED any time the

washer is to fill, tumble or spin. DO NOT

bypass the loading door switch by permitting the

washer to operate with the loading door open.

22. Always read and follow manufacturer’s

instructions on packages of laundry and cleaning

aids. Heed all warnings or precautions. To reduce

the risk of poisoning or chemical burns, keep

them out of the reach of children at all times

(preferably in a locked cabinet).

23. Always follow the fabric care instructions

supplied by the textile manufacturer.

24. Never operate the washer with any guards

and/or panels removed.

25. DO NOT operate the washer with missing or

broken parts.

26. DO NOT bypass any safety devices.

27. Failure to install, maintain, and/or operate this

washer according to the manufacturer’s

instructions may result in conditions which can

produce bodily injury and/or property damage.

NOTE: The WARNINGS and IMPORTANT

SAFETY INSTRUCTIONS appearing in this

manual are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining, or operating the washer.

Any problems or conditions not understood should be

reported to the dealer, distributor, service agent or the

manufacturer.

F232227

Introduction

The “A” electronic control is composed of the

electronic control unit and the output board with

wiring harness. Only an authorized person should

service components inside the machine. TURN OFF

POWER, open lid and remove any cover present.

Electronic Control Unit

This portion of the control contains the “intelligence” –

the micro-controller and the miscellaneous components

on the printed circuit (PC) board. The board has a

metal cover, which MUST be in place at all times

during machine operation. Operation of the machine

without this cover installed will void the warranty.

The control unit monitors and responds to input, gives

information about the status of the washer and

monitors and responds to inputs from the user

interface (keypad). The control provides signals to the

control output unit, which in turn operates the

components that control the machine functions. This is

located behind the machine control panel.

Control Output Fuse Board

This portion of the control contains the power supply

for the control unit, and also the switching devices

which power the components in the machine, all of

which are on the output PC board. The switching

devices are controlled by the control unit, and are solid

state.

Harnessing

Wiring harnesses are modular – harnesses common to

various configurations are similar, while those specific

to a certain configuration can be added. There are

harnesses for inputs to the control unit, for outputs

from the control power/output unit to the machine

components, and for the main incoming power to the

control power/output unit.

Delivery Inspection

Upon delivery, visually inspect crate, protective cover,

and unit for any visible shipping damage. If the crate,

protective cover, or unit is damaged or signs of

possible damage are evident, have the carrier note the

condition on the shipping papers before the shipping

receipt is signed, or advise the carrier of the condition

as soon as it is discovered.

Remove the crate and protective cover as soon after

delivery as possible. If any damage is discovered upon

removal of the crate and/or protective cover, advise the

carrier and file a written claim immediately.

Introduction

F232227

6© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Nameplate Location

The nameplate is located at the rear of the machine and

near supply valves. Always provide the machine’s

serial number and model number when ordering parts

or when seeking technical assistance. Refer to

Figure 1.

Figure 1

Replacement Parts

If literature or replacement parts are required, contact

the source from whom the machine was purchased or

contact Alliance Laundry Systems at (920) 748-3950

for the name and address of the nearest authorized

parts distributor.

Customer Service

For technical assistance, call: (920) 748-3121 Ripon,

Wisconsin.

Summary of Control Outputs and

Inputs

Outputs

General outputs provide signals to operate the

following components.

1. Hot Fill Valve

2. Cold Fill Valve

3. Drain Valve (normally open)

4. Door Unlock Solenoid Coil

5. Supply 1 (detergent)

6. Supply 2 (bleach)

7. Supply 3 (sour/softener)

8. Supply 4

9. Supply 5 or Optional 3rd (auxiliary) Fill Inlet

(governed by the configuration settings)

10. Optional Heat

For standard models, the components for outputs

shown as “optional” will not be populated on the

output printed circuit board.

AC outputs are solid state outputs that operate either

120 Volt AC or 220 Volt AC (nominal voltage)

components, depending on the control voltage

configuration. Outputs are fused appropriately.

Inputs

1. Low Water Level

2. Medium Water Level

3. High Water Level

4. Door

5. Temperature Signal

Control Voltage

The control power supply is configured to operate on

220 Volt AC nominal RMS input voltage 50/60 Hertz.

PHM598N

1Near Supply Valves

2Top of Module

PHM598N

Introduction

F232227 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Model Number Familiarization Guide

Sample Model Number: UW60AVXU80001

UW Model Number Prefix

60 Washer-Extractor Capacity (pounds dry weight of laundry)

AType of Electrical Control A = A – Control

VWasher-Extractor Speed Capabilities V = Variable Speed (Inverter)

XElectrical Characteristics

U8 Design Series

0001 Option Identification (varies from machine to machine)

PHM625N

UW60AVXU80001

00000000000

200 – 240

50 – 60 2/3 S 3

60 27 594

N/A N/A 0.0

ETL Listed

Conforms To ANSI/UL Std. 1206, 3rd Ed

Certified To CAN/CSA Std. C22.2 No.53-1968

Drawings:

EXAMPLE OF NAMEPLATE

F232227

Notes

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Arandela de Alliance Laundry Systems

Alliance Laundry Systems

Alliance Laundry Systems Home laundry Automatic Clothes Washers Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 9002062R3 Guía de instalación

Alliance Laundry Systems

Alliance Laundry Systems WF065B Guía de mantenimiento y servicio

Alliance Laundry Systems

Alliance Laundry Systems TLW22C_SVG Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems BF35PV Guía de mantenimiento y servicio

Alliance Laundry Systems

Alliance Laundry Systems EA2011 Series Instrucciones de montaje

Alliance Laundry Systems

Alliance Laundry Systems H370I Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems LTS80A Series Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems LTS90A*N Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems HC100 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems FLW1526C Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems Washer-Extractor Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems D1627ENR5 Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems PMC360T Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TC5102WN Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems HCT020QC Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems FTS80A*H Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems D1528ENR3 Guía de solución de problemas

Alliance Laundry Systems

Alliance Laundry Systems UW POCKET HARDMOUNT UW35B2 Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems AWN432SP113TW01 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems CHM1772C Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen FR7002WN Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems LWS49N Series Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems Home Laundry Automatic Washers Manual de usuario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario
