Upgrading OmniSwitch 9000E Series Switches to 6.4.2.R01 / 6.4.2.S01, Part No. 032579-10 Rev. A 1 of 10

Upgrading OmniSwitch 9000E Series Switches

to 6.4.2.R01 or 6.4.2.S01

Overview

This instruction sheet documents how to upgrade OmniSwitch 9000E Series Switches to either 6.4.2.R01

or 6.4.2.S01 software and firmware. The upgrade can be performed using the CLI, WebView, or SNMP.

Alcatel-Lucent recommends using WebView to perform the upgrade. For upgrade instructions using the

CLI, see Upgrading with the CLI on page 7. These instructions demonstrate the upgrade procedure for

an ‘R01’ build, the steps for an ‘S01’ build are similar.

Note. To downgrade a switch (e.g., 6.4.2 to 6.4.1), see Upgrade/Downgrade Software Matrix on page 9.

Note. If you are running an ISSU capable build (S01), upgrading from 6.4.1.S01 to 6.4.2.S01

requires a switch reboot.

Prerequisites

This instruction sheet requires that the following conditions exist, or are performed, before upgrading:

•The person performing the upgrade must:

-be the responsible party for maintaining the switch’s configuration

-be aware of any issues that may arise from a network outage caused by improperly loading this

code

-understand that the switch must be rebooted and network users will be affected by this procedure

-have a working knowledge of the switch to configure it to accept an FTP connection through the

EMP or Network Interface (NI) Ethernet port.

•If the CLI is used, all CLI commands must be executed via a Console Port connection, not through a

Telnet session. If you are performing a remote upgrade, the console port must be connected through a

terminal server (via Telnet, PuTTY, etc.) in the same location as the switch you are upgrading.

Note. Do not proceed until all the above prerequisites have been met. Any deviation from these upgrade

procedures will result in the malfunctioning of the switch. All steps in these procedures should be

reviewed before beginning.

032579-10

*032579-10*

Rev. A

*A*

Prerequisites Upgrading OmniSwitch 9000E Series Switches to 6.4.2.R01 or 6.4.2.S01

2 of 10 Upgrading OmniSwitch 9000E Series Switches to 6.4.2.R01 / 6.4.2.S01, Part No. 032579-10 Rev. A

Requirements for ISSU Patch

•Switches running an 'R##' build, such as 6.4.2.777.R01 do not support ISSU upgrades. The switch must

first be upgraded to an 'S##' build such as 6.4.2 .777.S01.

•ISSU patches are only supported within the same 'S##' branch. For example, if a switch is running

6.4.1.123.S01 then only 6.4.1.###.S01 images can used to perform an ISSU patch. If a switch is

running 6.4.1.234.S02 then only 6.4.1.###.S02 images can used to perform an ISSU patch.

•If a critical NI related patch is required, it will be necessary to move to an "R##" related build. Since

"R##" related builds do not support the ISSU feature, a reboot will be required and should be sched-

uled during a maintenance window.

•The images which are ISSU capable are Jbase.img, Jsecu.img, Jadvrout.img and Jos.img.

•A minimum of 25 MB flash space must be present in the switch to accommodate the image files that

are used to patch existing image files. This feature is only supported on the OmniSwitch 9000E.

•Approximately every six months a new ISSU capable branch will be available from Service & Support

(i.e. S01, S02, S03, etc.). Each new branch will include all NI related fixes that were not supported in

the previous ISSU branch. Upgrading from one ISSU branch to another will require a reboot and

should be scheduled during a maintenance window.

Upgrading OmniSwitch 9000E Series Switches to 6.4.2.R01 or 6.4.2.S01 Upgrading with WebView

Upgrading OmniSwitch 9000E Series Switches to 6.4.2.R01 / 6.4.2.S01, Part No. 032579-10 Rev. A 3 of 10

Upgrading with WebView

Upgrading OS9000E Series Switches to 6.4.2.R01 consists of upgrading the Image Files only.The U-Boot

and Miniboot Files that shipped with the 6.4.1.R01 Release (6.4.1.149.R01) are compatible with the

6.4.2.R01 Release. Follow the steps below to upgrade the image files to 6.4.2.R01.

1Download the 6.4.2.R01 upgrade files from the Alcatel-Lucent Service and Support web site to your

PC.

2Log into the switch through WebView. (In dual redundant configurations you must log into the

primary CMM).

Note. Before proceeding with the remaining steps, make sure that the switch’s Web Management Inactiv-

ity Timer is set to at least 10 minutes (default setting is 4 minutes). To view and change the setting, go to

the Session Type Parameters page by selecting Security > ASA > Sessions > Configuration.

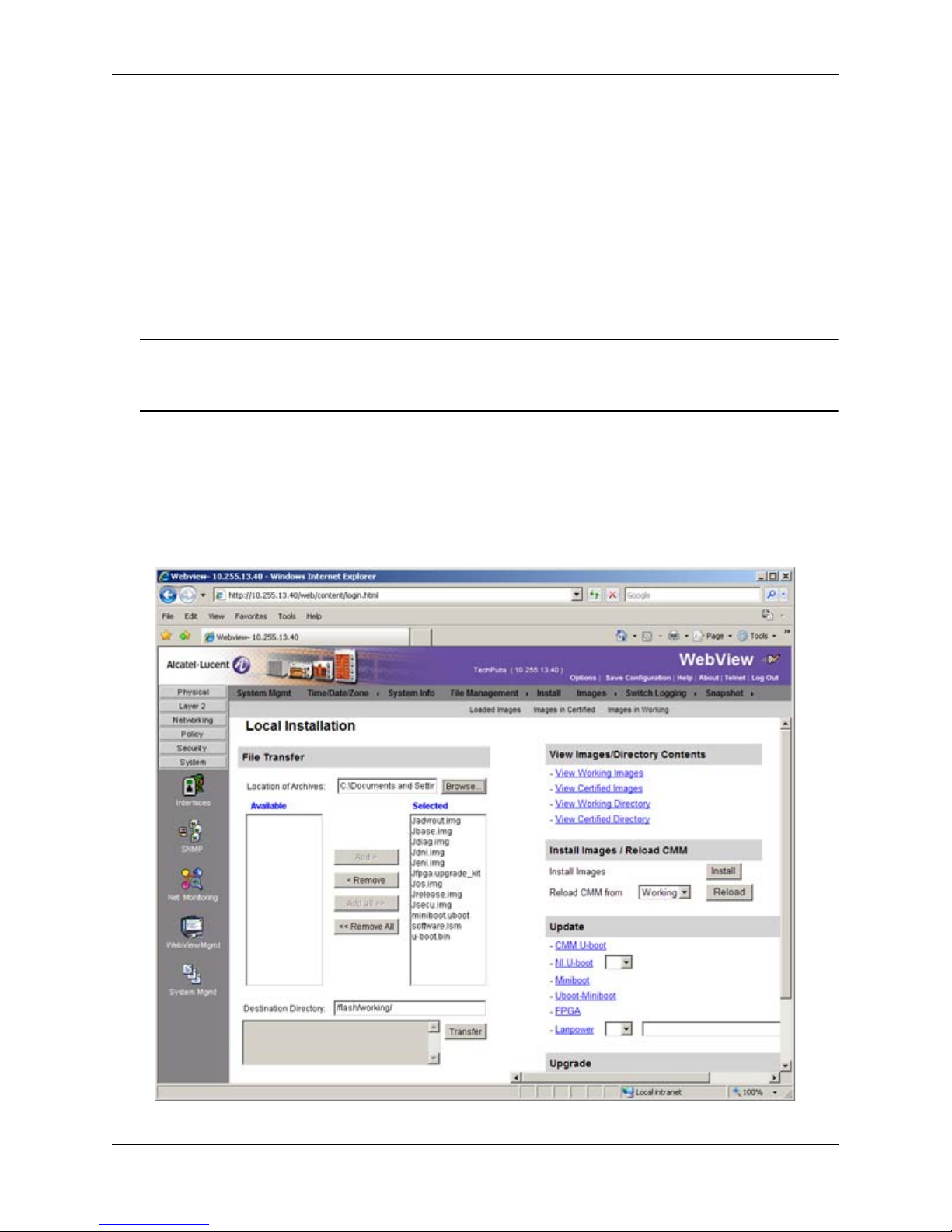

3Select System > System Mgmt > Install to locate and FTP the 6.4.2.R01 image files that you down-

loaded in Step 1. Click on the Browse button to locate the files.

4Select one of the files and click Open. All of the files will appear in the “Selected” area as shown

below.

Upgrading with WebView Upgrading OmniSwitch 9000E Series Switches to 6.4.2.R01 or 6.4.2.S01

4 of 10 Upgrading OmniSwitch 9000E Series Switches to 6.4.2.R01 / 6.4.2.S01, Part No. 032579-10 Rev. A

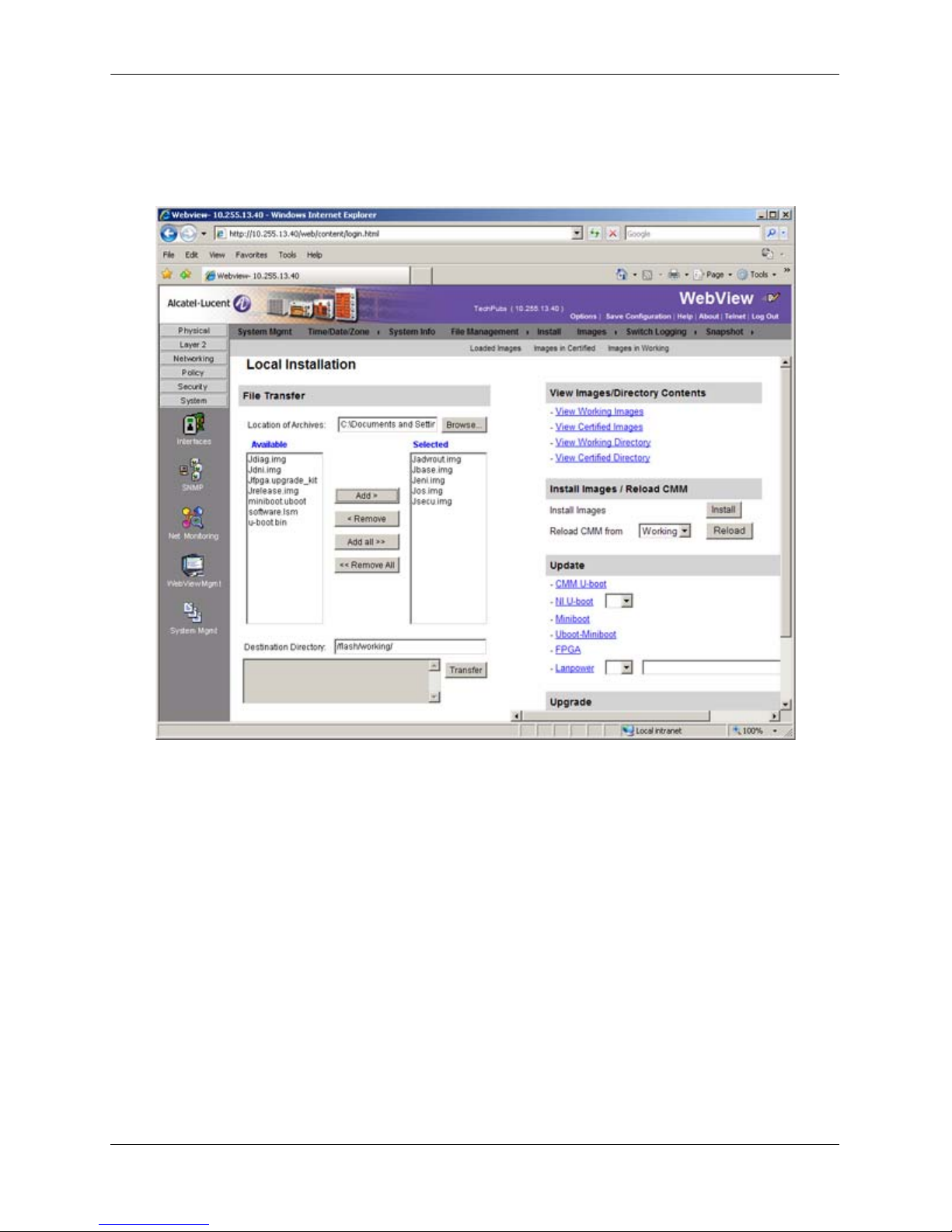

5Click on the Remove All button to move all of the files to the “Available” area; then select the follow-

ing image files and click the Add button to move them back to the “Selected” area as shown below:

Jadvrout.img, Jbase.img, Jeni.img, Jos.img, Jsecu.img.

6Transfer the files to the flash/working directory. Make sure the Destination Directory is flash/work-

ing,then click the Transfer button. Wait until the process is complete (indicated in the area next to

the Transfer button - “All files have been transferred successfully”).

7Reload the switch from the Working Directory. In the “Install Images/Reload CMM” area, select

Working in the Reload CMM From field, then click the Reload button. Click OK at the warning

prompt. Wait until the process is complete.

8After the CMM finishes rebooting, log into WebView.

9Copy the files to the Certified Directory and sync the Primary and Secondary CMMs (if applicable).

Select Physical > Chassis Mgmt > CMM > Management as shown below.

Upgrading OmniSwitch 9000E Series Switches to 6.4.2.R01 or 6.4.2.S01 Upgrading with WebView

Upgrading OmniSwitch 9000E Series Switches to 6.4.2.R01 / 6.4.2.S01, Part No. 032579-10 Rev. A 5 of 10

10 In the Software Configuration field, select Copy Working -> Certified on Primary for switches

with a single CMM, or Copy Working -> Certified & Synchronize with Secondary for switches

with a secondary CMM, then click Apply.

The switch will copy the files from the Working to the Certified Directory and synchronize the

CMMs (if applicable). This command should not be interrupted.

Verifying the Upgrade with WebView Upgrading OmniSwitch 9000E Series Switches to 6.4.2.R01 or 6.4.2.S01

6 of 10 Upgrading OmniSwitch 9000E Series Switches to 6.4.2.R01 / 6.4.2.S01, Part No. 032579-10 Rev. A

Verifying the Upgrade with WebView

To verify that the software was successfully upgraded, go to the Loaded Image Files page by selecting

System > System Mgmt > Images > Loaded Images as shown below.

In addition, you should also select System > System Mgmt > Images > Images in Certified and System

> System Mgmt > Images > Images in Working to verify that Certified and Working directories were

successfully upgraded.

Upgrading OmniSwitch 9000E Series Switches to 6.4.2.R01 or 6.4.2.S01 Upgrading with the CLI

Upgrading OmniSwitch 9000E Series Switches to 6.4.2.R01 / 6.4.2.S01, Part No. 032579-10 Rev. A 7 of 10

Upgrading with the CLI

Upgrading OS9000E Series Switches to 6.4.2.R01 consists of upgrading the Image Files only.The U-Boot

and Miniboot Files that shipped with the 6.4.1.R01 Release (6.4.1.149.R01) are compatible with the

6.4.2.R01 Release. Follow the steps below to upgrade the image files to 6.4.2.R01.

1Download the 6.4.2.R01 upgrade files from the Alcatel-Lucent Service and Support web site to your

PC.

2FTP the following 6.4.2.R01 image files to the /flash/working directory of the primary CMM:

Jadvrout.img, Jbase.img, Jeni.img, Jos.img, Jsecu.img.

3Log into the switch. In dual redundant configurations, you must log into the primary switch.

4Reload the switch from the working directory.

-> reload working no rollback-timeout

5After the switch finishes rebooting, log into the switch.

6Copy the image files from the Working Directory to the Certified Directory.

-If you have a single CMM switch enter:

-> copy working certified

-If you have redundant CMMs enter:

-> copy working certified flash-synchro

The switch will copy the files from the Working to the Certified Directory and synchronize the CMMs

(if applicable). This command should not be interrupted.

Verifying the Upgrade with the CLI Upgrading OmniSwitch 9000E Series Switches to 6.4.2.R01 or 6.4.2.S01

8 of 10 Upgrading OmniSwitch 9000E Series Switches to 6.4.2.R01 / 6.4.2.S01, Part No. 032579-10 Rev. A

Verifying the Upgrade with the CLI

To verify that the software was successfully upgraded to 6.4.2.R01, use the show microcode command as

shown below.

-> show microcode

Package Release Size Description

-----------------+---------------+--------+-----------------------------------

Jbase.img 6.4.2.777.R01 18216628 Alcatel-Lucent Base Software

Jadvrout.img 6.4.2.777.R01 2745699 Alcatel-Lucent Advanced Routing

Jos.img 6.4.2.777.R01 2049916 Alcatel-Lucent OS

Jeni.img 6.4.2.777.R01 5417699 Alcatel-Lucent NI software

Jsecu.img 6.4.2.777.R01 564947 Alcatel-Lucent Security Management

Jdiag.img 6.4.2.777.R01 3537270 Alcatel-Lucent Diagnostic Software

Upgrading OmniSwitch 9000E Series Switches to 6.4.2.R01 or 6.4.2.S01 Upgrade/Downgrade Software Matrix

Upgrading OmniSwitch 9000E Series Switches to 6.4.2.R01 / 6.4.2.S01, Part No. 032579-10 Rev. A 9 of 10

Upgrade/Downgrade Software Matrix

Refer to the matrix below for software compatibility when upgrading/downgrading a 9000E Series Switch

to/from Build 6.4.2.R01. For more information, contact Customer Support.

I = Image Files

F= U-Boot/Miniboot

Yes = You can upgrade/downgrade to the next build.

No = You cannot upgrade/downgrade to the next build.

N/A = Not applicable. Build not supported on the model.

Note. Hardware is only backward compatible down to the software that originally supported it. For exam-

ple, you cannot run a 9000E Series Switch with 6.3.4.R01 software; however, you could run it with

6.4.1.R01 software. Also, when downgrading, make sure to load the applicable U-Boot/Miniboot files. For

more information, contact Customer Support.

Alcatel-Lucent

26801 West Agoura Road

Calabasas, CA 91301

(818) 880-3500 FAX (818) 880-3505

US Customer Support: (800) 995-2696

International Customer Support: (818) 878-4507

Internet: htt

://eservice.ind.alcatel.com

Upgrade/Downgrade Software Matrix Upgrading OmniSwitch 9000E Series Switches to 6.4.2.R01 or 6.4.2.S01

10 of 10 Upgrading OmniSwitch 9000E Series Switches to 6.4.2.R01 / 6.4.2.S01, Part No. 032579-10 Rev. A
