OmniSwitch 6450 Series

Getting Started Guide

060350-10, Rev. B

May 2012

Warning. Only personnel knowledgeable in basic electrical and mechanical procedures should install or maintain this

equipment.

The features and specifications described in this guide are subject to change without notice.

the express written permission of Alcatel-Lucent.

Alcatel-Lucent®and the Alcatel-Lucent logo are registered trademarks of Alcatel-Lucent. Xylan®, OmniSwitch®,

OmniStack®, and Alcatel-Lucent OmniVista®are registered trademarks of Alcatel-Lucent.

OmniAccess™, Omni Switch/Router™, PolicyView™, RouterView™, SwitchManager™, VoiceView™, WebView™,

X-Cell™, X-Vision™, and the Xylan logo are trademarks of Alcatel-Lucent.

This OmniSwitch product contains components which may be covered by one or more of the following U.S. Patents:

• U.S. Patent No. 6,339,830

• U.S. Patent No. 6,070,243

• U.S. Patent No. 6,061,368

• U.S. Patent No. 5,394,402

• U.S. Patent No. 6,047,024

• U.S. Patent No. 6,314,106

• U.S. Patent No. 6,542,507

• U.S. Patent No. 6,874,090

Alcatel-Lucent

26801 West Agoura Road

Calabasas, CA 91301

US Customer Support: (800) 995-2696

Internet: service.esd.alcatel-lucent.com

May 2012 iii

OmniSwitch 6450 Series. . . . . . . . . . . . . . . 1

Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Unpacking Instructions . . . . . . . . . . . . . . . . . 3

Items Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Unpacking the Chassis . . . . . . . . . . . . . . . . . . . . . . . 3

Installation Options . . . . . . . . . . . . . . . . . . . . . . . . . 4

Connections and Cabling . . . . . . . . . . . . . . 5

Connecting the Serial Cable . . . . . . . . . . . . . . . . . . . 5

Serial Connection Default Settings . . . . . . . . . . . . . 5

Booting OmniSwitch 6450 Series

Switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Booting the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Your First Login Session. . . . . . . . . . . . . . . . 7

Logging in to the Switch . . . . . . . . . . . . . . . . . . . . . 7

Assigning an IP Address to the Switch . . . . . . . . . . 8

Unlocking Session Types . . . . . . . . . . . . . . . . . . . . . 9

Changing the Login Password . . . . . . . . . . . . . . . . 10

Setting the System Time Zone . . . . . . . . . . . . . . . . 11

Setting the Date and Time . . . . . . . . . . . . . . . . . . . 11

Setting Optional System

Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Viewing and Saving Changes . . . . . . . . . . . . . . . . . 12

Using WebView. . . . . . . . . . . . . . . . . . . . . . . . . . 13

Browser Compatibility . . . . . . . . . . . . . . . . . . . . . . 13

Logging In to WebView . . . . . . . . . . . . . . . . . . . . . 13

Navigating WebView . . . . . . . . . . . . . . . . . . . . . . . 14

Online Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Additional Information . . . . . . . . . . . . . . . . . . . . . . 16

Troubleshooting WebView . . . . . . . . . . . . . . . . . . . 17

Table of Contents

iv May 2012

May 2012 OmniSwitch 6450 1

OmniSwitch 6450

The Alcatel-Lucent OmniSwitch 6450 Series is a family of

fixed configuration, Gigabit Ethernet, stackable LAN switches

with advanced Layer 2 and basic routing capabilities designed

for both the Enterprise and Metro markets.

Refer to the Product Documentation Card for instructions on

downloading additional hardware and software OmniSwitch

documentation.

2 OmniSwitch 6450 May 2012

Related Documentation

The following are the titles and descriptions of all the

OmniSwitch 6450 user documentation available for down-

load. Refer to the included Product Documentation Card for

instructions:

•OmniSwitch 6450 Getting Started Guide

Describes the hardware and software procedures for

getting a switch up and running.

•OmniSwitch 6450 Hardware Users Guide

Complete technical specifications and procedures for

all hardware, including chassis, power supplies, fans,

combo ports, optional backup power supplies, etc.

•OmniSwitch 6250/6450 CLI Reference Guide

Complete reference to all CLI commands supported on

the switch. Includes syntax definitions, default values,

examples, usage guidelines, and CLI-to-MIB variable

mappings.

•OmniSwitch 6250/6450 Switch Management Guide

Includes procedures for readying a switch for

integration into a network. Topics include the software

directory architecture, image rollback protections,

authenticated switch access, managing switch files,

system configuration, using SNMP, and using web

management software (WebView).

•OmniSwitch 6250/6450 Network Configuration Guide

Includes network configuration procedures and

descriptive information on all the major software

features and protocols included in the base software

package. Chapters cover Layer 2 information (Ether-

net and VLAN configuration), Layer 3 information

(static routes), security options (authenticated

VLANs), Quality of Service (QoS), and link

aggregation.

•OmniSwitch 6250/6450 Transceivers Guide

Includes information on Small Form Factor Pluggable

(SFPs) transceivers.

May 2012 Unpacking Instructions 3

Items Included

Your OmniSwitch 6450 switch order may include the follow-

ing items:

•OmniSwitch 6450 chassis

•Power supply and power supply tray

•Mounting Kits (may be pre-installed on some orders)

•Power cord (country-specific) and power cord bracket

•Product Documentation Card

•DB9 to RJ-45 serial adapter (Uses RJ-45-to-RJ-45

straight-through cable, not included)

Depending on the items ordered for your specific network

requirements, the following optional items may also be

included:

•Transceivers (per order)

•Backup power supply components and cables

(per order)

•Additional mounting or securing hardware kits

Unpacking the Chassis

To protect your OmniSwitch chassis and hardware compo-

nents from electrostatic discharge (ESD) and physical damage,

read all unpacking recommendations and instructions care-

fully before beginning.

Recommendations

•Unpack your OmniSwitch chassis as close as possible

to the location where it will be installed.

•Depending on your order, transceivers and backup

power supply components may be packaged sepa-

rately. In order to greatly reduce exposure to electro-

static discharge (ESD) and physical damage, do not

unpack these items until they are ready to be installed.

Instructions

1Carefully cut the tape along the seam at the top of the

box containing the chassis.

2Lift the box’s top flaps. Remove any smaller boxes or

pouches that are enclosed and set them aside.

3Lift the chassis out of the packaging.

Unpacking Instructions

4 Unpacking Instructions May 2012

4Carefully remove any foam pads and protective plastic

from the switch chassis as in the example diagram.

5Once all OmniSwitch 6450 switches have been

removed from their packaging, continue to “Installation

Options.”

Installation Options

Depending on the model, there are multiple ways in which the

OmniSwitch 6450 switches can be installed:

•Rack-mount installation

•Tabletop installation

Note: For detailed, step-by-step instructions on install-

ing and mounting OmniSwitch 6450 hardware and

power supplies along with environmental and safety

considerations, please refer to the OmniSwitch Hard-

ware Users Guide.

May 2012 Connections and Cabling 5

Once your switch is properly set up and all the required hard-

ware components are installed, you should connect all network

and management cables required for your network applica-

tions. Connections may include:

•RJ-45 cable connection to the console port

•Single mode or multimode fiber cables to transceivers

as required by your network

•Ethernet cables to Ethernet ports as required by your

network

Connecting the Serial Cable

The console port, located on the chassis front panel, provides a

serial connection to the switch and is required when logging

into the switch for the first time. By default, this RJ-45

connector provides a DTE console connection.

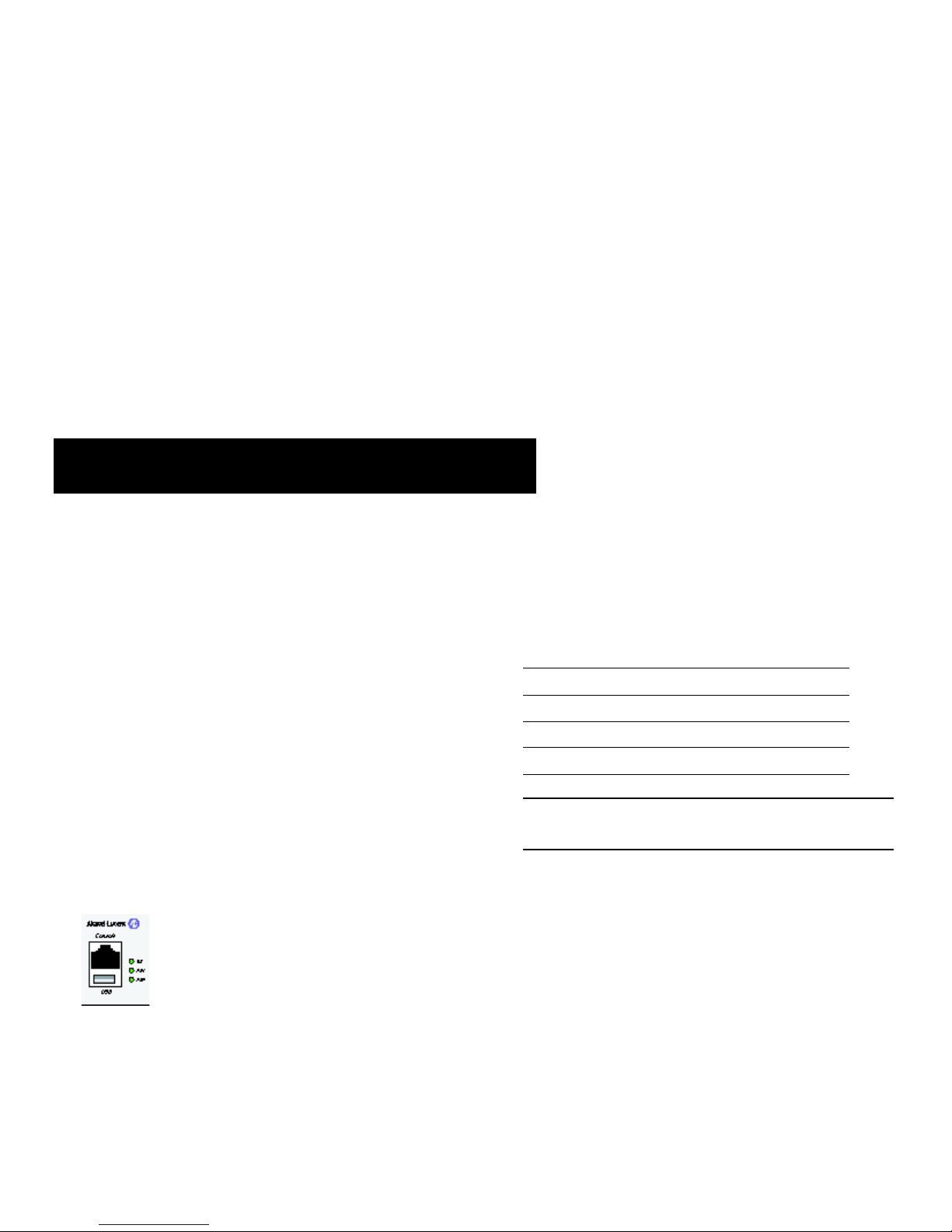

1Locate the console port on the front of

the switch.

2Connect one end of an RJ-45-to-RJ-45

straight-through cable to the console port.

3Connect the other end of an RJ-45-to-RJ-45 straight-

through cable to the supplied DB-9 to RJ-45 adapter.

4Connect the adapter to the PC or terminal with the

default settings below.

Serial Connection Default Settings

The default settings for the serial connection are as follows:

Note. For information on modifying these settings, refer to

the Hardware Users Guide.

Connections and Cabling

baud rate 9600

parity none

data bits (word size) 8

stop bits 1

6 Booting OmniSwitch 6450 Switches May 2012

Booting the Switch

The OmniSwitch 6450 switch does not use an on/off switch.

The power cord is the switch’s only connect/disconnect

device. The power connector socket is located on the chassis

rear panel. For more information, refer to the Hardware Users

Guide.

To boot the switch, plug the power cord (provided) into the

power connector socket or power supply at the switch’s rear

panel. Next, plug the power cord into an easily-accessible

power source, such as a grounded AC outlet or an Uninterrupt-

ible Power Supply (UPS).

The switch immediately begins the boot process. Allow a few

moments for the switch to boot completely, then verify the

status of all LEDs on the switch’s front panel. A successful

boot displays the following LED states:

If the LED states differ from the states shown in the table,

refer to the Hardware Users Guide for more information.

Contact Alcatel-Lucent Customer Support if the unexpected

LED state persists.

Booting OmniSwitch 6450

Switches

LED States

OK Solid green

PRI Solid green

PWR Solid green

Otros manuales para OmniSwitch 6450

Tabla de contenidos

Otros manuales de Cambiar de Alcatel-Lucent

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 10K Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 060321-10, Rev. B Manual de instrucciones

Alcatel-Lucent

Alcatel-Lucent LambdaUnite 1675 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 9000 Series Manual de usuario

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6800 Series Manual de programación

Alcatel-Lucent

Alcatel-Lucent 7210 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 8340 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6400 Series Manual de instalación

Alcatel-Lucent

Alcatel-Lucent 4306G Series Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 1850 TSS-320 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent OmniSwitch OS6450-10 Manual de instalación

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 10K Manual de usuario

Alcatel-Lucent

Alcatel-Lucent OmniAccess 4504 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 9000 Series Manual de usuario

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6465 Manual de instalación

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6855 Series Manual de usuario

Alcatel-Lucent

Alcatel-Lucent OmniStack LS 6224P Manual de usuario

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6850-48 Manual de instalación

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6850-48 Manual de programación

Alcatel-Lucent

Alcatel-Lucent 1671 Service Connect Manual de usuario

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6250 Manual de programación

Alcatel-Lucent

Alcatel-Lucent 1850 TSS-100 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6450-P10S Manual de instalación

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manual de usuario
