VM936R Aidapt Lift Assist Cushion

VM936R Usage and Maintenance Instructions

INTRODUCTION

Thank you for deciding to purchase the Lift Assist Cushion from Aidapt.

NB. A RISK ASSESSMENT SHOULD BE UNDERTAKEN AS TO THE SUITABILITY OF THE PRODUCT FOR

THE PARTICULAR USAGE.

NB. THIS EQUIPMENT MUST BE INSTALLED BY A COMPETENT PERSON

Maximum User Weight Limit 127kg (20 Stone)

Do not exceed the stated weight limit –doing so could put the user at risk.

BEFORE USE

Carefully remove all packaging. Avoid using any knives of other sharp instruments as this may

damage the surface of the product.

Check the product for any visible damage if you see any damage or suspect a fault, do not use your

product, but contact your supplier for support.

INTENDED USE

This Lift Assist Cushion from Aidapt is designed to be used to help gently raise the user in and

out a chair or sofa.

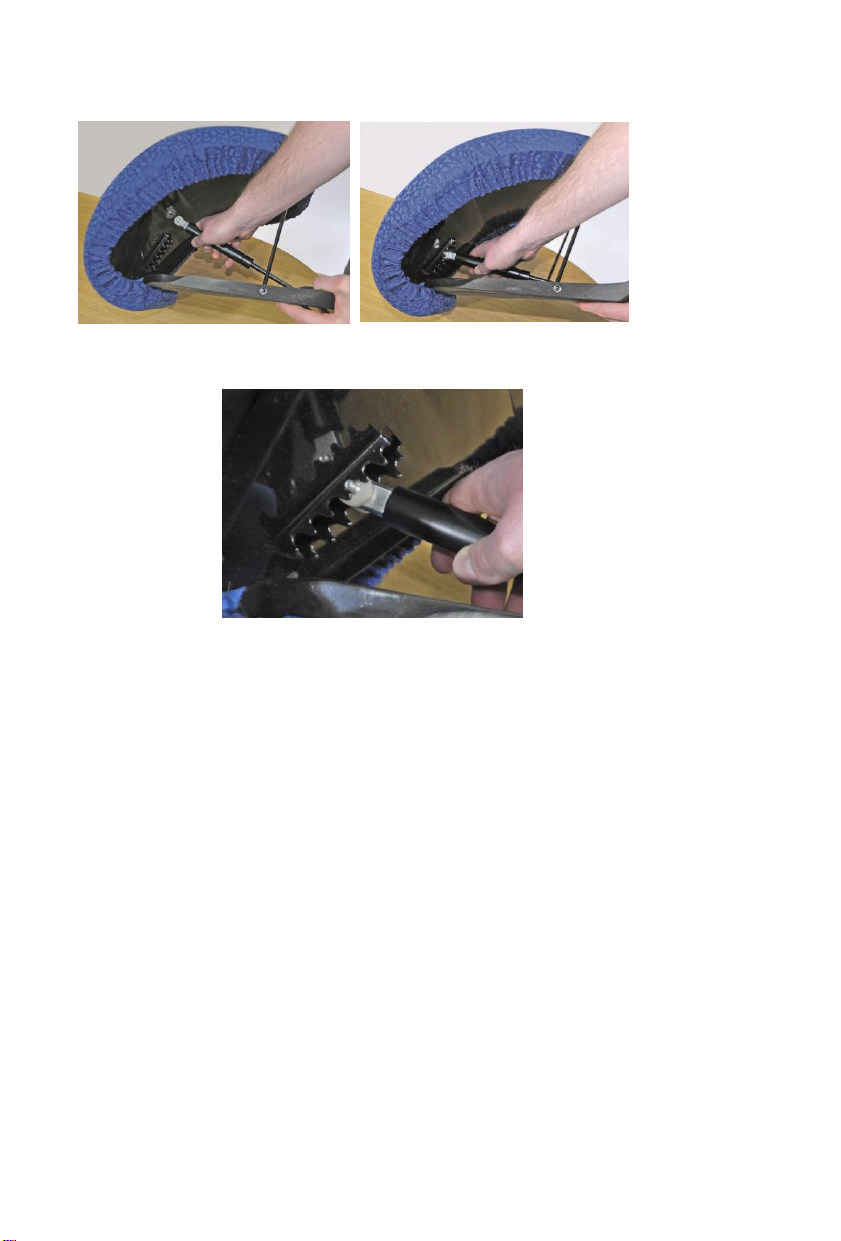

ADJUSTING THE GAS LIFTING MECHANISM

Turn the cushion on its side and reach underneath the rear of the cushion. You will see a bar that

runs three quarters of the length of the base. Pull back on the widest part of the bar connected to

the lifting mechanism so that it releases from the resistance grooves. (See Fig 1).

Fig. 1 Fig.2

Fig. 3

Move the connector to the appropriate slot and push until the connector is properly in place. See

Fig. 2 and 3. The lift assist cushion is now ready to use.

INSTRUCTIONS FOR USE

Position the Lift Assist Cushion onto your chair ensuring the surface area is level and free from any

obstructions that may compromise the stability of the product. The lift assist cushion should be used

on a chair with arms. The cushioned area should ideally overhang the front of the chair. When ready

to sit down ensure your weight is distributed evenly on the flat part of the top of the cushion. The

lift assist cushion will gently ease you down slowly into your chair.

If the cushion does not go down when you sit in it then you will need to adjust the gas lift setting

underneath the cushion area.

When using the lift assist cushion to sit up and down the user should have both hands on the arms

of the chair and their feet flat on the floor at shoulder width apart. When rising out of a chair the

user should lean slightly forward and push off with the arms and legs. The lift assist cushion will

gently lift the user out of the chair (See Fig. 4).

Fig 4.

NB. The Lift Assist Cushion is not recommended for use in wheelchairs, automobiles,

reclining chairs or chairs with non-lockable wheels.

Fig. 5 –KEEP HANDS AWAY WHEN SEATED.

WARNING –ENTRAPMENT

THIS PRODUCT IS NOT TO BE USED BY CHILDREN.

When sitting and raising from the seated position please

ensure your hands/arms are clear and do not get

trapped in the mechanism. (See Fig. 5).

Please ensure any objects, pets and children are clear of

the mechanism when sitting.

CLEANING

The cover of the Lift Assist Cushion is removable and can be hand washed at low temperature using

a mild detergent. Abrasive cleaners e.g. AJAX and/ or abrasive cleaning pads may damage the

product beyond repair and should not be used. The cover should be dried flat away from a heat

source.

REISSUE

If you reissue or are about to reissue this product, please thoroughly check all components

for their safety. If in any doubt, please do not issue or use, but immediately contact your

supplier for service support.

CARE & MAINTENANCE

Please make a safety check of the product at regular intervals or if you have any concerns.

IMPORTANT INFORMATION

The information given in this instruction booklet must not be taken as forming part of or establishing

any contractual or other commitment by Aidapt Bathrooms Limited, Aidapt (Wales) Ltd or its agents

or its subsidiaries and no warranty or representation concerning the information is given. Please

exercise common sense and do not take any unnecessary risks when using this product; as the user

you must accept liability for safety when using the product. Please do not hesitate to contact the

person who issued this product to you or the manufacturer (detailed below) if you have any queries

concerning the assembly/use of your product.

Aidapt Bathrooms Ltd, Lancots Lane, Sutton Oak, St Helens, WA9 3EX Telephone: +44 (0) 1744 745

020 • Fax: +44 (0) 1744 745 001 • Web: www.aidapt.com Email: [email protected]
