AGPtek A19 Manual de usuario

AGPTEK

User Manual

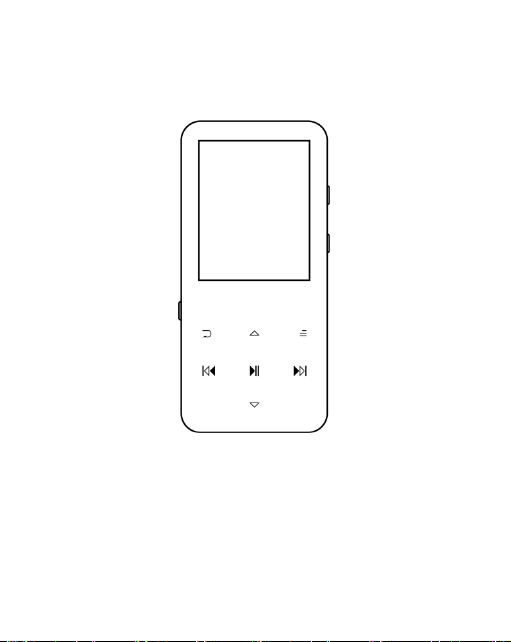

A19 MUSIC PLAYER

English 01

Deutsch 10

Francais 21

Italiano 31

Español 41

日本語 51

CONTENTS

English

Important Notice...................................................................... 1

Product Overview..................................................................... 2

Main Functions......................................................................... 2

Help and Troubleshooting........................................................ 8

Specifications............................................................................ 9

Deutsch

Wichtige Hinweise.................................................................. 10

Produktübersicht.................................................................... 11

Hauptfunktionen.....................................................................12

Hilfe und Fehlerbehebung...................................................... 18

Spezifikationen....................................................................... 20

Francais

Avis Important........................................................................ 21

Présentation du Produit......................................................... 22

Fonctions Principales.............................................................. 23

Aide et Dépannage................................................................. 29

Spécification............................................................................30

Italiano

Avviso IMPORTANTE...............................................................31

Panoramica del Prodotto........................................................32

Funzioni principali...................................................................33

Guida e Risoluzione dei Problemi........................................... 39

Specificazioni.......................................................................... 40

Español

Nota Importante.....................................................................41

Descripción del Producto........................................................42

Funciones Principales............................................................. 43

Ayuda y solución de problemas..............................................49

Especificacions........................................................................50

日本語

ご使用の前に...........................................................................51

各部の名称............................................................................. 52

主要な機能.............................................................................52

故障かな？と思ったら...............................................................58

仕様........................................................................................ 59

If you have any problems about this product, please feel free

to contact [email protected].

Manufacturer: Shenzhen RuiZu Digital Technology Co., Ltd.

Address: 6/F, Building D, KeShang Mei park, Chongqing Road,

Fuyong, Bao’an District, shenzhen,China.

Important Notice

Thank you for purchasing AGPTEK Music Player. Please read the manual

carefully before using the product. Specifications are subject to change

without prior notice.

Charge the Player

•Charge by computer USB port.

•Use 5V/500mA charger (Charger not included).

Connect to the PC & Download audio files

1. Open the Windows Explorer or "This PC".

2. Using the USB cable, connect the player to a USB port on your PC.

3. Open the new "AGP-A19" folder under "This PC".

4. Copy files to the "AGP-A19" in which you want them to play.

5. In the left sidebar, right-click the "AGP-A19 " folder and select "Eject"

from the menu.

6. Wait until the computer confirms a safe ejection before you unplug the

USB cable.

7. Note: Please do not disconnect the USB plug during file transferring. It

may cause malfunction of the player and the files.

Product Overview

Buttons and Controls

Basic Operation

•Power On/Off. Hold button ➀to turn on/off the player.

•Screen lock. Hold down the button to lock screen and all the

buttons will be unavailable. Repeat the above steps to unlock.

•Screen display. Press ➀to activate screen.

•Browse item. On home menu or list menu, press button

/ / / to browse item, press button to enter.

•Back. When on any interface, press to go back; hold down to

back to home menu directly.

•Volume +/-. On the non-list menu, press ➂/➃to adjust volume.

Main Functions

Home Menu

The home menu is the starting point of each application. There are 8

functions on the home menu: Music/FM Radio/Folder/Bluetooth/

1. Power On/Off

2. TF Card Slot

3. Vol +

4. Vol -

5. Reset Hole

6. Return

7. Submenu

8. Scroll Up

9. Scroll Down

10. Previous/Fast Rewind

11. Next/Fast Forward

12. Play/Pause/Enter

13. Lanyard Hold

14. Speaker

15. Earphone Jack

16. Micro USB Port

Recorder/Video/E-book/Tools/Settings.

Music

Find “Music” on home menu with button to access to its function. A

related list will show:

•All songs.

•Resume/Now Playing.

•Artists/Albums/Genres.

•Playlists. There are 3 default playlists on the player: Playlist [1]/[2]/[3].

•Update Playlist. Update music files.

•Local Folder/Card Folder. View music file in the local folder or card

folder. Note: These functions only available when memory card

inserted.

Play the music.

While it’s on music playing interface, hold down the button to fast

forward, and press it to skip to next track. Hold down the button to

fast rewind, and press it to play the previous track. Press button to

play/pause.

Back to Home/Play Mode/Sound Settings/Bookmarks/Add to

Playlist/Remove from Playlist/ Delete.

While it’s on music playing interface, tap button to access to the

submenu.

1. Back to Home. Choose to go to home menu.

2. Play Mode.

A. Play music from. Choose to play from All Songs/This

Artist/Album/Genre.

B. Repeat. Choose repeat mode: Repeat Off, Repeat 1, Repeat All.

C. Shuffle. Choose to turn on/off shuffle mode.

D. Repeat Settings.

a. Repeat Mode.

╶Enter. Press the button to enter.

╶Set. Press button to confirm the starting time A when A is

flashing. Then press button to set the ending time B when B is

flashing. The passage from time A to B will be repeated automatically.

The icon for A-B indication will appear on the screen. Press button

again to back to normal playback.

b. Replay Times. Set the replay times from 1 to 10.

c. Replay Interval. Set the replay gap from 1 to 10 (seconds).

3. Sound Settings. Choose to set Equalizer, Variable Speed Playback and

Volume Limit.

4. Bookmarks. Choose to add bookmark for the song that is playing now,

or go to/delete the bookmark you added.

5. Add to Playlist/Remove from Playlist. Choose to add to or remove from

the 3 existing playlist.

6. Delete. Choose to delete the song that is playing now.

FM Radio

Find “FM Radio” on Home menu with the button to access to its

function. A related list will show:

•Presets. All the saved stations will be listed here.

•Manual tune/Auto tune. When choose “Auto tune”, the searched

stations will be saved in “Presets” automatically.

•FM Recordings. View the radio recording files. You will need to choose

from local folder or card folder if the memory card is inserted. The

radio recordings will also be saved in Recordings> Recordings library.

Start FM Recording/Save/Clear Station/Auto Tune/Tuner Region/FM

Recordings.

While it’s on radio playing interface, press button to switch among

preset stations, press the button / to find tune stations. Press

button to access to its submenu which includes:

1. Start FM Recording. Press button to pause/continue, press

and select “Yes” to save the recording file.

2. Save/Clear station/Auto tune.

3. Tuner Region. Choose from Common/European/Japan Band as needed.

4. FM Recordings.

Folder

Find “Folder” on Home menu with the button to access to its

function. All of the files in the player will be listed. If the Micro SD card is

inserted, you can choose to go to Local folder or Card folder.

Bluetooth

Find “Bluetooth” on Home menu with the button to access to its

function. A related list will show, including Bluetooth On/Off, Search for

Devices, Device List, BT Upgrade. Select the device you want to

connect/disconnect, and then press to connect/disconnect. After

successfully connected, this player is ready to play music or FM radio via

Bluetooth headphones, Bluetooth speaker, etc.

Note:

1. When listen to radio by Bluetooth, wired headphones are needed as

radio antenna.

2. Recording,Variable Speed Playback, Video, Pictures, Pedometer

functions are not available when Bluetooth opened.

3. BT Upgrade function is only available for manufacturer, not for user.

Recorder

Find “Recorder” on home menu with button to access to its function.

A related list will show:

•Start Voice Recording. Press button to start voice recording, press

again to pause. Press the button and choose “Yes” to save the

recording file.

•Recordings Library. Find the saved recordings in

Recordings>Recordings library. You will need to choose from local

folder or card folder if the memory card is inserted. While it’s on

recording playing interface, press button and choose “Delete” to

delete.

•Storage. Choose to store your recordings in internal or external

memory. Confirm your selection with button . (Only available when

TF card inserted)

•Rec Format. Choose the record format between MP3/WAV .

•Rec Settings. Set the recording bit rate as you need.

Videos

•Press button to access to its function. You will need to choose

from local folder or card folder if the memory card is inserted.

•Press button to watch videos, press the button / to go to

previous/next video or hold to fast backward/forward.

•When it’s on video playing interface, press button to access to its

submenu, including: Brightness, Repeat, Delete Video, Update Playlist.

Set according to your preference.

Tools

Find “Tools” on Home menu with the button to access to its function.

A related list will show:

•Photos.

Press to view pictures, press the / to go to previous/next

picture.

When it’s on picture viewing interface, press button to access to its

submenu, including: Brightness, Backlight Timer, Slideshow Settings,

Delete Photos, Update Playlist. Set according to your preference.

•Calendar.

Press the button to switch among year|month|day, press the

button / to choose specific year|month|day.

•Stopwatch

Press to enter, press again to start the timer, then press again to stop

or press to resume. Press to start a new one. The maximum

Stopwatch list is 4.

•Clock.

Press button to enter, a related list will show: Alarm On/off, Alarm

Time, Alarm Cycle (Once/Daily/Work day), Alarm Music, Alarm Volume.

Set according to your preference.

•Pedometer.

Find "Pedometer" on Tools with the button to access to its function,

a related list will show:

1. Start.

1) Press to start counting your daily steps. Press it again to stop

counting steps and then press the button to exit it.

2) Press button and choose “Yes” to save the record in “History”. If

the history record is full, it will automatically cover the previous one.

2. Personal Info. Set your height, weight, and step length with button

to confirm.

3. History. All your saved step record will be listed here, and you can save

up to 7 records.

4. Clear history. You can choose to clear the history record you want or

clear all the history record.

E-book

While it’s on text playing interface, press button / to turn the pages.

Press the button to play automatically, press again to stop.

Submenu. While it ’s on text playing interface, press button M to enter its

submenu and set your preference, including Autoplay Settings (2s-30s),

Font Size, Page Color, Delete E-book, Select Bookmark, Delete Bookmark,

Add Bookmark, Select Page, Local Folder and Card Folder (Only available

when TF card inserted).

Settings

Find “Settings” on Home menu with the button to access to its

function. A related list will show, including:

•Language/Language. Choose display language.

•Display Settings. Set Brightness, Backlight timer and Screensaver.

•Button Light. Set the button light to be always on, on and off.

•Speaker. Turn On/Off the Speaker.

•Shutdown Settings.

1. Power Off. When there is no operation on the device, the device will

shut off automatically when reaches the set time.

2. Sleep Timer. The device will shut down automatically when reaches

the set time.

•Date and Time. Choose “Time” to set time format and date. To set

time, press / to switch among hour | minute; Press button

/ to adjust the value of hour | minute. Set date under “Date

Settings > Set Date” and adjust the date like “Time Settings”.

•Information. Check the information and disk space about your player.

•Format device/Factory settings. Format the device or restore to

factory default settings. Note: Before formatting the device, please

backup the file so as not to lose any files.

Otros manuales para A19

Tabla de contenidos

Idiomas:

Otros manuales de Reproductor de MP3 de AGPtek

Manuales populares de Reproductor de MP3 de otras marcas

Blaupunkt

Blaupunkt Compact Drive MP3 Manual de usuario

Memorex

Memorex MMP9008 - 8GB USB 2.0 Manual de usuario

Meizu Electronic Technology

Meizu Electronic Technology E5 Manual de usuario

Naxa

Naxa NMV-173NX Manual de usuario

Philips

Philips PSA250 Manual de usuario

Zipy

Zipy go! Waving Manual de usuario

Sylvania

Sylvania SMPK4068 Manual de usuario

Sony

Sony NW-MS7 - Memory Stick Walkman Manual de usuario

Irradio

Irradio RF-42UC Manual de usuario

NABAIJI

NABAIJI SWIM MUSIC 100 Manual de usuario

Laser

Laser MP3-A9-4GB Manual de usuario

Samsung

Samsung YP-T7F Manual de usuario

Savant

Savant SMS-1001-00 Guía de referencia rápida

Trevi

Trevi XP 71 BT Manual de usuario

MobiBlu

MobiBlu DAH-1500i Manual de usuario

Denver

Denver MPS-201 Manual de usuario

Steren

Steren MP3-002 Manual de usuario

Kenwood

Kenwood M1GD50 Manual de usuario
