ProBER 2 - Getting Started s1

RECEIVE inputEXT CLOCK IN inputTRANSMIT output

dc input.

Power On/Off

(Hold down until

display blanks to

switch off.)

PRINTER (and data) output.

Backlight On/Off

(Hold down to

change contrast.)

Print on demand.

Start/Stop

measurement.

Moves cursor

to Menu field.

Softkeys

(Choices indicated in

display above keys).

Cursor control keys.

Help message for

active field.

(Available in local

language.) Choices associated

with active field.

Reveals more

choices.

Speaker.

Microphone.

Automatically

configures

receivertomatch

input signal.

Menu field Highlighted

(active) field.

Actions data change

and exits edit.

Initial Switch-on

ProBER 2 is supplied ready to use straight from the box. There is no need to charge the battery. Use the instru-

ment until the battery is completely exhausted before giving it its first charge.

When you first switch on ProBER 2, you may need to adjust the display contrast by holding down the display

backlight key . This cycles the contrast through its setting range. A quick press of the same key toggles the

backlight on and off.

Navigating around the displays

Before using ProBER 2, you’ll need to know how to select and

change settings. Here’s how to do that.

1. Move within the display area by using the cursor control keys

, , and . Return the cursor to the top of the dis-

play quickly by pressing .

2. In each of the display areas, the field that can be changed (the

active field) is marked by a “highlighted cursor”. In the exam-

ple shown here, it’s .

3. Alternative selections/modes for the active field are accessed

using the softkeys below the display.

4. When a field has more than five choices, a softkey labelled

is provided. Press it to reveal more choices.

Choosing your HELP Language

The HELP messages displayed on the screen can be provided in

English and one other language. The other language depends on

which ProBER 2 option you have ordered.

1. Choose , , , , then

to obtain the local language display, as shown.

2. Move the cursor down to Language and choose the language

required from the menu.

Tx + Rx

More Other More

Inst. Config

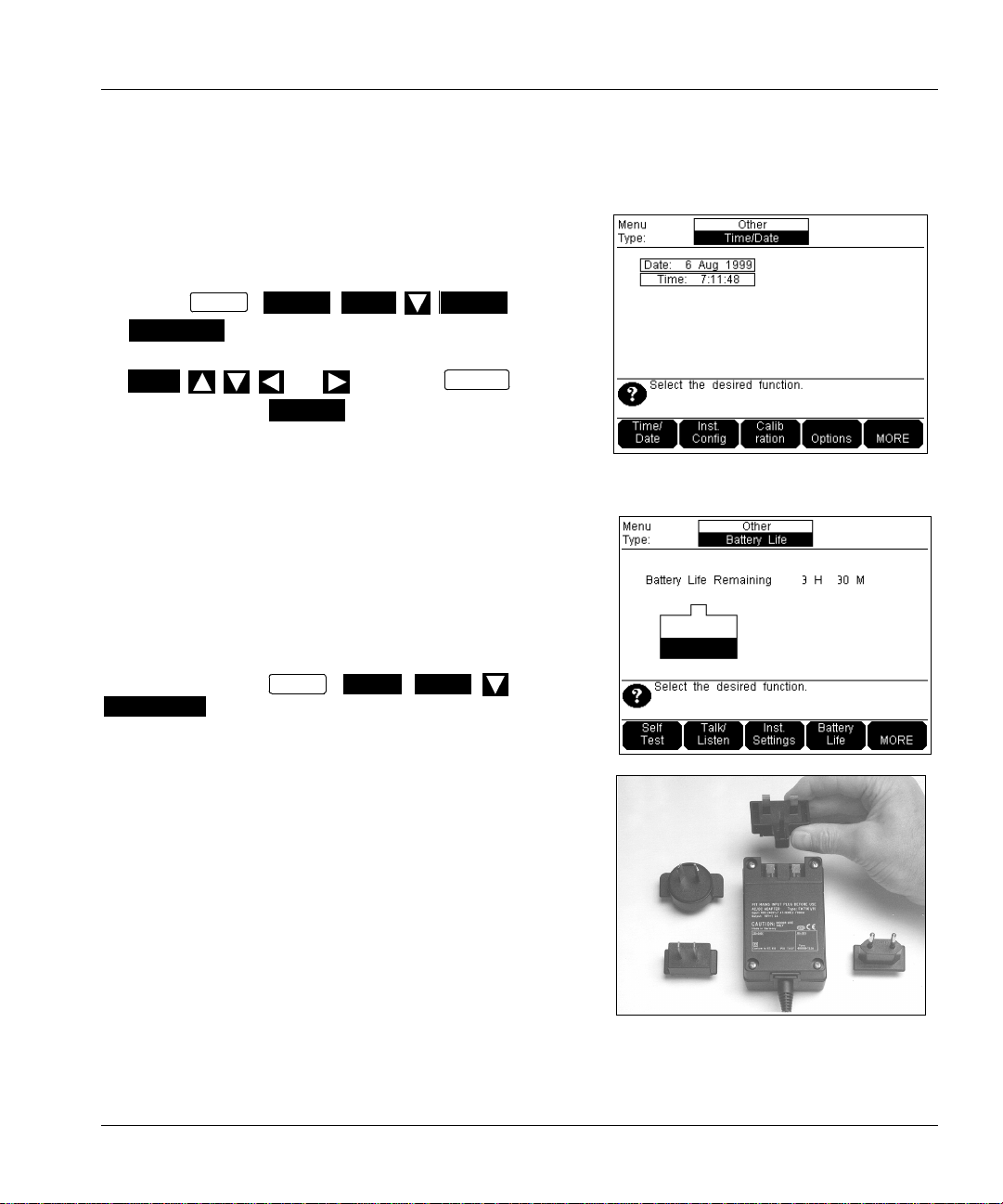

Setting the Date and Time

When results are recorded, it is useful to have certain events time-

stamped, for example, Alarms, Error Seconds, etc. Here’s how to

set the date and clock:

1. Choose , , , , , then

to obtain the Time and Date display, as shown.

2. Move the cursor to Date and enter the correct date using

, , , and . Then press to action

your edits or press to escape.

3. Move the cursor to Time and enter the correct time, as above.

Taking Care of your Battery

ProBER 2 uses a high-performance Nickel Metal Hydride (NMH)

rechargeable battery pack that may not be fully charged when you

receive the instrument. Whatever the state of charge, use

ProBER 2 until the battery is completely exhausted before being

given its first charge. This ensures better accuracy from the battery

charge indicator. Maximum accuracy is obtained after the battery

has been fully discharged and recharged twice. Access the

indicator by choosing ,, ,

. It takes a few minutes for the indicator to stabilize.

Charging your Battery

To recharge the battery, first fit the appropriate adapter (supplied)

to the charger, as shown. Normally the battery will be fully

charged after 5 hours.

Note that ProBER 2 can be used while the battery is charging.

More Other More

Time/Date

EDIT ENTER

Cancel

Other

Battery Life

Printed in U.K. 5/00

E7580-90019

Verify Instrument Operation

Before making measurements, run a Self Test to check that

ProBER 2 is operating correctly.

1. Choose , , , ,, ,

2. Connect the TRANSMIT 75Ω port to the RECEIVE 75Ω port

using the supplied cable.

3. Press to run the self test. After a few seconds

an Overall Status PASS or FAIL message will be displayed.

4. If the FAIL message is displayed, ProBER 2 should be

returned to an Agilent Service Office for repair. For an up to

date list of offices, see the Agilent Website at URL:

http://www.tm.agilent.com/tmo/TMTop/English/index.html

Performing Measurements with ProBER 2

You’re now ready to perform measurements with ProBER 2.

Full details of the measurements and how to perform them are in the User Reference Manual. The basic

procedure is:

1. Select the test interface.

2. Set up the measurement parameters.

3. Perform the measurement.

4. Display or store the results.

The chapters in the User Reference Manual are set out in this order.

The Quick Reference Guide is a handy reminder of how to access the various measurements and features of

ProBER 2.

The Service Manual includes procedures for verifying the performance as well as how to change the battery,

should this be necessary.

Enjoy using your ProBER 2.

More Other Selftest

Quick Tests

START/STOP
