AFe Power 46-71180A Manual de usuario

Instruction Manual P/N: 46-71180A / 46-71180B

Super 8.8 –12 Bolt Rear Differential Cover

Make: Ford Model: F150 Year: 15-19 Engine: V6 –2.7L/3.5L

Make: Ford Model: F150 Year: 18-19 Engine: V6 –3.0L

Make: Ford Model: F150 Year: 15-19 Engine: V8 –5.0L

• Please read the entire instruction manual before proceeding.

• Ensure all components listed are present.

• If you are missing any of the components, call customer support at 951-493-7100.

• Ensure you have all necessary tools before proceeding.

• Ensure that your vehicle is cooled off before proceeding.

• Retain factory parts for future use.

Label

Qty.

Description

Part Number

Differential Cover –Raw, Machined Fins

(46-71180A)

05-61026A

Differential Cover –Black, Machined Fins

(46-71180B)

05-61027B

RTV Silicone

05-60096

Screw, Socket Head M10x1.5x30

03-50471

Washer, Flat

03-50470

Washer, Crush M12

03-50384

Plug, 1/8” NPT

03-50029

Plug, 3/4” NPT

(Included in 46-71180A)

03-50391

Plug, Magnetic 3/4” NPT, 6” Deep Reach

(Included in 46-71180B)

03-50223

Plug, 1” NPT Sight Glass

(Included in 46-71180B)

03-50224

Plug, Magnetic M12x1.25

03-50385

1. Park your vehicle on a flat, dry surface. You will need to block the tires to prevent the

vehicle from rolling.

2. Place a drain pan under the differential cover.

3. If applicable, remove the three (3) brake line clips and move the lines out of the way.

4. If applicable, remove the three (3) bolts the brake line clips were attached to. Keep note

which position these were installed and set them aside.

5. Remove all but the top bolt from the differential cover.

6. Loosen, but do not remove, the top bolt. Break the seal on the cover and the gear oil will

begin to drain.

7. Allow all of the gear oil to drain from the differential.

8. Remove the one (1) remaining bolt from the top of the differential cover.

9. Carefully insert a gasket scraper between the differential cover and the housing. Pry the

differential cover off. Do not gouge the sealing surface.

10. Remove the OEM cover from the housing.

11. Use a clean, lint free shop towel to wipe down the remaining gear oil from the housing.

12. Clean off the sealing surface with a gasket scraper. Be careful not to gouge the surface

while cleaning.

13. Check the surface of the housing for any irregularities. If there are any, carefully remove

high spots using a smooth flat file.

Note: Do not “Round Off” the flat gasket surface.

14. Hold the supplied aFe differential cover up to the gasket surface to make sure you will be

able to maneuver it into place easily.

15. Spread the supplied RTV silicone across the gasket surface. Be generous when spreading

the silicone across the surface, ensuring to follow along the inside of all the bolt holes.

Note: Before moving on, make sure that the silicone will completely seal with the gasket

surface.

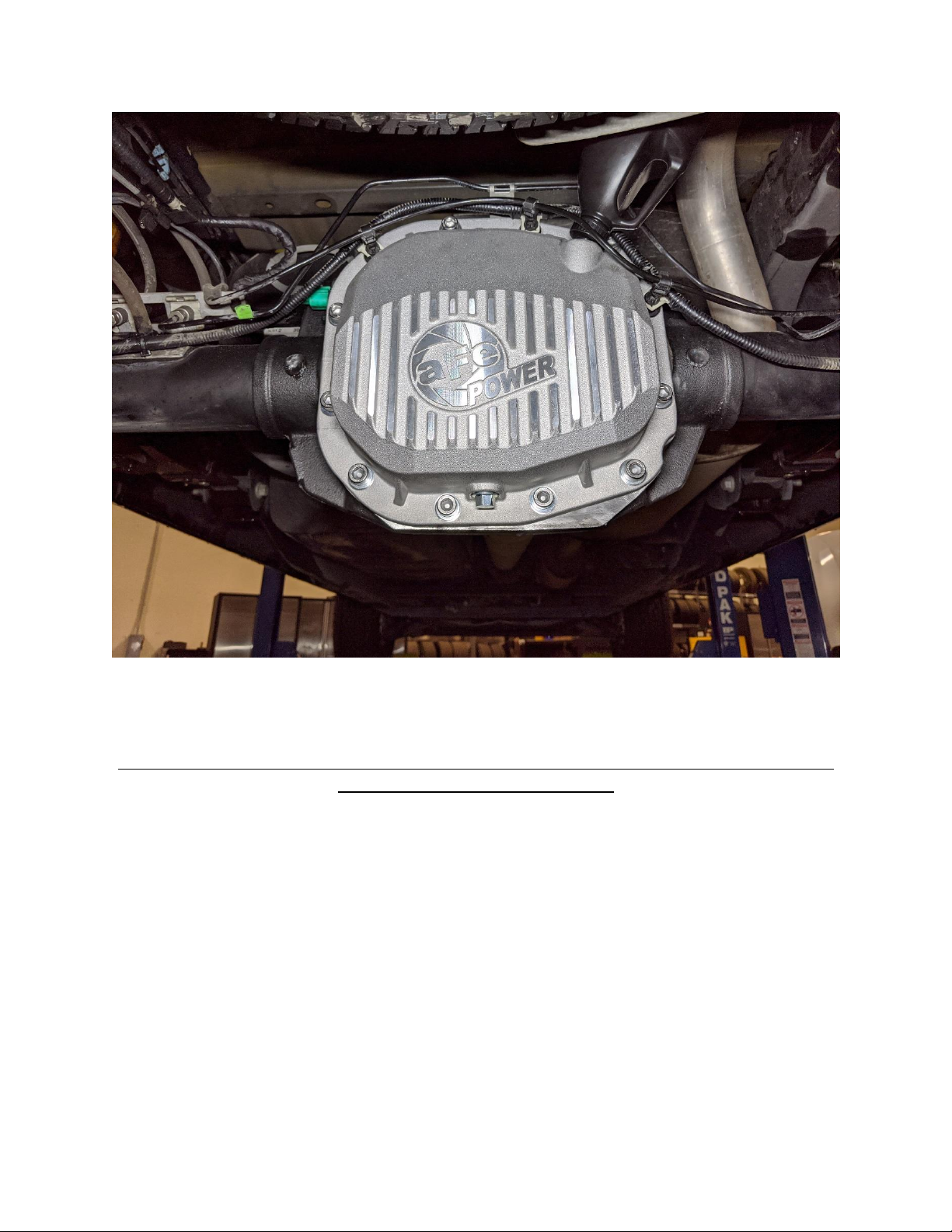

16. Hold the aFe differential cover in position, aligning the screw holes. Install four (4) of the

supplied M10x1.5x30 socket head screws and flat washers into separate sides of the cover

to hold it in place.

Note: Be careful not to move the cover around once it touches the gasket surface.

17. If applicable, reinstall the three (3) bolts removed in step 4.

18. Continue installing the remaining M10x1.5x30 socket head screws and flat washers finger

tight.

19. Torque the mounting screws to 25-30 ft. -lbs. in a crisscross pattern.

20. If applicable, reinstall the three (3) brake line clips removed in step 3.

21. Install the supplied M12x1.25 drain plug and crush washer into the bottom of the cover.

When installing kit number 46-71180B only:

22. Apply Teflon pipe sealant to the threads and install the supplied 1” NPT Sight Glass plug

into the side of the cover.

23. Using the top fill port, fill the aFe differential cover using new gear oil. Fill until gear oil runs

out of the 1/8” NPT port on the side of the cover (about 4 quarts).

Note: If your vehicle is lifted and your axle has been rotated, you will have to verify you have

the correct oil level for your vehicle.
