Simple Logger®

AmpFlex™ Current Probes

AL24-2500 / AL36-2500

AL24-5000 / AL36-5000

USER MANUAL

Limited Warranty

The AmpFlex™ Current Probes are warranted to the owner for a period

of one year from the date of original purchase against defects in

manufacture. This limited warranty is given by AEMC®Instruments, not

by the distributor from whom it was purchased. This warranty is void if

the unit has been tampered with, abused or if the defect is related to

service not performed by AEMC®Instruments.

For full and detailed warranty coverage, please read the Warranty

Coverage Information, which is attached to the Warranty

Registration Card (if enclosed) or is available at www.aemc.com.

Please keep the Warranty Coverage Information with your records.

What AEMC®Instruments will do:

If a malfunction occurs within the one-year period, you may return the

instrument to us for repair, provided we have your warranty registration

information on file or a proof of purchase. AEMC®Instruments will, at its

option, repair or replace the faulty material.

www.aemc.com

Limited Warranty

What you must do to return an Instrument for Warranty Repair:

First, request a Customer Service Authorization Number (CSA#) by

phone or by fax from our Service Department (see address below), then

return the instrument along with the signed CSA Form. Please write the

CSA# on the outside of the shipping container. Return the instrument,

postage or shipment pre-paid to:

Chauvin Arnoux®, Inc. d.b.a. AEMC®Instruments

Service Department

15 Faraday Drive • Dover, NH 03820 USA

Tel: (800) 945-2362 (Ext. 360)

(603) 749-6434 (Ext. 360)

Fax: (603) 742-2346 or (603) 749-6309

[email protected]

Caution: To protect yourself against in-transit loss, we recommend you

insure your returned material.

NOTE: All customers must obtain a CSA# before returning any

instrument.

Table of Contents

Warning ................................................................................................... 3

International Electrical Symbols .............................................................. 3

Receiving Your Shipment........................................................................ 4

Packaging................................................................................................ 4

Specifications .......................................................................................... 4

Features .................................................................................................. 6

Indicators and Buttons...................................................................... 6

Inputs and Outputs ........................................................................... 6

Range Selection ............................................................................... 6

Battery Installation ............................................................................ 7

Operation................................................................................................. 7

Software .................................................................................................. 8

Minimum Computer Requirements................................................... 8

Installation......................................................................................... 8

Using the Software ........................................................................... 9

Cleaning .................................................................................................. 9

Repair and Calibration .......................................................................... 10

Technical Assistance and Sales ........................................................... 10

Simple Logger®AmpFlexCurrent Probes

Warning

These safety warnings are provided to ensure the safety of personnel

and proper operation of the instrument.

 Read the instruction manual completely and follow all the safety

information before attempting to use or service this instrument.

 Use caution on any circuit: Potentially high voltages and currents may

be present and may pose a shock hazard.

 Read the specifications section prior to using the probes. Never

exceed the maximum voltage ratings given.

 Safety is the responsibility of the operator.

 For maintenance, use only original replacement parts.

 NEVER open the back of the instrument while connected to any circuit

or input.

 ALWAYS inspect the instrument and leads prior to use. Replace any

defective parts immediately.

 NEVER use the Simple Logger®AmpFlex™ Current Probes on

electrical conductors rated above 600V in overvoltage category III

(CAT III).

International Electrical Symbols

This symbol signifies that the loggers are protected by double or

reinforced insulation. Use only specified replacement parts when

servicing the instrument.

This symbol signifies CAUTION! and requests that the user refer

to the user manual before using the instrument.

For more information about the Logger, refer to CD-ROM: USER GUIDE

Simple Logger®AmpFlexCurrent Probes

Receiving Your Shipment

Upon receiving your shipment, make sure that the contents are

consistent with the packing list. Notify your distributor of any missing

items. If the equipment appears to be damaged, file a claim immediately

with the carrier and notify your distributor at once, giving a detailed

description of any damage.

Packaging

The AmpFlex™ Current Probes include the following:

 User manual

 One 9V battery

 CD-ROM containing the Windows®98, ME, 2000 and NT

download and graphic software, a generic user guide, product specific

manual and the Simple Logger®catalog.

 6 ft RS-232 cable

Specifications

ELECTRICAL

Number of Channels: 1

Current Ranges: 2

Input: AL24/36-2500 - 250/2500 Arms (internally selectable)

AL24/36-5000 - 500/5000 Arms (internally selectable)

Input Connection: Permanent Flexible Sensor

*Accuracy: 1%R ±1ct

Resolution:

AL24/36-2500: 250 Arms AL24/36-2500: 2500 Arms

Scale Range Maximum Input Resolution Scale Range Maximum Input Resolution

100% 250 Arms 1 Arms 100% 2500 Arms 10 Arms

50% 125 Arms 0.5 Arms 50% 1250 Arms 5 Arms

25% 62.5 Arms 0.25 Arms 25% 625 Arms 2.5 Arms

12.5% 31.25 Arms 0.125 Arms

12.5% 312.5 Arms 1.25 Arms

AL24/36-5000: 500 Arms AL24/36-5000: 5000 Arms

Scale Range Maximum Input Resolution Scale Range Maximum Input Resolution

100% 500 Arms 2 Arms 100% 5000 Arms 20 Arms

50% 250 Arms 1 Arms 50% 2500 Arms 10 Arms

25% 125 Arms 0.5 Arms 25% 1250 Arms 5 Arms

12.5% 62.5 Arms 0.25 Arms

12.5% 625 Arms 2.5 Arms

Simple Logger®AmpFlex™Current Probes

Sample Rate: 4096/hr max.

Data Storage: 8192 readings

Data Storage Technique: (TXR™) Time Extension Recording™

Power: 9V Alkaline NEDA 1604, 6JF22, 6LR61

Battery Life Recording: 6 months continuous recording @ 25°C

Output: RS-232 via 5-pin circular connector; 1200 Bps

INDICATORS

Operation Mode Indicator: One Red LED

• Single Blink: STANDBY mode

• Double Blink: RECORD mode

• No Blinks: OFF mode

• Continuously On: Overload condition

CONTROLS

Operation Mode: Push Button, Internal Range: Slide Switch

ENVIRONMENTAL

Operating Temperature: -4 to +158°F (-20 to +70°C)

Storage Temperature: -4 to +174°F (-20 to +80°C)

Relative Humidity: 5 to 95% non-condensing

MECHANICAL

Size: 2-1/2 x 1-9/16 x 4-1/2” (63.5 x 40.64 x 114.3mm)

Maximum Conductor Size: 24" length: 8" Ø; 36" length: 12" Ø

Case: Weatherproof NEMA4X, IP65 rated

SAFETY Working Voltage: IEC 1010-1, 600V, Cat III

ORDERING INFORMATION

Simple Logger®AmpFlex™Model AL24-2500................... Cat. #2113.72

Simple Logger®AmpFlex™Model AL36-2500................... Cat. #2113.73

Simple Logger®AmpFlex™Model AL24-5000................... Cat. #2113.74

Simple Logger®AmpFlex™Model AL36-5000................... Cat. #2113.75

ACCESSORIES

Replacement 6 ft RS232 cable with DB9F........................ Cat. # 2114.27

*Reference condition: 23°C ±3K, 20 to 75% RH, Frequency 45-3000Hz, No AC external magnetic field,

DC magnetic field ≤40A/m, centered conductor, battery voltage 9V ±10%.

Simple Logger®AmpFlexCurrent Probes

Features











600 V CAT III



   

 !

!

"

BATTERY: 9 V, NEDA1604, 6LF22, 6LR61

99 CHAUNCY STREET  BOSTON MA 02111, USA

(617) 451 0227  Fax (617) 423 2952  www.aemc.com

MADE IN USA

 

1. Press to Start Logging

(Logging = Two Blinks)

2. Press to Stop Logging

(Stand-By = One Blink)

3. Press & Hold sec. to Shut Off

(Off = No Blinks)

Warning: All Data will be Deleted!

#$%& ''

(1) Start/Stop Button

(2) Flexible Sensor Input

(3) Operation Mode Indicator

(4) RS 232 Interface

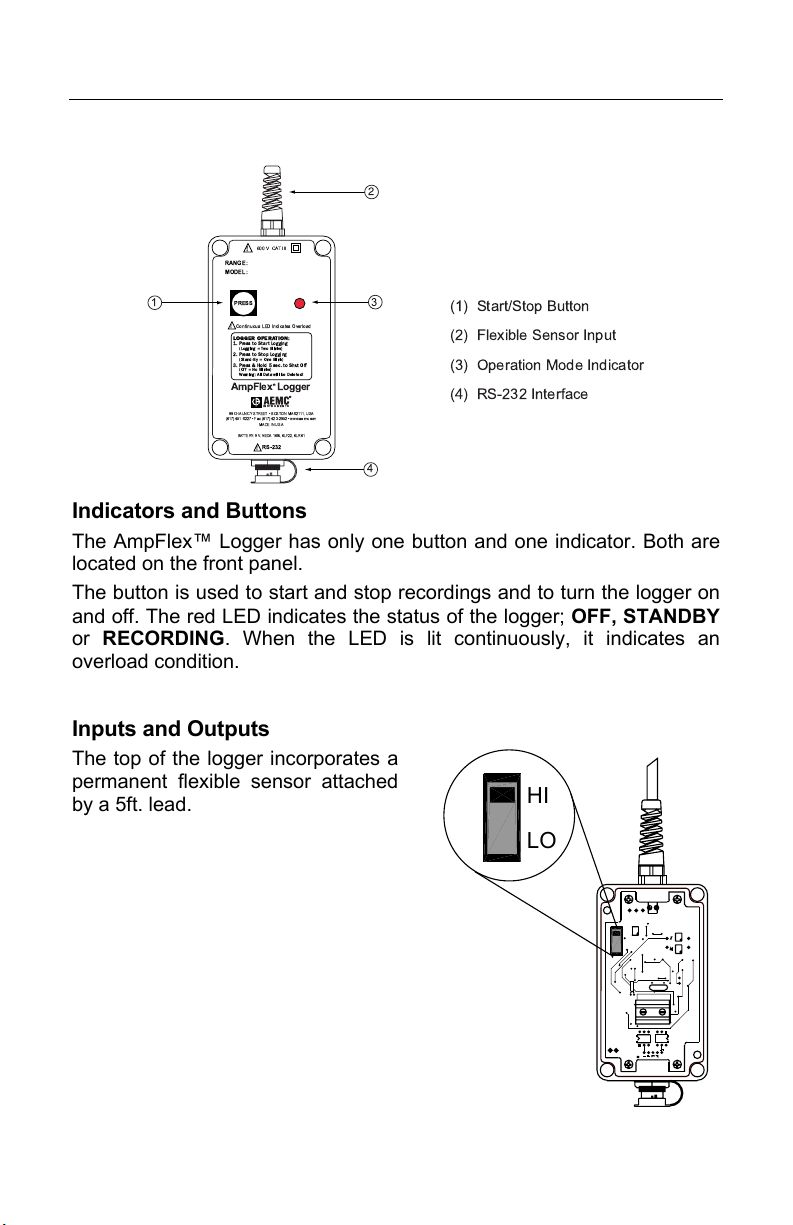

Indicators and Buttons

The AmpFlex™ Logger has only one button and one indicator. Both are

located on the front panel.

The button is used to start and stop recordings and to turn the logger on

and off. The red LED indicates the status of the logger; OFF, STANDBY

or RECORDING. When the LED is lit continuously, it indicates an

overload condition.

Inputs and Outputs

The top of the logger incorporates a

permanent flexible sensor attached

by a 5ft. lead.

The bottom has a 5-pin circular

connector used for serial data

transmission from the logger to your

computer.

Range Selection

Before operating, determine the

maximum current to be logged.

Remove the back cover and select

the appropriate range as shown.

Simple Logger®AmpFlexCurrent Probes

Battery Installation

Under normal conditions, the battery will last up to 6 months of

continuous recording unless the logger is restarted very frequently.

In the OFF mode, the logger puts almost no load on the battery. Use the

OFF mode when the logger is not in use. Replace the battery every six

months in normal use.

If the logger will be used at temperatures below 32°F (0°C) or is

frequently turned on and off, replace the battery every three to four

months.

1. Make sure your logger is turned off (no light blinking) and all

inputs are disconnected.

2. Turn the logger upside down. Remove the four Phillips head

screws from the base plate, then take off the base plate.

3. Locate the two-wire (red/black) battery connector and attach the

9V battery to it. Make sure that you observe polarity by lining up

the battery posts to the proper terminals on the connector.

4. Once the connector is plugged onto the battery, insert the battery

into the holding clip on the circuit board.

5. If the unit is not in record mode after installing the new battery,

disconnect it and press the button twice then reinstall the battery.

6. Reattach the base plate using the four screws removed in step

two.

Your logger is now recording (LED blinking). Press the test button for 5

seconds to stop the instrument.

Note: For long-term storage, remove the battery to prevent discharge

effects.

Operation

Position the AmpFlexsensor around the conductor to be measured. Be

sure that the positioning of the logger sensor does not violate the

minimum allowable bending radius of 0.75 inches (19mm).

Next, press the start/stop button on the front of the unit to begin the

recording session. The indicator light will double blink to indicate that the

recording session has started. When the recording session has been

completed, press the start/stop button to end the recording. The indicator

light will single blink to indicate that the recording session has ended and

the unit is in stand-by. Remove the logger from the conductor and

transport it to the computer for data downloading. See the User Guide for

downloading instructions.

Simple Logger®AmpFlexCurrent Probes

SOFTWARE

This model requires software version 6.11 or higher.

MINIMUM COMPUTER REQUIREMENTS

Processor: 486 or higher

RAM Storage: 8MB

Hard Drive Space: 8MB for application, approx. 400K for each stored file

Environment: Windows®98, 2000, ME, NT and XP

Port Access: (1) 9-pin serial port and (1) parallel port for printer support

INSTALLATION

Your Simple Logger®software is supplied on a CD-ROM. To install the

program, perform the following steps:

Auto Run Disabled: If Auto Run is disabled, insert the Simple Logger®

CD into the CD-ROM drive, then select Run from the Start Menu. In the

dialog box that appears, type: D:\setup, then click the OK button.

NOTE: In this example, your CD-ROM drive is assumed to be drive letter

D. If this is not the case, substitute the appropriate drive letter.

Auto Run Enabled: If Auto Run is enabled, insert the Simple Logger®

CD into the CD-ROM drive and follow the on-screen prompts to

complete the setup.

 Select Simple Logger 6.11

 Select Acrobat Reader to install Acrobat Reader version 5.0

 Select Explore CD to view the User Guide, Simple Logger®Catalog or

user specific manuals in PDF format.

To view the documents included on the CD-ROM, you must have

Acrobat Reader installed on your machine. If you do not have it installed,

you can install it from the Simple Logger®Software CD-ROM.

Installing Acrobat Reader: Select Run from the Start Menu. In the

dialog box that appears, type: D:\Acrobat\setup, then click OK.

NOTE: In this example, your CD-ROM drive is assumed to be drive letter

D. If this is not the case, substitute the appropriate drive letter.

Simple Logger®AmpFlexCurrent Probes

USING THE SOFTWARE

Launch the software and connect the RS-232 cable from your computer

to the logger.

Note: The first time the program is launched you will need to select a

language.

Select “Port” from the menu bar and select the Com port you will be

using (see your computer manual). Once the software automatically

detects the baud rate, the logger will communicate with the computer. (ID

number of the logger and number of points recorded displayed).

Depending on the selected range, “ALXX-2500” or “ALXX-250” will be

displayed and automatically scale the graph accordingly.

Cleaning

The body of the logger should be cleaned with a cloth moistened with

soapy water. Rinse with a cloth moistened with clean water. Do not use

solvent.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Instrumento de medición de AEMC instruments

AEMC instruments

AEMC instruments MD305 Manual de usuario

AEMC instruments

AEMC instruments Measure Up PowerPad III Manual de usuario

AEMC instruments

AEMC instruments OX5042 Manual de usuario

AEMC instruments

AEMC instruments MN01 Manual de usuario

AEMC instruments

AEMC instruments CA7027 Manual de usuario

AEMC instruments

AEMC instruments Chauvin Arnoux 6412 Manual de usuario

AEMC instruments

AEMC instruments JM865A Manual de usuario

AEMC instruments

AEMC instruments K100 Manual de usuario

AEMC instruments

AEMC instruments FlexProbe 24-3001 Manual de usuario

AEMC instruments

AEMC instruments SL261 Manual de usuario

AEMC instruments

AEMC instruments 300-24-2-10 Manual de usuario

AEMC instruments

AEMC instruments MN103 Manual de usuario

AEMC instruments

AEMC instruments AmpFlex 193-24-BK Manual de usuario

AEMC instruments

AEMC instruments 6501 Manual de usuario

AEMC instruments

AEMC instruments 407 Manual de usuario

AEMC instruments

AEMC instruments MN375 Manual de usuario

AEMC instruments

AEMC instruments 5050 Manual de usuario

AEMC instruments

AEMC instruments MN125 Manual de usuario

AEMC instruments

AEMC instruments MN134 Manual de usuario

AEMC instruments

AEMC instruments MN261 Manual de usuario

AEMC instruments

AEMC instruments MN312 Manual de usuario

AEMC instruments

AEMC instruments CA846 Manual de usuario

AEMC instruments

AEMC instruments 6505 Manual de usuario

AEMC instruments

AEMC instruments AmpFlex 193-24-BK Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
