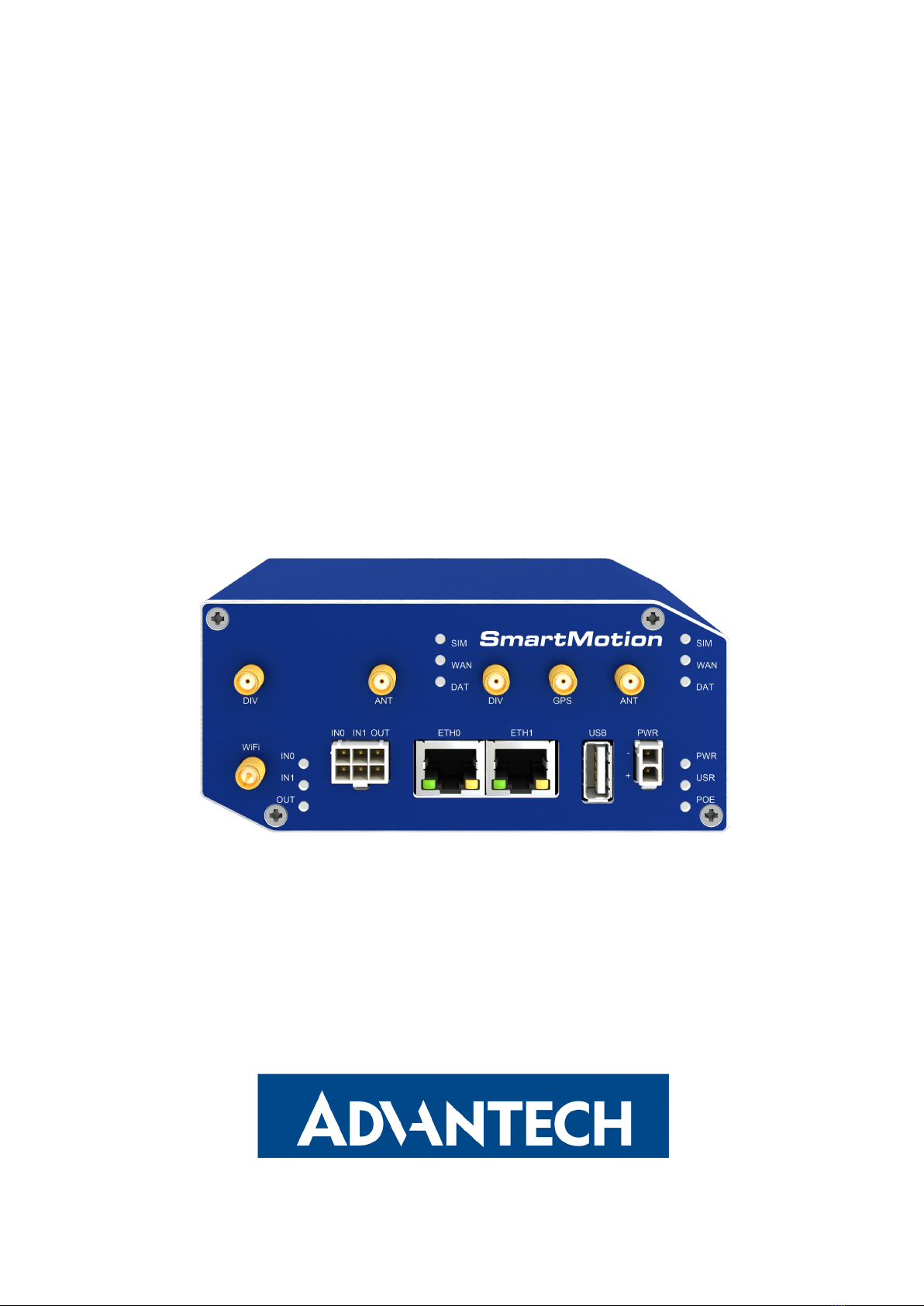

Advantech SmartMotion ST352 Manual de usuario

Twin Cellular Module Router

SmartMotion ST352

USER MANUAL

SmartMotion ST352

any means, electronic or mechanical, including photography, recording, or any information storage and retrieval

system without written consent. Information in this manual is subject to change without notice, and does not

represent a commitment on the part of Advantech.

Advantech Czech s.r.o. shall not be liable for incidental or consequential damages resulting from the furnish-

ing, performance, or use of this manual.

All brand names used in this manual are the registered trademarks of their respective owners. The use of

trademarks or other designations in this publication is for reference purposes only and does not constitute an

endorsement by the trademark holder.

SmartMotion ST352

Used symbols

Danger – Information regarding user safety or potential damage to the router.

Attention – Problems that can arise in speciﬁc situations.

Information, notice – Useful tips or information of special interest.

GPL license

Source codes under GPL license are available at

https://icr.advantech.cz/source-code

address.

Advantech Czech s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic

Document No. MAN-0011-EN, revision from June 8, 2023. Released in the Czech Republic.

SmartMotion ST352

Contents

1 Safety Instructions 2

2 WEEE directive 3

3 Router Description 4

3.1 Usage of the Router ................................. 5

4 Contents of Package 8

5 Router Design 9

5.1 Router versions .................................... 9

5.2 Product Revisions .................................. 9

5.3 Delivery identiﬁcation ................................ 10

5.4 Order codes ...................................... 10

5.5 Basic dimensions of the router box ......................... 12

5.6 Mounting recommendations ............................. 12

5.7 Removal from the DIN rail .............................. 13

5.8 Description of the rear panel ............................. 14

5.9 Description of the front panel ............................ 14

5.9.1 Status indication ............................... 15

5.9.2 Power connector PWR ............................ 16

5.9.3 Antenna connector ANT, DIV, GPS and WiFi ............... 18

5.9.4 SIM card reader ............................... 19

5.9.5 MicroSD card reader ............................. 20

5.9.6 Ethernet Ports (ETH0 and ETH1) ...................... 22

5.9.7 Power over Ethernet (PoE) ......................... 23

5.9.8 USB Port ................................... 25

5.9.9 I/O Port .................................... 26

5.9.10 Reset ..................................... 28

6 First Use 29

6.1 Connecting the router before ﬁrst use ....................... 29

6.2 Start .......................................... 30

6.3 Conﬁguration ..................................... 30

6.3.1 Conﬁguration over web browser ....................... 30

7 Technical Parameters 32

7.1 Basic parameters ................................... 32

iii

SmartMotion ST352

7.2 Standards and regulations .............................. 33

7.3 Type tests and environmental conditions ...................... 34

7.4 Technical parameters of both of cellular modules ................. 35

7.5 Technical parameters of GPS ............................ 36

7.6 Technical parameters of WiFi ............................ 37

7.7 Technical parameters of I/O port .......................... 37

7.8 Technical Parameters of Power over Ethernet (PoE) ............... 38

7.9 Other Technical Parameters ............................. 38

8 Related Documents 39

9 Troubleshooting 40

9.1 FAQ .......................................... 40

10 Customer Support 43

SmartMotion ST352

List of Figures

1 Access to the Internet from LAN .......................... 5

2 Backed up access to the Internet .......................... 6

3 Using VPN tunnel .................................. 6

4 Serial Gateway .................................... 7

5 Contents of package ................................. 8

6 Basic version ..................................... 9

7 Version with WiFi module .............................. 9

8 Label examples .................................... 10

9 Basic dimensions of the router box ......................... 12

10 Default position of metal DIN rail clip ........................ 13

11 Removal from the DIN rail .............................. 13

12 SmartMotion front panel ............................... 14

13 Power connector ................................... 16

14 Connection of power supply ............................. 16

15 Connecting of the antenna .............................. 18

16 SIM cards ....................................... 19

17 MicroSD card ..................................... 20

18 Ethernet connector .................................. 22

19 Connection of Ethernet cable ............................ 22

20 PoE PD usage .................................... 23

21 PoE PSE usage ................................... 24

22 USB connector .................................... 25

23 I/O connector ..................................... 26

24 Binary connection .................................. 27

25 Router reset ...................................... 28

26 Router connection .................................. 29

27 Entering the IP address of the router ........................ 30

28 Entering login information .............................. 30

29 Router web interface ................................. 31

SmartMotion ST352

List of Tables

1 Router versions .................................... 9

2 HW Revisions History ................................ 9

3 Delivery identiﬁcation ................................ 10

4 Order codes overview ................................ 10

5 Power over Ethernet ................................. 10

6 Type of router box .................................. 11

7 Type of power supply ................................. 11

8 Examples of order code ............................... 11

9 Front panel description ................................ 14

10 LED status indication ................................. 15

11 Connection of power connector ........................... 16

12 Technical speciﬁcations of microSD card ...................... 20

13 Ethernet connector pinout .............................. 22

14 Insulation strength of Ethernet ports ........................ 22

15 Connection of USB connector ............................ 25

16 Connection of I/O port ................................ 26

17 Characteristics of inputs ............................... 26

18 Description of router reset and restart ....................... 28

19 Basic parameters ................................... 32

20 Standards and Regulations ............................. 33

21 Type tests and environmental conditions ...................... 34

22 Technical parameters of both of cellular modules ................. 35

23 Technical parameters of GPS ............................ 36

24 Technical parameters of WiFi ............................ 37

25 Characteristics of inputs ............................... 37

26 PoE PD: parameters for opposite PSE ....................... 38

27 PoE PSE parameters ................................ 38

28 Other technical parameters ............................. 38

SmartMotion ST352

1. Safety Instructions

Please, observe the following instructions:

• The router must be used in compliance with all applicable international and national laws

and in compliance with any special restrictions regulating the utilization of the router in

prescribed applications and environments.

• To prevent possible injury and damage to appliances and to ensure compliance with

all relevant provisions, use only the original accessories. Unauthorized modiﬁcations or

the use of unapproved accessories may result in damage to the router and / or a breach

of applicable regulations. Unauthorized modiﬁcations or use of unapproved accessories

may void the warranty.

• The router can not be opened.

• Turn off the router and disconnect it from power supply before handling the SIM card.

•Caution! This equipment is not suitable for use in locations where children are likely to

be present. The SIM card could be swallowed by small children.

• Power supply must not exceed 60 V DC max.

• Do not expose the router to extreme ambient conditions. Protect the router against dust,

moisture and high temperature.

• Only routers with appropriate certiﬁcation and labelling should be used in locations where

ﬂammable and explosive materials are present, including gas stations, chemical plants,

or locations in which explosives are used. We remind users of the duty to observe the

restrictions concerning the utilization of radio devices at such places.

• Switch off the router when travelling by plane. Utilization of the router on a plane may

endanger the operation of the plane or interfere with the mobile telephone network, and

may be unlawful. Failure to observe these instructions may result in the suspension or

cancellation of telephone services for the respective client and / or may result in legal

sanctions.

• When using the router in close proximity to personal medical devices, such as cardiac

pacemakers or hearing aids, you must proceed with heightened caution.

• The router may cause interference when used in close proximity to TV sets, radio re-

ceivers or personal computers.

• It is recommended that you create an appropriate copy or backup of all important settings

that are stored in the memory of the device.

SmartMotion ST352

2. Product Disposal Instructions

The WEEE (Waste Electrical and Electronic Equipment: 2012/19/EU) directive was in-

troduced to ensure that electrical/electronic products are recycled using the best available

recovery techniques to minimize the environmental impact. This product contains high quality

materials and components which can be recycled. At the end of it’s life this pro- duct MUST

NOT be mixed with other commercial waste for disposal. The device contains a battery. Re-

move the battery from the device before disposal. The battery in the device needs to be

disposed of apart accordingly. Check the terms and conditions of your supplier for disposal

information.

SmartMotion ST352

3. Router Description

SmartMotion ST352 is an industrial cellular router intended for wireless communication in

mobile networks that make use of LTE, HSPA+, UMTS, CDMA, EDGE or GPRS technology.

The router is equipped with two independent cellular modules for backed up communication.

That’s why SmartMotion router is the ideal solution for the systems with high reliability needed.

The position of the ﬁrst module is reserved for LTE technology with frequency bands 800,

900, 1800, 2100 and 2600 MHz. The second position is equipped with a module supporting

LTE technology with the same frequency bands. Due to the high speed of data transfer and

the previously mentioned high reliability of communication is this router an ideal solution for

specialized M2M devices and IoT as well as for wireless connection of trafﬁc and security

camera systems, individual computers, LAN networks, automatic teller machines (ATM) and

other self-service terminals.

The standard conﬁguration includes two Ethernet 10/100 ports, one USB 2.0 Host port,

two binary inputs and one output (I/O connector). The device also has four readers for 3 V and

1.8 V SIM cards, which are located on the rear panel of the router. The router also includes

a microSD card port that supports up to 64 GB card storage (32 GB in the case of SDHC

cards). The router can be equipped with a WiFi module, but this must be part of the initial

conﬁguration – it cannot be assembled to the router at some point in the future. The router can

be equipped with PoE PD (Power over Ethernet – Powered Device), which allows the router

to be powered via Ethernet. It can also be equipped with PoE PSE (Power over Ethernet –

Power Source Equipment), which lets the router to power other devices via Ethernet.

Conﬁguration of the router may be done via a password-protected Web interface. Web in-

terface provides detailed statistics about the router’s activities, signal strength, detailed system

log etc. The router supports the creation of VPN tunnels using IPSec, OpenVPN and L2TP

to ensure safe communication. DHCP, NAT, NAT-T, DynDNS, NTP, VRRP, control by SMS,

backup primary connection and many other functions are supported.

The router provides diagnostic functions which include automatically monitoring the PPP

connection, automatic restart in case of connection losses, and a hardware watchdog that

monitors the router status. The user may insert Linux scripts which are started on various

actions. It is possible to create up to four different conﬁgurations for the same router. These

conﬁgurations can be switched whenever necessary via Web interface, SMS or binary input

status. The router can automatically upgrade its conﬁguration and ﬁrmware from your central

server. This allows for mass reconﬁguration of numerous routers at the same time.

The router also supports additional software like R-SeeNet for permanent trafﬁc monitoring

of routers.

Otros manuales para SmartMotion ST352

Tabla de contenidos

Otros manuales de Enrutador de red de Advantech

Advantech

Advantech B+B SmartWorx ER75i v2 Manual de usuario

Advantech

Advantech SmartFlex SR304 Manual de usuario

Advantech

Advantech ICR-3241 Manual de usuario

Advantech

Advantech ADAM-6520 Series Manual de usuario

Advantech

Advantech UR5i v2 Libratum Manual de usuario

Advantech

Advantech IMC-150LI Manual de instalación y operación

Advantech

Advantech ICR-2412 Manual de usuario

Advantech

Advantech ICR-4461 Manual de usuario

Advantech

Advantech ICR-2441 Manual de usuario

Advantech

Advantech ICR-2701 Manual de usuario

Advantech

Advantech ICR-2734P Manual de usuario

Advantech

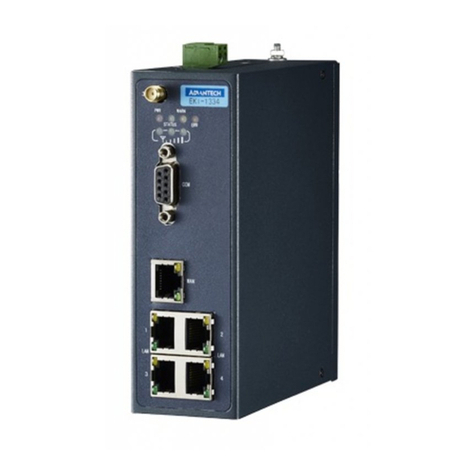

Advantech EKI-1334 Manual de usuario

Advantech

Advantech EDG-6528 Manual de usuario

Advantech

Advantech ER75s Manual de usuario

Advantech

Advantech ICR-4401 Manual de usuario

Advantech

Advantech SmartFlex SR307 Manual de usuario

Advantech

Advantech ICR-1601 Guía

Advantech

Advantech ICR-2432 Manual de usuario

Advantech

Advantech MIC-3666 Manual de usuario

Advantech

Advantech SmartFlex SR308 Manual de usuario

Advantech

Advantech B&B SmartWorx ESWGP506-2SFP-T Manual de usuario

Advantech

Advantech UR5i v2 Libratum Instrucciones de instalación y funcionamiento

Advantech

Advantech ICR-2432 Manual de usuario

Advantech

Advantech CR10 v2 Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
