Advantech ICR-2031 Guía

Start Guide

ICR-2031, ICR-2431, ICR-2432,

ICR-2531, ICR-2631

04-02-21

LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: [email protected] — www.lucom.de

www.lucom.de

Start Guide

Safety Instructions

Please take care to following instructions:

•Use the router in compliance with national and international law and in compliance with

any special or additional restrictions regulating the use of the router in the various appli-

cations and environments.

•To avoid possible injury and/or damage to the device, observe the relevant provisions

and standards. Use only the original accessories as recommended. Unauthorized de-

vice or accessory modiﬁcation, or using accessories that have not been approved can

result in router damage and/or violation of the regulations.

•Unauthorized device or accessory modiﬁcation or using the accessories that have not

been approved can result in warranty termination.

•Do not open the router.

•Caution! The SIM card can be swallowed by small children.

•When connecting the device to a power supply do not exceed the deﬁned voltage.

•Do not expose the router to extreme ambient conditions. Protect the router against dust,

moisture, and high temperature.

•It is recommended that you do not use the router at petrol ﬁlling stations. We recommend

observing local restrictions concerning the use of radio-based devices while working with

explosive material for example, at petrol ﬁlling stations, or in chemical plants.

•While using the router close to personal medical devices, such as cardiac pacemakers

or hearing aids, proceed with heightened caution.

•Operating the router too close to TV sets, radio receivers, personal computers, or tele-

phones can cause interference.

•It is recommended that you create a copy or backup of the important settings stored in

the memory of the router.

QSG-0011-EN, January 29, 2021 1Released in the Czech Republic

04-02-21

LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: [email protected] — www.lucom.de

www.lucom.de

Start Guide

Product Disposal Instructions

The WEEE (Waste Electrical and Electronic Equipment: 2012/19/EU) direc-

tive was introduced to ensure that electrical/electronic products are recycled us-

ing the best available recovery techniques in order to minimize impact on the en-

vironment. This product contains high-quality materials and components which

can be recycled. At the end of it’s life this product MUST NOT be mixed with

other commercial waste for disposal. The device contains the battery. Remove

the battery from the device before disposal. The battery in the device needs to be disposed

apart accordingly. Check the terms and conditions of your supplier for disposal information.

Open Source Software License

The software in this device uses various pieces of open-source software governed by the

following licenses:

•GPL versions 2 and 3

•LGPL version 2

•BSD-style licences

•MIT-style licences

The list of components together with complete license texts can be found on the device

itself. See Licenses link at the bottom of the router’s main Web page (General Status) or point

your browser to this address (replace the DEVICE_IP string with real router’s IP address):

https://DEVICE_IP/licenses.cgi

This is a written offer valid for 3 years since the device purchase offering any third party

for a charge no more than the cost of physically performing source distribution, a complete

machine-readable copy of the corresponding source code on a ﬂash drive medium. If you are

interested in obtaining the source, please contact us at:

[email protected]

Modiﬁcations and debugging of LGPL-linked executables:

The manufacturer of the device hereby grants the right to use debugging techniques (e.g.

decompilation) and making customer modiﬁcations of any executable linked with an LGPL

library for own purposes. Note these rights are limited to the customer’s own usage. No further

distribution of such modiﬁed executables and no transmission of the information obtained

during these actions may be done.

QSG-0011-EN, January 29, 2021 2Released in the Czech Republic

04-02-21

LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: [email protected] — www.lucom.de

www.lucom.de

Start Guide

First Use

Before applying power to the router, connect all the components that you need for your

applications.

Do not run the router without an antenna connected to the main antenna connector as the

energy from the transmission is effectively reﬂected by the open end and can damage

the equipment.

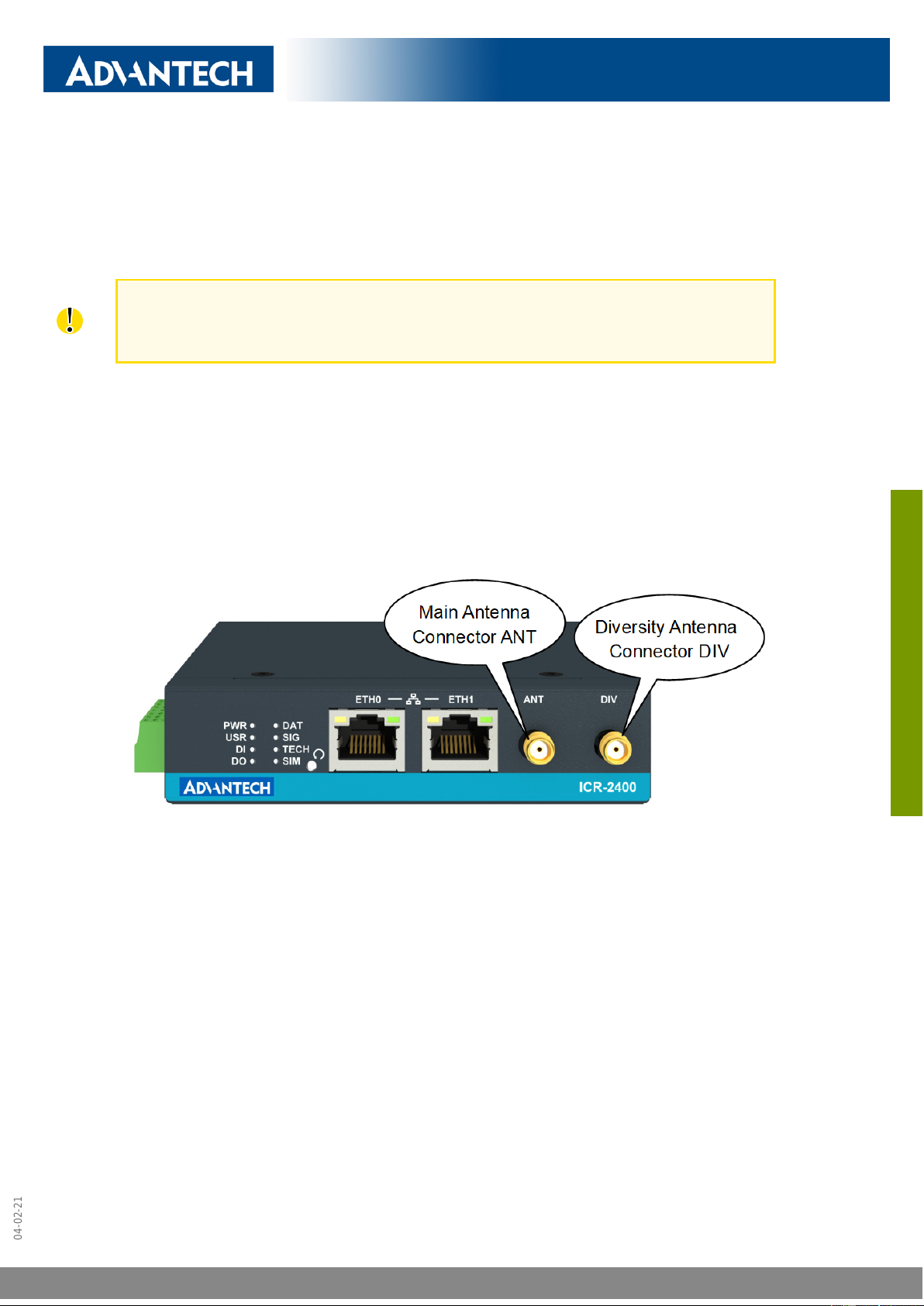

1. Antenna

Use an SMA connectors to connect the antennas to the router, see the ﬁgure below. Con-

nect the main antenna to the ANT connector. The second diversity antenna can be connected

to the DIV connector to improve the quality and reliability of a wireless link.

QSG-0011-EN, January 29, 2021 3Released in the Czech Republic

04-02-21

LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: [email protected] — www.lucom.de

www.lucom.de

Start Guide

2. SIM Card

The SIM card reader for one or two, depending on the product type, Micro SIM cards (3FF

with size of 15.0 x 12.0 x 0.76 mm) is located on the right panel of the router under a metal

cover. If you intend to use this device to communicate over a cellular network, please place

an activated data-provisioned SIM card into the SIM card reader. Push your SIM card into the

SIM slot until it clicks into place.

Disconnect the router from the power supply before handling the SIM card.

QSG-0011-EN, January 29, 2021 4Released in the Czech Republic

04-02-21

LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: [email protected] — www.lucom.de

www.lucom.de

Start Guide

3. Power

The router requires an external DC power supply. The DC voltage required is between

+9 and +48 V DC. The router has built-in protection against reverse polarity without signaling.

Connect the power supply cable to the PWR connector on the left panel of the router (see the

ﬁgure below) and tighten the locking screws.

4. Ethernet

For an initial conﬁguration, made in a web browser, connect a PC by an Ethernet cable to

the default LAN interface, use the ETH0 port, see the ﬁgure above. By default, this interface

has the following conﬁguration:

Connector Purpose Default Setting

ETH0 LAN port (default)

Connect your PC to this port to get the

router web interface.

DHCP Server

IP Address: 192.168.1.1

NetMask: 255.255.255.0

QSG-0011-EN, January 29, 2021 5Released in the Czech Republic

04-02-21

LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: [email protected] — www.lucom.de

www.lucom.de

Start Guide

Conﬁguration

1. Conﬁguring the Device Using the Web Browser

You can use a web browser running on your PC to get access to the router web interface.

Here you can perform router monitoring, conﬁguration, and administration. First, connect

the PC to the default LAN interface as described in the Ethernet chapter. To get the router

interface, enter the https://192.168.1.1 address in a web browser. Please note that usage

of the HTTPS protocol for secure communication over the network is required.

By default, there is just the root user account created on the router. See the product label

on the router for its default password. Log in to the web interface by the root user and his

password. See the conﬁguration manual of the router for a detailed description and examples

of the router conﬁguration.

After logging on to the device for the ﬁrst time, we strongly recommend changing the

default password due to security reasons.

For security reasons, it is highly recommended to update the ﬁrmware of the router to the

latest version regularly. Downgrading the ﬁrmware to an older version than the production

version or uploading a ﬁrmware intended for a different device may cause the malfunction

of the device.

2. Conﬁguration Settings via WebAccess/DMP

Your router has been pre-installed with the WebAccess/DMP client. If you enable it in

the router’s web interface, you may conﬁgure the router from WebAccess/DMP. Navigate your

browser to:

https://www.wadmp.com

If this is your ﬁrst time, please self-sign-up with the site. If not, please login with your

username and password. Once logged in, further assistance can be found here:

https://docs.wadmp.com

3. Restoring and Backing up the Router Conﬁguration

If you reset the router, the current conﬁguration will be replaced by the default factory

settings. We recommend you to back up the router conﬁguration before resetting the device.

Refer to the conﬁguration manual for more information.

Once the router boots up and the PWR LED starts blinking, you can restore the default

router conﬁguration. To do so, press the reset



button on the front panel of the router for

more than 4 seconds. After you press this button, all settings are reset to the default values,

and the router will reboot.

QSG-0011-EN, January 29, 2021 6Released in the Czech Republic

04-02-21

LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: [email protected] — www.lucom.de

www.lucom.de

Start Guide

Support

All product-related manuals, documents, and software can be found and downloaded on

the web site at www.advantech-bb.cz/download address.

Hereby, Advantech Czech s.r.o. declares that the radio equipment type

ICR-2031,ICR-2431,ICR-2432,ICR-2531 and ICR-2631 is in compliance with Direc-

tive 2014/53/EU.

The full text of the EU Declaration of Conformity is available at the following internet address:

www.advantech-bb.cz/eudoc

QSG-0011-EN, January 29, 2021 7Released in the Czech Republic

04-02-21

LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: [email protected] — www.lucom.de

www.lucom.de
