INTRAC 204 Antenna Control Unit

For Antennas up to: 9.6 meters in C-Band or 4.5 meters in Ku-Band

Features

Low cost, high performance and high reliability

for antennas up to 9.6 metres in diameter C-

Band and 4.5 metres in diameter Ku-Band

INTRAC™ orbit modelling algorithm offers the

highest tracking Integrity

Accurately tracks satellites with orbital

inclinations up to and beyond 10°

Built in 36VDC, 8A drive unit to directly drive

DC actuators with sequential Dual Axis drive

Average tracking signal degradation less than

0.1dB

Accepts high resolution resolver transducers

down to 20 arc seconds (16 bits)

Compatible with INTELSAT and EUTELSAT

SCPC tracking specifications

Tolerates signal fluctuations that defeat step

track and memory track controllers

Resilient to tracking signal loss, maintaining

integrity for up to 72 hours

Non-volatile memory ensures tracking is

resumed after power failure

Full M&C control via RS232 / RS422 interface

Can Incorporate IBRL-7 integral L-band

beacon receiver

Option to drive a third polarization axis

Overview

The INTRAC™ 204 Antenna Control Unit

enables satellite earth station antennas to

accurately track geosynchronous satellites with

orbital inclinations up to and beyond 10°. The

unit offers superior tracking integrity with any C-

Band antenna up to 9.6 meters and any Ku-

Band antenna up to 4.5 meters. The control unit

uses the INTRAC (INtelligent TRacking Antenna

Control) algorithm which has been developed

and refined over a 20 year period. It offers

exceptional immunity to propagation

disturbances and fades, maintaining reliable

pointing accuracy even at low angles of

elevation in regions of high scintillation.

The INTRAC 205 is compatible with INTELSAT

and EUTELSAT SCPC tracking specifications.

It is able to tolerate signal fluctuations that

defeat step track and memory track controllers

and is resilient to loss of tracking signal, the unit

will maintain tracking integrity for blackout

periods up to 72 hours. The non-volatile

memory ensures that accurate tracking is

resumed after power failure.

The unit incorporates 36VDC motor drive

circuits providing a single box solution that is

simple to install, reducing set up costs. It

features full remote monitoring and control via

an RS232 / RS423 serial interface. Average

tracking signal degradation is less than 0.2dB.

The INTRAC 204 features a two-line LCD

display and can be supplied with an integral L-

Band beacon receiver.

INTRAC 204 Antenna Control Unit

SOUTH AMERICA

BRAZIL

Tel: +55 11 3054 5701

Fax: +55 11 5041 4026

info.brazil@advantechwireless.com

EUROPE

UNITED KINGDOM

Tel: +44 1480 357 600

Fax: +44 1480 357 601

info.uk@advantechwireless.com

RUSSIA & CIS

Tel: +7 495 967 1859

Fax: +7 495 967 30 24

info.russia@advantechwireless.com

NORTH AMERICA

USA

Tel: + 1 703 788-6882

Fax: +1 703 788-6511

info.usa@advantechwireless.com

CANADA

Tel: +1 514 420-0045

Fax: +1 514 420-0073

info.canada@advantechwireless.com

An ISO 9001 : 2008 Company

Ref.: PB-INTRAC204-004-11036

Specifications are subject to change without notice

www.advantechwireless.com

SPECIFICATIONS

Operational modes

Standby Manual (Jog) Search Remote Control

Auto (INTRAC) Go To (Position Designate)

Tracking Accuracy

Typically better than 0.1dB RMS signal degradation after tracking for 24 hours (with tracking signal), for orbit

inclinations up to 10°

Prediction Accuracy

Typically better than 0.1dB RMS signal degradation over 72 hours (after loss of tracking signal), for orbit

inclinations up to 10°

Backup

Model data is stored in EEPROM and the real time clock supported by battery backup against power failure

Configuration Memory

Configuration data is stored in EEPROM

Tracking Signal

May be derived from an external tracking receiver or optionally from the integral IBR-L beacon receiver

External Tracking Signal

Voltage varying directly with received signal strength (in dB).

Sensitivity 0.1V / dB to 1.0V / dB

Offset + / - 10 volts max

Lost Lock input, contact closure when tracking signal is lost.

Display

2 line LCD display giving the areas of information:

Azimuth angle Signal strength Elevation angle

Diagnostics Polarization angle

Mode of operation Operational menus

Drive Outputs

36VDC, up to 8A for direct drive of DC actuator motors

Limit Switches

Limit switch inputs for elevation, azimuth and polarization. Contacts normally closed

Position Transducers

Inputs for standard resolver position transducers

OPTIONS

Internal IBR-L Beacon Receiver

This option accepts an L-Band signal, with an input level of -80 to -45dBm.

The signal voltage and lock lost indicators are generated internally. The need for an external beacon

receiver is eliminated.

Remote Control Terminal

IBM PC compatible software is available to provide a remote control terminal function. The terminal

monitors and controls the INTRAC via the standard serial remote control port and provides facilities for

managing and storing multiple orbit models. Alarm information is still available at the front panel.

Polarisation Option

Option to accept a polarization position transducer and to drive a 36VDC polarization motor.

PHYSICAL

Temperature

Range

0 to 50oC - Operating

-25oC to 85oC - Non Operating (storage)

Humidity

5% to 95% RH non condensing - Operating

0% to 99% RH non condensing - Non Operating (storage)

Altitude

10,000 feet max

Input Power

110 or 230V, single phase, 50/60Hz, 50W

Dimensions

483mm (W) x 133mm (H) x 443mm (D).

Mounting

19" rack mounting unit, 2U high.

Weight

8 kg

EN55022 and EN50082-1

USA

FCC Part 15, Subpart B Class A

Otros manuales de Controladores de Advantech

Advantech

Advantech ADAM 5510EKW/TP Manual de instalación y operación

Advantech

Advantech MIC-3327DC01-A43E Manual de instalación y operación

Advantech

Advantech MVP-3245 Series Manual de usuario

Advantech

Advantech Celeron M Universal Network Controller with PC/104 Extension... Manual de usuario

Advantech

Advantech UNO-2160 Manual de usuario

Advantech

Advantech AMAX-5580 Manual de usuario

Advantech

Advantech AIIS-1882 Manual de usuario

Advantech

Advantech WISE-5580 Manual de usuario

Advantech

Advantech ADAM-5511 Manual de usuario

Advantech

Advantech ADAMView Manual de usuario

Advantech

Advantech UNO-2182-D13BE Manual de usuario

Advantech

Advantech PCA-6781 Manual de instalación y operación

Advantech

Advantech ADAM-5630 Series Manual de usuario

Advantech

Advantech UNO-2053E Manual de usuario

Advantech

Advantech ADAM-4500 Manual de usuario

Advantech

Advantech B+B SmartWorx Wzzard BB-WSK-NRG-1 Guía del usuario

Advantech

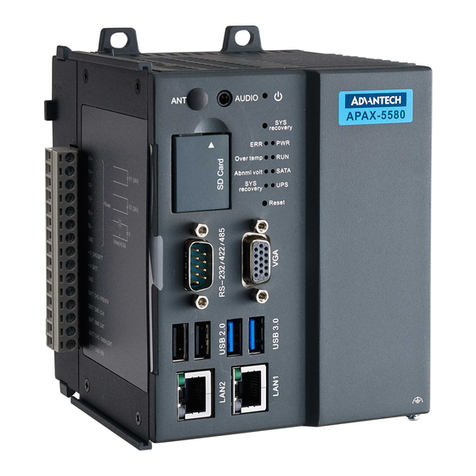

Advantech APAX-5580 Manual de usuario

Advantech

Advantech PCL-839+ Manual de usuario

Advantech

Advantech GX2-400 Manual de usuario

Advantech

Advantech PCI-1760U Manual de instalación y operación

Advantech

Advantech UNO-2050 Manual de usuario

Advantech

Advantech ADAM-5510/P31 Manual de usuario

Advantech

Advantech WISE-2210 Manual de instalación y operación

Advantech

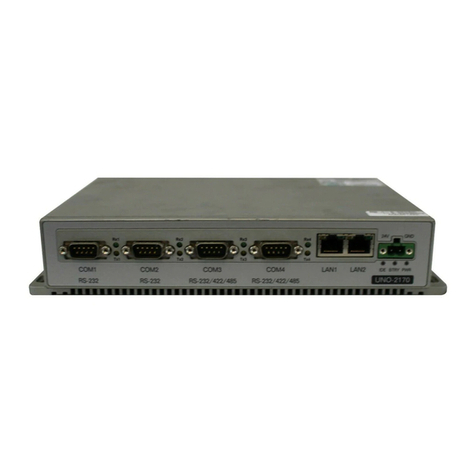

Advantech Celeron M Universal Network Controller with PC/104 Extension... Manual de usuario
