WISE-4671 Startup Manual 1

Thank you for purchasing the WISE-4671 module. This

quick start guide is intended to help you with deploying the

module. It includes information on the power requirements

and application wiring. Should you require more instruc-

tions, please refer to the user manual.

The WISE-4671 has two pairs of external power inputs:

1. +Vs and -Vs (for line power or battery recharge)

2. Solar panel+ and solar panel- (for battery recharge)

Both power inputs support a standard industrial unregulated

24 VDC power supply. This series of modules also accept

+10 to +50 VDC power input and 200-mV peak-to-peak

power ripple. The immediate ripple voltage should be

between +10 and +50 VDC.

Solar panel voltage range is between 17-21VDC.

For modules with a lithium-ion battery, please note that the

operating temperature is 0 ~ 60 °C (32~140 °F). For safety

reasons, when the temperature is in the range of 45 ~ 60 °C

(113 ~ 140 °F), the battery can only be recharged to 20%.

WISE-4671

Advanced Industrial Cat.NB1/Cat.M1 Wireless I/O Module

Startup Manual

• 1 x WISE-4671 Wireless Module

• 1 x Waterproof Antenna

• 1 x Mounting Bracket

• 1 x WISE-4671 Startup Manual

• 1 x China RoHS Declaration

Note: One of the below I/O module should be selected

and ordered respectively to be paired with

WISE-4671.

Selected I/O Module to be paired with WISE-4671:

• WISE-S614 4AI/4DI with M12 Connectors

• WISE-S614T 4AI/4DI with Terminal Block

• WISE-S615 4RTD with M12 Connectors

• WISE-S617 2AI/2DI/1DO/1RS-485 with M12 Connectors

• WISE-S617T 2AI/2DI/1DO/1RS-485 with Terminal Block

• WISE-S672 6DI/1RS-485/1RS-485 or RS-232 with M12

Connectors

1. Download and install the USB driver.

2. Download and install WISE Studio from https://sup-

port.advantech.com/support/DownloadSRDetail_New.

aspx?SR_ID=1-1MJSJKX&Doc_Source=Download.

3. To power the module, connect a DC power source to

the +Vs and -Vs pins. The device can also be powered

by internal recharageable battery by turning the battery

switch on the side of the device.

4. Connect the module to your computer via the micro-

USB port.

5. Open WISE Studio and click Go To Conguration.

Overview

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service:

http://support.advantech.com/

This startup manual is for WISE-4671 Series.

Part No. 2043467102

Printed in Taiwan

Edition 3

October 2020

Input Power Requirements

Battery Power Quick Start for WISE-4671 Series

Packaging List

LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: [email protected] — www.lucom.de

www.lucom.de

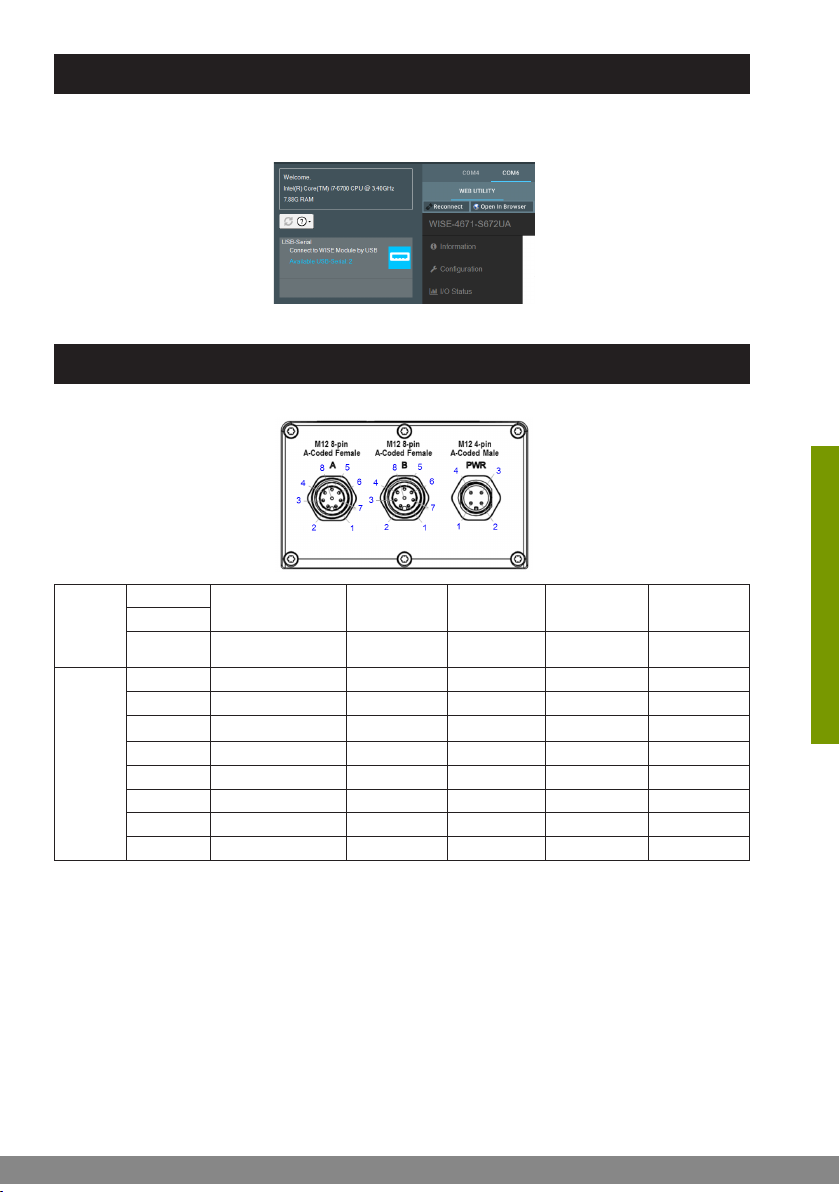

2 WISE-4671 Startup Manual

6. Press ConnecttolinkWISE-4671andyouwillseethewebcongurationpage.

7. UsewebcongurationinWISEUtilityorpressOpen in Browsertoopenthewebcongurationinanybrowser(Google

Chrome is recommended).

8. Click Information to check whether your module has successfully connected to a Cat.NB1/Cat.M1 network.

Pin Assignment of WISE-S600 I/O Module with M12 Connectors

M12

Connector

Model Name

M12 Cable WISE-S672 WISE-S614 WISE-S615 WISE-S617

Pin Number

PCB P/N 4Pin : 1700028162-01

8Pin : 1700028163-01 19A3DC7200-01 19A3DB1402-01 19A3DC1500-01 19A3DC1702-01

1 White DI 0 DI 0 RTD0+ AI 0+

2 Brown DI 1 DI 1 RTD0- AI 0-

3Green DI 2 DI 2 RTD0 COM +12V Out0

4 Yellow DI 3 DI 3 NC +12VOutGND

5Gray DI 4 NC RTD1+ AI 1+

6 Pink DI 5 NC RTD1- AI 1-

7 Blue NC NC RTD1 COM +12V Out1

8 Red DI COM DI COM NC +12VOutGND

Application Wiring

Quick Start for WISE-4671 Series (Cont.)

LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: [email protected] — www.lucom.de

www.lucom.de

WISE-4671 Startup Manual 3

M12

Connector

Model Name

M12 Cable WISE-S672 WISE-S614 WISE-S615 WISE-S617

Pin Number

PCB P/N 4Pin : 1700028162-01

8Pin : 1700028163-01 19A3DC7200-01 19A3DB1402-01 19A3DC1500-01 19A3DC1702-01

1 White DATA0- AI 0+ RTD2+ DI 0

2 Brown DATA0+ AI 0- RTD2- DI 1

3Green RS-232 TX AI 1+ RTD2 COM DI COM

4 Yellow RS-232 RX AI 1- NC DO 0

5Gray DATA1- AI 2+ RTD3+ DOGND

6 Pink DATA1+ AI 2- RTD3- RS-485 D+

7 Blue NC AI 3+ RTD3 COM RS-485 D-

8 Red RS-232GND AI 3- NC RS-485GND

PWR

1 Brown +VS +VS +VS +VS

2 White -VS -VS -VS -VS

3 Blue SP+ SP+ SP+ SP+

4 Black NC SP- SP- SP-

Application Wiring of WISE-S600 Series I/O Module with M12 Connectors

WISE-S614 (4AI/4DI)

Application Wiring (Cont.)

LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: [email protected] — www.lucom.de

www.lucom.de

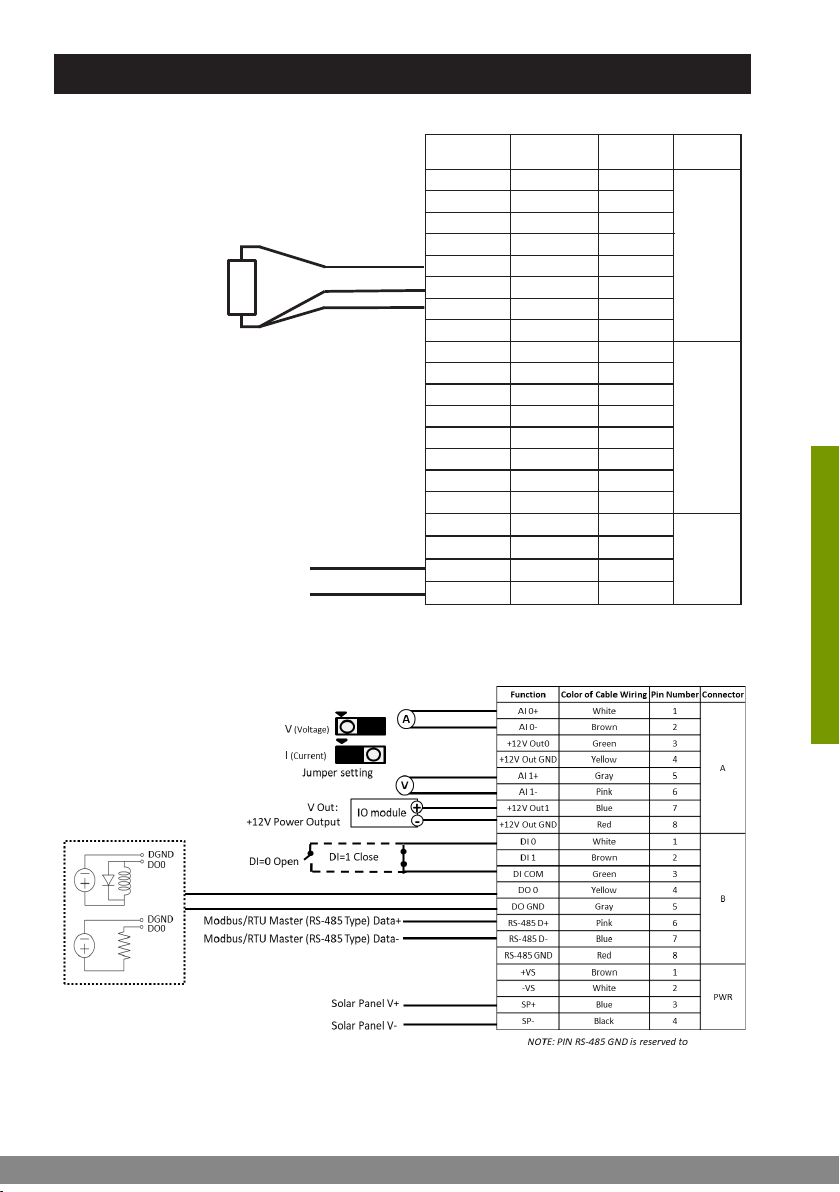

4 WISE-4671 Startup Manual

WISE-S615 I/O Application Wiring

WISE-S617 (2AI/2DI/1DO/1RS-485)

Solar Panel V-

Solar Panel V+

RTD

PT100 (385) : -200~+600°C

PT100 (392) : -200~+600°C

PT1000 : -40 ~+160°C

Pin Name Color of Cable

Wiring Pin Number Connector

RTD 0+ White 1

RTD 0- Brown 2

COM 0 Green 3

NC Yellow 4

RTD 1+ Gray 5

RTD 1- Pink 6

COM 1 Blue 7

NC Red 8

RTD 2+ White 1

RTD 2- Brown 2

COM 2 Green 3

NC Yellow 4

RTD 3+ Gray 5

RTD 3- Pink 6

COM 3 Blue 7

NC Red 8

+Vs Brown 1

PWR

-Vs White 2

Solar Panel V+ Blue 3

Solar Panel V- Black 4

Application Wiring (Cont.)

LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: [email protected] — www.lucom.de

www.lucom.de

WISE-4671 Startup Manual 5

Application Wiring (Cont.)

WISE-S672 (6DI/1RS-485/1RS-485 or 1RS-232)

Application Wiring of WISE-S600T Series I/O Module with Terminal Block

WISE-S614T (4AI/4DI)

LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: [email protected] — www.lucom.de

www.lucom.de

6 WISE-4671 Startup Manual

WISE-S617T (2AI/2DI/1DO/1RS-485)

• Install the CP210x USB to UART controller driver.

• USB does not power the module.

Application Wiring (Cont.)

Notes

LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: [email protected] — www.lucom.de

www.lucom.de

WISE-4671 Startup Manual 7

Advantech’sWISE-4671NB-IoT/LTE-MwirelessI/OmodulecanbeconguredtosupporteitherNB-IoTorLTE-Musingthe

WISEStudioutilityviaaUSBport.Foradvancedindustrialapplications,WISE-4671canbeequippedwithoptionalGPS,a

solar rechargeable battery, and an IP65-rated enclosure to protect from water and dust ingress. The WISE-4671 wireless I/O

modulefeaturesanintelligentmodulardesignthatsupportsvariousI/Ocongurationsaccordingtousagerequirements.This

allows users to easily integrate their desired I/O module (WISE-S672, WISE-S614 etc.) with the WISE-4671 module.

There are three ways to power up the WISE module, battery power, solar panel power and line power.

OpentherubbercoveronthesideoftheWISEmoduleandyoucanseeabatteryswitchforturningon/o󰀨thebatterypower.

For solar power, it is not only to recharge the battery but also to power up the device.

Refer to the application wiring section for solar panel power and line power pin assignment.

Also,thereisaUSBportforthedevicecongurationviaWISEStudiobutnotethattheWISEdevicecannotbepoweredvia

USB.

Note: Turno󰀨thedevicewhenswappingtheI/Omoduletoavoidhardwaredamage.

Module Conguration

LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: [email protected] — www.lucom.de

www.lucom.de

8 WISE-4671 Startup Manual

The LED indicators are described as follows:

LED Color Indication Behavior

Upper

Board

(RF)

Status Green Blink

2 Hz No NB-IoT network connection.

0.5 Hz NB-IoT network connection is successfully initialized.

RF RX Green

On Receiving data via the NB-IoT network.

O󰀨 Idle

RF TX Yellow

On Sending data via the NB-IoT network.

O󰀨 Idle

Error Red

Blink

2 Hz

a. RF related error with 4th (Full) signal strength LED 2 Hz blinking.

b.I/Orelatederrorwith3rd(Good)signalstrengthLED2Hzblink-

ing.

0.5 Hz a. Battery related Error.b. Low battery voltage (v <= 20%)

O󰀨 No error

Signal

Strength Green

(normal)

• 4 ON: Full signal (RSRP Index > 56)(–85 dBm < RSRP)

• 3ON:Goodsignal(RSSPIndex>=47)(–94dBm≤RSRP≤–85

dBm)

• 2ON:Okaysignal(RSRPIndex>=37)(–104dBm≤RSRP≤–95

dBm)

• 1ON:Poorsignal(RSRPIndex>=0)(RSRP≤–105dBm)

• ALL OFF: No signal (Not registered to network, or registration

denied)

(if Press Mem-

brane Button)

Main battery remain capacity

• All OFF – v <= 20 %

• 1 ON – 20% < v < 40%

• 2 ON – 40% <= v < 60%

• 3 ON – 60% <= v < 80%

• 4 ON – v >= 80%

Led Indicators
