Advantech PCM-3864 Manual de instalación y operación

Packing listPacking list

Packing list

Before you begin installing your card, please make

sure that the following materials have been shipped:

• 1 PCM-3864/3860 All-in-one single board computer

• 1 Start-up manual

• 1 Floppy cable

• 1 3.5" IDE flat cable

• 1 DIN jack 5p-6p cable

• 1 secondary serial port cable (RS-232/422/485)

• 1 Parallel cable

• CD-ROM or Disks for utility, drivers, and manual (in

PDF format)

If any of these items are missing or damaged, contact your

distributor or sales representative immediately.

Note: For detailed contents of the

PCM-3864/3860, please refer to the

enclosed CD-ROM or Disk (in PDF format).

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/epc

For technical support and service, please visit our support

website at:

http://support.advantech.com

This manual is for the PCM-3864/3860

Part No. 2006000032 1st edition

Printed in Taiwan July1999

PCM-3864/3860 386SBC with VGA/LCD

Start-up Manual

PCM-3864 386 SBC with VGA/ LCD

SpecificationsSpecifications

Specifications

Standard SBC functions

•CPU with core logic: Ali M6117C, 40 MHz

80386SX processor

•BIOS: AMI 128 KB Flash memory

•RAM: One 72-pin SIMM socket. Supports FPM/

EDO DRAM 1 ~ 16 MB (accepts 1 / 4 / 16 MB

modules)

•Enhanced IDE hard disk drive interface:

Supports up to two enhanced IDE devices. BIOS

auto-detect

•Multi-mode parallel port: Configured to LPT1,

LPT2, LPT3 or disabled. Supports SPP/EPP/ECP

mode. D-SUB 25-pin connector on board

•Floppy disk interface: Supports up to two FDDs:

3.5" (720 KB or 1.44 MB) and/or 5.25" (360 KB or

1.2 MB)

•Serial ports: One serial RS-232 port, one serial

RS-232/422/485 port. Two 16C550 compatible

UARTs

•PS/2 Keyboard connector: Mini-DIN keyboard

connector

Digital I/O

•Digital input x 4: TTL compatible input voltage

High; 2.0 V minimum

Low: 0.8 V maximum

•Digital output x 4: TTL compatible output V

High: source 0.4 mA @ 2.4 V min.

low: sink 8 mA @ 0.5 V max.

SVGA/flat panel interface

•Chipset: C&T 65545

•Display memory: 512 KB DRAM

•Hardware Windows acceleration: 16-bit graphic

engine. Hardware line drawing and 64 x 64 x 2

hardware cursor

•Resolution: Panel resolution up to 640 x 480 @

256 colors. Non-interlaced CRT monitors

resolution up to 1024 x 768 @ 16 colors

2PCM-3864/3860 Start Up Manual

The board has a number of jumpers that allow you to

configure your system to suit your application.

The table below lists the function of each of the board

jumpers and connectors:

Jumpers

Label Function

J1 Enable watchdog timer

J3 Enable watchdog timer

J4 CMOS setup

J5 DIO port selector

J6 COM2 RS-232/422/485 selector

Connectors

Label Function

CN1 PC/104 connector

CN2 PC/104 connector

CN3 COM1 connector

CN4 COM2 connector

CN5 Digital I/O port

CN6 PS/2 keyboard connector

CN7 CRT display connector (PCM-3864 only)

CN8 Power connector (-5 V, -12 V)

CN9 Hard disk connector

CN10 Floppy disk connector

CN11 Parallel port connector

CN12 LCD connector (PCM-3864 only)

CN13 Power connector (+5 V, +12 V)

SW1 Reset switch

Jumper settings

J1 & J3: Watchdog timer enable/disable

enable *disable

Jumpers and connectorsJumpers and connectors

Jumpers and connectors

J1 J5 J6

Mechanical and environmental

•Dimension (L x W): 145 mm x 102 mm (5.9" x 4.2")

•Power supply voltage: +5 V (4.75 ~ 5.25 V)

•Power requirements: +5 V @ 1.5 A (typical)

•Operating temperature: 0 ~ 60° C (32° ~ 140° F)

•Weight: 0.2 kg

J4: CMOS setup

*3.6 V battery on Clear CMOS

J4 1-2 2-3

J5: DIO port selector

*340 H 240 H

J6: COM2 selector

*RS-232 RS-422 RS-485

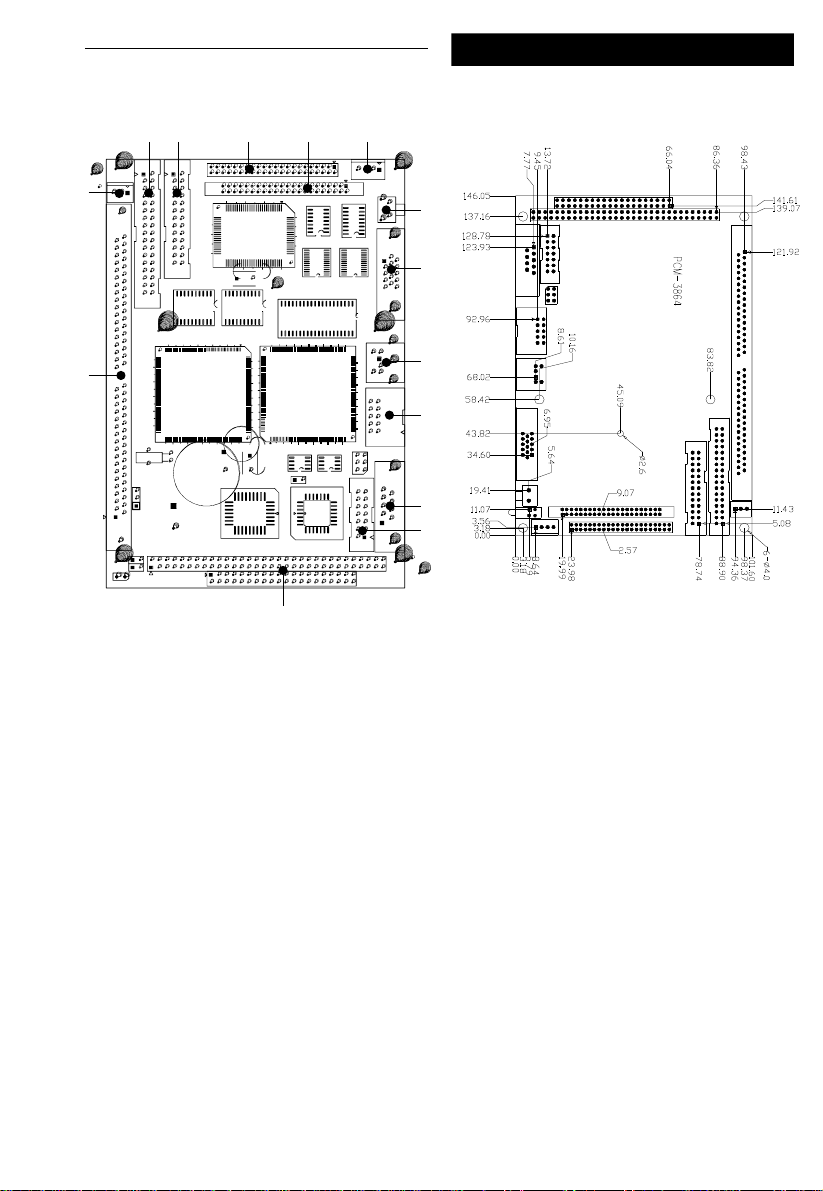

Locating Jumpers

Locating Connectors

CN10

CN8

CN11 CN12 CN9 CN13

SW1

CN7

CN6

CN5

SIMM1

CN3

CN4

CN1,CN2

PCM-3864 mechanical drawingPCM-3864 mechanical drawing

PCM-3864 mechanical drawing
