PCE-7B13-0AA1(PCE-5B12-0AA1) Startup Manual 1
Before you begin installing your card, please make sure that
the following materials have been shipped:
• 1 x two ports USB cable
• Startup manual
• M4*6*0.7 round screws (15 pieces)
• 2-year quality warranty card
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Standard functions
• PICMG1.3Slot:
PCE-7B13-0A supports PCE-71xx/51xx CPU Cards
PCE-5B12-0A supports PCE-71xx/51xx/50xx CPU Cards
• PCIeSlots:
PCE-7B13-0A: Supports two PCIe x8 slots
PCE-5B12-0A: Supports one PCIe x16 slots
• 32-bitPCI: 10 x 32-bit PCI slots
• USB(2.0)support:4 x universal serial bus ports to
backplane
Mechanical and Environment
• Dimensions:327.66 x 297.67 mm
• Powersupplyvoltage:+12 V, +5V, -12V, -5V, +3.3V,
+5VSBY
• Powerrequirements:Refer to the CPU board , add-on
card & peripherals
• Operatingtemperature:0 ~ 60°C
• Weight:0.6kg (weight of board)
PCE-7B13-0AA1(PCE-5B12-0AA1) PICMG 1.3 Backplane
13(12)-slot BP for 14 slots Chassis, 2(1) PCIe, 10 PCI
Startup Manual
The backplane has a number of connectors and jumpers that
allow you to congure your system to suit your application.
The table below lists the function of each of the connectors and
jumpers.
Connectors
PartReference Function
SHBA1~SHBD1
PICMG1.3 CPU board slot
PPCIE1 PCE-7B13-0A: PCIe x8 slot
PCE-5B12-0A: Not Available
PPCIE2 PCE-7B13-0A: PCIe x8 slot
PCE-5B12-0A: PCIe x16 slot
P1PCI1~P1PCI4 32 Bit, 33/66MHz PCI Bus Slot
(Primary1)
P2PCI1, P2PCI2 32 Bit, 33/66MHz PCI Bus Slot
(Primary2)
PPCI1~PPCI4
32 Bit / 33MHz PCI Bus Slot
(Primary 3)
EATXPWR1 ATX2.0 24-Pin Power connector
EATX12V1 ATX 12V Auxiliary 8-pin power
connector
ATX12V1 ATX 12V 4-pin power connector
PWR3V1 3.3V Auxiliary power connector
PWR3V2 3.3V Auxiliary power connector
VOLT1 Alarm board/CMM Power connector.
FAN1~7 FAN Connector
FANDEC1 Fan speed detector connector
SMBUS1~2 SMBus connector for chassis
monitor
JFP1 Power and Reset Button con-
nector
IPMB1 IPMB Connector
USB12 Two USB port pin header
USB34 Two USB port pin header
Specications
PackingList
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for the PCE-7B13-0AA1and PCE-
5B12-0AA1 series.
Part No. 20417B1300
Printed in China
1st Edition
Dec. 2022
ConnectorsandJumpers
2 PCE-7B13-0AA1(PCE-5B12-0AA1) Startup Manual
Jumpers
Label Function
PSON1
ATX / AT Mode Selection
JPCICLK1 Primary 1 PCI Bus freq. selection
JPCICLK2 Primary 2 PCI Bus freq. selection
EATXPWER1
Pin Name
1
3.3 V
2 3.3 V
3 GND
4 5 V
5 GND
6
5 V
7 GND
8 Power OK
9
5 V SBY
10
12 V
11 12 V
12 3.3 V
13 3.3 V
14 -12 V
15 GND
16 PSON#
17 GND
18 GND
19 GND
20 -5 V
21 -5 V
22 5 V
23 5 V
24 GND
FAN1~FAN7
Pin Name
1
GND
2 12 V
3 FANIO1~FANIO7
ATX12V1
Pin Name
1
GND
2 GND
3 12 V
4 12 V
EATX12V1
Pin Name
1
GND
2 GND
3 GND
4 GND
5 12 V
6
12 V
7 12 V
8 12 V
PWR3V1&PWR3V2
Pin Name
1
3.3 V
2 3.3 V
3 3.3 V
4 GND
5 GND
6
GND
VOLT1
Pin Name
1
5 V SBY
2 GND
3 GND
4 -5 V
5 5 V
6
3.3 V
7 -12 V
8 12 V
ConnectorsandJumpers(Cont.)ConnectorsandJumpers(Cont.)
PCE-7B13-0AA1(PCE-5B12-0AA1) Startup Manual 3
USB34
Pin Name
1
USBV2
2 USBV2
3 USBD2-
4 USBD3-
5 USBD2+
6
USBD3+
7 GND
8 GND
9
Null
10
GND
PSON1:ATX/ATModeSelection
JumperSetting Function
1-2 closed pins AT mode
2-3 closed pins ATX mode
(default)
JPCICLK1:Primary1PCIBusfreq.Selection
JumperSetting Function
LED
1-2 closed pins 33/66 MHz
Auto Detect On
2-3 closed pins 33 MHz O
JPCICLK2:Primary2PCIBusfreq.Selection
JumperSetting Function
LED
1-2 closed pins 33/66 MHz
Auto Detect On
2-3 closed pins 33 MHz O
1 2 3
1 2 3
1 2 3
1 2 3
1 2 3
1 2 3
FANDEC1
Pin Name
1
FANIO1
2 FANIO2
3 FANIO3
4 FANIO4
5 FANIO5
6
FANIO6
7 FANIO7
SMBUS1~SMBUS2
Pin Name
1
5 V
2 C-SMBBUS
3 C-SMBDAT
4 GND
IPMB1
Pin Name
1
IPMB_CLK
2 IPMB_DAT
3 GND
USB12
Pin Name
1
USBV0
2 USBV0
3 USBD0-
4 USBD1-
5 USBD0+
6
USBD1+
7 GND
8 GND
9
Null
10
GND
ConnectorsandJumpers(Cont.) ConnectorsandJumpers(Cont.)
4 PCE-7B13-0AA1(PCE-5B12-0AA1) Startup Manual
Figure 1: Board Layout
BoardLayout
PPCIE1
SMBUS2
PPCIE2
USB12
USB34
FANDEC1
JFP1 SMBUS1
FAN1
FAN2 PSON1 FAN3
PWR3V1
PWR3V2
VOLT1
ATX12V1
EATX12V1
EATXPWR1
FAN4
FAN5
FAN6
JPCICLK2
JPCICLK1
FAN7
IPMB1
P1PCI1
P1PCI2
P1PCI3
P1PCI4
P2PCI1
P2PCI2
PPCI1
PPCI2
PPCI3
PPCI4
PCE-7B13-0AA1(PCE-5B12-0AA1) Startup Manual 5
BoardDimensions

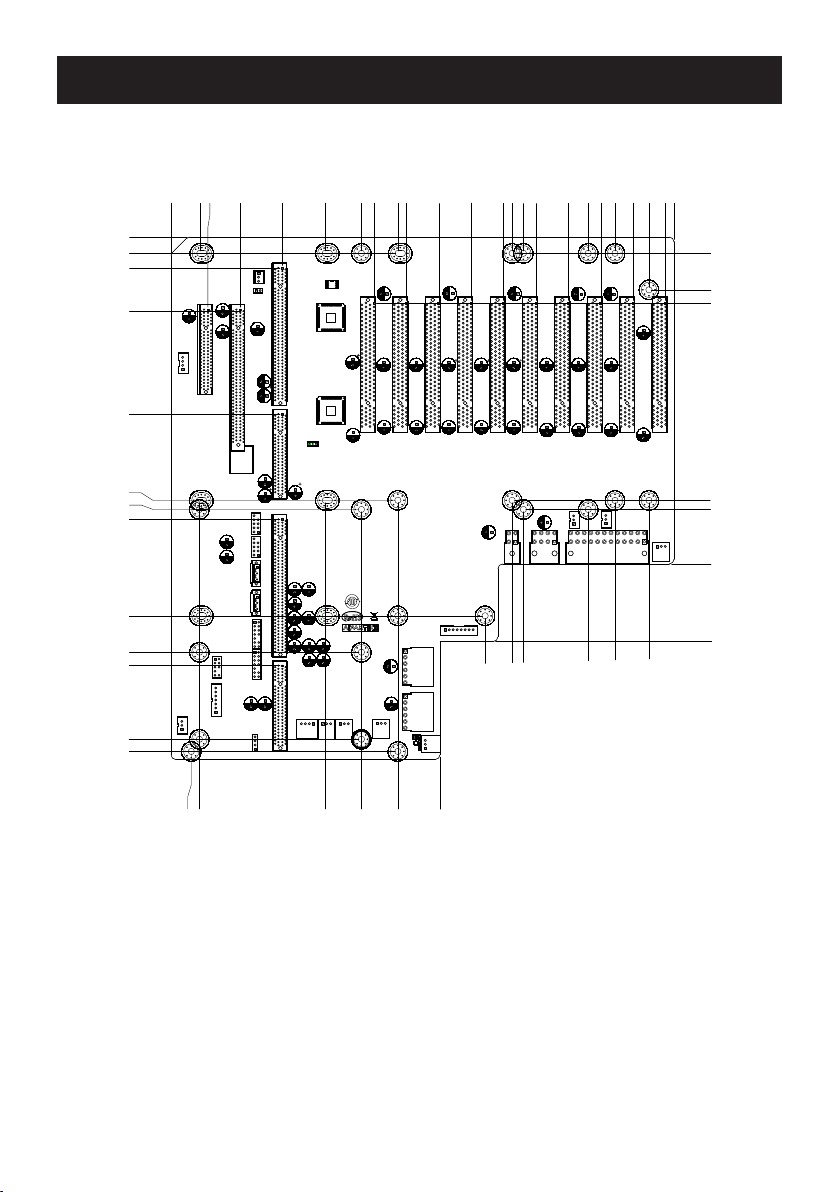

Figure 2: Board Dimensions
51.82 [2.040]
0.00 [0.000]
5.13 [0.202]
25.45 [1.002]
78.74 [3.100]
101.37 [3.991]
124.46 [4.900]
109.29 [4.303]
129.61 [5.103]
149.93 [5.903]
195.91 [7.713]
202.97 [7.991]
190.57 [7.503]
170.25 [6.703]
243.61 [9.591]
260.41 [10.252]
210.89 [8.303]
231.21 [9.103]
251.53 [9.903]
271.85 [10.703]
281.71 [11.091]
292.17 [11.503]
297.44 [11.710]
18.01 [0.709]
0.00 [0.000]
10.16 [0.400]
0.00 [0.000]
22.86 [0.900]
31.12 [1.225]
36.29 [1.429]
9.15 [0.360]
100.84 [3.970]
166.88 [6.570]
258.57 [10.180]
227.33 [8.950]
250.19 [9.850]
304.80 [12.000]
312.42 [12.300]
0.23 [0.009]
5.31 [0.209]
160.65 [6.325]
154.88 [6.098]
160.65 [6.325]
154.94 [6.100]
78.74 [3.100]
101.37 [3.991]
124.23 [4.891]
150.65 [5.931]
243.50 [9.587]
194.84 [7.671]
195.91 [7.713]
178.91 [7.044]
202.97 [7.991]
243.61 [9.591]
260.41 [10.252]
281.71 [11.091]
6 PCE-7B13-0AA1(PCE-5B12-0AA1) Startup Manual
BoardDiagram
Figure 3: Board Diagram
PCE-7B13-0AA1(PCE-5B12-0AA1) Startup Manual 7
PCIRoutingTable
Primary1PCI32-bit,33/66MHz
PCI Interrupt Pin
Route
PCI Pin P1PCI1 P1PCI2 P1PCI3 P1PCI4
INTA BG1_INTA# BG1_INTB# BG1_INTC# BG1_INTD#
INTB BG1_INTB# BG1_INTC# BG1_INTD# BG1_INTA#
INTC BG1_INTC# BG1_INTD# BG1_INTA# BG1_INTB#
INTD BG1_INTD# BG1_INTA# BG1_INTB# BG1_INTC#
IDSEL BG1_AD28 BG1_AD29 BG1_AD30 BG1_AD31
CLK BG1_CLK1 BG1_CLK2 BG1_CLK3 BG1_CLK4
REQ BG1_REQ#0 BG1_REQ#1 BG1_REQ#2 BG1_REQ#3
GNT BG1_GNT#0 BG1_GNT#1 BG1_GNT#2 BG1_GNT#3
Primary2PCI32-bit,33/66MHz
PCI Interrupt Pin
Route
PCI Pin P2PCI1 P2PCI2
INTA BG2_INTA# BG2_INTB#
INTB BG2_INTB# BG2_INTC#
INTC BG2_INTC# BG2_INTD#
INTD BG2_INTD# BG2_INTA#
IDSEL BG2_AD28 BG2_AD29
CLK BG2_CLK1 BG2_CLK2
REQ BG2_REQ#0 BG2_REQ#1
GNT BG2_GNT#0 BG2_GNT#1
Primary3PCI32-bit,33MHz
PCI Interrupt Pin
Route
PCI Pin PPCI1 PPCI2 PPCI3 PPCI4
INTA #PIRQB #PIRQC #PIRQD #PIRQA
INTB #PIRQC #PIRQD #PIRQA #PIRQB
INTC #PIRQD #PIRQA #PIRQB #PIRQC
INTD #PIRQA #PIRQB #PIRQC #PIRQD
IDSEL AD31 AD30 A29 AD28
CLK PPCLKA PPCLKB PPCLKC PPCLKD
REQ PREQ#0 PREQ#1 PREQ#2 PREQ#3
GNT PGNT#0 PGNT#1 PGNT#2 PGNT#3
