IPC-602 User's Manual

Chapter 1 General Information

1.1 Introduction

The IPC-602 is a compact rugged 19" 2U-height rackmount chassis designed for space-limited applica-

tion. With its rugged, sturdy and well-cooled steel chassis specially designed to withstand heavy

shocks and thick dust, the IPC-602 can be used in the harshest of environments. It is ideal for

low-density CT or network system configurations that require high availability within a limited space,

such as computer telephony and networking systems.

1.2 Specifications

Construction: Heavy-duty steel

Disk drive capacity: One 5.25" and two 3.5" drive bays

Indicators: LEDs for power On/Off, HDD and 3.3 V

Controls: Power On and Reset switches on front panel

Cooling fan: Two 42 CFM fans on front panel, with air filters

Weight: 9.8 kg (21.8 lbs)

Dimensions (W x D x H): 481.2 x 449.5 x 88 mm (19" x 17.7" x 4")

Interior paint color: Black 2U, 2X; Fabric Texture

Passive backplane (PCA-6106VP3)

Slots: 2 ISA / 3 PCI / 1 PICMG

PC board: 6-layer PCB with ground and power planes for reduced noise and low power-supply

impedance

Indicators: LEDs for +5 V, +12 V, -5 V, -12 V, +3.3 V

Power supply (PS-250X-DPS)

Output rating: 250 watts max.

Input rating: 90 ~ 135 Vac or 180 ~ 265 Vac @ 47 ~ 63 Hz, switchable

Output voltage: +5 V @ 25 A, +12 V @ 8 A, -5 V @ 0.5 A, -12 V @ 0.8 A, +3.3 V @ 14 A,

+5 VSB @ 1 A

Minimum load: +5 V @ 1.5 A, +12 V @ 0.2 A

MTBF: 100,000 hours @ 90% load

Safety: UL/TUV/Nordic approved

EMI: Meets FCC/VDC Class B

All manuals and user guides at all-guides.com

IPC-602 User's Manual

Power supply (PS-260)

Output rating: 260 watts max.

Input rating: 85 ~ 130 Vac or 180 ~ 260 Vac @ 47 ~ 63 Hz, switchable

Output voltage: +5 V @ 25 A, +12 V @ 9 A, -5 V @ 0.5 A, -12 V @ 2 A,

Minimum load: +5 V @ 1 A, +12 V @ 0.1 A

MTBF: 200,000 hours @ 70% load

Safety: UL/CSA/TUV approved

EMI: Meets FCC/VDE Class B

Power supply (PS-30XDC48-BPS)

Output rating: 300 watts max.

Input rating: -40 ~ 56 Vdc @ 47 ~ 63 Hz

Output voltage: +5 V @ 30 A, +12 V @ 12 A, -5 V @ 0.5 A, -12 V @ 1 A, +3.3 V @ 20 A,

+5 VSB @ 1.5 A

Minimum load: +5 V @ 3 A, +12 V @ 1 A

MTBF: 119,122 hours @ 75% load

Safety: UL/TUV

EMI: Meets FCC/VDC Class A

Environmental specifications

Operating temperature: 0 ~ 45° C (32 ~ 113° F)

Relative humidity: 10 ~ 95% @ 40° C, non-condensing

Safety: UL / CE approved

CE compliant

All manuals and user guides at all-guides.com

IPC-602 User's Manual

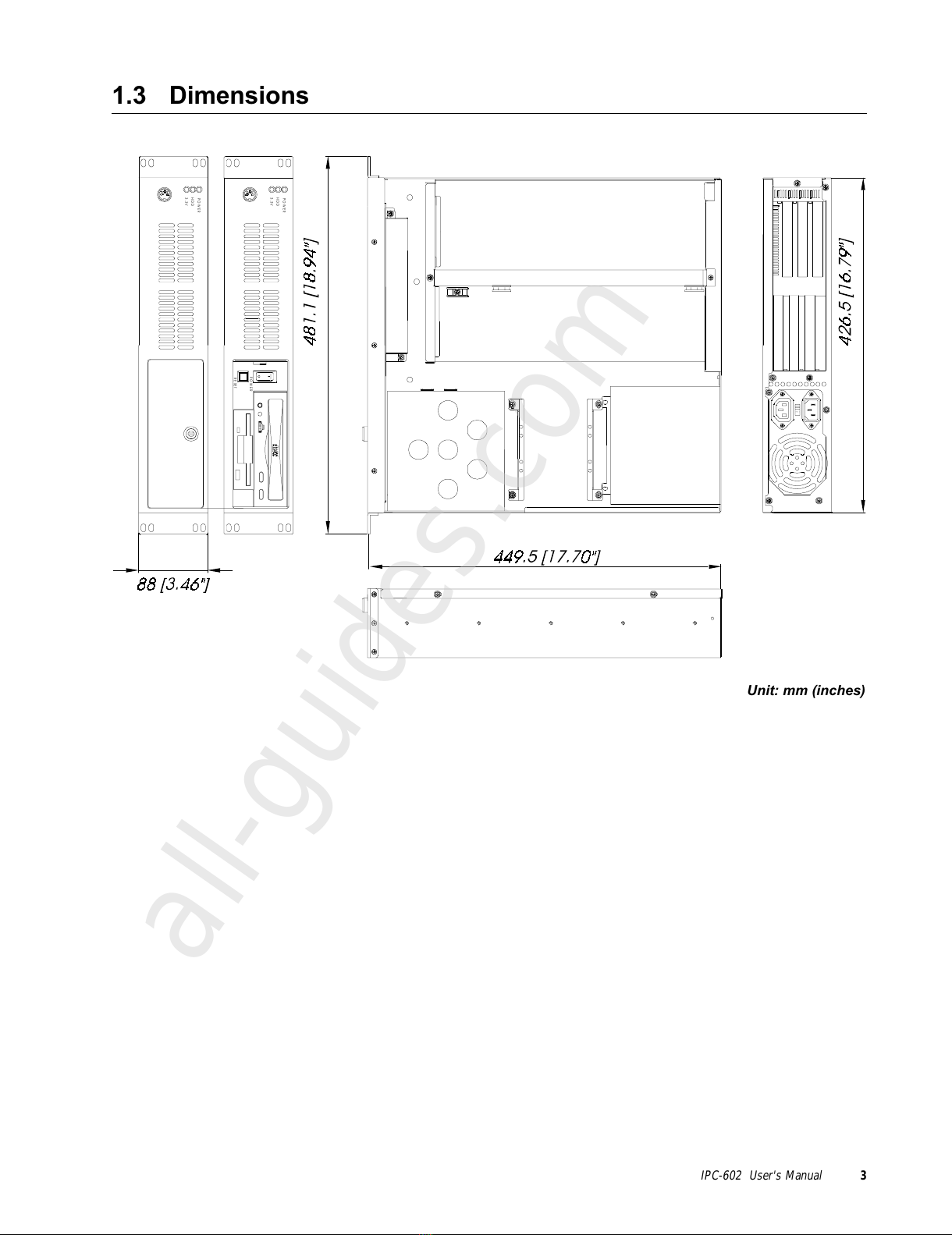

1.3 Dimensions

COMPACT

110V

RES ET

POW ER

3.3V

HDD

3.3V

POW ER

Unit: mm (inches)

All manuals and user guides at all-guides.com

all-guides.com

IPC-602 User's Manual

Chapter 2 System Setup

The following procedures are provided to assist you in installing drives and plug-in cards into the

IPC-602.

2.1 Removing the Cover

Unscrew the six screws on the front and rear panels , and then slide the cover toward the rear chassis.

See Figure 2-1 below:

Figure 2-1: Removing the cover

Step 1

Step 3

Step 2

All manuals and user guides at all-guides.com

IPC-602 User's Manual

2.2 Adding Disk Drives

After removing the cover, you can easily install disk drives. Refer to Figure 2-2 below and do the

following:

1. Remove the four outer screws which mount the drive bay to the chassis.

2. Slide the drive bay about 1 cm. toward the rear, to a location where it is not obstructed by the upper

rim. Lift it free of the chassis.

3. Remove the cover of the front drive bay, and insert the drives into their proper locations in the drive

bay.

Figure 2-2: Adding disk drives

All manuals and user guides at all-guides.com

IPC-602 User's Manual

2.3 Installing Plug-in Cards

After removing the cover, you can easily install plug-in cards. See Figure 2-3 below:

Figure 2-3: Installing plug-in cards

2.4 Replacing the Fan

Unscrew the two screws on the fan, and slide the cover toward the rear chassis. See Figure 2-4 below:

Figure 2-4: Replacing the fan

Step 1 Step 2

All manuals and user guides at all-guides.com

IPC-602 User's Manual

2.5 Replacing the Filter

The filter is located next to the lockable door. If the IPC-602 is under continuous use, the filter should

be changed about once a month. To replace the filter, refer to Figure 2-5 below and do the following:

1. Open the lockable door.

2. Remove the filter by gently pulling the tab and sliding the filter to the right.

3. Slide a new filter in until it snaps into place.

4. Close and lock the lockable door.

Figure 2-5: Replacing the filter
