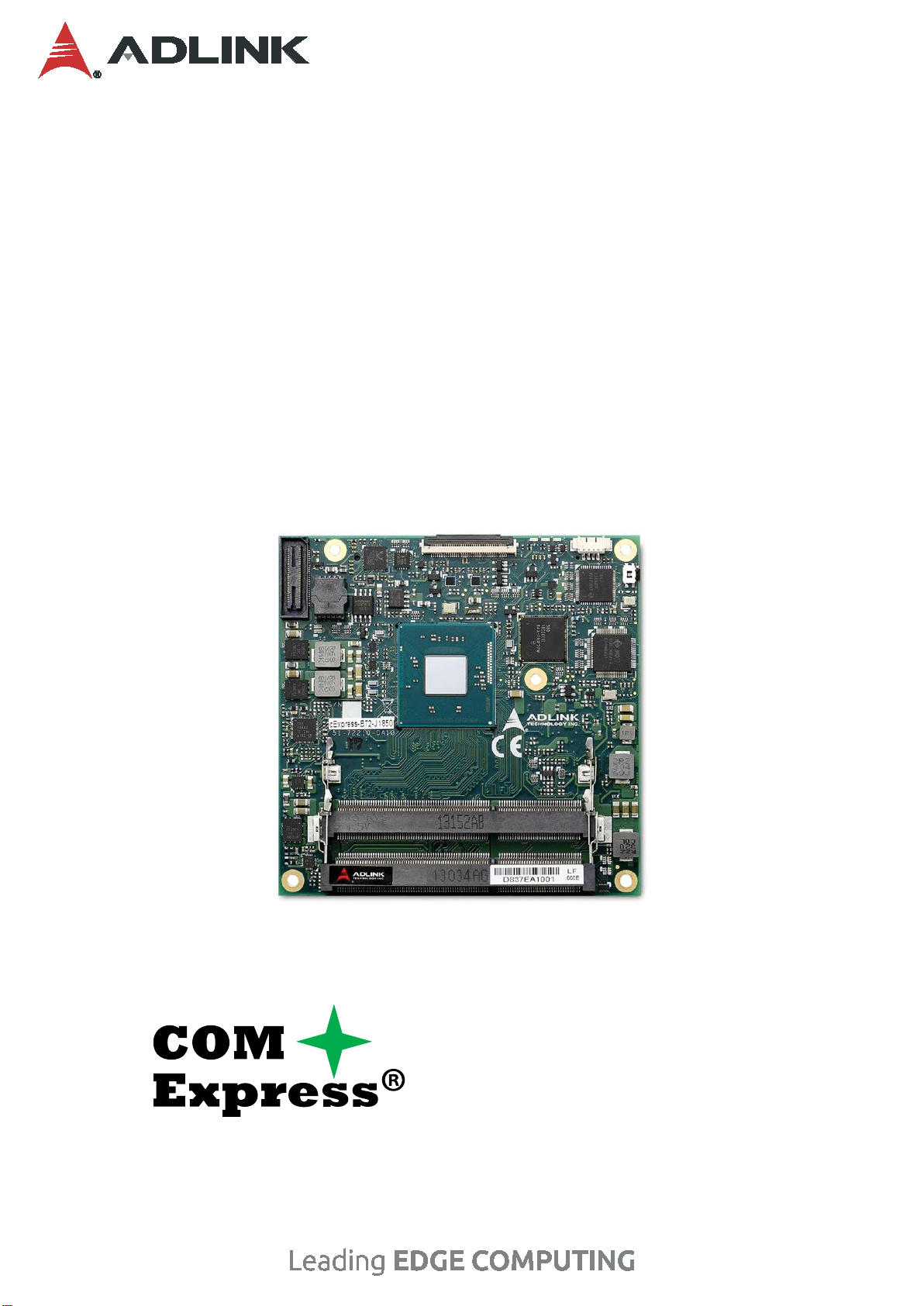

ADLINK Technology COM Express cExpress-BT2 Manual de usuario

cExpress-BT2

User’s Manual

COM Express Compact Size Type 2Module with

Intel Atom® E3800 and Celeron® Processor SoC

Manual Rev.: 1.2

Revision Date: April 7, 2020

Part Number: 50-1J052-1020

ii Preface

Preface

means in any form without prior written permission of the manufacturer.

Disclaimer

The information in this document is subject to change without prior notice in order to improve reliability, design, and

function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer

be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use

the product or documentation, even if advised of the possibility of such damages.

Environmental Responsibility

ADLINK is committed to fulfill its social responsibility to global environmental preservation

through compliance with the European Union's Restriction of Hazardous Substances (RoHS)

directive and Waste Electrical and Electronic Equipment (WEEE) directive. Environmental

protection is a top priority for ADLINK. We have enforced measures to ensure that our

products, manufacturing processes, components, and raw materials have as little impact on

the environment as possible. When products are at their end of life, our customers are

encouraged to dispose of them in accordance with the product disposal and/or recovery

programs prescribed by their nation or company.

Battery Labels (for products with battery)

廢電池請回收

California Proposition 65 Warning

WARNING: This product can expose you to chemicals including acrylamide, arsenic, benzene,

cadmium, Tris(1,3-dichloro-2-propyl)phosphate (TDCPP), 1,4-Dioxane, formaldehyde, lead, DEHP,

styrene, DINP, BBP, PVC, and vinyl materials, which are known to the State of California to cause

cancer, and acrylamide, benzene, cadmium, lead, mercury, phthalates, toluene, DEHP, DIDP, DnHP,

DBP, BBP, PVC, and vinyl materials, which are known to the State of California to cause birth defects or other

reproductive harm. For more information go to www.P65Warnings.ca.gov.

Trademarks

Product names mentioned herein are used for identification purposes only and may be trademarks and/or

registered trademarks of their respective companies.

Revision History

Revision

Description

Date

1.00 Initial release 2014-09-24 JC

1.01 Correct specifications (memory, GPIO, LAN, serial port, GPIO, eMMC, OS) 2015-09-14 JC

1.2 Update BIOS 2020-04-07 JC

cExpress-BT2

Preface iii

Table of Contents

Preface................................................................................................................................ii

List of Figures ....................................................................................................................v

List of Tables.....................................................................................................................vi

1. Introduction................................................................................................................1

2. Specifications ............................................................................................................3

2.1. Core System...............................................................................................................3

2.2. Expansion Busses......................................................................................................3

2.3. Video...........................................................................................................................4

2.4. Audio...........................................................................................................................4

2.5. LAN.............................................................................................................................4

2.6. Multi I/O and Storage..................................................................................................4

2.7. SEMA Board Controller ..............................................................................................5

2.8. Debug.........................................................................................................................5

2.9. Trusted Platform Module (TPM) .................................................................................5

2.10. Power Specifications...............................................................................................5

2.11. Operating Temperatures .........................................................................................5

2.12. Environmental .........................................................................................................6

2.13. Specification Compliance........................................................................................6

2.14. Operating Systems..................................................................................................6

2.15. Functional Diagram .................................................................................................7

2.16. Mechanical Dimensions...........................................................................................8

3. Pinouts and Signal Descriptions..............................................................................9

3.1. AB/CD Pin Definitions.................................................................................................9

3.2. Signal Description Terminology................................................................................12

3.3. AB Signal Descriptions.............................................................................................13

3.4. CD Signal Descriptions.............................................................................................23

4. Module Interfaces....................................................................................................27

4.1. Connector, Switch and LED Locations.....................................................................27

4.2. 40-pin Debug Connector...........................................................................................28

4.3. Status LEDs..............................................................................................................29

4.4. XDP Debug Header..................................................................................................30

4.5. Fan Connector..........................................................................................................31

4.6. BIOS Setup Defaults Reset Button...........................................................................32

iv Preface

5. Smart Embedded Management Agent (SEMA) .....................................................33

5.1. Board Specific SEMA Functions...............................................................................34

6. System Resources ..................................................................................................37

6.1. System Memory Map................................................................................................37

6.2. I/O Map.....................................................................................................................37

6.3. Interrupt Request (IRQ) Lines...................................................................................38

6.4. PCI Configuration Space Map..................................................................................40

6.5. PCI Interrupt Routing Map........................................................................................41

6.6. PCI Interrupt Routing Map........................................................................................41

7. BIOS Setup...............................................................................................................43

7.1. Menu Structure.........................................................................................................43

7.2. Main..........................................................................................................................44

7.3. Advanced..................................................................................................................49

7.4. Boot ..........................................................................................................................61

7.5. Security.....................................................................................................................63

7.6. Save & Exit...............................................................................................................64

8. BIOS Checkpoints, Beep Codes.............................................................................65

8.1. Status Code Ranges.................................................................................................66

8.2. Standard Status Codes.............................................................................................66

8.3. OEM-Reserved Checkpoint Ranges.........................................................................73

9. Mechanical Information...........................................................................................75

9.1. Board-to-Board Connectors......................................................................................75

9.2. Thermal Solution.......................................................................................................76

9.3. Mounting Methods....................................................................................................79

9.4. Standoff Types..........................................................................................................80

Safety Instructions...........................................................................................................81

Getting Service.................................................................................................................82

cExpress-BT2

Preface v

List of Figures

Figure 1: cExpress-BT2 Functional Block Diagram .................................................................................7

Figure 2: cExpress-BT2 Mechanical Drawing..........................................................................................8

Figure 3: cExpress-BT2 Connector, Switch and LED Locations............................................................27

Figure 4: cExpress-BT2 and the DB40 Debug Module..........................................................................27

Figure 6: COM Express Mounting Methods...........................................................................................79

Figure 7: COM Express Standoff Types.................................................................................................80

vi Preface

List of Tables

Table 1: cExpress-BT2 AB/CD Pin Definitions.........................................................................................9

Table 2: 40-pin Debug Connector Pin Definition....................................................................................28

Table 3: cExpress-BT2 LED Descriptions..............................................................................................29

Table 4: MIPI60 Debug Header Pin Definition.......................................................................................30

Table 5: Fan Connector Pin Definition ...................................................................................................31

Table 7: SEMA Onboard Voltage Monitor..............................................................................................34

Table 8: SEMA BMC Status...................................................................................................................34

Table 9: SEMA Exception Codes...........................................................................................................35

Table 10: SEMA BMC Flags...................................................................................................................35

cExpress-BT2

Introduction 1

1. Introduction

The cExpress-BT2 is a COM Express® COM.0 R2.1 Type 2 module supporting the Intel Atom® E3800 processor

and Intel® Celeron® processor, memory controller, and graphics processor on a single-chip design. The cExpress-

BT2 is specifically designed for customers who need high-level processing and graphics performancewith low

power consumption in a long product life solution.

The cExpress-BT2 features the Intel Atom® E3800 processor and Intel® Celeron® processor supporting non-ECC

type DDR3L dual-channel memory at 1066/1333 MHz to provide excellent overall performance.

Integrated Intel® 7th Generation HD Graphics includes features such as OpenGL 3.1, DirectX 11, OpenCL 1.1

support for H.264, MPEG2, VC1, VP8 hardware decode. Graphics outputs include VGA and dual-channel 18/24-bit

LVDS. The cExpress-BT2 is specifically designed for customers with high-performance graphics processing

requirements who want to outsource the custom core logic of their systems for reduced development time.

The cExpress-BT2 has dual stacked SODIMM sockets for up to 8 GB non-ECC type DDR3L memory. In addition,

an onboard eMCC memory is supported (optional, 8GB/16GB/32GB).

The cExpress-BT2 features a single onboard Gigabit Ethernet port, USB 2.0 ports, PATA and SATA 3 Gb/s ports,

and PCI 2.3. Support is provided for SMBus and I2C. The module is equipped with SPI AMI EFI BIOS with CMOS

backup, supporting embedded features such as remote console, CMOS backup, hardware monitor, and watchdog

timer.

2 Introduction

This page intentionally left blank.

cExpress-BT2

Specifications 3

2. Specifications

2.1. Core System

CPU Single, dual or quad-core Intel Atom® or Celeron® Processor

•Intel Atom® E3845 1.91 GHz 542/792 (Turbo) 10W (4C/1333)

•Intel Atom® E3827 1.75 GHz 542/792 (Turbo) 8W (2C/1333)

•Intel Atom® E3826 1.46 GHz 533/667 (Turbo) 7W (2C/1066)

•Intel Atom® E3825 1.33 GHz 533 (No Turbo) 6W (2C/1066)

•Intel Atom® E3815 1.46 GHz 400 (No Turbo) 5W (1C/1066)

•Intel Atom® E3805 1.33 GHz (No Graphics) 3W (2C/1066)

•Celeron® N2930 1.83/2.16 (Burst) GHz, 311/854 (Turbo) 7.5W (4C/1333)

•Celeron® J1900 2.0/2.42 (Burst) GHz, 688/854 (Turbo) 10W (4C/1333)

Single, dual or quad Out-of-Order Execution (OOE) processor cores. Intel® VT-x, Intel®

SSE4.1 and SSE4.2, Intel® 64 architecture, IA 32-bit, PCLMULQDQ Instruction. DRNG,

Intel® Thermal Monitor (TM1 & TM2)

Notes:

Availability of features may vary between processor SKUs.

Cache •2MB L2 Cache: E3845, N2930 and J1900

•1MB L2 Cache: E3827, E3826, E3825 and E3805

•512k L2 Cache: E3815

Memory Non-ECC 1066/1333 MHz DDR3L memory up to 8GB

•Dual stacked SODIMM sockets: E3845, E3827, E3826, N2930, J1900 (lower slot must

be populated)

•Single SODIMM socket: E3825, E3815, E3805

BIOS

AMI EFI with CMOS backup in 8MB SPI BIOS

2.2. Expansion Busses

PCI Express •2 PCI Express x1 (AB): Lanes 0/1

Other •1 PCI (CD): PCI 2.3, 32-bit, 33MHz

•LPC bus, SMBus (system), I2C (user)

4 Specifications

2.3. Video

Integrated on Processor 7th generation graphics Intel core architecture with four execution units supporting two

independent displays

GPU Feature Support •3D graphics hardware acceleration

•Support for DirectX 11, OpenCL 1.1, OpenGL ES Halti/2.0/1.1, OpenGL 3.2

•Video decode hardware acceleration including support for H.264, MPEG2, MVC, VC-1,

WMV9 and VP8 formats

•Video encode hardware acceleration including support for H.264, MPEG2 and MVC

formats

•Playback of Blu-ray disc 3D content using HDMI (1.4a spec compliant with 3D)

Note: Availability of features may vary between operating systems.

Display Types •Dual channel 18/24-bit LVDS through eDP-to-LVDS bridge (use DDI0 signal of SoC)

•

VGA

supporting resolutions of up to 2560x1600x24bpp @60Hz

2.4. Audio

Integrated Intel® HD Audio integrated on SoC

Codec Located on carrier Express-BASE2 (ALC886 standard support)

2.5. LAN

MAC/PHY Intel® Ethernet Controller I210

Interface 10/100/1000 Mbit/s connection

2.6. Multi I/O and Storage

USB 7x USB 1.1/2.0 (USB 0/1/2/3/4/5/6, ports 3~6 from USB hub)

SATA 1x SATA 3Gb/s (SATA0)

Build option two SATA 3GB/s (SATA0, SATA1) when PATA bridge is not used (lose PATA

function)

PATA 1x PATA port (through SATA to PATA bridge)

GPIO 4 GPO and 4 GPI

eMMC Soldered on module bootable eMMC flash storage 8GB or 16GB or 32GB (optional,

support dependent on OS)

Tabla de contenidos

Otros manuales de Hardware de computadora de ADLINK Technology

ADLINK Technology

ADLINK Technology NuPRO-A331 Manual de usuario

ADLINK Technology

ADLINK Technology Express-BASE Manual de usuario

ADLINK Technology

ADLINK Technology VPX3000 Series Manual de usuario

ADLINK Technology

ADLINK Technology ROScube Pico BSP Manual de usuario

ADLINK Technology

ADLINK Technology cPCI-6636 Series Manual de usuario

ADLINK Technology

ADLINK Technology ETX-EV133 Manual de usuario

ADLINK Technology

ADLINK Technology cPCIS-1100 Series Manual de usuario

ADLINK Technology

ADLINK Technology nanoX-TCR Manual de usuario

ADLINK Technology

ADLINK Technology NuDAQ ACL-8454 Manual de usuario

ADLINK Technology

ADLINK Technology arm AMPERE COM-HPC-ALT Manual de usuario

ADLINK Technology

ADLINK Technology cPCI-6525 Manual de usuario

ADLINK Technology

ADLINK Technology PCIe-ACC100 Manual de usuario

ADLINK Technology

ADLINK Technology aTCA-9710 Manual de usuario

ADLINK Technology

ADLINK Technology LEC-BTS Manual de uso y cuidado

ADLINK Technology

ADLINK Technology intel COM Express Express-TL Manual de usuario

ADLINK Technology

ADLINK Technology cExpress-KL Manual de usuario

ADLINK Technology

ADLINK Technology SMARC NXP LEC-IMX8M Manual de usuario

ADLINK Technology

ADLINK Technology cPCI-A3525 Series Manual de usuario

ADLINK Technology

ADLINK Technology nanoX-AL Manual de usuario

ADLINK Technology

ADLINK Technology ROScube-I Series Manual de usuario

ADLINK Technology

ADLINK Technology cPCI-3620 Series Manual de usuario

ADLINK Technology

ADLINK Technology MXM-AXe Manual de usuario

ADLINK Technology

ADLINK Technology VPX3010 Series Manual de usuario

ADLINK Technology

ADLINK Technology NuPRO-E72 Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
