Chapter 1 Intro
Step 1.1 What is included in this kit?
In this kit you will find all the necessary parts for converting your regular Ender 3/PRO/V2 3d
printer models into a sequential Belt 3d printer. Parts lists are indicated on each step for better
understanding and guidance.
Step 1.2 Needed tools
In order to fully install this kit, you will need the next tools:
Set of Allen keys
Adjustable wrench or wrench kit
Measuring tape
Vernier caliper
Metal ruler (for alignment)
Arduino Uno and set of DuPont wires (for firmware flashing on older board version)
Chapter 2 Disassembling ENDER 3
In order to get ready to install this kit, you have to disassembly various segments of the original
3d printer, this part will guide you through entire process of preparation and getting ready to
install new parts.
In this part of the process, various electrical components will be temporarily disconnected for
practical purposes, you have to install them later though.
*Please be aware some original parts will be discarded and won’t be installed.

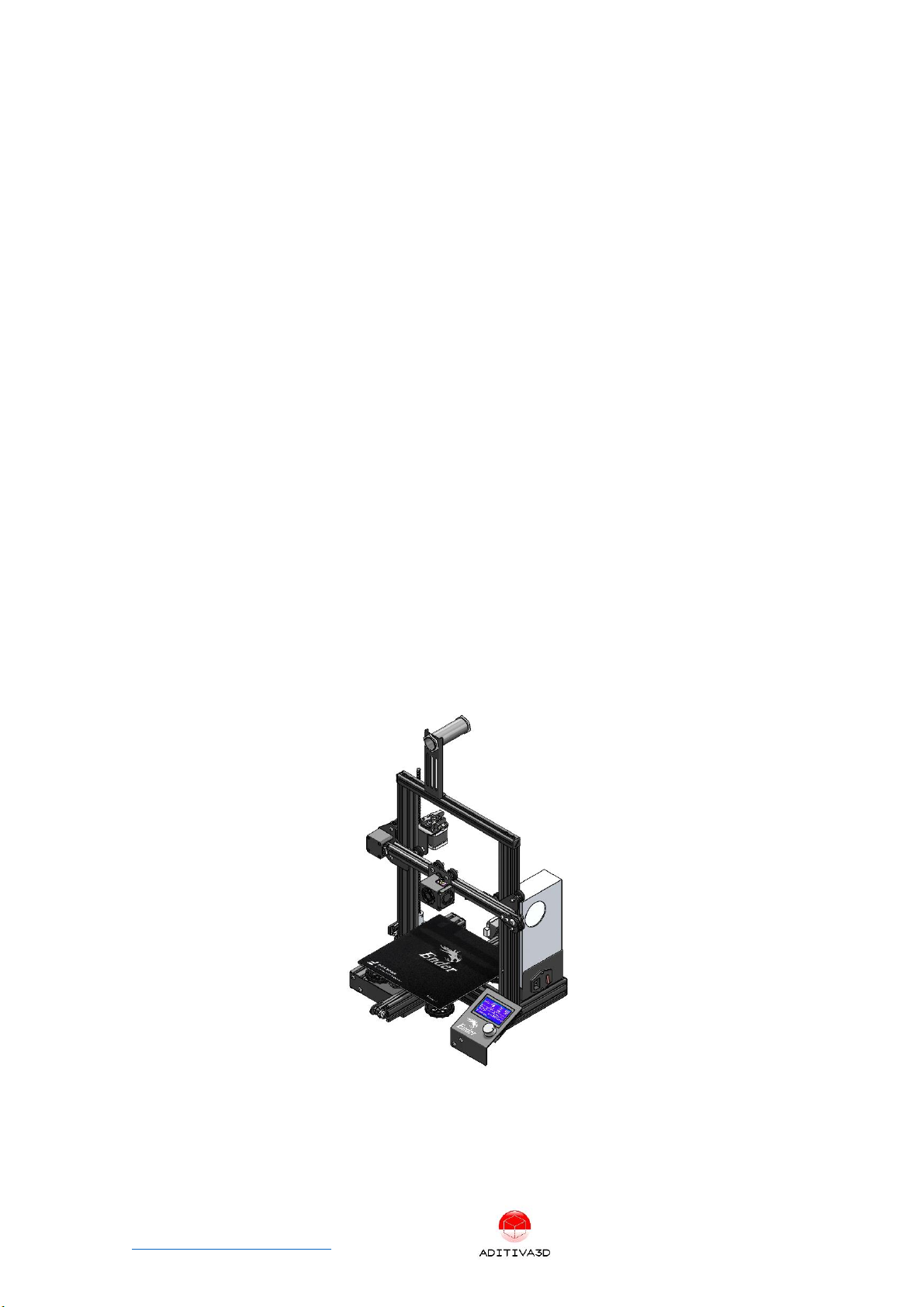

Figure 1. Assembled Ender 3
Step 2.1 Removing screen
