ADF Web HD67616-A1 Manual de usuario

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

NMEA 0183 / Modbus Slave

Converter

Document code: MN67616_ENG Revision 1.000 Pa e 1 of 30

For other Gateways / Brid es:

Serial / Modbus TCP - converter

See also the followin links:

www.adfweb.com?product=HD67011 (Modbus RTU Master)

www.adfweb.com?product=HD67012 (Modbus RTU Slave)

www.adfweb.com?product=HD67514 (Modbus TCP Master)

www.adfweb.com?product=HD67515 (Modbus TCP Server)

Do you have an your customer protocol?

See the followin links:

www.adfweb.com?Product=HD67003

Do you need to choose a device? do you want help?

Ask it to the followin link:

www.adfweb.com?Cmd=helpme

User Manual

Revision 1.000

En lish

NMEA 0183 / Modbus Slave - Converter

(Order Code: HD67616-A1, HD67616-422-A1)

for Website information:

www.adfweb.com?Product=HD67616

for Price information:

www.adfweb.com?Price=HD67616-A1

www.adfweb.com?Price=HD67616-422-A1

Benefits and Main eatures:

Very easy to confi ure

32mm Rail DIN mount

Wide supply input ran e

Temperature ran e: -40°C/+85°C (-40°F/+185°F)

User Manual

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

NMEA 0183 / Modbus Slave

Converter

Document code: MN67616_ENG Revision 1.000 Pa e 2 of 30

INDEX:

Pa e

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAMPLE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 7

CONFIGURATION 7

POWER SUPPLY 8

FUNCTION MODES 9

LEDS 10

RS485 11

RS422 12

RS232 13

ETHERNET 14

USE OF COMPOSITOR SW67616 15

NEW PROJECT / OPEN PROJECT 16

SOFTWARE OPTIONS 17

SET COMMUNICATION 19

NMEA 0183 ACCESS 22

UPDATE DEVICE 23

MODBUS MAP 25

MECHANICAL DIMENSIONS 26

ORDER CODES 28

ACCESSORIES 28

DISCLAIMER 29

OTHER REGULATIONS AND STANDARDS 29

WARRANTIES AND TECHNICAL SUPPORT 30

RETURN POLICY 30

UPDATED DOCUMENTATION:

Dear customer, we thank you for your attention and we remind you that you

need to check that the followin document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code” that

appears at the top ri ht-hand corner of each pa e of this document.

With this “Document Code” o to web pa e www.adfweb.com/download/ and

search for the correspondin code on the pa e. Click on the proper “Document

Code” and download the updates.

REVISION LIST:

Revision Date Author Chapter

Description

1.000 15/06/2020

VDB All First release version

WARNING:

ADFweb.com reserves the ri ht to chan e information in this manual about our

product without warnin .

ADFweb.com is not responsible for any error this manual may contain.

TRADEMARKS:

All trademarks mentioned in this document belon to their respective owners.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

NMEA 0183 / Modbus Slave

Converter

Document code: MN67616_ENG Revision 1.000 Pa e 3 of 30

SECURITY ALERT:

ENERAL

N ORMATION

To ensure safe operation, the device must be operated accordin to the instructions in the manual. When usin the device are required for each

individual application, le al and safety re ulation. The same applies also when usin accessories.

NTENDED

Machines and systems must be desi ned so the faulty conditions do not lead to a dan erous situation for the operator (i.e. independent limit

switches, mechanical interlocks, etc.).

UALI IED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications.

Qualified personnel are persons who are familiar with the installation, assembly, commissionin and operation of this equipment and who have

appropriate qualifications for their job.

ESIDUAL

ISKS

The device is state of the art and is safe. The instrument can represent a potential hazard if they are inappropriately installed and operated by

personnel untrained. These instructions refer to residual risks with the followin symbol:

This symbol indicates that non-observance of the safety instructions is dan er for people to serious injury or death and / or the possibility

of dama e.

CON ORMITY

The declaration is made by us. You can send an email to support@adfweb.com or ive us a call if you need it.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

NMEA 0183 / Modbus Slave

Converter

Document code: MN67616_ENG Revision 1.000 Pa e 4 of 30

EXAMPLE O CONNECTION:

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

NMEA 0183 / Modbus Slave

Converter

Document code: MN67616_ENG Revision 1.000 Pa e 5 of 30

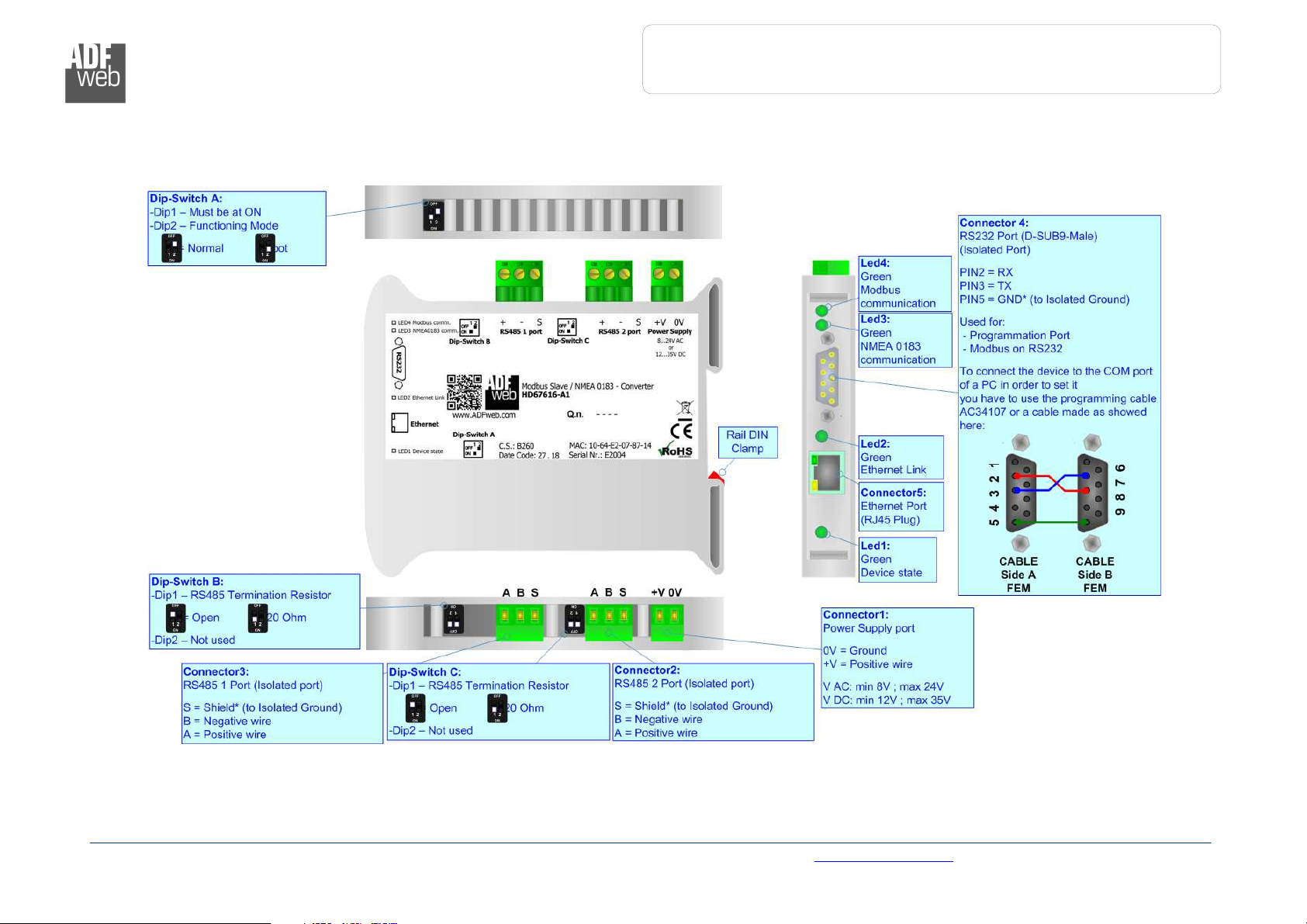

CONNECTION SCHEME:

Figure 1a: Connection scheme for HD67616-A1

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

NMEA 0183 / Modbus Slave

Converter

Document code: MN67616_ENG Revision 1.000 Pa e 6 of 30

Figure

1b: Connection scheme for HD67

616

422

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

NMEA 0183 / Modbus Slave

Converter

Document code: MN67616_ENG Revision 1.000 Pa e 7 of 30

CHARACTERISTICS:

The “NMEA 0183 / Modbus Slave – Converter” allows the followin characteristics:

electrical isolation between NMEA 0183 – Modbus, Power Supply – Modbus, Power Supply – NMEA 0183;

Multiple independent NMEA 0183 lines;

Mountable on Rail DIN;

Wide power supply input ran e: 8…24V AC or 12…35V DC;

Wide temperature ran e: -40°C / 85°C [-40°F / +185°F].

CON IGURATION:

You need Compositor SW67616 software on your PC in order to perform the followin :

Define the parameter of NMEA 0183;

Define the parameter of Modbus;

Define the list of NMEA 0183 sentences in reception;

Update the device.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

NMEA 0183 / Modbus Slave

Converter

Document code: MN67616_ENG Revision 1.000 Pa e 8 of 30

POWER SUPPLY:

The devices can be powered at 8…24V AC and 12…35V DC. The consumption depends to the code of the device. For more details see the two

tables below.

VAC

VDC

Vmin Vmax Vmin Vmax

8V 24V 12V 35V

Consumption at 24V DC:

Device Consumption [W/VA]

HD67616-xxx-A1 3.5

Caution: Not reverse the polarity power

HD67616-xxx-A1

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

NMEA 0183 / Modbus Slave

Converter

Document code: MN67616_ENG Revision 1.000 Pa e 9 of 30

UNCTION MODES:

The device has ot two function modes dependin on the position of the ‘Dip1 of Dip-Switch A’:

The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal workin of the device.

The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for uploadin the Project and/or Firmware.

For the operations to follow for the updatin , see ‘UPDATE DEVICE’ section.

Accordin to the functionin mode, the LEDs will have specific functions, see ‘LEDS’ section.

Warnin :

Dip1 of ‘Dip-Switch A’ must be at ON position to work even if the Ethernet cable is not inserted.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

NMEA 0183 / Modbus Slave

Converter

Document code: MN67616_ENG Revision 1.000 Pa e 10 of 30

LEDS:

The device has ot four LEDs that are used to ive information of the functionin status.

The various meanin s of the LEDs are described in the table below.

LED Normal Mode Boot Mode

1: Device State ( reen) Blinks slowly (~1Hz) Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in pro ress

2: Ethernet Link ( reen) ON: Ethernet cable connected

O : Ethernet cable disconnected

ON: Ethernet cable connected

O : Ethernet cable disconnected

3: NMEA 0183

communication ( reen) Blinks when NMEA 0183 frames are received Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in pro ress

4: Modbus communication

(yellow) Blinks when Modbus communication is runnin Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in pro ress
