Spec Sheet

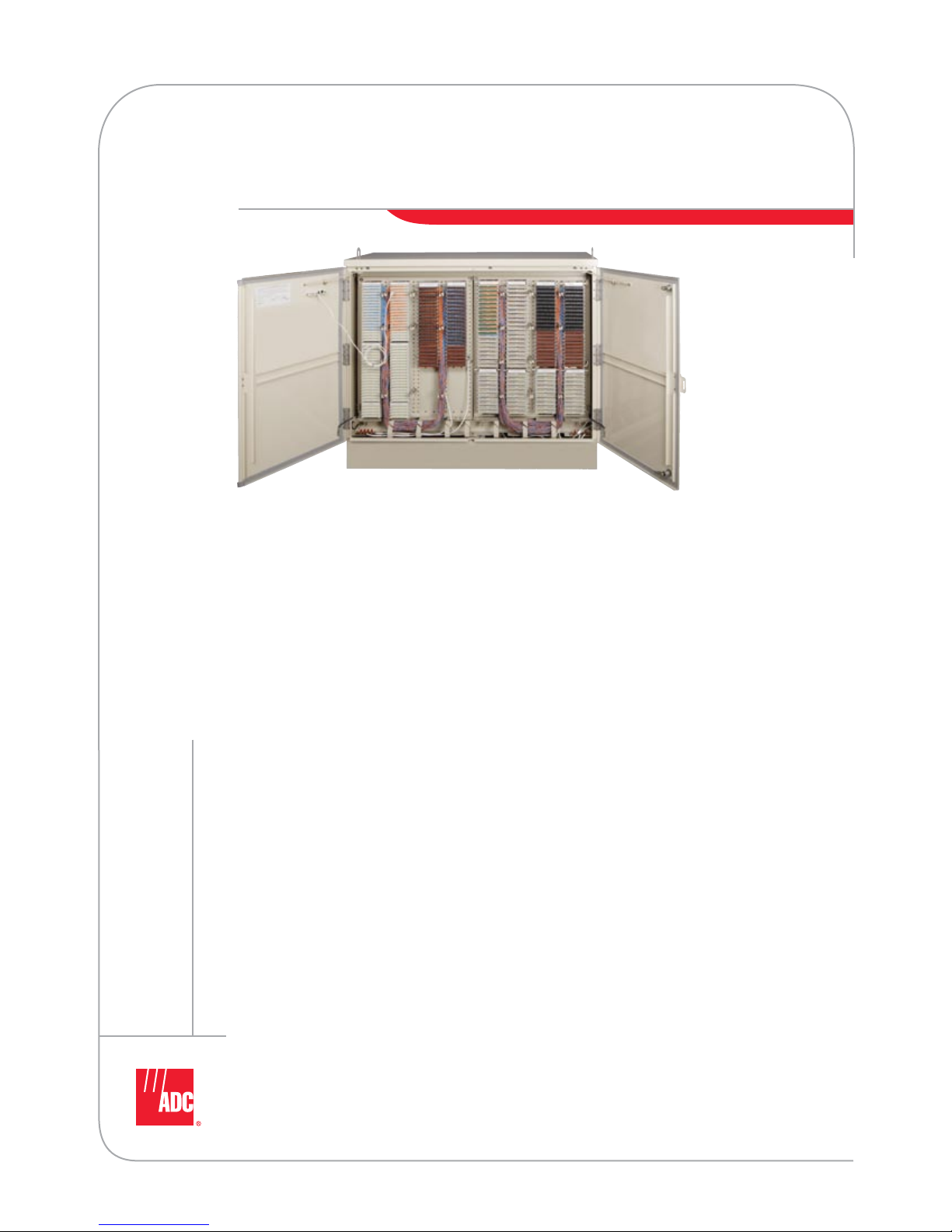

OmniReach® NCX-1000

Large Cabinet for FTTN Broadband Service Delivery

The NCX-1000 is a passive fiber-to-the node (FTTN) service delivery cabinet that is easily placed in

the feeder or distribution plant to support any re-sectionalizing or broadband overbuild application.

It is typically installed with an adjunct DSLAM cabinet or remote terminal that houses a broadband

DSLAM. The compact cabinet is designed for FTTN applications where re-sectionalizing the

network requires either a new cross connect interface with a 1:2 ratio of feeder to distribution

pairs or for 1:1 ratios where ADC’s patented Distribution Intercept (DI) service delivery solution is

used. The NCX-1000 family of cabinets supports up to 900 feeder circuits and 1800 distribution

circuits with 432 DSLAM input and output ports in a non-protected FDI configuration. Options for

non-protected and protected DSLAM circuits utilizing ComProtect®high performance protection

are available.

ADC’s OmniReach®FTTX Solutions are the industry’s first infrastructure solutions designed from

the ground up to meet the unique requirements of FTTX networks. Designed for operational

efficiency and scalability, OmniReach solutions simplify FTTX network installation, maintenance and

management from the central office/headend to the outside plant.

Features

Drop down panels offer easy access to OSP cable stubs for splicing into DSLAMs and network•

FDI (1:2) and patented Distribution Intercept (DI) (1:1) configurations available•

Works with existing F1/F2 cross box or can replace it•

Able to groom all existing xDSL shelves into a single format and provide cross-connect capability•

in addition to pair-bonding

Supports in-cabinet circuit protection•

Meets GR-487 requirements•

6/08•105052AEOmniReach®NCX-1000

OmniReach® NCX-1000

Large Cabinet for FTTN Broadband Service Delivery

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Green activation plugs in cross–connect

distribution ﬁeld provide visual indication of

active xDSL customers.

NCX-1000 shown with drop down panel opened

for easy access to OSP cable stubs for splicing into

DSLAMs and network.

Beneﬁts

Highly ﬂexible cabinet can be deployed in feeder•

or distribution plant

When utilizing Distribution Intercept (DI),•

fastest to deploy because only straight splicing

to OSP required

Unique look-both-ways test capability without•

lifting wires reduces time for technicians to

isolate network problems

Green activation plugs on DI cross connects•

offer visual indication of working

broadband customers

Preserves investment in existing copper plant•

Provides a consistent interface for technicians•

Distribution Intercept

The heart of the NCX-1000 is ADC’s patented Distribution Intercept (DI) cross-connect using LSA-PLUS®

Series 2 IDC connectivity.

 • BrownSeries2switchingblocksroutePOTSintotheDSLAMandpresentthecombinedDSLAM

output of POTS/xDSL signals.

 • WhiteSeries2disconnectblocksprovideOSPinputandoutputterminations.

Once the DI is spliced onto either feeder or distribution outside plant cable, broadband service activation

occurs with a simple 2 pair jumper between brown and white blocks and insertion of a green activation

plug.ExistingvoiceserviceisimmediatelyavailableuponsplicingtheDIontooutsideplantcabledueto

normally closed contacts on Series 2 white blocks.

Alternatively, the NCX-1000 supports a feeder distribution interconnect (FDI) option with separate Series

2 blocks for feeder and distribution circuits. In this 1:2 configuration, broadband service activation

requires two jumpers: one from the feeder block to the DSLAM input block and another from the

DSLAM output block to the distribution block.

The high performance LSA-PLUS Series 2 IDC blocks are far superior to standard 66- and 110-type

IDCblocks.Contactsangledat45degreesofferalarger,strongercrosssectionofwireandagastight

seal. Silver-plated contacts resist corrosion much more effectively than standard tin-plated contacts.

Combined with integral clamping ribs for extraordinary grip, LSA-PLUS blocks offer exceptional electrical

performance and contribute to reduced failure frequency rates in the network.

6/08•105052AEOmniReach®NCX-1000

OmniReach® NCX-1000

Large Cabinet for FTTN Broadband Service Delivery

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Cross Box

DLC Remote Cabinet

Cross Box

OmniReach NCX-1000

• Central location for xDSL service delivery

• LSA-PLUS IDC for distribution intercept

• “Look both ways” testing

• Inte

rated cable mana

ement

ComProtect

• Cross connect with

DSLAM circuit

protection

Adjunct DSLAM Cabinet

Specifications

GENERAL SPECIFICATIONS

Cabinet Size:  48"x21"x54"(heightxdepthxwidth)

OSP Pairs Termination: 710 connectors

DSLAM Pairs Termination: 710 connectors

Configurations:

FDI (1:2) protected 600 feeder pairs, 1,200 distribution

pairs, 432 DSLAM in/out ports

FDI(1:2)non-protected  900feederpairs,1,350to1,800distribution

pairs, 432 to 648 DSLAM in/out ports

DI (1:1) non-protected 1,600 OSP pairs in/out, 864 DSLAM ports in/out

MECHANICAL SPECIFICATIONS

OSP Input/Output: LSA-PLUS Series 2 disconnect block (white)

DSLAM Input/Output: LSA-PLUS Series 2 switching block (brown)

Contact Resistance: < 1 m Ω

Insulation Resistance:  >5x104MΩ

Contact Material: Copper Alloy

Contact Plating: Silver

Number of Test Cord Insertions:  >750

IDC Reterminations: > 200

Cross Connect Wire Requirements: 24 AWG solid, tinned cross connect wire

for all terminations

Spec Sheet

Website: www.adc.com

FromNorthAmerica,CallTollFree:1-800-366-3891•OutsideofNorthAmerica:+1-952-938-8080

Fax:+1-952-917-3237•ForalistingofADC’sglobalsalesofficelocations,pleaserefertoourwebsite.

ADCTelecommunications,Inc.,P.O.Box1101,Minneapolis,MinnesotaUSA55440-1101

Specifications published here are current as of the date of publication of this document. Because we are continuously

improving our products, ADC reserves the right to change specifications without prior notice. At any time, you may

verify product specifications by contacting our headquarters office in Minneapolis. ADC Telecommunications, Inc.

views its patent portfolio as an important corporate asset and vigorously enforces its patents. Products or features

containedhereinmaybecoveredbyoneormoreU.S.orforeignpatents.AnEqualOpportunityEmployer

Description Catalog Number

NCX-1000 Cabinets

NCX-1000 cabinet FDI (1:2) protected configuration equipped with 600

feeder pairs and 1200 distribution pairs with 864 DSLAM ports in/out protected.

Includes Insertion Tool and LSA-PLUS Series 2 test cord. Order ComProtect

protection modules separately.

KCE-FJA600X1200-2

NCX-1000 cabinet FDI (1:2) non-protected configuration equipped with

900 feeder pairs and 1800 distribution pairs with 432 DSLAM ports in/out

non-protected. Used for applications where adjunct DSLAM cabinet is equipped

with protection for DSLAM input and output circuits. Includes Insertion Tool and

LSA-PLUS Series 2 test cord.

KCE-FJA900X1800-2N

NCX-1000 cabinet FDI (1:2) non-protected configuration equipped with

900feederpairsand1350distributionpairswith648DSLAMportsin/out

non-protected. Used for applications where adjunct DSLAM cabinet is equipped

with protection for DSLAM input and output circuits. Includes Insertion Tool and

LSA-PLUS Series 2 test cord.

KCE-FJA900X1350-3N

NCX-1000 cabinet DI (1:1) non-protected configuration equipped with 1600

OSP Intercept pairs in/out and 216 DSLAM ports in/out. Can accommodate

up to 864 DSLAM ports. Additional block assemblies ordered separately. Used

for applications where adjunct DSLAM cabinet is equipped with protection for

DSLAM input and output circuits. Includes Insertion Tool and LSA-PLUS Series 2

test cord and green activation plugs.

KCE-DJA1600-1N

Accessories

Insertion Tool 64172055-01

Look-both-ways test cord for Series 2 6647 2 900-01

LSA-PLUSSeries2greenactivationplugsforxDSLactivation(forKCE-DJA1600-1N)

Quantity: 1 (order in multiples of 100)

60893055-02

Pad Mount Frame for NCX-1000 ACE-304PMF

ComProtect solid state overvoltage protection module for applications up to

ADSL2+.Twoprotectorsrequiredpercircuit.Blackhousing,packageof100.

66591010-30

ComProtect gas discharge tube overvoltage protection module

for applications up to VDSL2. Two protectors required per circuit.

Quantity: 1 (order in multiples of 100)

PRO-66591509-30

Ordering Information
