UniPatch® System Overview ................................................86

UniPatch® Backplane Options..............................................87

UniPatch® Module Options

GigE...............................................................................88

RS-422........................................................................... 89

Bantam Audio................................................................ 90

Video .............................................................................91

AES Balun ......................................................................92

UniPatch®Modular System

UniPatch

5/08 • 102117AE Broadcast and Entertainment Products

www.adc.com • +1-952-938-8080 • 1-800-366-3891

UniPatch®Modular System

Overview

The UniPatch® modular patching system with universal chassis allows you to combine data, audio,

and video patching modules in a single two-rack-unit modular panel. Order a mix of jack and backplane

modules to create a totally custom patching system, or order a preconfigured panel RS-422 data jacks.

You can start with only a few modules and add or change modules as needed. The universal chassis

with mix-and-match jack and backplane modules provides the ultimate in flexibility.

Modular Chassis for

Unprecedented Flexibility

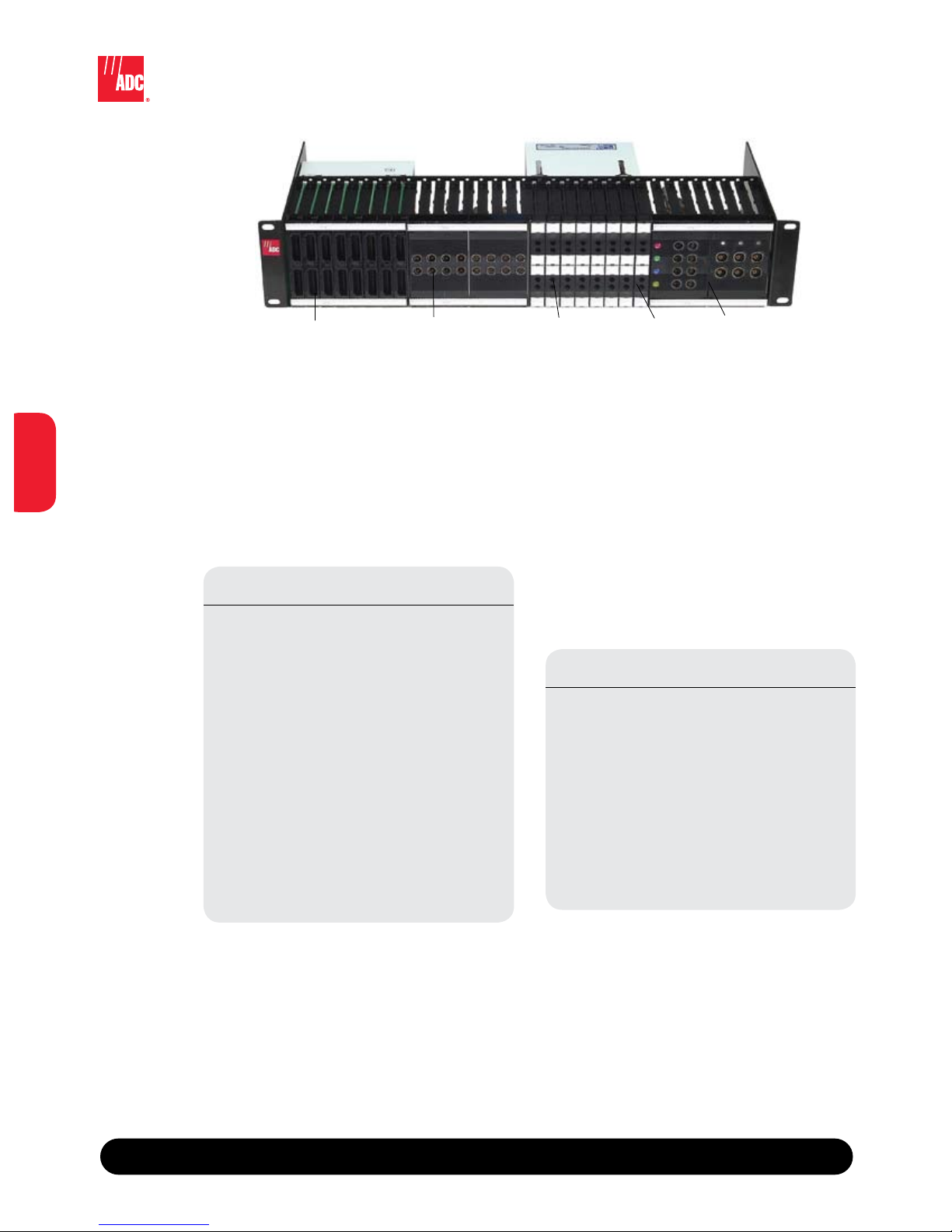

Loaded UniPatch Chassis

Features

Jacks and backplanes have a modular design •

and t into the rugged high-density card cage

chassis. Just plug in a module to add more

jacks or backplane connectors

Modularity lets you start small and add •

modules and cards as needed

Individual circuits are easily replaced without •

disturbing other circuits

Backplanes available in high-density 64-circuit •

bantam audio, high-density 32-port data,

standard-density 24-port data, and video

options

Gold-plated card edge connectors tested to •

withstand heavy use and vibration

Shallow 7" deep chassis is perfect for •

mobile applications

Mix-and-Match

Plug-in Jack Modules

The following modules (details on following pages)

may be assembled on site in mix and match

combinations. Data and bantam modules may be

ordered in a fully loaded preconfigured chassis.

Features

Category 3 compliant RS-422 modules •

for demanding professional data patching

applications

Bantam audio modules in user-selectable •

normalled congurations

Video modules for analog, SD, HD, and •

analog component

AES 110 • W to 75 W coaxial baluns

BNC bulkhead feedthroughs•

Category 5, 5e and 6 data patching•

RS-422 Data Midsize Video Bantam Audio Video RGBS RGB Video

UniPatch

5/08 • 102117AE Broadcast and Entertainment Products

www.adc.com • +1-952-938-8080 • 1-800-366-3891

UniPatch®Modular System

Backplane Options (mix-and-match)

Ten different backplane connector types are available, and because they come in modular units, they

can be mixed and matched like the jack modules. Each backplane supports up to eight jack modules.

AMP 50-Pin Receptacle

Rear Module

(for data)

(VPRM-A50-W)

Dsub9, RS-422

Rear Module

(for data)

(VPRM-D9-W)

EDAC 90-Pin

Rear Module

(for data)

(VPRM-E90-W EDAC)

QCP MKII

Rear Module

(for data)

(VPRM-MKII-W)

Features

Available modules:•

Dsub9 connectors–

AMP Champ 50-pin receptacle–

EDAC 3-pin plug–

EDAC 90-pin plug–

QCP MKII for data 20x8–

QCP MKII for audio 12x8–

EDAC 3-pin

Rear Module

(for audio)

(VPRM-BAN-E3)

QCP MKII

Rear Module

(for audio)

(VPRM-BAN-MKII)

UniPatch

5/08 • 102117AE Broadcast and Entertainment Products

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Unipatch Modular Systems

GigE Modules

Gigabit Ethernet Jack Module

LSA-PLUS® 8-Circuit Backplane Module

DM-GIGE

VPRM-GIGE-LSA

(rear view)

Features:

Dense pack patching •

Minimum of 30,000 patch cycles•

Normal-through patch by exception•

Modular design (can be removed without •

disturbing adjacent circuits)

Gold-plated contacts on switches and card •

edge connectors

Keyed opening for proper patch cord •

orientation

Features:

Patented LSA-PLUS• ® termination system

modules can be removed individually for

easier wiring

Number designation labels included•

Designation strip and window included for •

custom labeling

Designed for solid or stranded wire•

Eliminates the need for additional connectors •

and connector labor

Note: For complete configuration and ordering

information, please refer to Data Section.

UniPatch

5/08 • 102117AE Broadcast and Entertainment Products

www.adc.com • +1-952-938-8080 • 1-800-366-3891

UniPatch®Modular System

RS-422 Modules

The UniPatch® Category 3 compliant RS-422

module raises the standard in machine control

patching with its quality and robust design. Now

you can patch machine control data properly

using reliable, durable, military-grade jacks rated

for 30,000 insertion/withdrawal cycles. Each

circuit switches all ten pins, making the module

fully SMPTE 207M compliant. Compared to other

systems employing light-duty RJ45 connectors

rated at fewer than 500 insertion/withdrawal

cycles or bantam jacks that do not switch all

signal lines, the UniPatch RS-422 module is a

significant advance in machine control patching.

Features

The standard in professional data patching•

Durable military-grade switch system rated for 30,000 insertion/withdrawal cycles. Unlike RJ45 systems, •

suitable for heavy daily professional use.

Fully SMPTE 207M compliant circuits switch all ten pins, unlike bantam systems, which do not switch all •

ground pins, potentially causing problems

Tough military-grade, gold-plated switch with long cantilever beam springs and unique self-wiping contacts •

ensures against premature wear and provides positive contact force

RS-422 cards offer the highest density available. Up to 32 modules in two rack units for 33 percent •

greater density

Normalled or non-normalled cards available•

Modular termination options: Dsub9, DB-25, EDAC 90-pin plug, QCP II, Ultra Patch, standard-density, •

24 per frame, or Dsub9 high-density, 32 per frame (requires thin shell strain relief)

Keyed for proper patch cord orientation•

Category 3 compliant for 10 Base-T data•

UniPatch

5/08 • 102117AE Broadcast and Entertainment Products

www.adc.com • +1-952-938-8080 • 1-800-366-3891

UniPatch®Modular System

Bantam Audio Modules

The bantam audio jack modules for the

UniPatch® system are perfectly designed

for professional digital and analog audio

applications. Up to 32 modules plug into

the UniPatch chassis to provide a 64-circuit

(128 jacks) configuration when fully loaded,

matching typical router configurations. Each

module contains two circuits and four WECO-

standard precision bantam jacks designed for

long life. High-performance switches allow

flexible normalling and grounds for each circuit.

Large .440" x .325" designations provide

enough room for three lines of text.

Features

High-density, selectable normals, and excellent reliability•

33 percent higher density than conventional frame-type bantam bays. Up to 32 cards in a frame with •

2 circuits (4 jacks) per card for a total of 64 circuits (128 jacks)

32-across spacing exactly matches typical router congurations and provides larger designation area•

Switch-selectable normals and grounds for each circuit: normals strapped (NS), half-normal (HN), bussed •

ground (BG), or no normals (NN)

WECO-standard jacks meet or exceed MIL-STD-202 for mechanical durability as well as corrosion, salt spray, •

thermal shock, moisture resistance, and vibration

Precision-molded housing and sturdy, integrated all metal springs rated for 10,000 insertion/withdrawal •

cycles. Gold crossbar, self-cleaning contacts ensure a positive connection

Modular termination options: QCP II, EDAC 3-pin plug, EDAC 90-pin plug, DB-25, AMP Champ 50-pin •

receptacle, or QCP IV with 4-foot umbilical Ultra Patch panel

Snap-on designation holders accept individual labels without tools; conventional chassis-wide designation •

strips are also available. Large designations provide enough room for three lines of text

Fully compliant 110 • W circuit board meets demanding AES specications

Two circuits per card

Precision Impedance Matched DIP Switch

UniPatch

5/08 • 102117AE Broadcast and Entertainment Products

www.adc.com • +1-952-938-8080 • 1-800-366-3891

UniPatch®Modular System

Video Modules

RGBHV Video Module

(VM-RGBHV-MVJ-BK)

ADC offers a full line of UniPatch® video patching

modules, making it easy to assemble a custom

video patch panel for any application. Modules

are available for analog, SD, HD, or component

video. Included in the selection of jacks are

the standard size SVJ, midsize MVJ, and MUSA

SMJ-series HD jacks for outstanding performance

at high-definition data rates and beyond.

Standard Size Video Module

also available with CJ2020N75

terminated single jacks

(VM-2014-BK)

RGB, PrPBY HD Video Module

(VM-RGB-MVJ-BK)

Standard Size HD Video Module

(VM-SVJ-BK)

Midsize HD Video Module

(VM-MVJ-BK)

Features

Standard jacks mount 24 across, midsize jacks •

mount 32 across

Standard-size, HD video modules contain •

SVJ-2 normalled-through Super Video Jacks

with or without termination

Standard size straight-through modules •

contain CJ2014N jacks without termination or

CJ2020N-75 jacks with termination

Midsize HD video modules contain MVJ-3 •

normalled-through Super Video Jacks with

or without termination

Midsize straight-through modules contain •

CJ3014/4014 jacks without termination or

CJ3014N-75/4014N-75 jacks with termination

MUSA modules contain SMJ-2100 HD-rated •

MUSA standard jacks.

Modules are available for analog component •

video in the following congurations: RGB,

PrPBY, RGBS, and RGBHV

Large designations snap on without tools •

providing enough space for four rows of text

All modules provided with colored inserts to allow the user to customize for any use.

UniPatch

5/08 • 102117AE Broadcast and Entertainment Products

www.adc.com • +1-952-938-8080 • 1-800-366-3891

UniPatch®Modular System

AES Balun Modules

The patented AES 110 W to 75 W balun modules

provide precision impedance matching for

interfacing balanced twisted pair AES audio to

unbalanced coaxial audio. Eliminate the nuisance

of XLR soldering and the mess of baluns hanging

from equipment. Replace them with this clean,

simple solution.

UniPatch System fully loaded with 16 AES balun modules for 64 110-75 Wcircuits

(allows modules to be mounted either way)

For in-line baluns, see page 75

Features

Mounts on side of equipment rack with velcro •

or can be rack mounted

Modules contain four circuits for up to 64 •

circuits per 2 RU chassis

Works with quick-to-install QCP punchdown •

termination modules or EDAC 3-pin plug

1 Vp-p plug-in pad is available for equipment •

that cannot accept high-input voltages.

Plug-in pad feature allows each circuit to

be tailored for 1 Vp-p operation in 1dB

increments to -20dB

New splitter module provides 2-in/4-out •

passive split/110 W to 75 W converter

AES 110 Wto 75 WConverter

(AM-411075-E3-FF)

(front view) (rear view)

AES 110 Wto

75 WConverter

(AM-411075-MKII)

AES 2:4 Splitter

(AM-2110-475-E3)

Precision Transformers,

Glass Epoxy Circuit Board,

True 75 WBNC Connectors

UniPatch

5/08 • 102117AE Broadcast and Entertainment Products

www.adc.com • +1-952-938-8080 • 1-800-366-3891

UniPatch®Modular System

Ordering Information

Description Catalog Number

Empty Chassis

Empty UniPatch® chassis, black, supplied with VP-DES-343-32 kit VP2232-BK

Empty UniPatch chassis, gray, supplied with VP-DES-343-32 kit VP2232-G

Bantam Audio Fully Loaded Chassis

64-circuit loaded system QCP II, black* VP2232-BANQCP-BK

64-circuit loaded system EDAC 3-pin plug, black* VP2232-BANE3-BK

RS-422 Data Fully Loaded Chassis - normalled**

24-circuit Dsub9 normalled, gray, no backshell kits VP2224-D9-G

24-circuit Dsub9 normalled, black, no backshell kits VP2224-D9-BK

32-circuit Dsub9 normalled, gray, no backshell kits VP2232-D9-G

32-circuit Dsub9 normalled, black, no backshell kits VP2232-D9-BK

32-circuit Dsub9 normalled, black, with backshell kits VP2232-D9-BK-S

32-circuit Dsub9 normalled, gray, with backshell kits VP2232-D9-G-S

RS-422 Data Fully Loaded Systems - non-normalled**

24-circuit Dsub9 non-normalled, black, no backshell kits VP2224-NND9-BK

32-circuit Dsub9 non-normalled, black, no backshell kits VP2232-NND9-BK

32-circuit Dsub9 non-normalled, gray, no backshell kits VP2232-NND9-G

* Normal congurations on bantam audio cards to be set by user.

32-circuit Dsub9 systems require the use of a thin backshell kit.

** The thin backshell Dsub9 provides strain relief for standard

Dsub9 connectors. This shell kit is highly recommended

on 32-circuit UniPatch RS-422 systems and is included

where indicated.

The backshell kits are found on page 95.

Dsub9 Thin Backshell Kit

(Does not include Dsub9 connec-

tor, included wtih -S only.)

Ordering Information

Description Catalog Number

Traditional RS-422 Patch Panels

RS-422 2x12 non-normalled RJ45, black PEM-9NCDA1-BK-NN

RS-422 2x24 dual bantam to Dsub9 normalled PPB3-5R422D9NS

RS-422 2x12 dual bantam to Dsub9 normalled PPB3-5R422D9NS-12

UniPatch

5/08 • 102117AE Broadcast and Entertainment Products

www.adc.com • +1-952-938-8080 • 1-800-366-3891

UniPatch®Modular System

Ordering Information

Description

Required

Chassis Space Catalog Number

AES Balun Modules

AES 110 W to 75 W, 4-circuit BNC to QCP II 2 spaces AM-411075-MKII

AES 110 W to 75 W, 4-circuit BNC to EDAC 3-pin plug 2 spaces AM-411075-E3

AES 110 W to 75 W, 4-circuit BNC to EDAC 3-pin plug, front facing 2 spaces AM-411075-E3-FF

2:4 splitter balun module 110 W to 75 W2 spaces AM-2110-475-E3

Plug-in pad (replace “XX" with 01 to -20db) qty: 25 each - SCAP-XX

Audio Modules

Bantam audio, adjustable normals, 2-circuit (4 jacks), black 1 space AM-BAN-BK

Data Modules

2-port GigE normalling jack module: PCB with green masking 1 space DM-GIGE

2-port GigE non-normalling jack module: PCB with black masking 1 space DM-GIGE-NN

RS-422 data, 10-pin, normals through, black 1 space DM-422-BK

RS-422 data, 10-pin, normals through, gray 1 space DM-422-G

RS-422 data, 10-pin, non-normalled, black 1 space DM-422-NN-BK

RS-422 data, 10-pin, non-normalled, gray 1 space DM-422-NN-G

Ethernet data, Cat 5 RJ-RJ non normalled coupler, black 1 space DM-RJC5-BK

Ethernet data, blank adapter, black 1 space DM-6S-BK

Universal Blank Modules

Blank module, black 4 spaces DM-BLANK-BK

Blank module, gray 4 spaces DM-BLANK-G

Video Modules†

Standard, CJ2020N-75 terminated single, 3-circuit, black 4 spaces VM-2020-BK

Standard, Super Video Jack SVJ-2, 3-circuit, black 4 spaces VM-SVJ-BK

Standard, Super Video Jack SVJ-2T, terminated, 3-circuit, black 4 spaces VM-SVJT-BK

Midsize, Super Video Jack MVJ-3, 4-circuit, black 4 spaces VM-MVJ-BK

Midsize, Super Video Jack MVJ-3T, 4-circuit, terminated, black 4 spaces VM-MVJT-BK

Midsize, Super Video Jack MVJ-3, 4-circuit, gray 4 spaces VM-MVJ-G

Midsize, Super Video Jack MVJ-3T, 4-circuit, terminated, gray 4 spaces VM-MVJT-G

Midsize, MVJ-3, RGB+HV, black 4 spaces VM-RGBHV-MVJ-BK

Midsize, MVJ-3T, RGB+HV, terminated, black 4 spaces VM-RGBHV-MVJT-BK

Midsize, MVJ-3, RGB, PrPBY HD module, black 4 spaces VM-RGB-MVJ-BK

Midsize, MVJ-3T, RGB, PrPBY HD module, terminated, black 4 spaces VM-RGB-MVJT-BK

Midsize, CJ3014/4014N, 4-circuit, black 4 spaces VM-CJMID2-BK

Midsize, CJ3014/4014N-75, 4-circuit, terminated, black 4 spaces VM-CJMIDT2-BK

Midsize, CJ3014/4014N-75, 4-circuit, terminated, gray 4 spaces VM-CJMIDT2-G

Note: Conventional XLR baluns listed on page 76.

†Video circuits are supplied with designations and circuit indications.

Ordering information continues on next page.

UniPatch

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de red de ADC

ADC

ADC HiGain HLU-388 List 5 Instrucciones de funcionamiento originales

ADC

ADC HiGain H2TU-C-319 List 4E Manual de usuario

ADC

ADC PG-PLUS PLL-733 Manual de usuario

ADC

ADC LoopStar 1600 Manual de usuario

ADC

ADC HiGain H2TU-C-319 List 4E Instrucciones de funcionamiento originales

ADC

ADC UltraWAVE GSM Network-In-A-Box 105968AE Manual de usuario

ADC

ADC H2TU-C-388 HiGain Manual de usuario

ADC

ADC HiGain H2TU-C-231 Instrucciones de funcionamiento originales

ADC

ADC Fiber Optic Panel FL2000 Series Manual de usuario

ADC

ADC Active Digital Signal Cross-Connect ASX Manual de usuario

ADC

ADC HiGain H2TU-C-231 Manual de usuario

ADC

ADC Digivance 19717-A Manual

ADC

ADC OmniReach NCX-1000s Manual de usuario

ADC

ADC HiGain H2TU-C-231 Instrucciones de funcionamiento originales

ADC

ADC HIGAIN H4TU-C-388 Instrucciones de funcionamiento originales

ADC

ADC InterReach 1900 PCS Manual de usuario

ADC

ADC PG-PLUS PLL-724 Manual de usuario

ADC

ADC HiGain HLU-231 List 8F Instrucciones de funcionamiento originales

ADC

ADC Universal Transport Platform for Access Networks PONy Express... Manual de usuario

ADC

ADC Carrier-Grade WiMAX Base Station WMX 5000 Manual de usuario

ADC

ADC HiGain HDSL2 Manual de usuario

ADC

ADC PG-Flex FLC-704 Manual de usuario

ADC

ADC Digivance NXD Manual

ADC

ADC PG-Flex FLL-812 Manual de usuario

Manuales populares de Hardware de red de otras marcas

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manual de usuario

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manual de usuario

Yudor

Yudor YDS-16 Manual de usuario

D-Link

D-Link ShareCenter DNS-320L Manual de usuario

Samsung

Samsung ES1642dc Instrucciones de uso

Honeywell Home

Honeywell Home LTEM-PV Instrucciones de montaje

evertz

evertz 7700 Series Manual de usuario

D-Link

D-Link ShareCenter DNS-343 Manual de usuario

Asante

Asante AsanteBridge 1012 Manual de usuario

FireBrick

FireBrick FB2700 Manual de usuario

Audiovox Electronics

Audiovox Electronics ARWH2T Manual de usuario

NetComm

NetComm NF2 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 5620 Manual de usuario

Dell EMC

Dell EMC XC6420 Series Manual de usuario

Lanner

Lanner NCA-1020A Manual de usuario

Allied Telesis

Allied Telesis AT-TN121-A Manual de usuario

Arista

Arista CCA-ETM-Q12 Manual de usuario

Lanner

Lanner NCA-1525 Manual de usuario
