VIDAR
INSTALL GUIDE
Document version: 2021.07.23.
Table of Contents
THE FCC DECLARATION OF CONFORMITY.....................................................................................................3
COMPLIANCES.......................................................................................................................................................4
1. Hardware Overview...................................................................................................................................5
1.1. Bracket Details and Sizes ................................................................................................................ 6
2. Install the Hardware..................................................................................................................................7
Mounting .............................................................................................................................................................7
3. Connect the Cables...................................................................................................................................8
3.1. Cable Layouts .................................................................................................................................... 9
4. Software Requirements..........................................................................................................................14
5. Accessing the Camera ...........................................................................................................................14
6. Recommended Camera Position .........................................................................................................16
7. Maintenance / Storage...........................................................................................................................18
APPENDIX..............................................................................................................................................................19
CONTACT INFORMATION..................................................................................................................................22
Page 3/22
VIDAR Install Guide
Adaptive Recognition America
Adaptive Recognition Hungary
Adaptive Recognition Nordic
Adaptive Recognition Singapore
SENDINFO@ADAPTIVERECOGNITION.COM
WWW.ADAPTIVERECOGNITION.COM
The FCC declaration of conformity
47 CFR PART 15 SUBPART B
VIDAR
FCC statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired
operation.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
Changes or modifications not expressly approved by the manufacturer responsible for compliance
could void the user's authority to operate the equipment.
Warning: Where shielded interface cables or accessories have been provided with the product or
specified additional components or accessories elsewhere defined to be used with the installation of
the product, they must be used in order to ensure compliance with FCC. Changes or modifications to
product not expressly approved by Adaptive Recognition Hungary could void your right to use or
operate your product by the FCC.
Page 4/22
VIDAR Install Guide
Adaptive Recognition America
Adaptive Recognition Hungary
Adaptive Recognition Nordic
Adaptive Recognition Singapore
SENDINFO@ADAPTIVERECOGNITION.COM
WWW.ADAPTIVERECOGNITION.COM
Compliances
CE Certificates:
The AR FreewayCAM4 ANPR digital camera (VIDAR) family complies with the European CE
requirements specified in the EMC Directive 2014/30/EU.
The ANPR cameras conform to the following Product Specifications:
Emission and Immunity:
EN 55032:2015, EN 55024:2010+A1:2015
Declaration of RoHS Compliance for Electrical and Electronic Products:
Adaptive Recognition Hungary ("the Company") hereby declares that the VIDAR ANPR camera family
placed on the European Community market by the Company after 1st July 2006 are compliant with
EC Directive 2002/95/EC on the Restrict of Certain Hazardous Substances in Electrical and
Electronic Equipment (commonly known as the EU RoHS Directive.)
Compliance with RoHS means that where the product falls under the scope of the EU RoHS
Directive, the product does not contain the following substances:
- Mercury (Hg) 0.1%
- Lead (Pb) 0.1%
- Cadmium (Cd) 0.01%
- Hexavalent Chromium (Cr+6) 0.1%
- Polybrominated Biphenyls (PBB) 0.1%
- Polybrominated Diphenyl Ethers (PBDE) 0.1%
above the indicated maximum concentration values by weight in homogeneous materials unless the
substance is subject to an exemption specified in the Directive or in subsequent Commission
Decisions.
This declaration represents the Company's best knowledge, which is partially based on information
provided by third party suppliers.
Page 5/22
VIDAR Install Guide
Adaptive Recognition America
Adaptive Recognition Hungary
Adaptive Recognition Nordic
Adaptive Recognition Singapore
SENDINFO@ADAPTIVERECOGNITION.COM
WWW.ADAPTIVERECOGNITION.COM
1. HARDWARE OVERVIEW
Green status LED
Light sensor
Red status LED
Sunshield
Wall bracket
Camera with bracket
Camera front
Camera optics
Built-in-
illuminator
Laser
Page 6/22
VIDAR Install Guide
Adaptive Recognition America
Adaptive Recognition Hungary
Adaptive Recognition Nordic
Adaptive Recognition Singapore
SENDINFO@ADAPTIVERECOGNITION.COM
WWW.ADAPTIVERECOGNITION.COM
1.1. BRACKET DETAILS AND SIZES
Page 7/22
VIDAR Install Guide
Adaptive Recognition America
Adaptive Recognition Hungary
Adaptive Recognition Nordic
Adaptive Recognition Singapore
SENDINFO@ADAPTIVERECOGNITION.COM
WWW.ADAPTIVERECOGNITION.COM
2. INSTALL THE HARDWARE

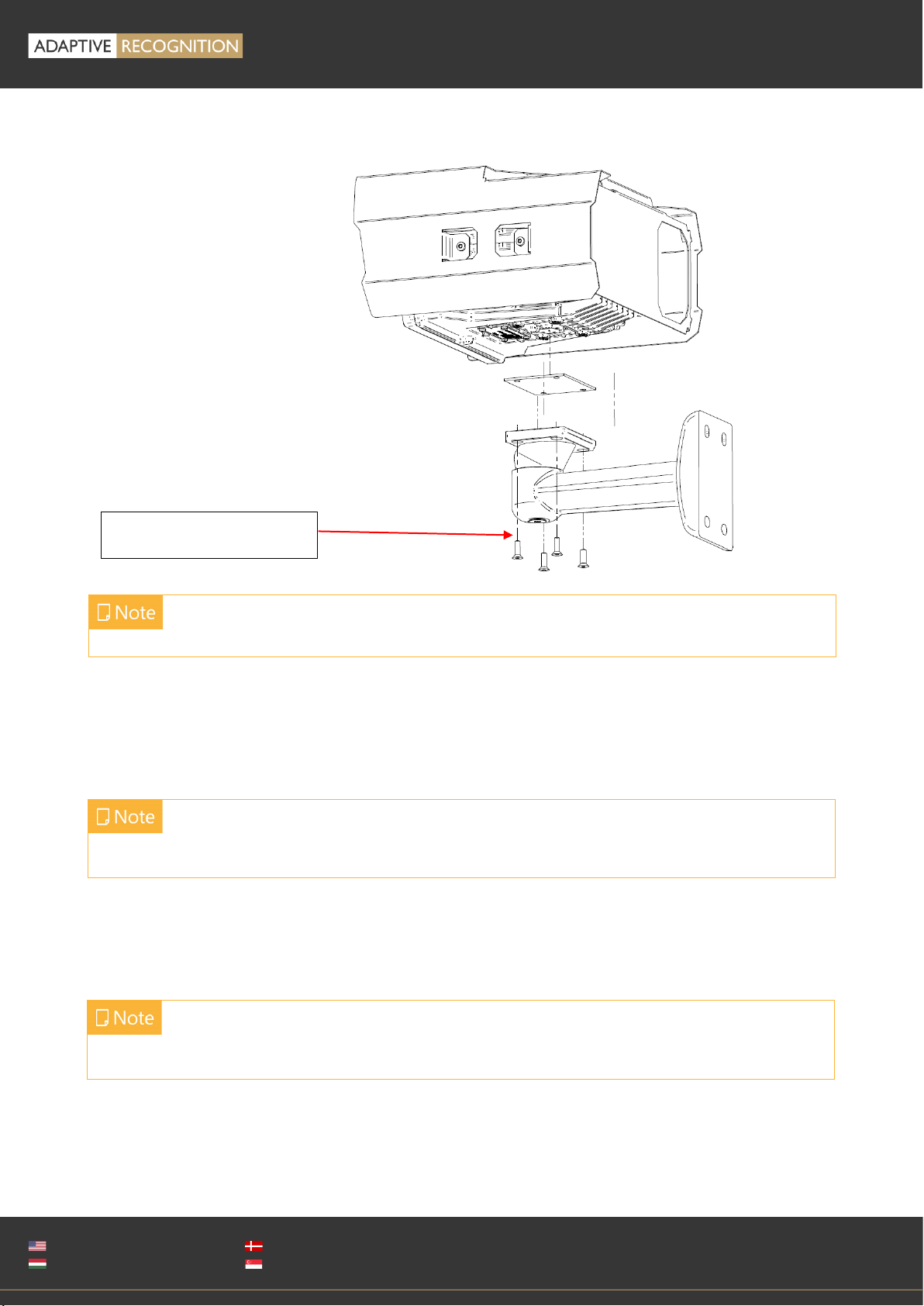

Adjust the bracket
1. Loosen the camera fastening screw on the bottom of the bracket. (Use size 5 Allen key).
2. Adjust the bracket into the desired position.
Tighten the screw back.
Mounting
The bracket can be mounted into different surfaces. Use appropriate screws for installation
according to the mountable surface.
Camera fastening screws
Remove protective film from the protecting plate (on the camera front) before using the camera.
Do not overtighten the screws.
Failures due to inappropriate installation void the warranty.
Page 8/22
VIDAR Install Guide
Adaptive Recognition America
Adaptive Recognition Hungary
Adaptive Recognition Nordic
Adaptive Recognition Singapore
SENDINFO@ADAPTIVERECOGNITION.COM
WWW.ADAPTIVERECOGNITION.COM
3. CONNECT THE CABLES
Technical specifications are subject to change without prior notice.
•For cabling use quality, outdoor-certified cables! Improper cabling causes warranty
to void! Water may enter into the camera inside through loose cable ends. Use
smooth circular cables only.
•SEAL THE UNUSED CABLE ENDINGS (END SLEEVES) BEFORE CONNECTING TO
POWER IN ORDER TO AVOID DAMAGES DUE TO SHORT CIRCUIT!
Page 9/22
VIDAR Install Guide
Adaptive Recognition America
Adaptive Recognition Hungary
Adaptive Recognition Nordic
Adaptive Recognition Singapore
SENDINFO@ADAPTIVERECOGNITION.COM
WWW.ADAPTIVERECOGNITION.COM

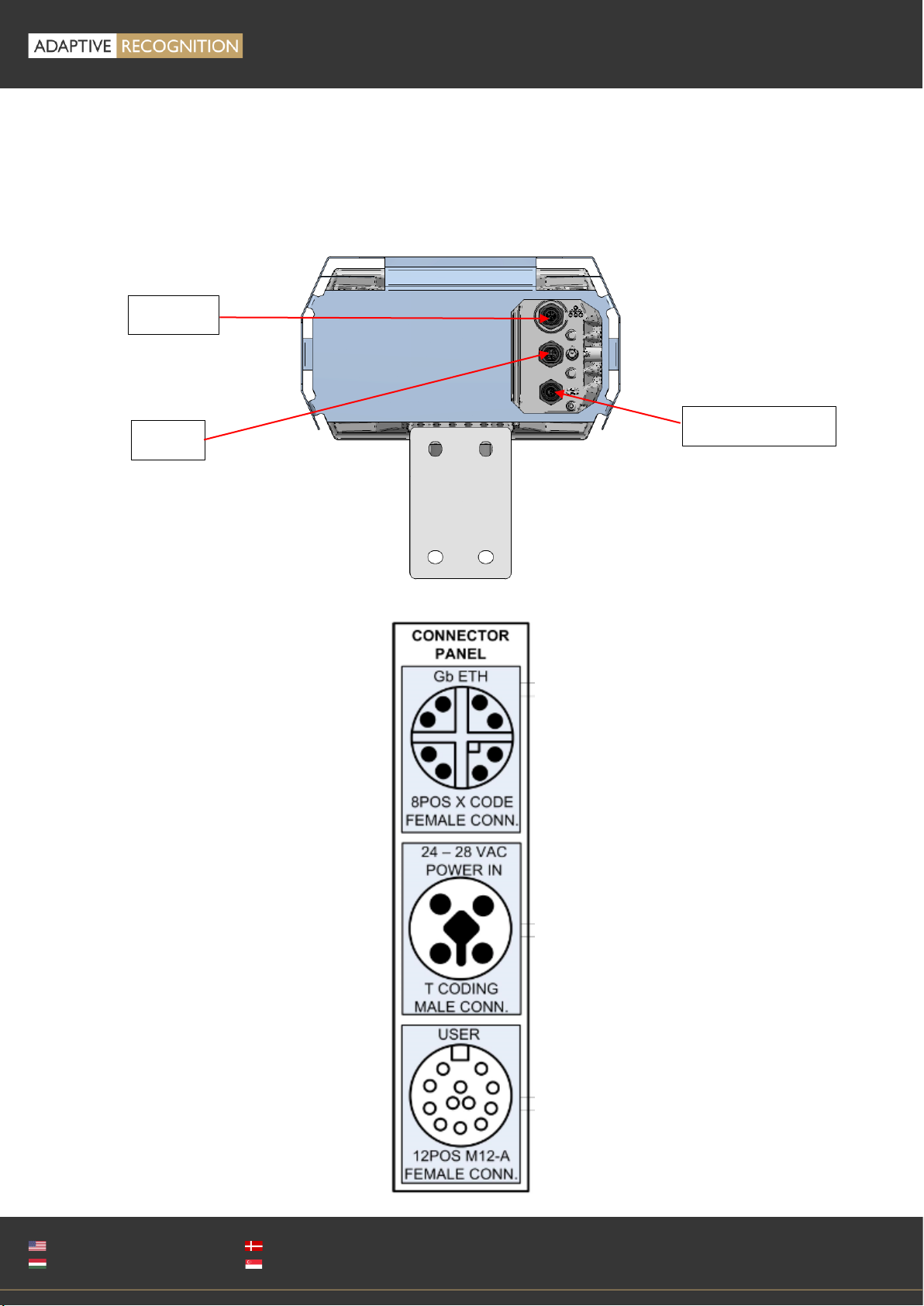

3.1. CABLE LAYOUTS
Power
Ethernet
I/O (12 pin)
Page 10/22
VIDAR Install Guide
Adaptive Recognition America
Adaptive Recognition Hungary
Adaptive Recognition Nordic
Adaptive Recognition Singapore
SENDINFO@ADAPTIVERECOGNITION.COM
WWW.ADAPTIVERECOGNITION.COM

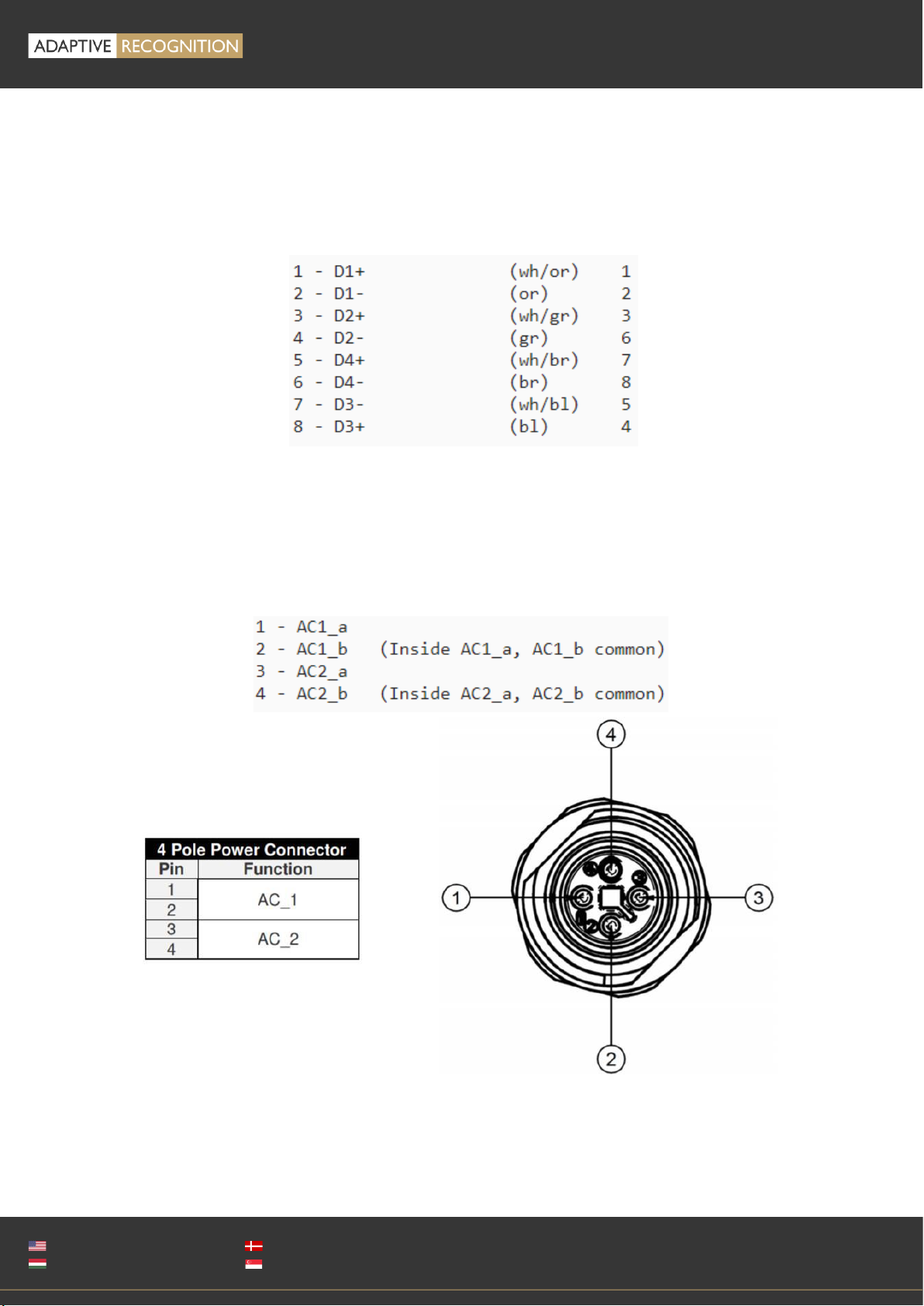

Ethernet
(8 pos. M12 X coded, Female) ... ... RJ45
Wire colors and RJ45 positions refer to those in the supplied standard ETH cable. Use quality
outdoor Cat6 cable.
Power
4 pos. M12 T coded, Male
Input voltage should be connected to AC1 and AC2. Both signals are connected to two pins (a and b)
to allow for larger effective cable diameter/two wires for each potential. AC1_a and AC1_b are
connected in the device. AC2_a and AC2_b are connected in the device.
