Adaptec AFM-600 Manual de usuario

Installation Instructions

Adaptec Flash Backup Module AFM-600 for Adaptec Unified Serial™RAID Controllers

some jurisdictions.

Part Number: MAN-00260-01-A Rev B

Using the appropriate static protection, remove the controller from your computer.

1Insert screws through the bottom of the controller board, as shown in Figure 1.

Then, insert spacers on the screws.

2Attach the AFM-600DB (daughterboard) to the controller by mating the two black

connectors. Affix a hex nut to the end of each of the screws, as shown in Figure 2.

Caution: The torque should be less than 0.06Nm to avoid deformation. Do not use a

tool to hold the nut in place to avoid damaging the semi-conductor components on the

daughterboard near the screw holes. Be sure that the controller is not bent after

attaching the daughterboard to the controller card.

3Attach the AFM-600CC supercapacitor module to the controller by inserting the

connector into the socket on the AFM-600DB, as shown in Figure 3. The connector

attaches to the socket in only one direction.

4Choose a location on the chassis or in the system to fix the tethered supercapacitor

module using the included cable-ties such that (i) the cable (18.5") reaches the

mating location on the controller when it is installed in the expansion slot;

(ii) wiring is routed and secured so that it does not contact any moving parts (fans,

for instance); and (iii) the supercapacitor module is protected from heat.

5Thread the cable-ties through the slots on the supercapacitor module and fix to the

selected location on the computer chassis. The cable-ties should completely encircle the supercapacitor module to ensure that it is held

in place securely, as shown in Figure 4. Be careful not to restrict air-flow in your system.

6Reinstall the controller, and restart your computer.

7The supercapacitor starts charging automatically. It should reach full charge in 3-4 minutes.

Warning: (i) Do NOT remove or insert a fully charged supercapacitor module. Always discharge the unit first to avoid damage to the controller or

flash backup module. The factory ships with discharged units, so they are safe to install when you receive them. To ensure that an installed unit

is discharged, switch the system OFF, then wait 5 minutes. After a dirty shutdown, wait 3 minutes after backup is complete, then remove the

unit. (ii) There is a risk of explosion if the supercapacitor module is replaced by an incorrect type.

Figure 1 Figure 2

Spacers

Figure 3 Figure 4

Supercapacitor module

Tabla de contenidos

Otros manuales de Hardware de computadora de Adaptec

Adaptec

Adaptec Serial Attached SCSI (SAS) Expander Card Manual de usuario

Adaptec

Adaptec ACB-232XD Manual de usuario

Adaptec

Adaptec ATA II 1220SA Manual de usuario

Adaptec

Adaptec 2010S - SCSI RAID Storage Controller Manual de usuario

Adaptec

Adaptec ACB-2320 Manual de usuario

Adaptec

Adaptec ACB-2370 Manual de usuario

Adaptec

Adaptec RAID 3085 Manual de usuario

Adaptec

Adaptec 4000SAS Manual de usuario

Adaptec

Adaptec AHA-2940 - SCSI Card Manual de usuario

Adaptec

Adaptec 2940U2W - Storage Controller U2W SCSI 80... Manual de usuario

Adaptec

Adaptec RAID 2405Q Manual de usuario

Adaptec

Adaptec 2025ZCR - SCSI RAID Storage Controller Manual de usuario

Adaptec

Adaptec 6405 Manual de usuario

Adaptec

Adaptec DuraStor 7200S Manual de usuario

Adaptec

Adaptec PM3332UW Manual de usuario

Adaptec

Adaptec 2410SA - Serial ATA RAID Controller Manual de usuario

Adaptec

Adaptec M3093GX Manual de operación y mantenimiento

Adaptec

Adaptec 2100S - SCSI RAID Controller Guía de seguridad

Adaptec

Adaptec RAID 5405Z Manual de usuario

Adaptec

Adaptec ARO-1130CA Instrucciones de montaje

Adaptec

Adaptec FireWire 1394 Manual de usuario

Adaptec

Adaptec GDT6111RP Manual de usuario

Adaptec

Adaptec ASA-7211C Manual de usuario

Adaptec

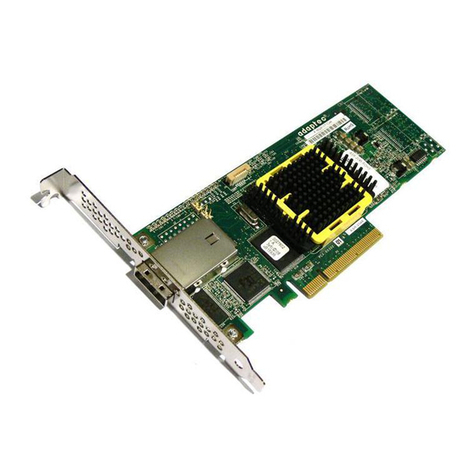

Adaptec 2045 Manual de usuario
