ActionTec SBWD950A Manual de usuario

Wireless Display Receiver

Installation Guide

This Installation Guide will walk you through the easy steps

to set up your ScreenBeam Pro Wireless Display Receiver -

Enterprise Edition. During this process, we’ll show you how to

AInstall the Receiver

B1Connect Using Windows 8.1 or Higher

B2Connect Using Intel WiDi App (Gen 5)

B3Connect Using WiFi Miracast-enabled Device

CSwitch Display Modes

DDevice Management

Model# SBWD950A

Part No:

Meeting ScreenBeam Pro

Ethernet: connects to ScreenBeam Central Management

System via Ethernet for receiver management

HDMI Out: connects to HDTV/projector with an HDMI port

for video and audio output

Power: for power supply

Reset: resets system to defaults

LED Indicator: indicates power supply status

USB: for conguring CMS connection data, rmware update,

and USB control

VGA Out: connects to HDTV/projector with a VGA port for

video output

VGA In: VGA input for VGA bypass

Welcome!

Step2Plug one end of the HDMI/VGA cable into the HDMI/

VGA Out port on the Receiver, and the other end into an

available HDMI/VGA port on the HDTV/Projector.

Step3Plug the connector of the power cord into the Power

port of the Receiver, and the AC adapter into a power outlet.

AInstall the Receiver

Thank you for your purchase of a ScreenBeam Pro Wireless

Display Receiver - Enterprise Edition (hereinafter referred to

as the Receiver). The Receiver connects to your Intel WiDi or

Miracast-capable device wirelessly, and displays the device’s

screen on your HDTV.

Step1Get the Receiver, power adapter, and HDMI cable or

VGA cable from the Receiver’s box.

Step4Turn on your TV and switch the input source until

you see the Ready To Connect screen.

Step5(Optional) VGA bypass connection is shown below:

B1 Connect Using Windows 8.1 or Higher

Step1From the Windows desktop,

navigate to the Charms menu and

select Devices. You can also use the

shortcut keys, + K.

Step2From the Charms menu,

click the Project icon.

The Receiver is now connected to your HDTV. Proceed to one

of the next three sections of this Guide (depending on the

device you are using to connect to the Receiver) to nish the

connection procedure.

For Windows 8.1 devices, please proceed to section B1;

For Windows 7/8 devices, please proceed to section B2;

For Android devices, please proceed to section B3.

Step4Select the ScreenBeam

Receiver from the list.

Step5Enter the PIN displayed on

the television screen, then connect

and display.

Note: If you are running Windows 8.1 and the screens above

do not appear, go to http://www.actiontec.com/widi81 for

the latest software updates.

Step3From the Project screen,

select Add a wireless display.

Step2The device scans for

available receivers. Select your

receiver on the list to connect to the

receiver.

Step3A PIN and the host name

of the connecting device are dis-

played. Enter the PIN in the PIN

entry box on the WiDi device, and

click Continue.

Step1Find the Intel Wireless Display application on the

device and launch it. To nd the application, go to Windows

Search on your device and search for “Intel WiDi” in your apps.

B2Connect Using Intel WiDi App (Gen 5)

Step4The HDTV displays

messages to show the status of the

connection process.

Step5Your device will connect to

the receiver, and the device’s screen

will be displayed on the HDTV.

Note: Connection using Intel WiDi (4.x.x.x) is available when

the receiver’s AGO feature is disabled. Connection procedure

is similar.

Step2The Wireless Display Application scans for available

receivers. Select your receiver from the list.

Step3Enter the PIN displayed on the TV screen if required,

and then connect.

Step1On a Miracast-enabled Android device, locate and

open the Wireless Display Application.

B3Connect Using Miracast-enabled Device

You can connect to the Receiver from a Miracast-enabled

Android device, such as a smartphone, tablet, or game console

(nd the wireless display feature in Settings). Also, the device

should be running the latest software for best performance.

Note: The name of the Wireless Display Application depends

on the device type and model. Refer to the device’s carrier or

manufacturer user manual for more details.

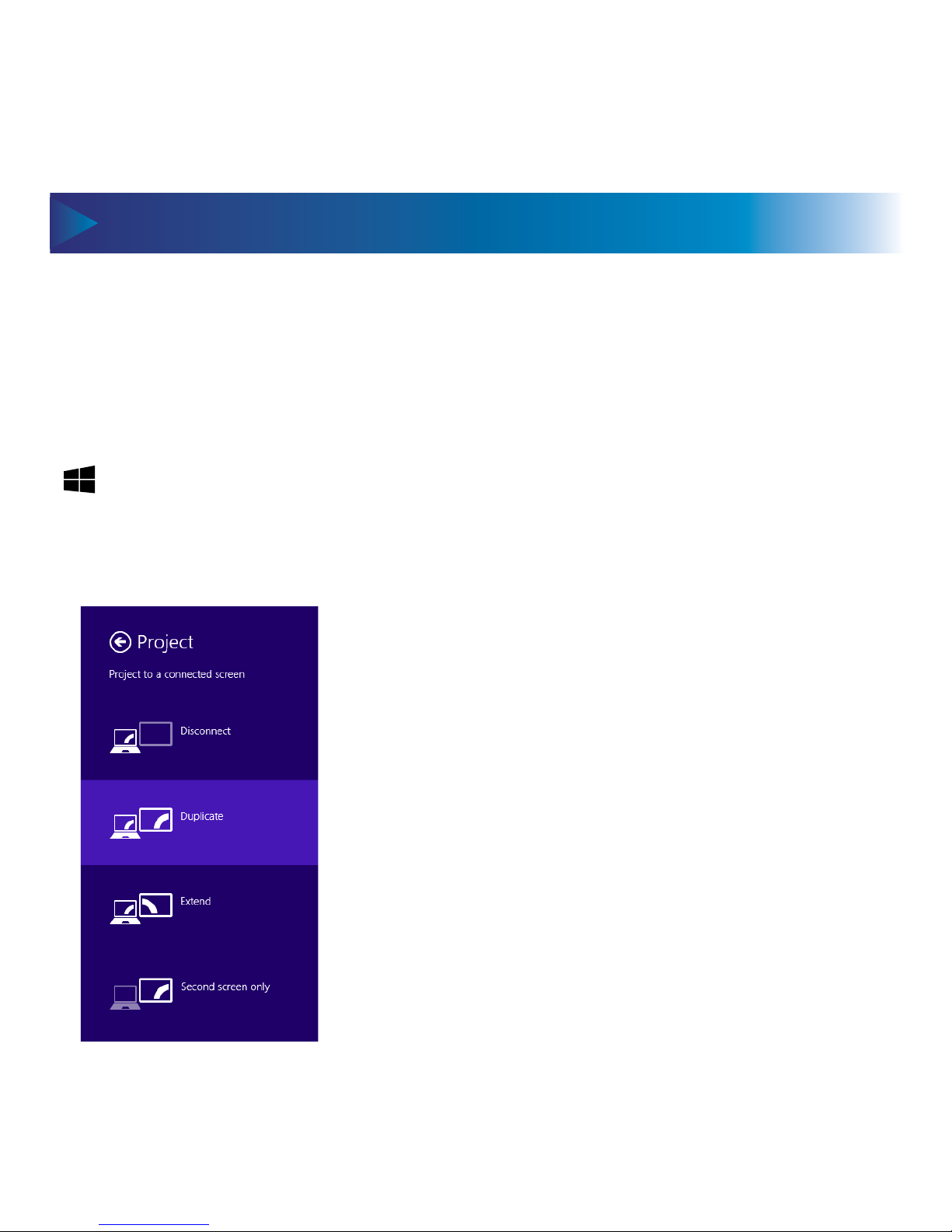

The Receiver supports three display modes when connected

with a compatible wireless display application (Intel WiDi or

Windows 8.1 Project, for example).

In Windows, press the Windows logo + Pkeys simultaneously

( + P) to launch the display options and select the desired

display mode from the options.

Windows 8.1 Windows 7

Switch Display Modes
