ActionTec SBWD50A Manual de usuario

Wireless Display

Receiver

Model # SBWD50A

Installation Guide

This Installation Guide will walk you through the easy steps

to set up your ScreenBeam Mini Receiver. During this

process, we’ll show you how to :

AInstall the Receiver

B1Connect Using

Windows 8.1 or Higher

B2Connect Using Intel WiDi App

B3Connect Using WiFi

Miracast-Enabled Device

Part No: 0530-0703-000

Welcome!

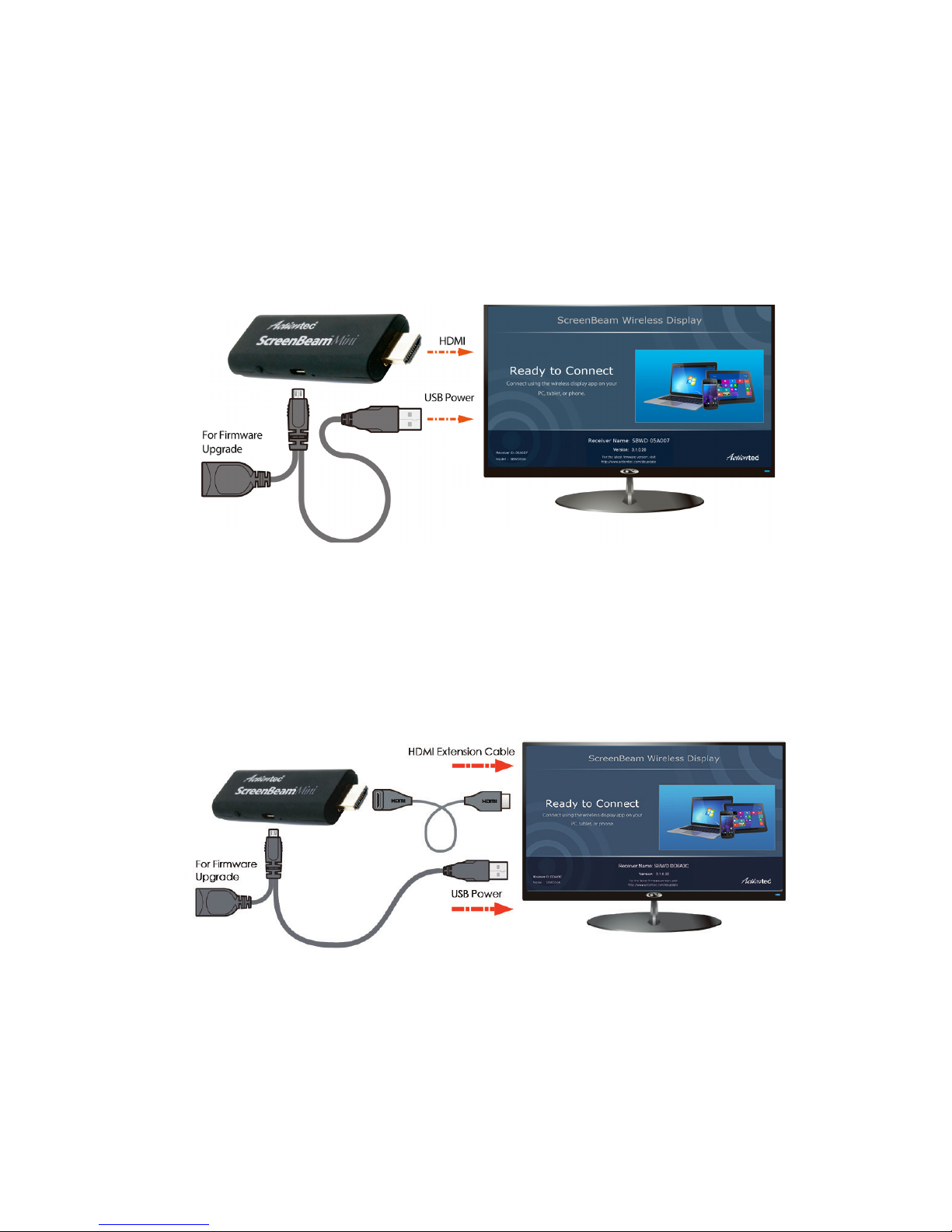

Step2Plug the male connector (smaller end) of the USB

cable to the ScreenBeam Mini’s micro USB port labeled

“Power”.

Step3Plug the ScreenBeam Mini Display Receiver into an

available HDMI port on your HDTV.

AInstall the Receiver

Congratulations on your purchase of a ScreenBeam Mini

Wireless Display Receiver. The Mini Wireless Display Receiver

connects to your compatible Intel WiDi or Miracast wireless

display-capable device, and displays the device’s screen on

your HDTV.

Step1Get the ScreenBeam Mini Wireless Display Receiver,

USB cable and HDMI extension cable from the ScreenBeam

Mini box.

Step4Plug the male connector (larger end) of the USB

cable to a USB port on your HDTV.

Step5Turn on your TV and switch the input source until

you see the Ready to Connect screen.

Note: If you cannot plug the Receiver into an HDMI port on

your TV (due to other components, or a poorly accessible

port), use the supplied HDMI extension cable to connect the

Receiver.

B1 Connect Using Windows 8.1 or Higher

Step1From the Windows desktop,

navigate to the Charms menu and

select Devices. You can also use the

shortcut keys, + K.

The ScreenBeam Mini Receiver is now connected to your

HDTV. Proceed to one of the next three sections of this Guide

(depending on the device you are using to connect to

ScreenBeam Mini) to nish the connection procedure.

Note: ScreenBeam Mini only works in the 2.4GHz band. Make

sure your device is connected to a 2.4GHz wireless router

prior to connecting ScreenBeam Mini.

If there is no available USB port on your HDTV, you can power

the Receiver with an AC power adapter. The AC power adapt-

er is an optional accessory.

Step2From the Charms menu,

click the Project icon.

Step3From the Project screen,

select Add a wireless display.

Step4Select the ScreenBeam

Receiver from the list.

Step5Enter the PIN as displayed

on the television screen, then

connect and display.

Note: If you are running Windows 8.1 and the screens above

do not appear, go to http://www.actiontec.com/widi81 for

the latest software updates.

Step2The device scans for

available receivers. Select the same

receiver name as seen on the HDTV

and click Connect. (The Connect

Automatically checkbox is optional.)

Step3Wait until the Receiver

displays a PIN on the HDTV, and a

PIN entry box on the screen of the

WiDi device. Enter the PIN in the

PIN entry box on the WiDi device,

then click Continue.

Step1Find the Intel Wireless Display application on the

device and launch it. To nd the application, go to Windows

Search on your device and search for“Intel WiDi” in your apps.

B2Connect Using Intel WiDi App

Note: If your device’s OS is Windows 8.1 or higher, proceed to

section B1(“Connect Using Windows 8.1 or Higher”) for

connection instructions.

Step4The HDTV displays

messages to show the status of the

connection process.

Step5AConnection Successful

screen appears on your device’s

screen, as well as on the HDTV.

Display Tip: If the edges of the device screen cannot be

seen on the HDTV, adjust cropping. To do this, enter the

WiDi application and click Settings. Navigate to the “Picture

and Sound” section, click Adjust cropping…, and adjust the

HDTV picture by clicking plus (+) or minus (-).

Note: Make sure the device supports Intel Wireless Display

(WiDi) software version 3.5 or higher. To nd out what version

of Intel WiDi your device has, enter the Intel WiDi application

and click Help, then navigate to the “About WiDi” section. To

obtain the latest Intel WiDi software and drivers, go to:

http://www.intel.com/go/wirelessdisplayupdate

Step2The Wireless Display Application scans for available

receivers. Select the ScreenBeam Receiver from the list.

Step3Wait for the device to associate with the Receiver.

When it does, the device’s screen will be displayed on the HDTV.

CProduct Support & Additional Information

Step1On a Miracast-enabled Android device, locate and

open the Wireless Display Application.

B3Connect Using Miracast-Enabled Device

You can connect to ScreenBeam Mini from a Miracast-enabled

Android device, such as a smartphone, tablet, or game console

(nd the wireless display feature in Settings). Also, the device

should be running the latest software for best performance.

Note: The name of the Wireless Display Application depends

on the device type and model. Refer to the device’s carrier or

manufacturer user manual for more details.

Go to http://international.actiontec.com/support for prod-

uct support, updates, and more information including:

• Firmware Updates • Troubleshooting • Registration • FAQs

CProduct Support & Additional Information

• Increase the separation between the equipment and receiver;

• Connect the equipment to an outlet on a circuit dierent from that to which the receiver is connected;

• Consult the dealer or an experience radio or television technician for help.

Modications

The FCC requires the user to be notied that any changes or modications made to this device that

are not expressly approved by Actiontec Electronics, Inc, may void the user’s authority to operate the

equipment.

Declaration of conformity for products marked with the FCC logo – United States only.

This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS stan-

dard(s). Operation is subject to the following two conditions:

General Regulatory and Compliance Notices

Important Safety Instructions

If applicable, when using electronic equipment, basic safety precautions should always be followed to

reduce the risk of re, electrical shock, and personal injury, including the following:

• Do not use this product near water – for example, near a bathtub, kitchen sink, laundry tub, or swim-

ming pool, or in a wet basement.

• FCC Class B Equipment

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates,uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmfulinterference

to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment o and on, the user is encouraged to try and correct the

interference by implementing one or more of the following measures:

• Reorient or relocate the receiving antenna;
