ScreenBeam 960

Wireless Display Receiver

Quick Start Guide

This Quick Start Guide provides the instructions on how to install ScreenBeam 960

receiver, connect client devices, and setup for deployment. Refer to the support

website for the full deployment guide, latest updates, and best practices.

Before Beginning Deployment

Before deploying Actiontec ScreenBeam products, check for the latest ﬁrmware,

release documentation and tech tips.

zFor ScreenBeam receiver’s deployment guide, ﬁrmware upgrades, and release

notes, go to: https://support.screenbeam.com/960

zFor Miracast™or native macOS/iOS wireless display connection tutorial, go to:

https://www.screenbeam.com/setup

zFor ScreenBeam Central Management System (CMS) software, go to:

https://support.screenbeam.com/cms

zFor Open Source information, go to: https://opensource.actiontec.com

Package Contents

zScreenBeam 960 receiver

zPower supply

zHDMI cable

zQuick Start Guide (this document)

zRegulatory documents

Documentation

For FAQs, troubleshooting tips

and support, visit:

https://support.screenbeam.com

Need Help?

To open a ticket for support, visit:

https://support.screenbeam.com/ticket

1 | screenbeam.com

quick start guide

Requirements

Minimum System Requirements

The latest Windows 7 and later, macOS 10.10 and later, iOS 9

and later, or Android 4.2 or later with Miracast; refer to online

support for the latest list.

Network Requirements

Refer to the online support for the most recent information.

Note: Additional network conﬁguration is not required for

Wi-Fi Miracast enabled device to connect. Verify Group

Policy and ﬁrewall settings to allow Wi-Fi Direct groups or

hosted networks.

Setup Requirements

zScreenBeam 960 receiver

zDisplay with an available HDMI input

zAn ethernet network connection with DHCP IP or a

Wi-Fi router

Note: This is used for wireless display over LAN and

management.

zScreenBeam wireless display app

Note: Not required for Windows 10/8.1, macOS, and iOS

with native screen mirroring support.

2 | screenbeam.com

A. Connect Receiver to Display

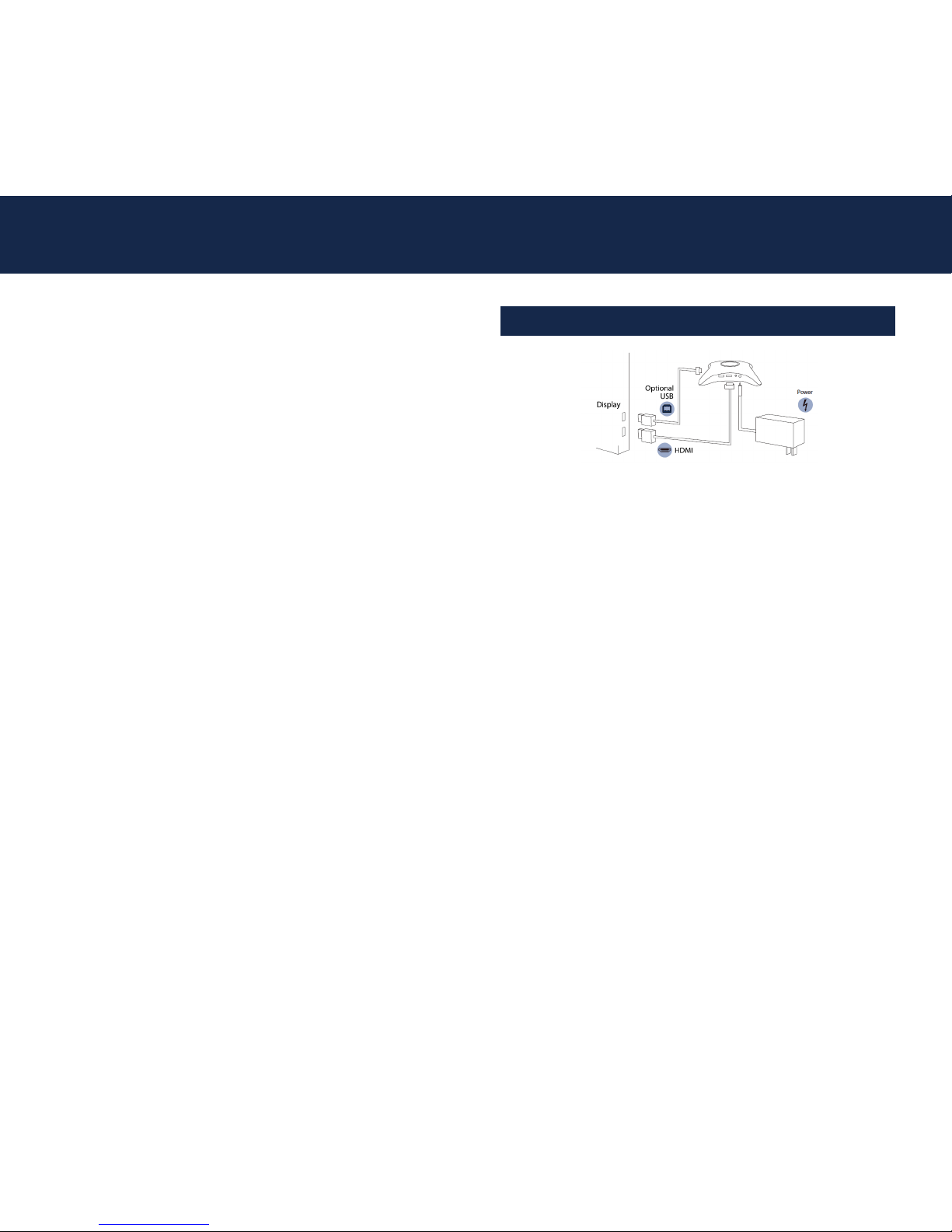

Figure 1 Connection guide

1. Place the receiver next to the display.

2. Connect one end of the provided HDMI cable to the

receiver’s HDMI port and the other end to an available HDMI

port on the display.

Note: For VGA connection details, refer to the

ScreenBeam 960 User Guide.

3. Optional: If the display has USB HID touch capability, insert

the HID USB connector into the USB port of the receiver.

(USB Cable is not included)

4. Connect the receiver’s power supply to the receiver’s power

port, then to an electrical outlet.

5. Optional: Connect one end of the Ethernet cable to the

receiver’s Ethernet port and connect the other end to

the network switch with DHCP IP. (Ethernet cable is not

included).

Note: Refer to section B for more information on setting

up a network connection.

6. Turn on the display and switch to the corresponding input

connected to the receiver.

7. Wait about 30 seconds, then verify the Ready to Connect

screen appears on the display.

ScreenBeam

™

960

screenbeam.com | 3

B. Set Up Network Connection

ScreenBeam requires network connection for various

purposes; Wireless display over LAN support and management

of the receiver. ScreenBeam can be connected to the network

via wired or Wi-Fi connection.

Wired Connection

If ScreenBeam is connected to a DHCP-enabled network, the

Ready to Connect screen will show the IP address assigned

to the ScreenBeam.

Wi-Fi connection or Static IP address

This requires additional steps to conﬁgure the receiver with the

proper network information. Detailed instructions are available

online at https://support.screenbeam.com. For initial testing

purpose, we recommend using wired network connection with

DHCP-enabled.

C. Connect Client Device

This section provides instructions on how to connect using

native screen mirroring from the most common operating

systems. Refer to www.screenbeam.com/setup for details and

instructions for all other operating systems.

Note: The web page will display the instructions based

on the client-device OS. Use the links at the bottom of the

web page to select OS-speciﬁc instructions.

Connect using Windows 10/8.1

To connect using Windows 10, follow the instructions below.

Steps for Windows 8.1 may vary.

1. Open the action center by swiping from the right side of

the touchscreen or selecting the speech bubble icon in the

lower right corner of the screen. (Windows key + K)

2. Select Connect and wait for available receiver(s) to appear.

3. Select the receiver name that matches the receiver name

shown on the Ready to Connect screen.

4. Enter in the PIN code if required. If the PIN code is not

displayed, try the hidden PIN “12345670” or contact the

admin for ScreenBeam.

5. Optional: Select the box Allow mouse, keyboard, touch,

and pen input from this device if the display panel/

projector supports interactive touch. Refer to section F for

more details on using interactive touch.

6. Optional: Select Change projection mode and choose

Extend or Duplicate if desired.

Note: To disconnect or change the projection mode,

return to the Connect menu.

quick start guide

Connect using iOS

To connect using iOS 11 or 12 on iPad or iPhone, follow the

instructions below. Steps for other iOS versions may vary.

1. Verify the iOS device’s Wi-Fi is on and connected to the

same network to which the ScreenBeam 960 is connected.

2. Open the Control Center by either swiping up from the

bottom or swiping down from the upper right corner of the

iOS device’s screen. Tap the Screen Mirroring icon and

wait for the available receiver(s) to appear.

3. Select the receiver name that matches the receiver name

shown on the Ready to Connect screen.

4. Enter in the PIN code if required.

Note: To disconnect, return to the Screen Mirroring option

in the Control Center and select Stop Mirroring.

Connect using macOS

To connect using macOS on a MacBook, follow the

instructions below. Steps for other macOS versions may vary.

1. Verify the macOS device’s Wi-Fi is on and connected to the

same network to which the ScreenBeam 960 is connected.

2. On the menu bar, select the screen mirroring icon and wait

for the available receiver(s) to appear.

Note: If the screen mirroring option icon is not visible,

go to Apple menu > System Preferences > Displays,

then select the “Show mirroring options in the menu

bar when available” check box.

3. Select the receiver name that matches the receiver name

shown on the Ready to Connect screen.

4. Enter in the PIN code if required.

5. Select Use as Separate Display option to extend the desktop.

Note: To disconnect, return to the screen mirroring menu

and select Mirroring Off.

Congratulations!

The display is now enabled for wireless screen mirroring.

The following sections cover the receiver’s management and

conﬁguration. For FAQs, troubleshooting tips and support, visit:

https://support.screenbeam.com.

4 | screenbeam.com

ScreenBeam

™

960

D. Conﬁgure ScreenBeam Receiver

ScreenBeam 960 can be conﬁgured by using the ScreenBeam

CMS software or accessing the ScreenBeam’s local

management interface (LMI).

Using ScreenBeam CMS Software

ScreenBeam Central Management System (CMS) is a highly

recommended complimentary tool for multi-unit deployment,

conﬁguration and administration.

1. To obtain CMS software and the CMS User Guide, go to:

https://support.screenbeam.com/cms.

2. Refer to the CMS User Guide for setup instructions.

Note: Access to the LMI is prohibited by default if

ScreenBeam 960 is connected to ScreenBeam CMS

for management. This option can be changed in the

receiver’s settings.

Figure 2 Receivers managed by ScreenBeam CMS

Using Local Management on ScreenBeam

Local management interface can conﬁgure and update a single

ScreenBeam. LMI is not needed when using ScreenBeam CMS.

Accessing the ScreenBeam LMI

Two methods exist to access the LMI.

Method 1: Network Connection via DHCP

1. Using a shielded RJ-45-terminated Cat5e or better Ethernet

cable, connect the ScreenBeam Ethernet port to a DHCP-

enabled network.

2. The Ready to Connect screen on the display will show the

assigned IP address of the ScreenBeam. Enter this address

into the web browser of a PC or Apple device on the same

network as the ScreenBeam.

3. The browser may give an error stating “The connection

or site is not secure or private.” Manually accept the

connection as follows:

zChrome browser: click Advanced, then click Proceed.

zEdge/IE browser: click Details, then Go on to the

web page (not recommended).

zFirefox browser: click Advanced, then click Add

Exception, then click Conﬁrm Security Exception.

4. When the ScreenBeam management page appears, enter

the Username Administrator and Password Actiontec (both

are case-sensitive).

5. Click Login, and the Device Conﬁguration page appears.

screenbeam.com | 5

quick start guide

Method 2: Wireless P2P Direct Connection

1. Using a Windows 10/8.1 device, connect the device to the

ScreenBeam per Section B above.

2. Once connected, use a web browser and enter

https://192.168.16.1 to access the LMI.

3. Follow the directions from Method 1 from Step 3 on.

Note: Sections E and F provide the necessary

conﬁgurations and customizations for deployment.

E. Customize ScreenBeam Settings

Under the Device Conﬁguration Page

Assign new Device Name

1. From the Device Name Access option, select Enable.

2. Select the Device Name text box, then enter a new name

(example: Conference TV).

Note: Each receiver should have a unique name; this

makes it easier for users to identify and connect to the

correct display. Supported naming characters are

A-Z, a-z, 0-9, -, _.

6 | screenbeam.com

Change the Administrator’s Password

1. Select the Administrator Password text box and enter

the new password.

2. Select Apply/Save button to save any changes.

Under the Features Page

Conﬁgure Force PIN Pairing Option

By default, the Force PIN Pairing option is Enabled and the PIN

code is generated randomly. A unique PIN is will be generated

each time a new user/device attempts to connect. To change

the PIN pairing type or PIN code:

1. Select either ON to force PIN or OFF to not force PIN upon

connection.

2. If Force PIN Pairing is ON, select either Each connection

or First connection only.

3. Select Random or Static for PIN code generation.

4. If Static, then enter PIN of choice. Keep note of the new

PIN for user distribution.

Note: Only the ﬁrst seven digits of the PIN can be set in

conﬁguration; the eighth digit will be automatically chosen

by the ScreenBeam and appended to the ﬁrst seven.

5. Select Apply/Save button to save any changes.

ScreenBeam

™

960

Conﬁgure HDMI/VGA Port

Power Management

By default, ScreenBeam is designed to display the Ready to

Connect screen continuously. To extend display life and/or

reduce power consumption:

1. Select either Screen Saver or Display Off.

2. Enter a desired time for setting to take effect.

3. Optional: Select a Wake up mode.

4. Select Apply/Save button to save any changes.

F. Using Interactive Touch Display

ScreenBeam 960 supports touch or pen over wireless connection

with Windows 10 for collaboration using the touch display.

System Requirements

OS: Windows 10 build version 1607 (or later)

CPU: 4th Gen Intel Core i-Series 4xxx or AMD equivalent

(or better)

RAM: 4 GB

Setup Requirements

zInteractive touch display or projector

zUSB Type-A to Type-B cable

Supported Features

zSupport USB HID display, projector, or white board

zUp to 20-point touch

zUp to four simultaneous passive pens

Works best with InGlass™Technology enabled display.

Refer to the online compatibility list at:

https://support.screenbeam.com/touch/compatibility

Setup and Instructions

1. Connect the USB Type-A end to the ScreenBeam 960

receiver’s USB port.

2. Connect the USB Type-B end to the USB Touch input on

the display or projector.

Note: If the display provides more than one touch output,

make sure the USB Type-B end is connected to the same

touch output as the HDMI input.

3. Connect Windows 10 device to ScreenBeam 960 (see

instructions in section B).

4. Start using the display by touching the screen. Launch an

app and draw using ﬁnger or pen.

screenbeam.com | 7

quick start guide ScreenBeam

™

960

PN: 0530-0796-004

ScreenBeam is a trademark of Actiontec Electronics, Inc. All other names are properties of

their respective owners. Speciﬁcations subject to change without notice. 112618

G. Deploying ScreenBeam Receiver

Please read the deployment guide for best practices and tips

before placing the ScreenBeam 960 to the site for users.

1. Unplug the power supply and HDMI cable from

ScreenBeam 960 receiver.

2. Move the receiver to its permanent location.

Note: Access to a wired or wireless LAN connection is

required.

3. Plug the HDMI cable to the receiver and the display.

4. Plug in the receiver’s power supply.

5. Switch the display to the correct input and verify the Ready

to Connect screen appears.

6. Verify the ScreenBeam 960 obtains a valid IP address.

Support Information

For FAQs, troubleshooting tips and support, visit:

https://support.screenbeam.com

To open a ticket for support, visit:

https://support.screenbeam.com/ticket

Website: www.screenbeam.com

This product is intended to be supplied by a Listed Direct

Plug-In Power Unit marked “Class 2”, Listed Power Adapter

or DC power source marked “L.P.S.” (or “Limited Power

Source”) and rated 5Vdc, 2A minimum.

Otros manuales para ScreenBeam 960

Tabla de contenidos

Otros manuales de Receptor de ActionTec

ActionTec

ActionTec SBWD100B Manual de usuario

ActionTec

ActionTec ScreenBeam 1100 Manual de usuario

ActionTec

ActionTec ScreenBeam 960 Guía de referencia rápida

ActionTec

ActionTec SBWD950A Manual de usuario

ActionTec

ActionTec ScreenBeam Pro SBWD100A EDU Manual de usuario

ActionTec

ActionTec ScreenBeam Mini 2 SBWD60A Manual de usuario

ActionTec

ActionTec ScreenBeam Mini 2 SBWD60A Manual de usuario

ActionTec

ActionTec SBWD100B Manual de usuario

ActionTec

ActionTec SBWD100B Manual de usuario

ActionTec

ActionTec SBWD100B Manual de usuario

ActionTec

ActionTec SBWD100B Manual de usuario

ActionTec

ActionTec ScreenBeam Mini2 Manual de usuario

ActionTec

ActionTec SBWD100B Manual de usuario

ActionTec

ActionTec ScreenBeam 1000 EDU Manual de usuario

ActionTec

ActionTec SBWD50A Manual de usuario

ActionTec

ActionTec MWTV3TX Manual de usuario

ActionTec

ActionTec ScreenBeam Pro Education Edition 2 Manual de usuario

ActionTec

ActionTec SBWD50A Manual de usuario

ActionTec

ActionTec SBWD50A Manual de usuario

ActionTec

ActionTec ScreenBeam Enterprise SBWD700A Manual de usuario

ActionTec

ActionTec ScreenBeam Pro SBWD100A EDU Manual de usuario

ActionTec

ActionTec ScreenBeam 1100 Manual de usuario

ActionTec

ActionTec ScreenBeam Mini Manual de usuario

ActionTec

ActionTec ScreenBeam series Manual de usuario

Manuales populares de Receptor de otras marcas

Garmin

Garmin GA 23 Manual de usuario

Aiphone

Aiphone PS-12F Manual de usuario

IMES

IMES TCS-01CA-PMI Manual de usuario

BWI Eagle

BWI Eagle AIR-EAGLE SR Manual

AMIMON

AMIMON AMN12310 WHDI Manual de usuario

Dual

Dual DMCPA79BT Instrucciones de funcionamiento

Sound Associates

Sound Associates SA652P Manual de usuario

Sherwood

Sherwood NewCastle R-772 Manual de usuario

Audio

Audio A10-RX Series Manual de usuario

AllSee

AllSee PushShare PSRV1.1 Manual de usuario

DEMAG

DEMAG DRC-DR D2 Manual de usuario

Teleco

Teleco TVRCL868A02 Manual de usuario

Bosch

Bosch RF3222E Manual de usuario

Kramer

Kramer 631R Manual de usuario

Xpress

Xpress xmc10 Manual de usuario

JVC

JVC KD-MR1BTS Manual de usuario

Omega Engineering

Omega Engineering UWTC-REC3 Manual de usuario

e-survey

e-survey E300 Pro Manual de usuario
