IP Indoor CMOS Bullet Camera

ACM-1100 series

Ver. 081208

Quick Installation Guide

0-1

0Getting Started

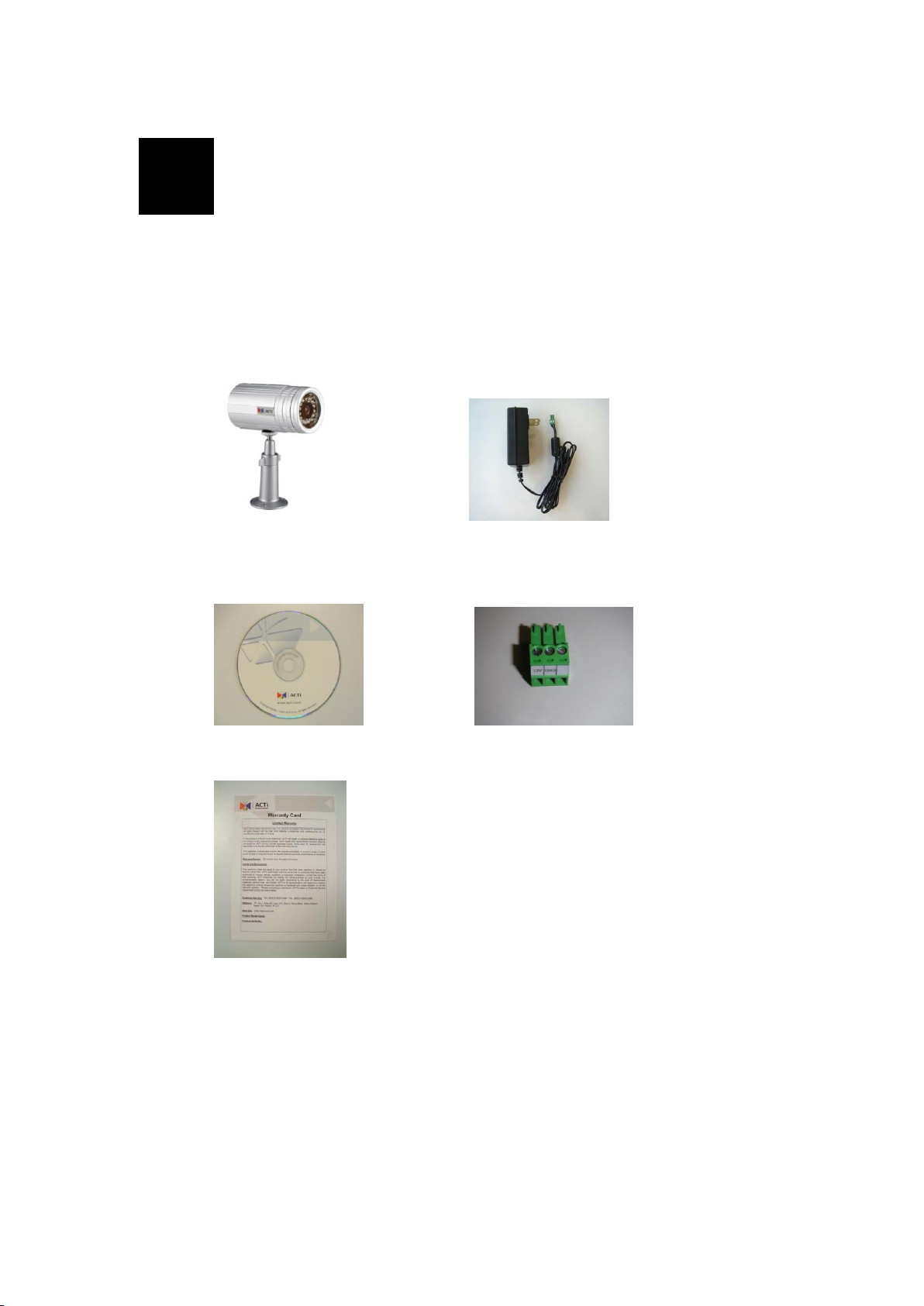

1.1 PACKAGE CONTENTS

ACM-1100 series Power Adaptor (Option)

(DC12V / PoE)

The bracket is not included

Product CD Terminal Block for Power

Warranty Card

1

0-2

1.2 PHYSICAL DESCRIPTION

1. Audio Input / Output

The IP Indoor CMOS Bullet Camera supports audio input and

output with earphone jack

2. Power Input

If your power input is DC12V. Please follow the description on

the connector to connect to power.

3. Ethernet Port

The IP Indoor CMOS Bullet Camera connects to the Ethernet via

a standard RJ45 connector. Supporting NWAY, this IP Indoor

CMOS Bullet Camera can auto detect the speed of local network

segment (10Base-T/100Base-TX Ethernet).

4. Reset Button

PIN

NAME

DESCRIPTION

1

12V

DC Power Input

2

GND

Ground Pin

0-3

Step 1: Switch off IP Indoor CMOS Bullet Camera by

disconnecting the power cable

Step 2: Press and continue to hold the Reset Button. Reconnect

the power cable while continuing to hold the reset button.

Step 3: Keep holding the reset button depressed around 6 seconds,

release the reset button. The unit will start up with factory default

settings.

5. Analog Video Output

The IP outdoor rugged dome supports one channel analog video

output.

0-4

1.3 BASIC CONNECTIONS

Follow the procedures below to connect the IP Indoor CMOS Bullet

Camera to the respective apparatuses.

1. Connect an analog monitor to IP Indoor CMOS Bullet Camera video out

(BNC connector).

2. Connect the power adaptor to IP Indoor CMOS Bullet Camera

3. Connect IP Indoor CMOS Bullet Camera’s ethernet port to an Ethernet

(RJ45 connectors). If your IP Indoor CMOS Bullet Camera has PoE

built-in, you can regard it as a PD and connect it directly to a PSE device

like PoE switch.

4. Connect a PC to the Ethernet hub (RJ45 connectors)

1

NOTE: You may find a support package for help you getting familiar

with PoE. Please visit our web site, and get the support document

TS-00040.

1-5

1Quick Tour

This section guides you with a quick tour on this IP Indoor CMOS Bullet Camera.

2.1 Configure this IP Indoor CMOS Bullet Camera

2.1.1 Make sure network environment

Default IP of this IP Indoor CMOS Bullet Camera is 192.168.0.100. Please make sure

this IP Indoor CMOS Bullet Camera and your PC are on the same network segment

before running the installation.

2

Please set the settings as below.

IP address: 192.168. 0.xxx

Subnet mask: 255.255.255. 0

(NOTE: xxx should be a number

from 1 to 254, but 100 is

excepted.)

1-6

2.1.2 Open Internal Explorer with IP address

NOTE: If your web browser is earlier than IE6, then download IE6 is

recommended.

NOTE: This IP Indoor CMOS Bullet Camera default IP address is set to

192.168.0.100

2.1.3 Login with default administrator’s account & password

NOTE: Default administrator account is set to Admin, password is set to

123456, and click button.

1-7

2.1.4 Preview the video

2.1.5 Set the new IP address

1-8

*IP Address : The default IP address is 192.168.0.100.

*Subnet Mask : The default subnet mask is 255.255.255.0

*Click button

NOTE: In your Client PC, please make sure the setting of Network

Connections Type is set to Auto Negotation, since this IP Indoor CMOS

Bullet Camera follows MII standard. Otherwise, you might not see the live

image.

IMPORTANT: After the IP address is changed, please record this IP

address. There’s no way to connect to the IP Indoor CMOS Bullet

Camera if user forgets the new IP address.

2.1.6 Check Default Video Setting

NOTE: Please make sure the TV Input (NTSC / PAL) is meet your

requirement, and click button.

2.1.7 Click Save Reboot to restore all settings and please wait about 30 seconds

for system reboot.
