ACME LED-RC8 Manual de usuario

1. General Instructions

 A profession remote controller with 4Ch. /8Ch. Switchable

 Can connect witch LED-CC or LED-PC300/100 to control passive LED fixtures

 9 different hold-color buttons for instant colors

 12 different color chases triggered by music

 32 different mix colors, including color fade

 Speed and dimmer adjustable by fader

 Full on and blackout functions

 Power supply: DC 9V 300 mA

 Dimension: 180X 130 X 50 mm

 Weight: 1 kg

Function Instructions:

Mode select Use to select Fixed Color / Chase 1 / Chase 2 / Spectrum mix mode

Fixed color

/ chase

1. In Fixed Color mode, use to select color on Red /Orange / Yellow / Green /

cyan / Blue / Purple / Magenta /White

2. In Chase 2 mode (the LED blinking), use to select 8 chase or random chase.

Chase 1 fader

In Chase 1 (the LED on) mode, use the fader to select color chases on

Standard chase / Bright chase / Mood chase / spectrum random chase /

Spectrum sequence chase / Dynamic chase / Red-Green+ Blue / Green-Red +

Blue / Blue-Red / Yellow-Blue / Red-Green / Yellow-Green

Spectrum Mix

fader Use to select 32 spectrum mix colors in Spectrum mix mode.

Speed fader Use to adjust chase speed in the range of 0.1 to 2.5 seconds

Fade Time

fader Use to adjust fade time. Fade time is amount of one color to fade in or fade out

Master fader Use to dimmer / shutter the fixture

Black out Blackout the fixture

Full on All lighting effect at once

Sound to

chase Use to receive audio signal for sound activated

Rear View:

Power Switch Turn On/Off the power

Channel Mode Switch Translate between 4 channels mode and 8 channels mode

DC Input DC 9V 300mA min

DMX Output Output DMX signal to the connected fixture

2. Address setting

Each fixture needs to have an address set to receive the data sent by the controller. There are 8

addresses that you can set for LED lightings.

Please follow the instructions below to set the address:

 Set LED-RC8 to 4 Ch. or 8 Ch. mode.

 Connecting all LED lightings to the LED-RC8 and power them on.

 Hold the “black out” button for about 5seconds until the LED blinking.

 The first lighting will be on.

 Set address for the LED lightings by pressing the chase 1-8 buttons.

 Press the “sound to chase” or “ full on” button to select other fixtures,

and addressing for them.

 Press the “black out” button for about 5 seconds to quit address setting.

3. How to Connect the unit

Please refer to the following diagram to connect the fixtures:

A. Connect with COLOR BALL/COLOR SPOT

B. Connect with COLOR PAR

Button address

Chase 1 1

Chase 2 2

Chase 3 3

Chase 4 4

Chase 5 5

Chase 6 6

Chase 7 7

Chase 8 8

Широкий ассортимент ACME на www.maxlight.ru

Tabla de contenidos

Otros manuales de Equipo de DJ de ACME

ACME

ACME LED-PAR 100 WW/CW Manual de usuario

ACME

ACME Elf Laser Manual de usuario

ACME

ACME XP-1000WZ Manual de usuario

ACME

ACME MH-575S Manual de usuario

ACME

ACME CP-56U Manual de usuario

ACME

ACME THUNDERBOLT Manual de usuario

ACME

ACME UV-9N Manual de usuario

ACME

ACME MP-90 RGBW Manual de usuario

ACME

ACME SAM-50 Manual de usuario

ACME

ACME MP-400Z IP Manual de usuario

ACME

ACME Diamonds LS-1010 RGB Manual de usuario

ACME

ACME LED-747-1W Manual de usuario

ACME

ACME BLINDER LINE 10 IP Manual de usuario

ACME

ACME AE-610 BEAM Manual de usuario

ACME

ACME ENERGY HYBRID Manual de usuario

ACME

ACME CA-DD12 II Manual de usuario

ACME

ACME LED WAVE 100 Manual de usuario

ACME

ACME GLORY PROFILE Manual de usuario

ACME

ACME MINI ELLIPSOIDAL 10 Manual de usuario

ACME

ACME Dotline360 TB-1230 QW Manual de usuario

ACME

ACME LED-BL4B Manual de usuario

ACME

ACME Ellipsoidal Manual de usuario

ACME

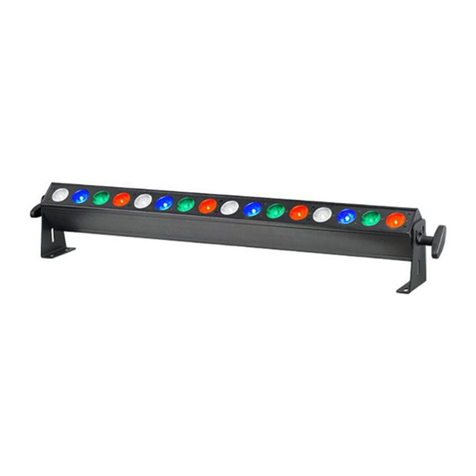

ACME CB-16FC Manual de usuario
