Secvest QuickGuide installation

Secvest QuickGuide installationSecvest QuickGuide installation

Secvest QuickGuide installation

Please observe all country-specific safety instructions. The 230 V ains

power supply should only be connected by trained specialist

personnel.



Re ove both housing screws fro the botto side of the

Secvest.



Fold the front housing side upwards and carefully pull the

ribbon cable fro the PSU.



Fix the base plate on a suitable surface using the screws and

wall plugs provided.



Overview of the base plate:

No. Description

1 Cable clamp (tension relief) for the 230 V AC mains line

2 Connection socket for the connection cable

3 230 V AC mains connection

4 Connection clamps for wired zones and outputs



Install the 230 V ains connection with the power supply

disconnected and attach the cable cla ps.



Optional:

Optional:Optional:

Optional: Install the wired detectors to the zone inputs using

the resistors provided and/or connect the relay outputs, when

required. For further infor ation, consult the installation

instructions.



Overview of the rear side of the Secvest:



Optional:

Optional:Optional:

Optional: Connection for external loudspeaker (16 Oh ) and

external icrophone -> ite no. FU5230



Optional:

Optional:Optional:

Optional: To use the integrated dialler, connect the analogue

line to the A/B connections. The return line can be connected

to A1/B1. The C/E connections are not used.

  

  

 



No. Description

1 Internal siren

2 Battery compartment

3 Internal loudspeaker

4 Connection for the analogue telephone line (PSTN)

5 Kickstart and Codes Defaulted jumper (KS + RESET)

6 Connection for external loudspeaker and microphone

7 Connection for extension modules (ISDN / GSM / ethernet /

GPRS)

8 Connecting cable between base plate and top part

9 Loudspeaker volume control

10 USB port

Ta per contact

Front and

rear side

Press the t

est

button for about

10 seconds

Press the key for

around 2 seconds

until the red LED

Press the key for

around 1 second,

then turn the knob



Insert the batteries with the correct polarity.



Close the unused cable inputs using the plugs

provided.



Suspend the centre at the top of the base plate and

reconnect the ribbon cable to the connection in the base plate. Fold

the front housing side downwards and fasten it using the two housing

screws.



Attach the ains power supply to the centre.

IMPORTANT:

When starting the centre for the first ti e, you will

be pro pted to select your language.

Secvest

SecvestSecvest

Secvest QuickGuide progra ing

QuickGuide progra ing QuickGuide progra ing

QuickGuide progra ing

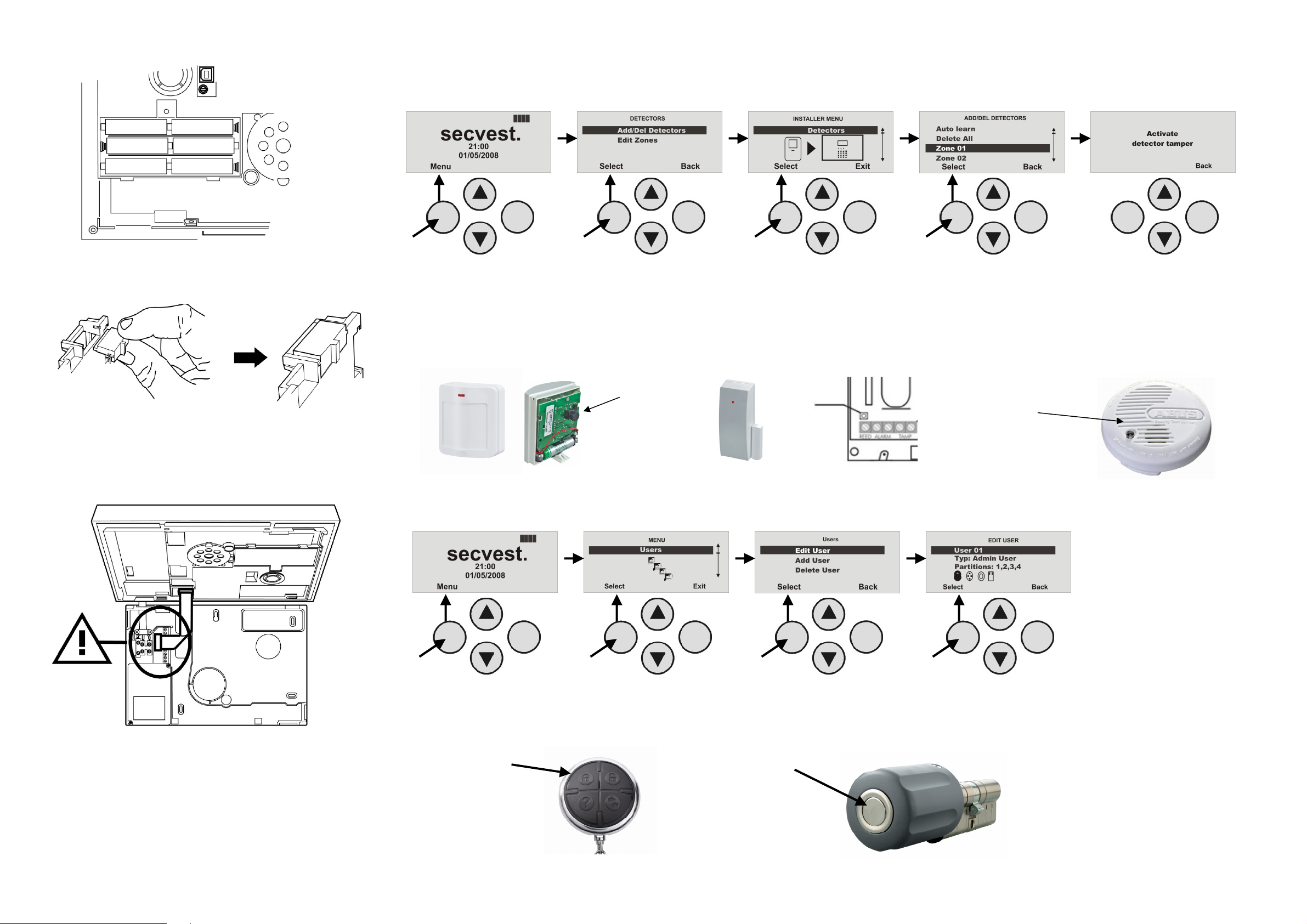

There is a difference between the installer enu and user enu when progra ing the centre. A user code and an installer code are required. To access the installer enu, press

the key under the “Menu” display. Enter your installer code (7890

78907890

7890) and then the user code (1234

12341234

1234). Follow the instructions in the display to train the wireless detector. Detailed

infor ation can be found in the installation instructions.

Insert the batteries in the detector, then press the ta per contact on the detector (open). The centre acknowledges reception with a confir ation tone.

If a false alar is triggered accidentally, then this can be acknowledged by entering the ad inistrator code (1234

12341234

1234). The syste does not react to ta per essages when the installer

enu is accessed. This eans that all detectors can be opened without triggering an alar . So e exa ples of training detectors are found below. When other detectors are used,

consult the corresponding anuals for further infor ation. Details on progra ing the zone settings can be found in the installation instructions.

The user enu ust be accessed in order to change user codes and train chip keys, wireless cylinders or re ote control units. Leave the installer enu and access the user enu by

pressing “Menu”, then entering the ad inistrator code (1234

12341234

1234).

For exa ple, select “Teleco ands” in the enu to assign a re ote control unit to this user. The SecvestKey wireless cylinder is also trained in this enu.

Tamper contact

(wall break contact)
