AAXA Technologies M2 Manual de usuario
Table of Contents 1
Warnings 2
Package Contents 3
Product Overview 4
Keypad & Remote Control Functions 5
General Operation 6
External Inputs 9
PMP Menu System 11
Videos 12
Pictures 14
Music 16
eBooks 19
Games 21
Settings 25
Troubleshooting 27
Specications 28
Table of Contents
1
Warnings
*Do not operate the Projector in direct sun-
light or near heat sources such as heaters,
res, and stoves as this may cause a re
hazard.
*Do not operate the projector close to
sources of steam or oil such as a humidi-
erasthismaycauseelectricshock.
*Do not operate the projector near water such as by the sink or bathtub
as this may cause electric shock.
*Donotblockorrestrictairowfromventilationholesasthismaycause
the projector to overheat.
*Do not place inammable materials beside the projector as this may
causearehazard.
*Do not drop the projector or allow heavy impacts or shock as this will
damage the projector.
2
Package Contents
Projector Remote Control Tripod
Composite A/V Cable USB Cable
Power Cord VGA Cable
3
Product Overview
Projection Lens
Focus Adjustment
Keypad Controls
Power Button
VGA A/V
Input Input
Headphone/
Speaker Out
USB Input SD-HC Reader
Power Input HDMI Input
4
Keypad & Remote Control Functions
Navigation Buttons
(Play = Select/Enter)
Exit/Back
(Quick Press)
Open Menu
(Long Press)
Source Select
Power On/Off
Power On/Off
Display Settings Menu
System Navigation &
Volume Controls
Flip Vertical Image
Flip Horizontal Image
Media Player Menu
Select Source
Mute Sound
Adjust Vertical Keystone
PMP Volume Up
PMP Menu Navigation
PMP Volume Down
5
General Operation
Turning on the projector
To turn on the projector rst plug the power supply into a suitable wall outlet
and to the rear of the projector. Then power the projector on by holding the
power button for 3 seconds until the optical engine turns on.
Shutting down the projector
To shut down the projector, press and hold the power button for 3 sec. The
optical engine should shut off and the fan should stop spinning.
Adjusting focus
To adjust the focus, spin the focus wheel up or down
until the image becomes clear. The recommended
focus distance for this projector is 18” to innity.
Projection lens
The projection lens emits the image from the projector. Make sure there is
nothing obstructing the lens to obtain a clear image.
Keypad Controls
Use the keypad control buttons to navigate through
each menu. The control panel behaves differently in
each submenu. Controls for submenus are explained
later in this manual.
6
General Operation

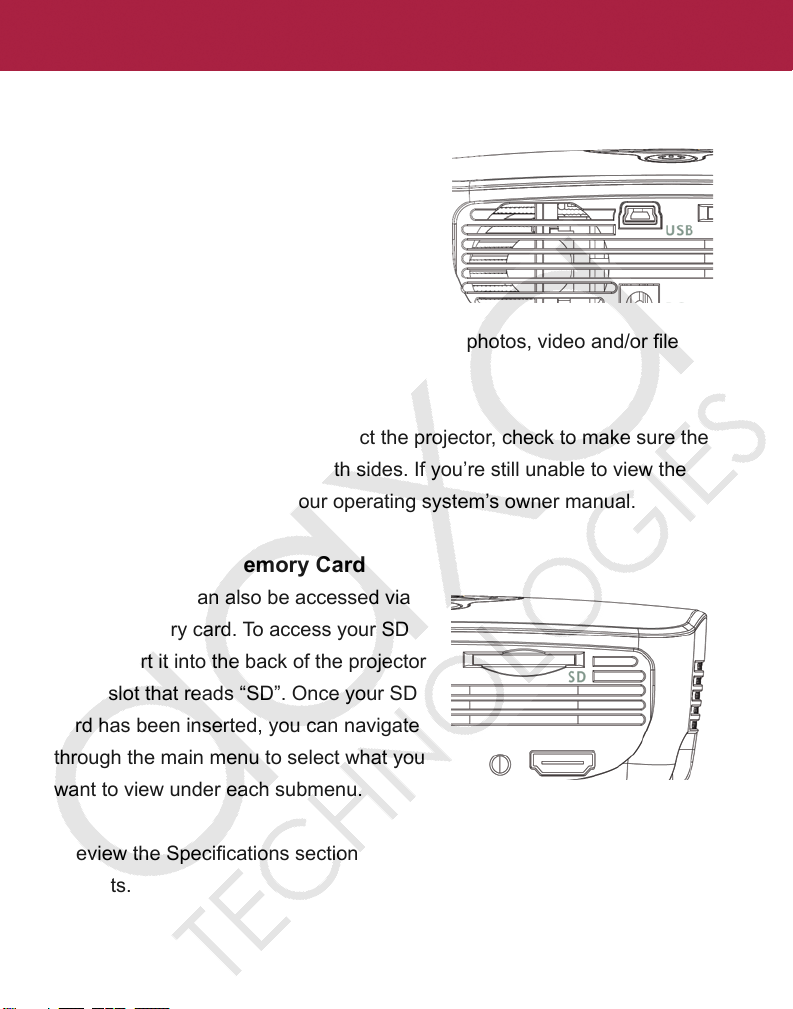

Accessing the Onboard Memory
The M2 Micro Projector includes 1GB of
onboard memory. To access this memory,
connect a USB cable from your computer
to the back of the projector in the slot that
reads “USB”. A folder will appear on your
computer screen after the projector is
detected. You can store any type of supported photos, video and/or les in
this folder to view.
Note: If your computer fails to detect the projector, check to make sure the
cable is securely inserted on both sides. If you’re still unable to view the
folder, please consult with your operating system’s owner manual.
Accessing a SD Memory Card
Multimedia le can also be accessed via
an SD memory card. To access your SD
card, insert it into the back of the projector
in the slot that reads “SD”. Once your SD
card has been inserted, you can navigate
through the main menu to select what you
want to view under each submenu.
*Review the Specications section of this manual to read about supported le
formats.
7
General Operation
Accessing a USB Storage Device
In addition to data transfer with the
onboard memory, the M2 has the ability to
read data from a USB storage devices
(such as memory sticks, cell phones, USB
hard drives, etc). This allows the user to
view the data stored on the USB storage
device through the onboard media player.
To access data on your USB storage device,
plug your USB device into the USB slot on the back of the M2. The supplied
mini USB adapter cable may be required for some USB thumbdrives.
Once the connection is made, select USB Host Mode in one of the PMP me-
dia players submenus (Videos, Photos, etc). After selecting USB Host Mode
you should now be able to access the data on the USB device through the
onboard media player. If the data does not appear, check the formating of
the le system on the USB device and also conrm that the device is com-
patible with a USB On-The-Go host device.
8
External Inputs
The M2 micro projector can be toggled to accept different types of inputs.
This includes VGA (Mini VGA), HDMI and Composite Video (3.5mm jack). To
toggle through the sources, press the far right button on touchpad or the
input button on the remote control to select the appropriate source.
To Connect to a VGA Source
The projector can accept a VGA input signal.
Connect the VGA cable to your source and
the other end should be inserted in the slot
on the side of the projector that reads ‘VGA’.
Toggle through the input sources and once
you select VGA input, your display should
appear.
Important: Be sure to setup the computer to enable a video signal output.
On some laptops this is done by pressing and holding Function F5 Key. If
using the M2 as an external monitor on Windows based systems, this can be
done by selecting “extend my desktop to this monitor”. The native resolution
of the M2 projector is XGA (1024 x 768) and it accepts up to a 1600x1200
signal. Depending on the video driver different resolutions many need to be
selected for proper output.
Note: Each computer system is different - please check with your owner’s
manual for how to properly output video signals. Some Apple computers may
requre a DVI to VGA adapter.
9
External Inputs
To Connect to a Composite Video Source
The projector can accept a compositive video
signal. This signal is comes through the 3.5mm
composite A/V cable. Connect the composite
A/V able to the projector and the other end into
the video source. Toggle through the input
sources and once you select AV input, your
display should appear.
To Connect to an HDMI Source
The projector can accept a digital HDMI input
signal. This is done by connecting the HDMI
cable to the HDMI input port of the projector.
Toggle through the input sources and once you
select HDMI input, your display should appear.
The M2 accepts up to a HDMI 1.2 signal.
10
